AV-8

ECU DIAGNOSIS  .......................................

372

AV CONTROL UNIT  ........................................

372

Reference Value  ....................................................

372

Wiring Diagram  ......................................................

378

DTC Index  .............................................................

400

DISPLAY UNIT  ................................................

402

Reference Value  ....................................................

402

BOSE SPEAKER AMP  ....................................

405

Reference Value  ....................................................

405

REAR VIEW CAMERA CONTROL UNIT  ........

407

Reference Value  ....................................................

407

DVD PLAYER  ..................................................

409

Reference Value  ....................................................

409

SYMPTOM DIAGNOSIS  ............................

411

MULTI AV SYSTEM .........................................

411

Symptom Table  .....................................................

411

NORMAL OPERATING CONDITION  ..............

413

Description .............................................................

413

PRECAUTION ............................................

421

PRECAUTIONS  ...............................................

421

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................

421

Precaution for Trouble Diagnosis  ..........................

421

Precaution for Harness Repair  ..............................

421

PREPARATION ..........................................

422

PREPARATION  ...............................................

422

Commercial Service Tools .....................................

422

ON-VEHICLE REPAIR ...............................

423

AV CONTROL UNIT  ........................................

423

Removal and Installation  .......................................

423

DISPLAY UNIT  ................................................

424

Removal and Installation .......................................

424

FRONT TWEETER  ...........................................

425

Removal and Installation .......................................

425

FRONT DOOR SPEAKER ................................

426

Removal and Installation .......................................

426

REAR DOOR SPEAKER  ..................................

427

Removal and Installation .......................................

427

BOSE SPEAKER AMP .....................................

428

Removal and Installation .......................................

428

WOOFER ..........................................................

429

Removal and Installation .......................................

429

DVD ENTERTAINMENT SYSTEM  ...................

430

Removal and Installation .......................................

430

AUDIO ANTENNA  ............................................

431

Location of Antenna  ..............................................

431

Window Antenna Repair  .......................................

431

GPS ANTENNA  ................................................

432

Removal and Installation .......................................

432

NAVI CONTROL UNIT  .....................................

433

Removal and Installation .......................................

433

SATELLITE RADIO ANTENNA  .......................

434

Removal and Installation .......................................

434

STEERING SWITCH .........................................

435

Removal and Installation .......................................

435

MICROPHONE .................................................

436

Removal and Installation .......................................

436

TEL ANTENNA .................................................

437

Removal and Installation .......................................

437

REAR VIEW CAMERA  .....................................

438

Removal and Installation .......................................

438

REAR VIEW CAMERA CONTROL UNIT  .........

439

Removal and Installation .......................................

439

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-9

< BASIC INSPECTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

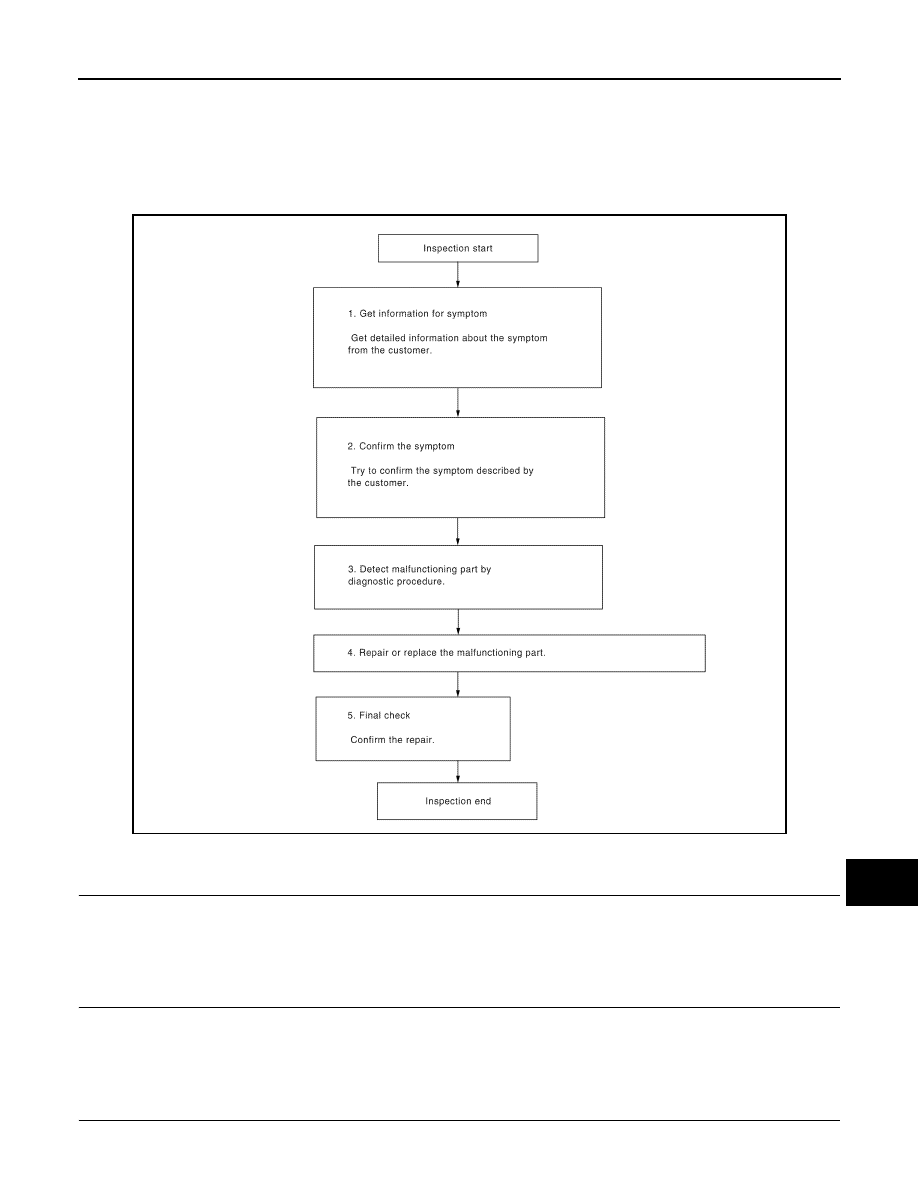

Work Flow

INFOID:0000000001499922

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV-10

< BASIC INSPECTION >

[BASE AUDIO]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.

Has the symptom been repaired?

YES

>> Inspection End.

NO

>> GO TO 2

AV

AUDIO SYSTEM

AV-11

< FUNCTION DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

AUDIO SYSTEM

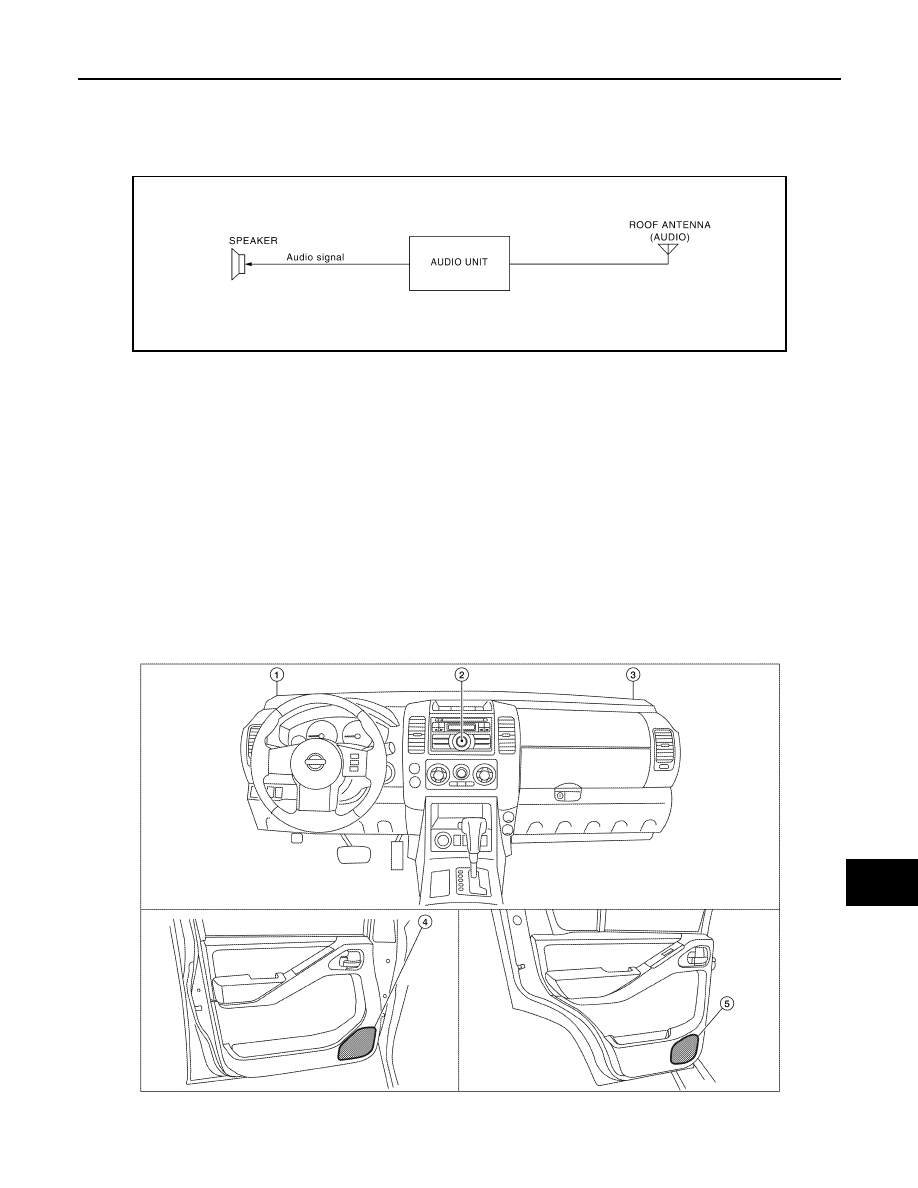

System Diagram

INFOID:0000000001499923

System Description

INFOID:0000000001499924

AUDIO SYSTEM

The audio system consists of the following components
• Audio unit
• Roof antenna (audio)
• Front door speakers
• Front tweeters
• Rear speakers
When the audio system is on, radio signals are received by the window antenna. The audio unit then sends
audio signals to the front door speakers, front tweeters and rear speakers.
Refer to Owner's Manual for audio system operating instructions.

Component Parts Location

INFOID:0000000001499925

AWNIA0134GB

ALNIA0554GB

AV-12

< FUNCTION DIAGNOSIS >

[BASE AUDIO]

AUDIO SYSTEM

Component Description

INFOID:0000000001499926

1.

Front tweeter LH M109

2.

Audio unit M42

3.

Front tweeter RH M111

4.

Front door speaker
LH D12
RH D112

5.

Rear door speaker
LH D207
RH D307

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

Front door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio unit
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

AV

POWER SUPPLY AND GROUND CIRCUIT

AV-13

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

AUDIO UNIT

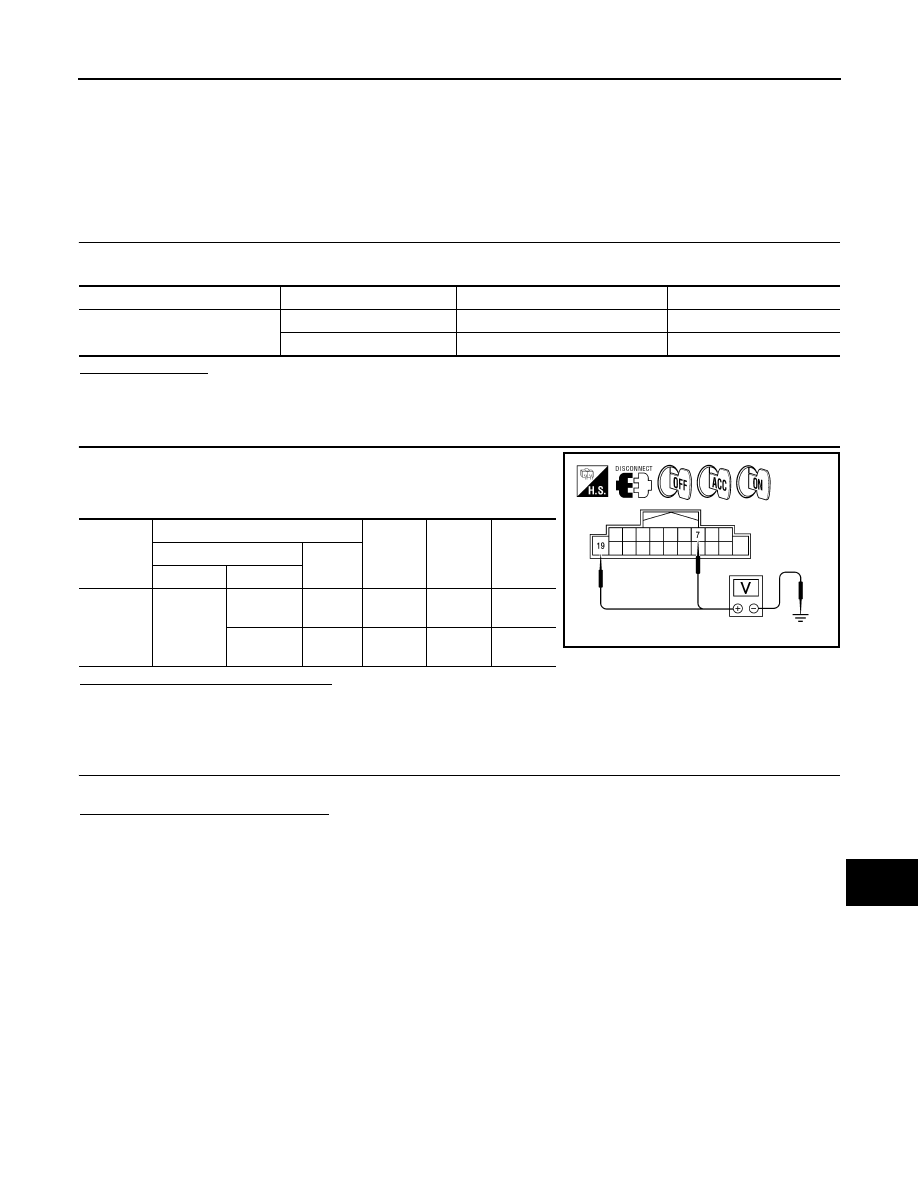

AUDIO UNIT : Diagnosis Procedure

INFOID:0000000001499928

1.

CHECK FUSES

Check that the following fuses are not blown.

Are the fuses OK?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect audio unit connector M42.

2.

Check voltage between the audio unit connector M42 and
ground.

Are the voltage results as specified?

YES

>> GO TO 3

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

GROUND CIRCUIT CHECK

Inspect audio unit case ground.

Does case ground pass inspection?

YES

>> Inspection End.

NO

>> Repair audio unit case ground.

Unit

Terminals

Signal name

Fuse No.

Audio unit

19

Battery power

29

7

Ignition switch ACC or ON

4

Unit

Terminal No.

OFF

ACC

ON

(+)

(-)

Connector

Terminal

Audio unit

M42

19

Ground

Battery
voltage

Battery
voltage

Battery
voltage

7

Ground

0V

Battery
voltage

Battery
voltage

WKIA5769E

AV-14

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Description

INFOID:0000000001499930

The audio unit sends audio signals to the front door speakers using the front door speaker circuits.

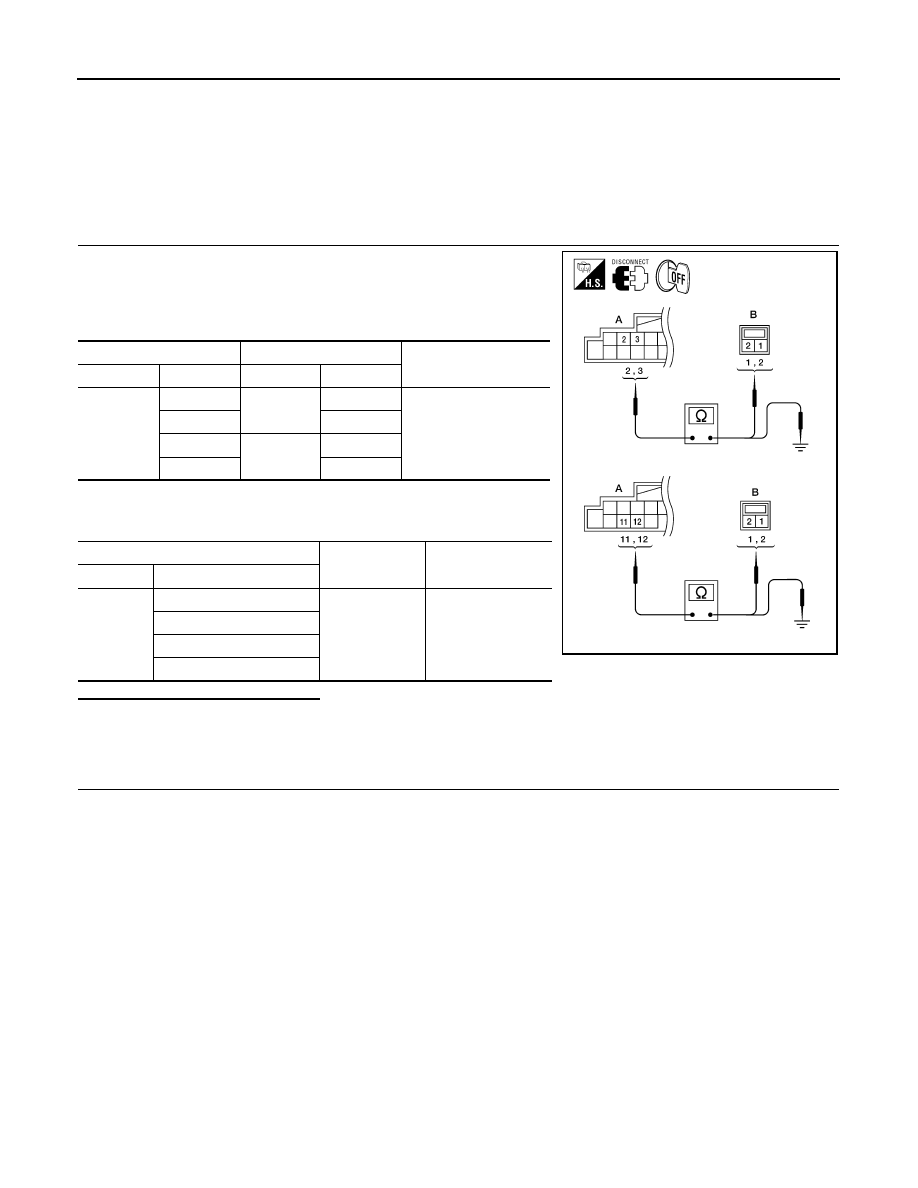

Diagnosis Procedure

INFOID:0000000001499931

1.

HARNESS CHECK

1.

Disconnect audio unit connector M42 (A) and suspect speaker
connector (B).

2.

Check continuity between audio unit harness connector M42 (A)
terminal and suspect speaker harness connector (B) terminal.

3.

Check continuity between audio unit harness connector M42 (A)
terminal and ground.

Are continuity results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

FRONT SPEAKER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

M42

2

D12

1

Yes

3

2

11

D112

1

12

2

Continuity

Connector

Terminal

M42

2

Ground

No

3

11

12

AWNIA0031ZZ

AV

FRONT DOOR SPEAKER

AV-15

< COMPONENT DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

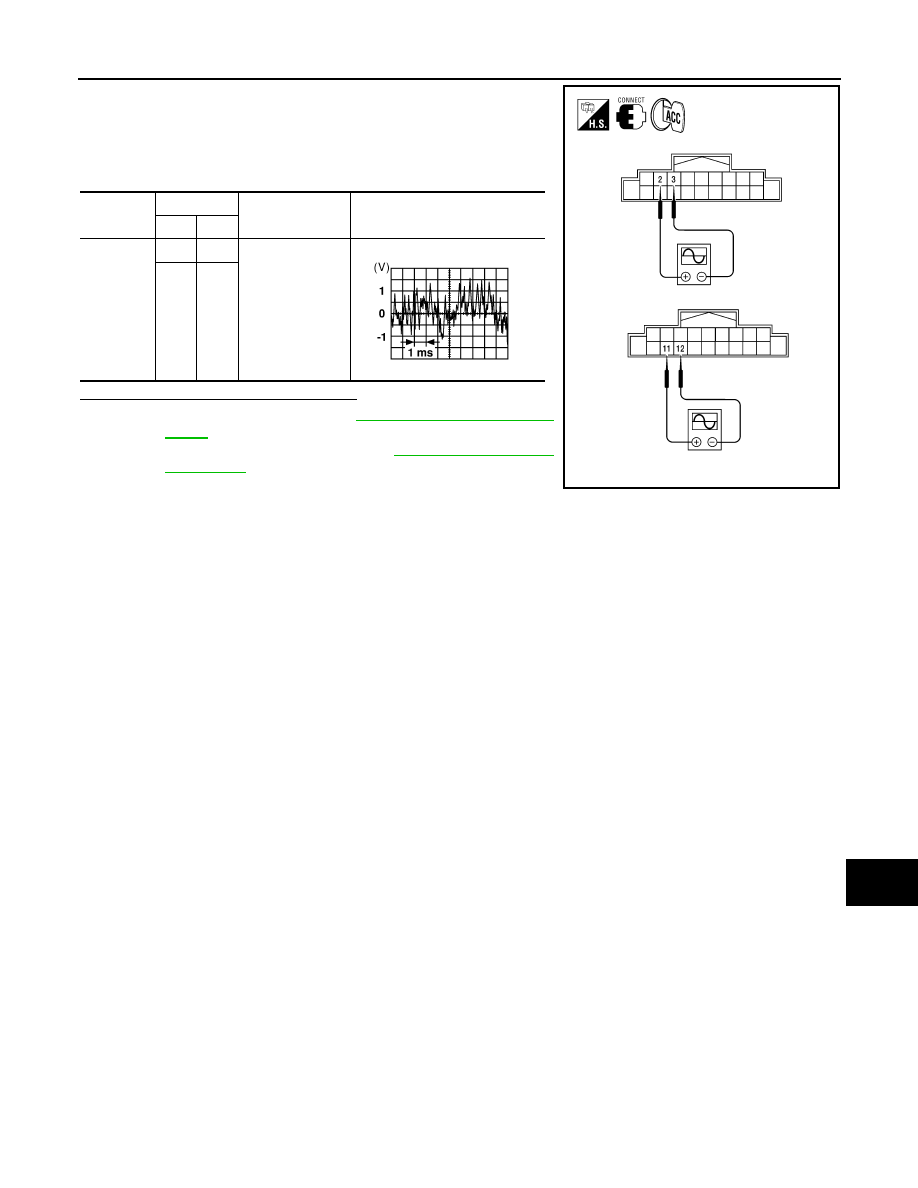

1.

Connect audio unit connector and front speaker connector.

2.

Turn ignition switch to ACC.

3.

Push “POWER” switch.

4.

Check the signal between audio unit harness connector termi-
nals with CONSULT-III or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace speaker. Refer to

AV-34, "Removal and Instal-

lation"

.

NO

>> Replace audio unit. Refer to

AV-31, "Removal and

Installation"

.

Connector

Terminal

Condition

Reference

signal

(+)

(-)

M42

2

3

Receive audio
signal

11

12

AWNIA0032ZZ

SKIA0177E
