PRE-INSPECTION FOR DIAGNOSTIC

ADP-123

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Check for the following.
• Mechanism deformation or pinched foreign materials.
• Interference with other parts because of poor installation.

Is any malfunction present in the relevant parts?

YES

>> Go to SYMPTOM 3, refer to

ADP-118, "Symptom Table"

.

NO

>> Repair or replace the malfunctioning part.

ADP-124

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000001711112

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001711113

Tool number
(Kent-Moore No.)
Tool name

Description

—

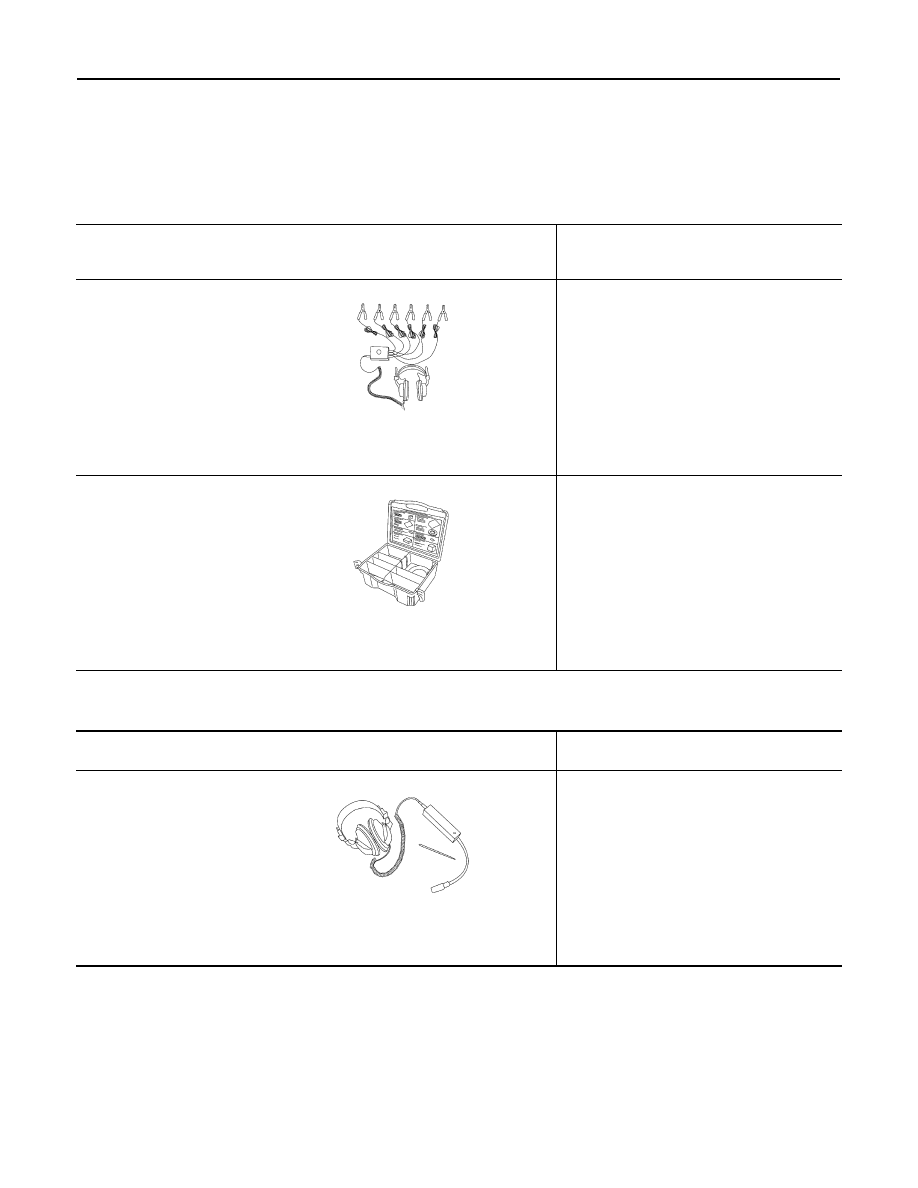

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

DRIVER SEAT CONTROL UNIT

ADP-125

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ON-VEHICLE REPAIR

DRIVER SEAT CONTROL UNIT

Removal and Installation

INFOID:0000000001712094

Refer to

SE-32, "Exploded View"

 for removal and installation of driver seat control unit.

ADP-126

< ON-VEHICLE REPAIR >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation

INFOID:0000000001712558

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the battery negative terminal.

2.

Remove the instrument driver lower panel. Refer to

IP-10, "Removal and Installation"

.

3.

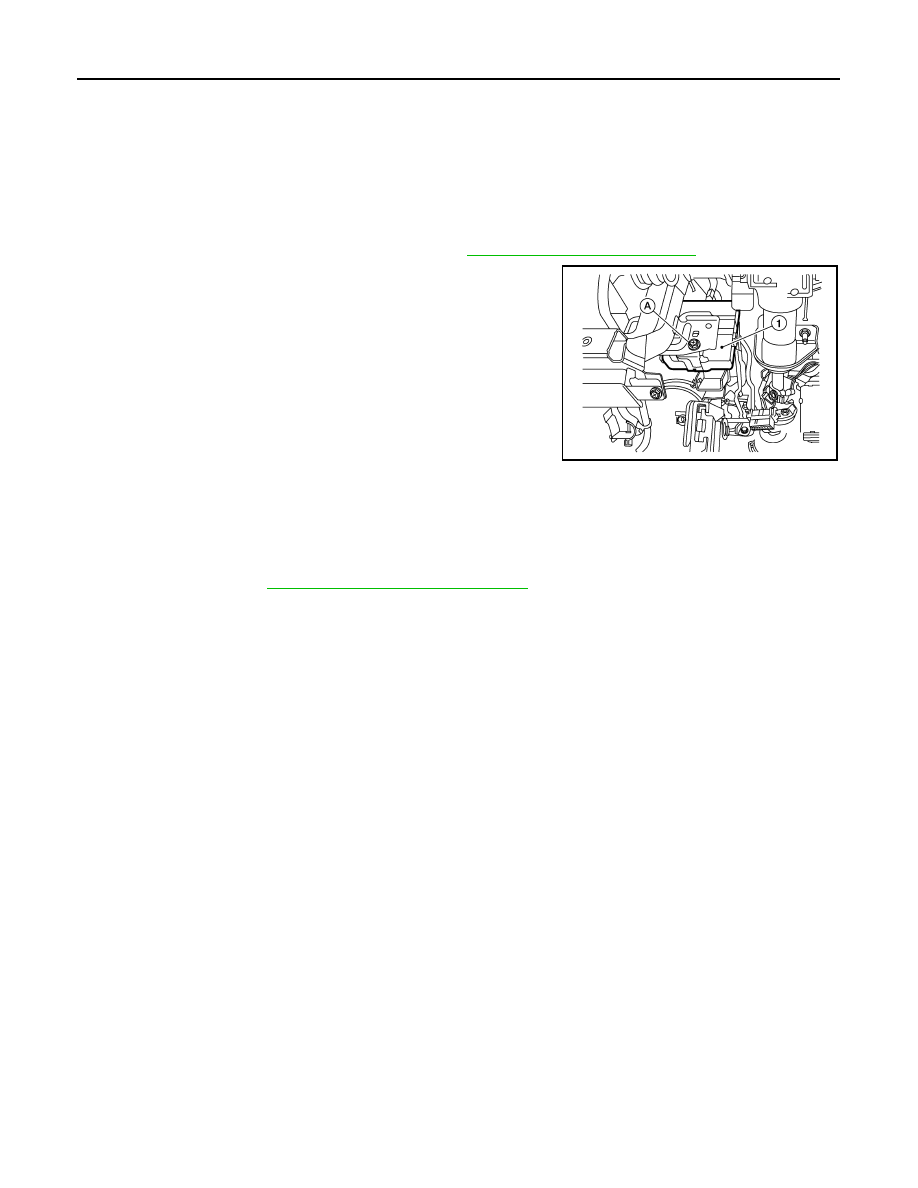

Remove the screw (A).

4.

Remove automatic drive positioner control unit (1) from bracket
and disconnect electrical connectors.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Clamp the harness in position.
NOTE:
After installing the automatic drive positioner control unit, perform additional service when removing battery
negative terminal. Refer to

ADP-7, "Special Repair Requirement"

.

ALIIA0210GB

SEAT MEMORY SWITCH

ADP-127

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000001712096

Refer to

INT-10, "Removal and Installation"

 for removal and installation of driver seat control unit.

ADP-128

< ON-VEHICLE REPAIR >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000001712097

Refer to

MIR-13, "Door Mirror Assembly"

 for removal and installation of door mirror remote control switch.

PEDAL ADJUSTING MOTOR

ADP-129

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

PEDAL ADJUSTING MOTOR

Removal and Installation

INFOID:0000000001711114

Refer to

ACC-4, "Removal and Installation"

 for accelerator pedal and

BR-15, "Removal and Installation"

 for

brake pedal when removing pedal adjusting motors.
