DOOR MIRROR MOTOR

ADP-91

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Door mirror RH

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace automatic drive positioner control unit.

4.

 CHECK DOOR MIRROR MOTOR

Check door mirror motor.
Refer to

ADP-91, "Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-51, "Intermittent Incident"

.

NO

>> Replace door mirror. Refer to

MIR-13, "Door Mirror Assembly"

.

Component Inspection

INFOID:0000000001711092

1.

 CHECK DOOR MIRROR MOTOR-I

Check that door mirror motor does not trap foreign objects and does not have any damage.
Refer to

MIR-13, "Door Mirror Assembly"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace door mirror.Refer to

MIR-13, "Door Mirror Assembly"

.

2.

 CHECK DOOR MIRROR MOTOR-II

1.

Turn ignition switch OFF.

2.

Disconnect door mirror.

3.

Apply 12V to each power supply terminal of door mirror motor.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror. Refer to

MIR-13, "Door Mirror Assembly"

.

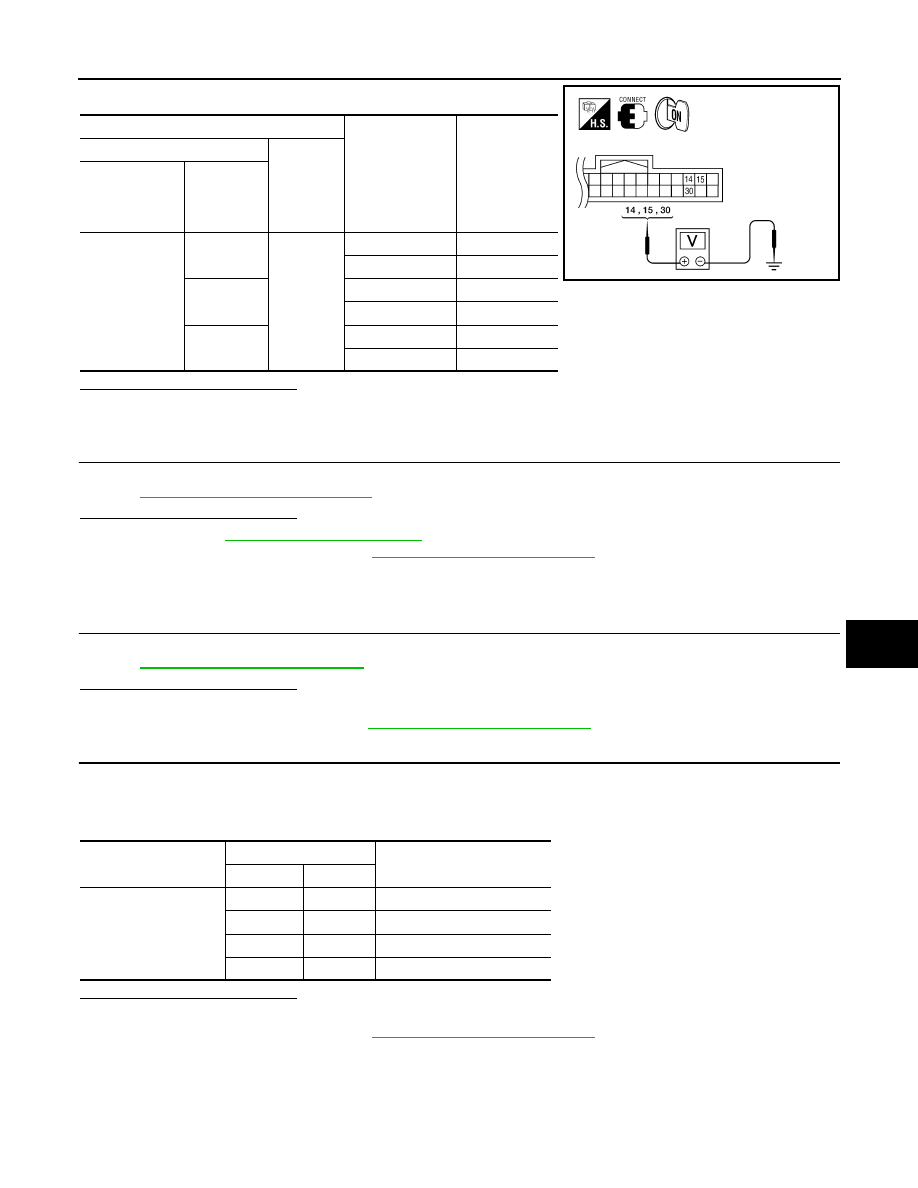

Terminals

Mirror switch con-

dition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner con-

trol unit connec-

tor

Terminal

M33

14

Ground

UP

Battery voltage

Other than above

0

15

LEFT

Battery voltage

Other than above

0

30

DOWN / RIGHT

Battery voltage

Other than above

0

ALJIA0198ZZ

Door mirror connector

Terminal

Operational direction

(+)

(–)

D4 (LH)

D107 (RH)

8

2

RIGHT

2

8

LEFT

3

8

UP

8

3

DOWN

ADP-92

< COMPONENT DIAGNOSIS >

SEAT MEMORY INDICATOR LAMP

SEAT MEMORY INDICATOR LAMP

Description

INFOID:0000000001711093

• Memory switch is equipped on the seat memory switch installed to the driver side door trim. The operation

signal is inputted to the automatic drive positioner control unit when the memory switch is operated.

• The status of automatic drive positioner system can be checked according to the illuminating/flashing status.

Component Function Check

INFOID:0000000001711094

1.

 CHECK FUNCTION

1.

Select “MEMORY SW INDCTR” in “Active test” mode with CONSULT-III.

2.

Check the memory indicator operation.

Is the operation of relevant parts normal?

YES

>> INSPECTION END

NO

>> Perform diagnosis procedure. Refer to

ADP-92, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001711095

1.

 CHECK SEAT MEMORY INDICATOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect automatic drive positioner control unit and seat
memory switch.

3.

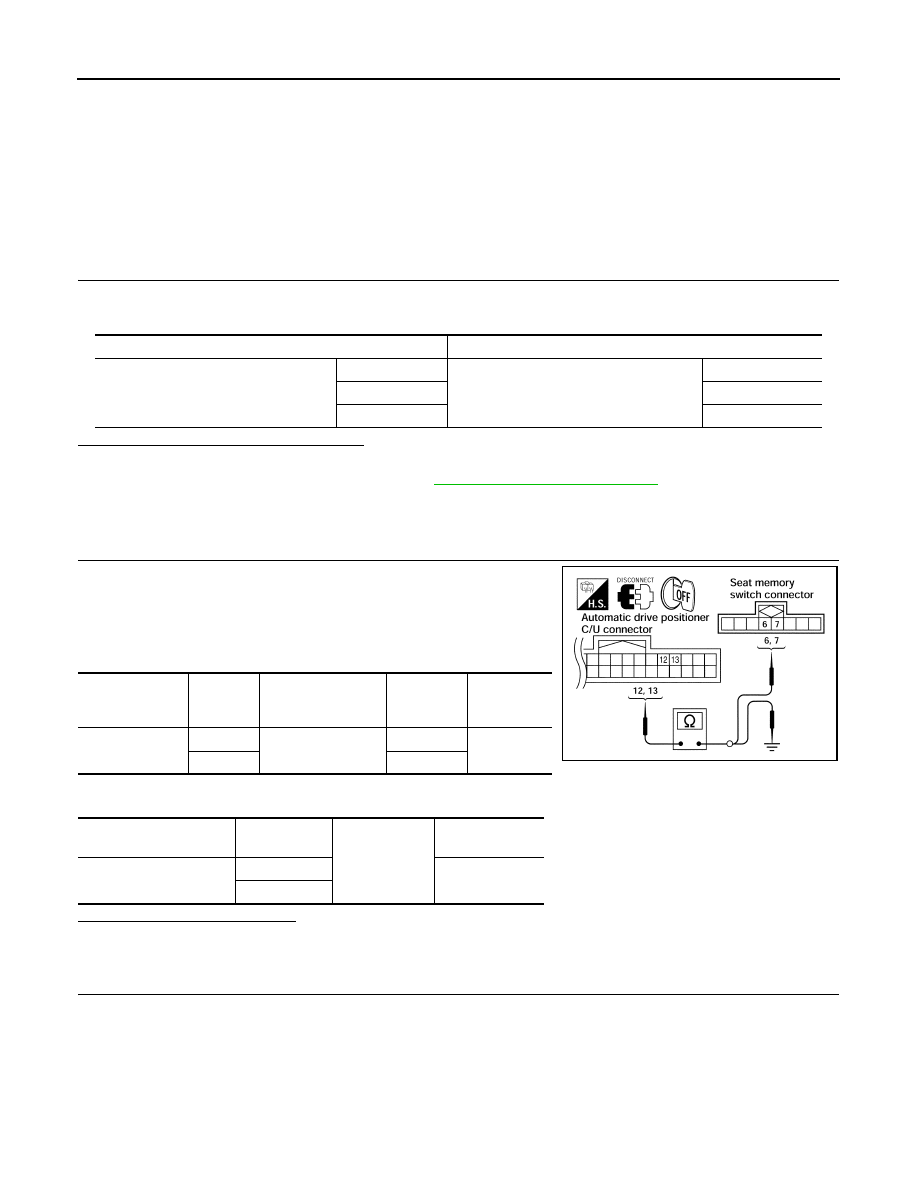

Check continuity between automatic drive positioner control unit
harness connector and seat memory switch harness connector.

4.

Check continuity between automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK MEMORY INDICATOR POWER SUPPLY

Test item

Description

MEMORY SW INDCTR

OFF

Memory switch indicator

OFF

ON-1

Indicator 1: ON

ON-2

Indicator 2: ON

Automatic drive

positioner control

unit connector

Terminal

Seat memory switch

connector

Terminal

Continuity

M33

12

D5

6

Yes

13

7

Automatic drive position-

er connector

Terminal

Ground

Continuity

M33

12

No

13

LIIA1022E

SEAT MEMORY INDICATOR LAMP

ADP-93

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

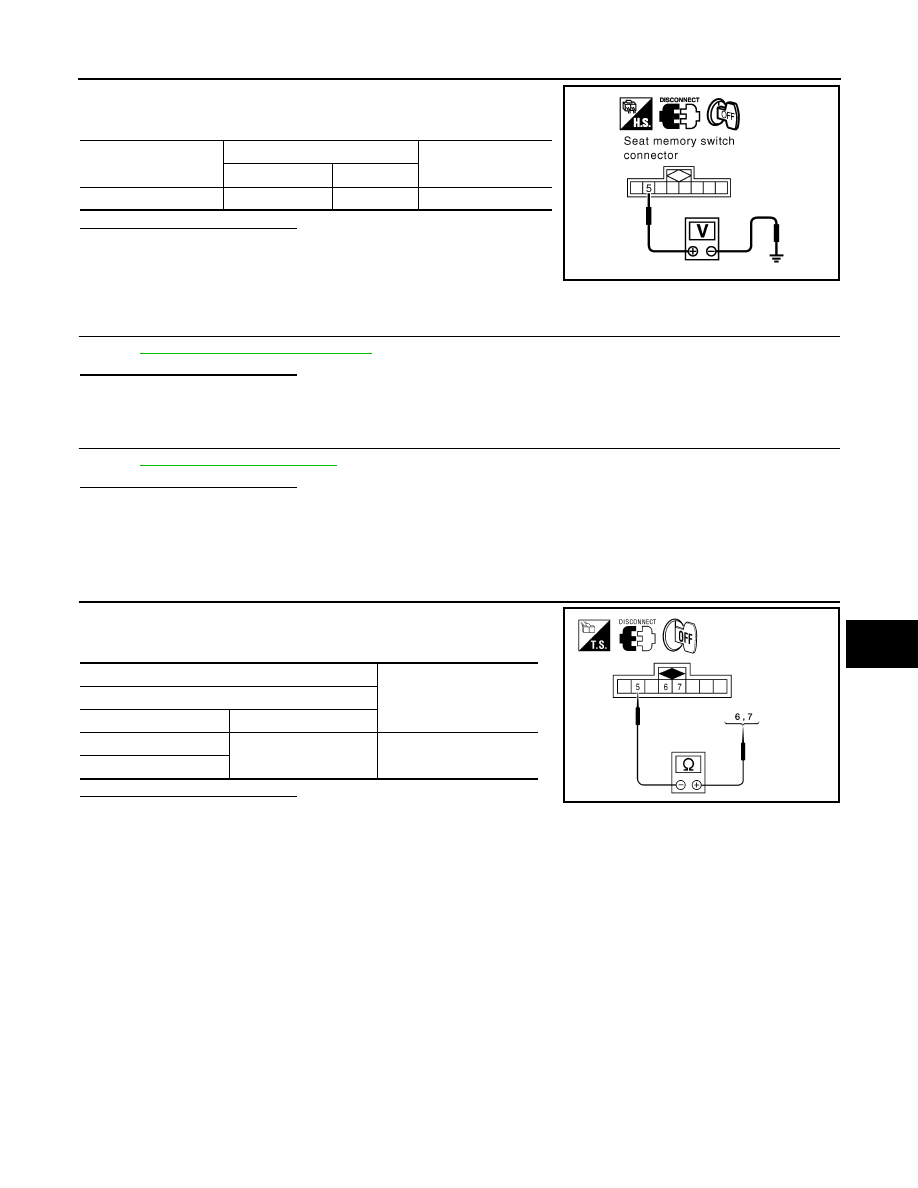

Check voltage between seat memory switch harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>>

Check the following.

• Fuse
• Harness for open or short between memory indicator and fuse.

3.

 CHECK MEMORY INDICATOR

Refer to

ADP-93, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace seat memory switch.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-51, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000001711096

1.

 CHECK SEAT MEMORY INDICATOR

1.

Disconnect seat memory switch.

2.

Check continuity between seat memory switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace seat memory switch.

Seat memory switch

connector

Terminals

Voltage (V)

(Approx.)

(+)

(–)

D5

5

Ground

Battery voltage

PIIA4595E

Terminal

Continuity

Seat memory switch

(+)

(-)

6

5

Yes

7

ALJIA0200ZZ

ADP-94

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

ECU DIAGNOSIS

DRIVER SEAT CONTROL UNIT

Reference Value

INFOID:0000000001711097

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

Monitor Item

Condition

Value/Status

SET SW

Set switch

Push

ON

Release

OFF

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SLIDE SW–FR

Sliding switch (front)

Operate

ON

Release

OFF

SLIDE SW–RR

Sliding switch (rear)

Operate

ON

Release

OFF

RECLN SW–FR

Reclining switch (front)

Operate

ON

Release

OFF

RECLN SW–RR

Reclining switch (rear)

Operate

ON

Release

OFF

LIFT FR SW–UP

Lifting switch front (up)

Operate

ON

Release

OFF

LIFT FR SW–DN

Lifting switch front (down)

Operate

ON

Release

OFF

LIFT RR SW–UP

Lifting switch rear (up)

Operate

ON

Release

OFF

LIFT RR SW–DN

Lifting switch rear (down)

Operate

ON

Release

OFF

MIR CON SW–UP

Mirror switch

Up

ON

Other than above

OFF

MIR CON SW–DN

Mirror switch

Down

ON

Other than above

OFF

MIR CON SW–RH

Mirror switch

Right

ON

Other than above

OFF

MIR CON SW–LH

Mirror switch

Left

ON

Other than above

OFF

MIR CHNG SW–R

Changeover switch

Right

ON

Other than above

OFF

MIR CHNG SW–L

Changeover switch

Left

ON

Other than above

OFF

PEDAL SW-FR

Pedal adjusting switch

Forward

ON

Other than above

OFF

PEDAL SW-RR

Pedal adjusting switch

Backward

ON

Other than above

OFF

DRIVER SEAT CONTROL UNIT

ADP-95

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

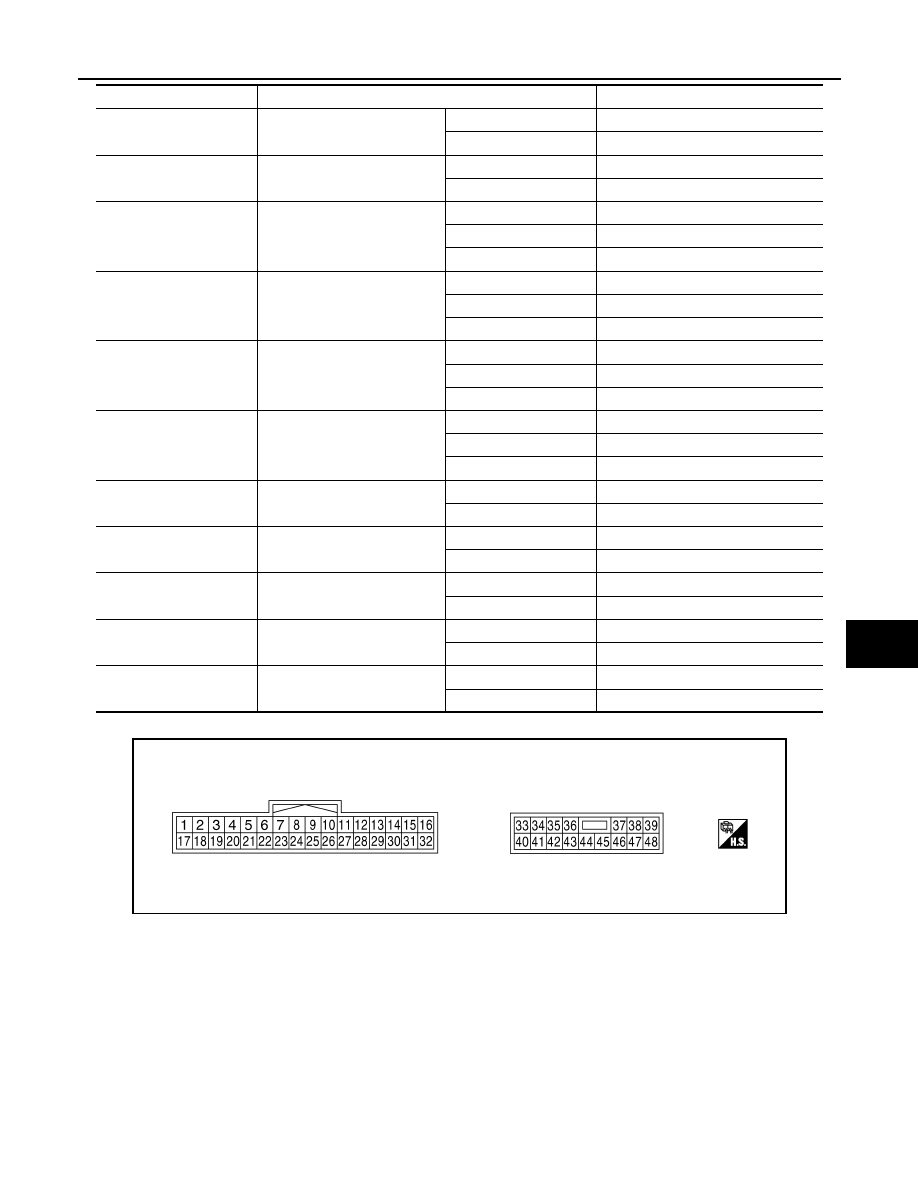

TERMINAL LAYOUT

PHYSICAL VALUES

DETENT SW

AT selector lever

P position

OFF

Other than above

ON

STARTER SW

Ignition position

Cranking

ON

Other than above

OFF

SLIDE PULSE

Seat sliding

Forward

The numeral value decreases

Backward

The numeral value increases

Other than above

No change to numeral value

RECLN PULSE

Seat reclining

Forward

The numeral value decreases

Backward

The numeral value increases

Other than above

No change to numeral value

LIFT FR PULSE

Seat lifter (front)

Up

The numeral value decreases

Down

The numeral value increases

Other than above

No change to numeral value

LIFT RR PULSE

Seat lifter (rear)

Up

The numeral value decreases

Down

The numeral value increases

Other than above

No change to numeral value

MIR/SEN RH U–D

Door mirror (passenger side)

Close to peak

3.4

Close to valley

0.6

MIR/SEN RH R–L

Door mirror (passenger side)

Close to left edge

3.4

Close to right edge

0.6

MIR/SEN LH U–D

Door mirror (driver side)

Close to peak

3.4

Close to valley

0.6

MIR/SEN LH R–L

Door mirror (driver side)

Close to left edge

0.6

Close to right edge

3.4

PEDAL SEN

Pedal position

Forward

0.5

Backward

4.5

Monitor Item

Condition

Value/Status

JMJIA0199ZZ

ADP-96

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

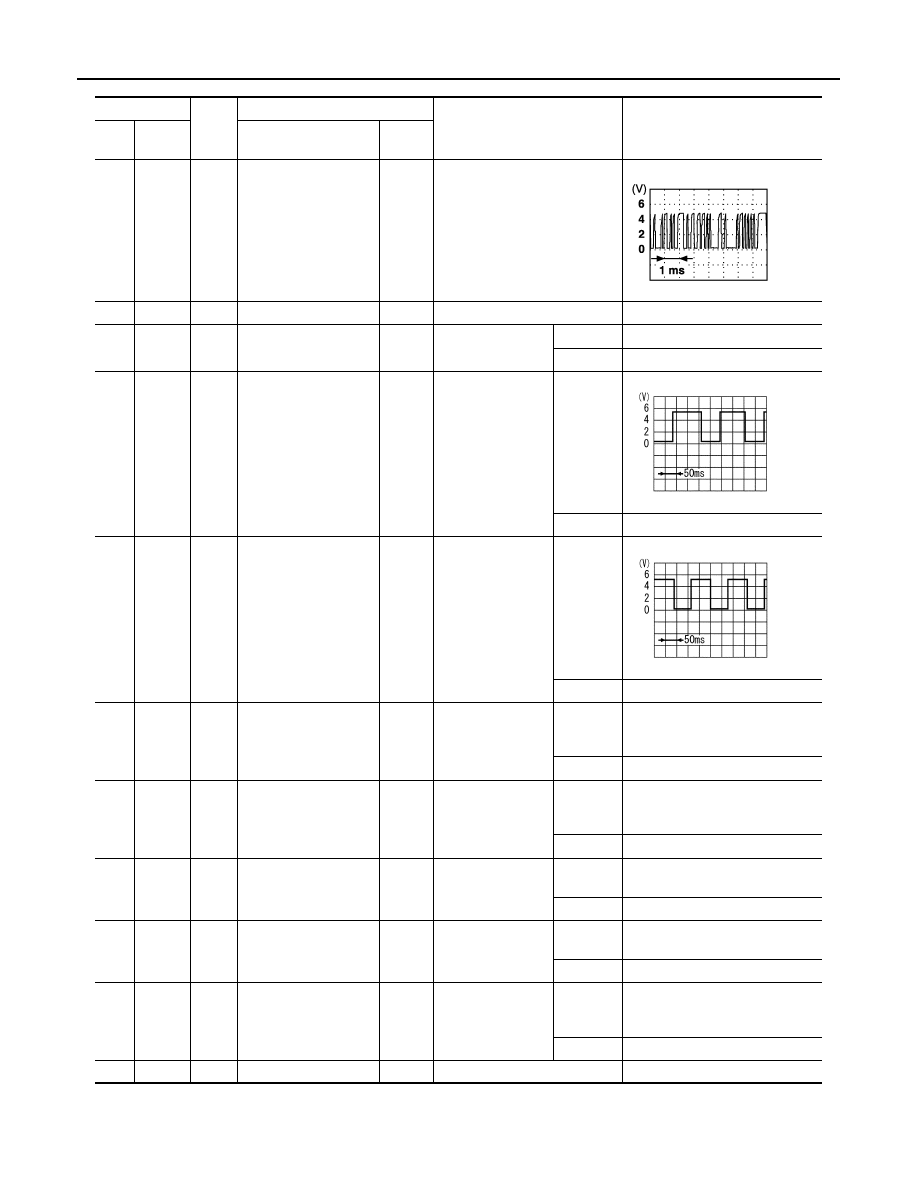

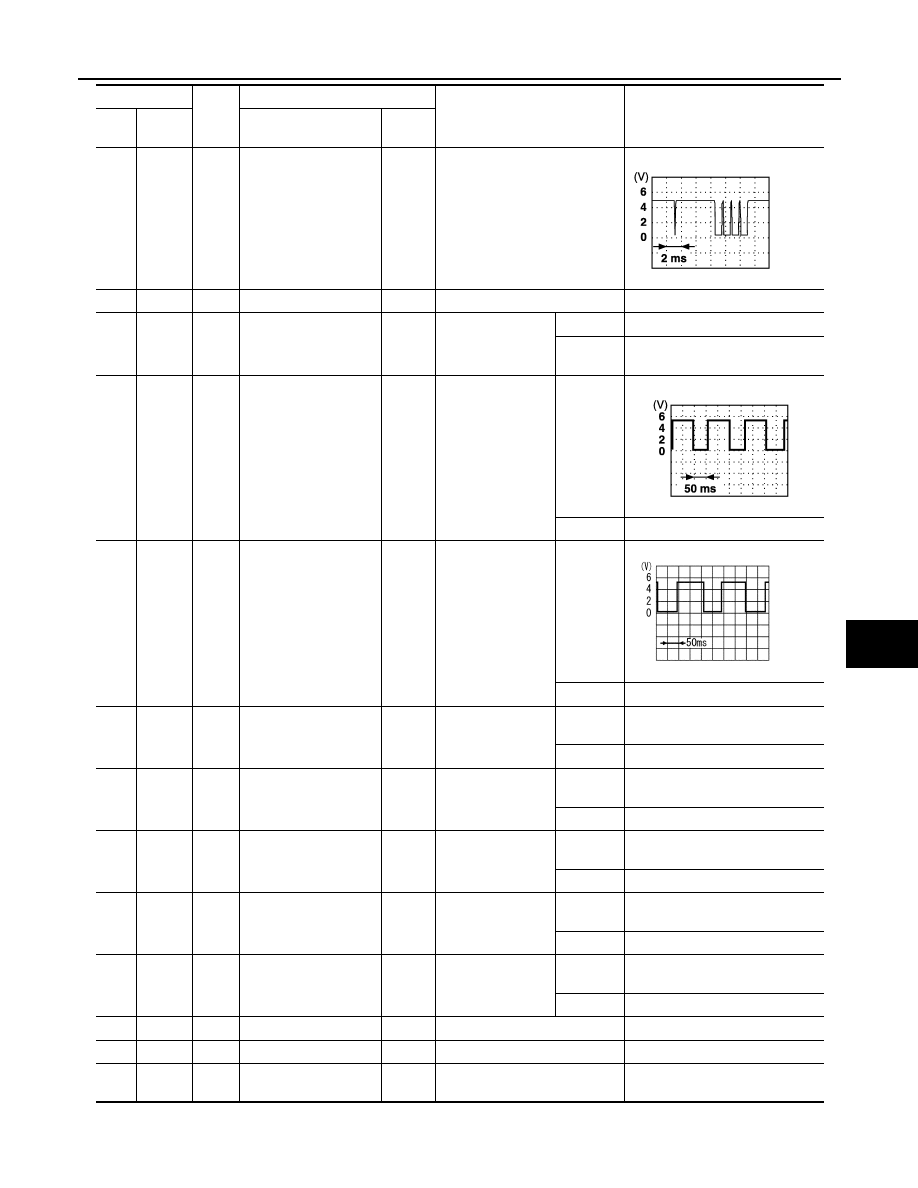

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

1

Ground

R

UART LINE (RX)

Input

Ignition switch ON

3

—

L

CAN-H

—

—

—

6

Ground

BR/W

Ignition switch
(START)l

Input

Ignition switch

OFF

0

START

Battery voltage

9

Ground

L/R

Reclining sensor sig-
nal

Input

Seat reclining

Operate

Stop

0 or 5

10

Ground

W

Lifting sensor (rear)
signal

Input

Seat lifting (rear)

Operate

Stop

0 or 5

11

Ground

R/B

Sliding switch back-
ward signal

Input

Sliding switch

Operate

(back-

ward)

0

Release

Battery voltage

12

Ground

O/B

Reclining switch back-
ward signal

Input

Reclining switch

Operate

(back-

ward)

0

Release

Battery voltage

13

Ground

L/B

Lifting switch (front)
down signal

Input

Lifting switch
(front)

Operate

(down)

0

Release

Battery voltage

14

Ground

G/W

Lifting switch (rear)
down signal

Input

Lifting switch (rear)

Operate

(down)

0

Release

Battery voltage

15

Ground

L

Pedal switch backward
signal

Input

Pedal switch

Operate

(back-

ward)

0

Release

Battery voltage

16

Ground

W

Sensor power supply

Output

—

5

PIIA4813E

SIIA0692J

SIIA0693J

DRIVER SEAT CONTROL UNIT

ADP-97

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

17

Ground

R/W

UART LINE (TX)

Output

Ignition switch ON

19

—

P

CAN-L

—

—

—

21

Ground

L

A/T device (park posi-
tion switch)

Input

A/T selector lever

P position

0

Except P

position

Battery voltage

24

Ground

Y/G

Sliding sensor signal

Input

Seat sliding

Operate

Stop

0 or 5

25

Ground

LG

Lifting sensor (front)
signal

Input

Seat lifting (front)

Operate

Stop

0 or 5

26

Ground

P/B

Sliding switch forward
signal

Input

Sliding switch

Operate

 (forward)

0

Release

Battery voltage

27

Ground

G/B

Reclining switch for-
ward signal

Input

Reclining switch

Operate

 (forward)

0

Release

Battery voltage

28

Ground

Y/B

Lifting switch (front) up
signal

Input

Seat lifting switch
(front)

Operate

 (up)

0

Release

Battery voltage

29

Ground

R/W

Lifting switch (rear) up
signal

Input

Seat lifting switch
(rear)

Operate

 (up)

0

Release

Battery voltage

30

Ground

L/W

Pedal switch forward
signal

Input

Pedal switch

Operate

(forward)

0

Release

Battery voltage

31

Ground

L/Y

Sensor ground

—

—

0

32

Ground

B

Ground (signal)

—

—

0

33

Ground

W/L

Battery power source
(C/B)

Input

—

Battery voltage

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

PIIA4814E

PIIA3277E

SIIA0691J

ADP-98

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

35

Ground

V/W

Sliding motor forward
output signal

Output

Seat sliding

Operate

 (forward)

Battery voltage

Release

0

36

Ground

Y/G

Reclining motor for-
ward output signal

Output

Seat reclining

Operate

 (forward)

Battery voltage

Release

0

37

Ground

BR

Lifting motor (front)
down output signal

Output

Seat lifting (front)

Operate

(down)

Battery voltage

Stop

0

38

Ground

B/W

Lifting motor (rear) up
output signal

Output

Seat lifting (rear)

Operate

(up)

Battery voltage

Stop

0

39

Ground

Y

Lifting motor (rear)
down output signal

Output

Seat lifting (rear)

Operate

(down)

Battery voltage

Stop

0

40

Ground

Y/R

Power source (Fuse)

Input

—

Battery voltage

42

Ground

O/B

Sliding motor back-
ward output signal

Output

Seat sliding

Operate

(back-

ward)

Battery voltage

Stop

0

44

Ground

Y/R

Reclining motor back-
ward output signal

Output

Seat reclining

Operate

(back-

ward)

Battery voltage

Stop

0

45

Ground

GR

Lifting motor (front) up
output signal

Output

Seat lifting (front)

Operate

(up)

Battery voltage

Stop

 0

48

Ground

B

Ground (power)

—

—

 0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output
