SYSTEM DESCRIPTION

COMPONENT PARTS

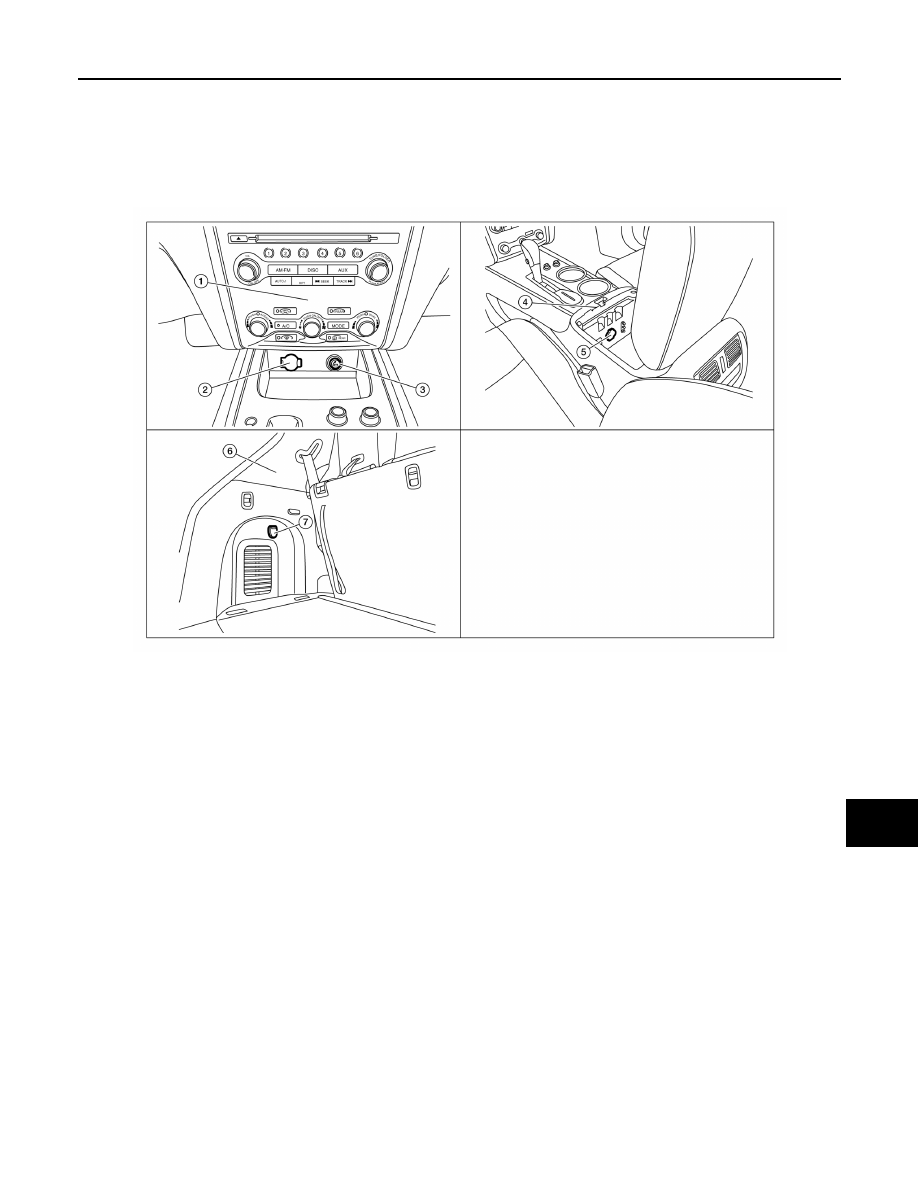

Component Parts Location

INFOID:0000000009174830

1.

A/C and AV switch assembly

2.

Front power socket LH

3.

Front power socket RH (for cigarette
lighter)

4.

Center console

5.

Console power socket

6.

Luggage side finisher lower LH

7.

Rear cargo power socket

AWMIA1326ZZ

PWO-6

< WIRING DIAGRAM >

[POWER SOCKET]

POWER SOCKET

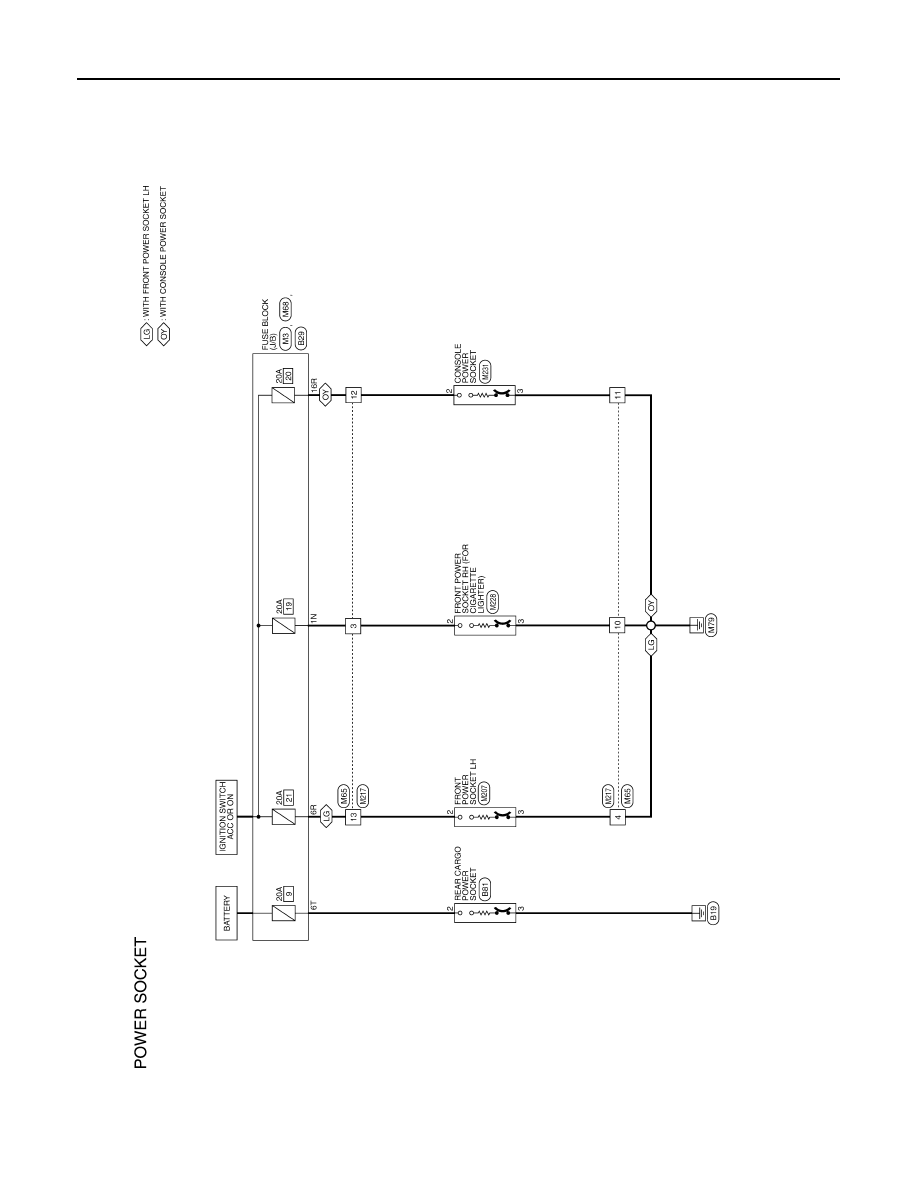

WIRING DIAGRAM

POWER SOCKET

Wiring Diagram

INFOID:0000000009174831

ABMWA2109GB

PWO

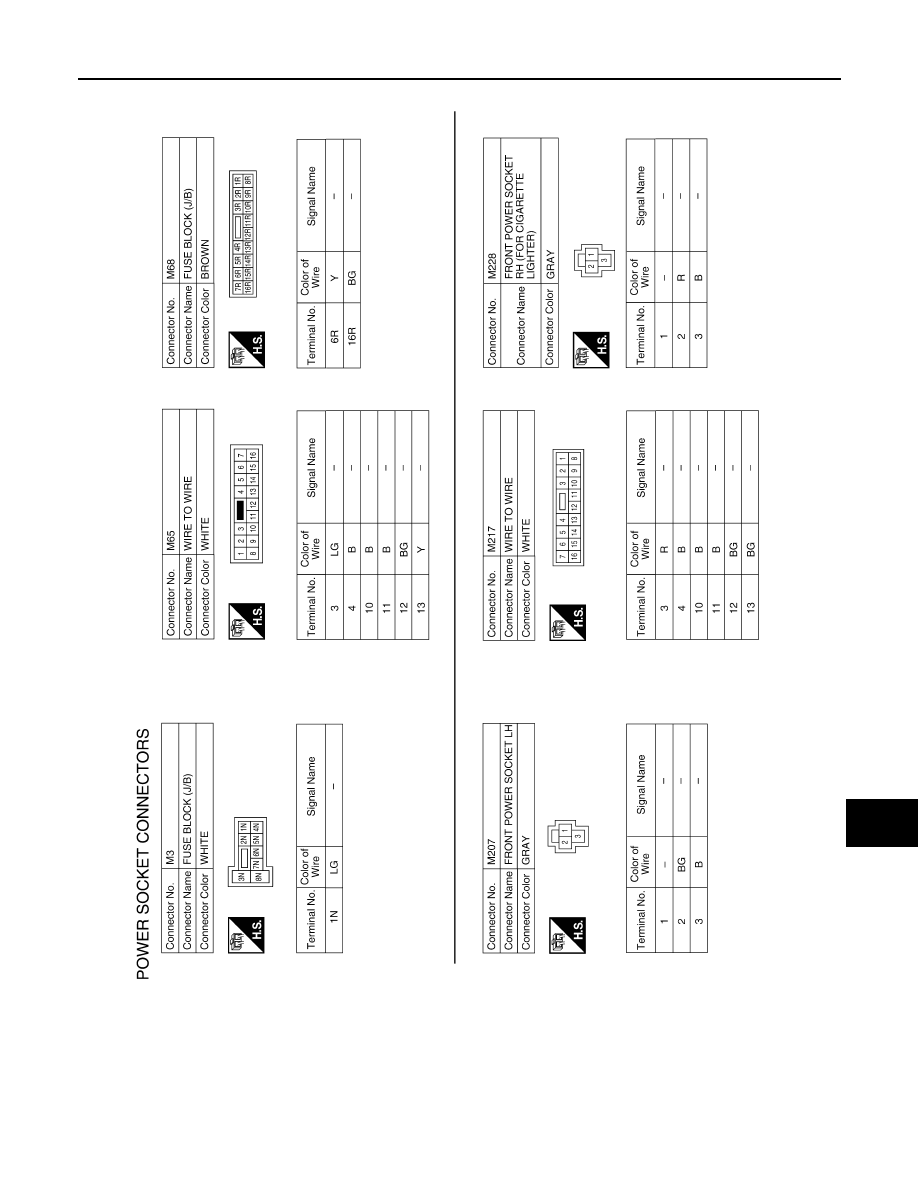

POWER SOCKET

PWO-7

< WIRING DIAGRAM >

[POWER SOCKET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA4873GB

PWO-8

< WIRING DIAGRAM >

[POWER SOCKET]

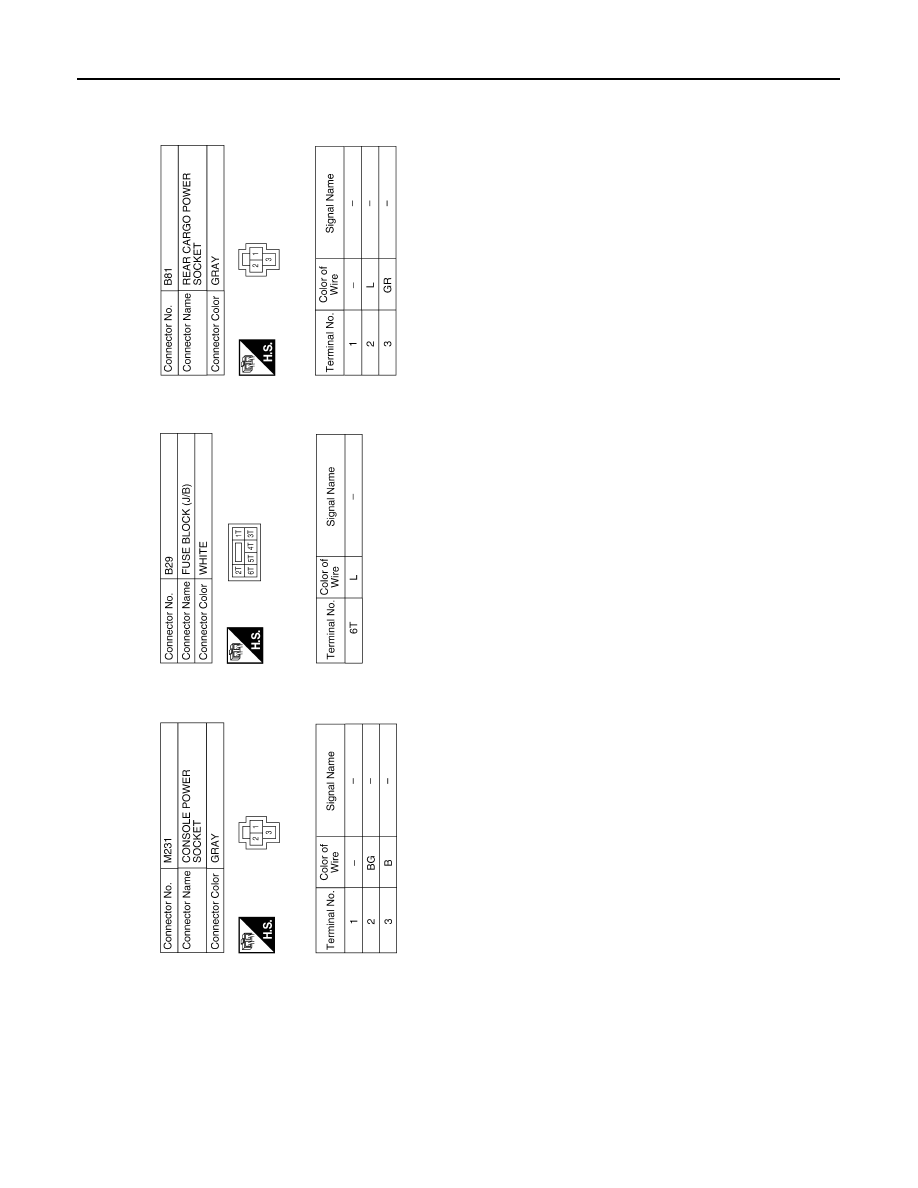

POWER SOCKET

ABMIA4874GB
