Nissan Pathfinder. Manual - part 963

PWO

POWER SOCKET

PWO-9

< REMOVAL AND INSTALLATION >

[POWER SOCKET]

REMOVAL AND INSTALLATION

POWER SOCKET

Removal and Installation

INFOID:0000000009174832

FRONT CONSOLE POWER SOCKET, CONSOLE POWER SOCKET (IF EQUIPPED), REAR CON-
SOLE POWER SOCKET (IF EQUIPPED) or REAR CARGO POWER SOCKET

NOTE:

If unable to use the Tool because of power socket location or access to the harness connector, then further

removal of interior components may be required. Refer to

IP-24, "Removal and Installation"

(Front Console

Power Socket),

IP-18, "Removal and Installation"

(Console Power Socket),

IP-29, "Disassembly and Assem-

bly"

(Rear Console Power Socket) or Rear Cargo Power Socket

INT-31, "LUGGAGE SIDE LOWER FIN-

ISHER : Removal and Installation"

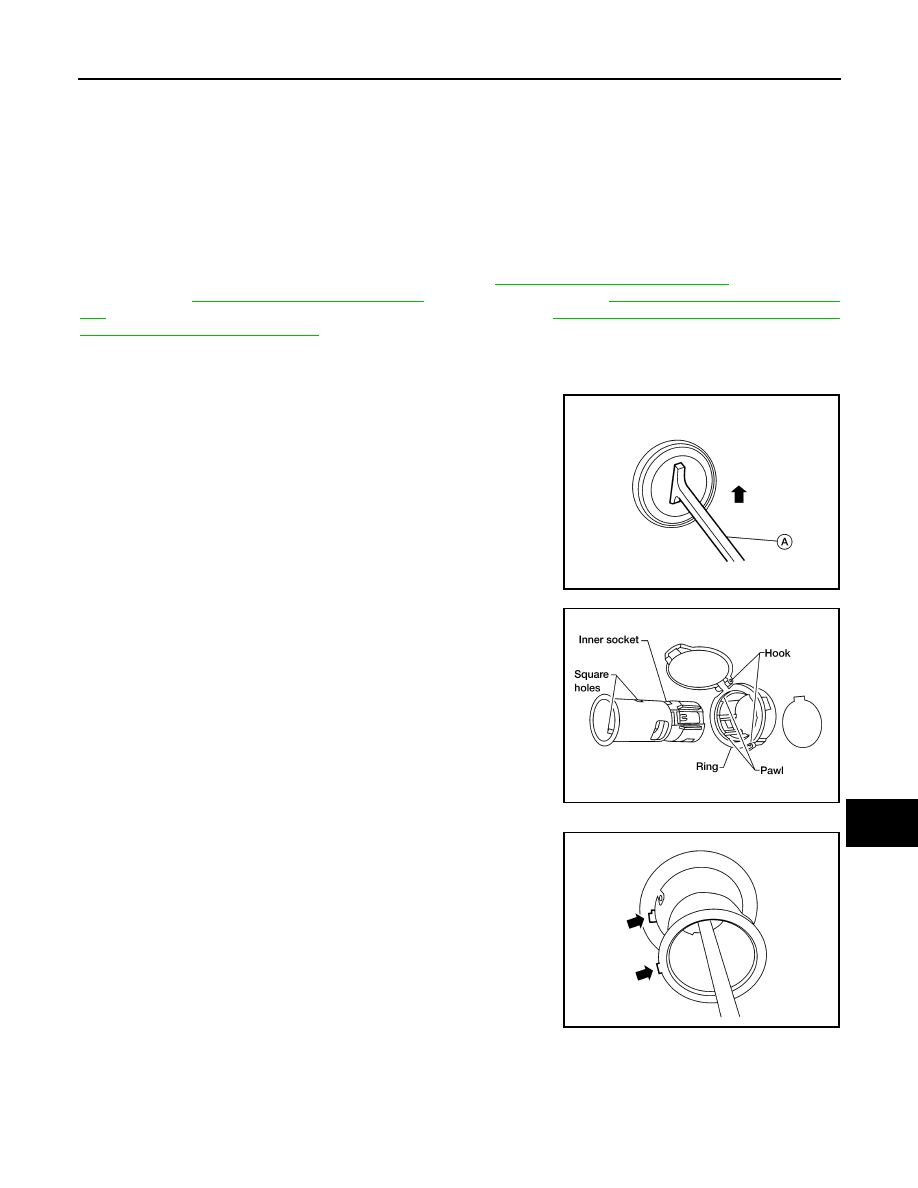

Removal

1. Remove the fuse for the power socket.
2. Insert one side of the Tool (A) into one of the square holes inside

the power socket.

3. Lift up the handle of the Tool until the other side snaps into the

other square hole in the power socket.

4. Pull the power socket straight out with the Tool.

5. Disconnect the harness connector from the power socket.
6. Remove the ring from the power socket finisher while pressing

the pawls.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tab with the square notched area during

installation.

Tool number

: — (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB

PWO-10

< PRECAUTION >

[AC 120 V OUTLET]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009726162

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009174834

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PWO

PREPARATION

PWO-11

< PREPARATION >

[AC 120 V OUTLET]

PREPARATION

Special Service Tool

INFOID:0000000009174835

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim tool set

Removing trim components

AWJIA0483ZZ

PWO-12

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

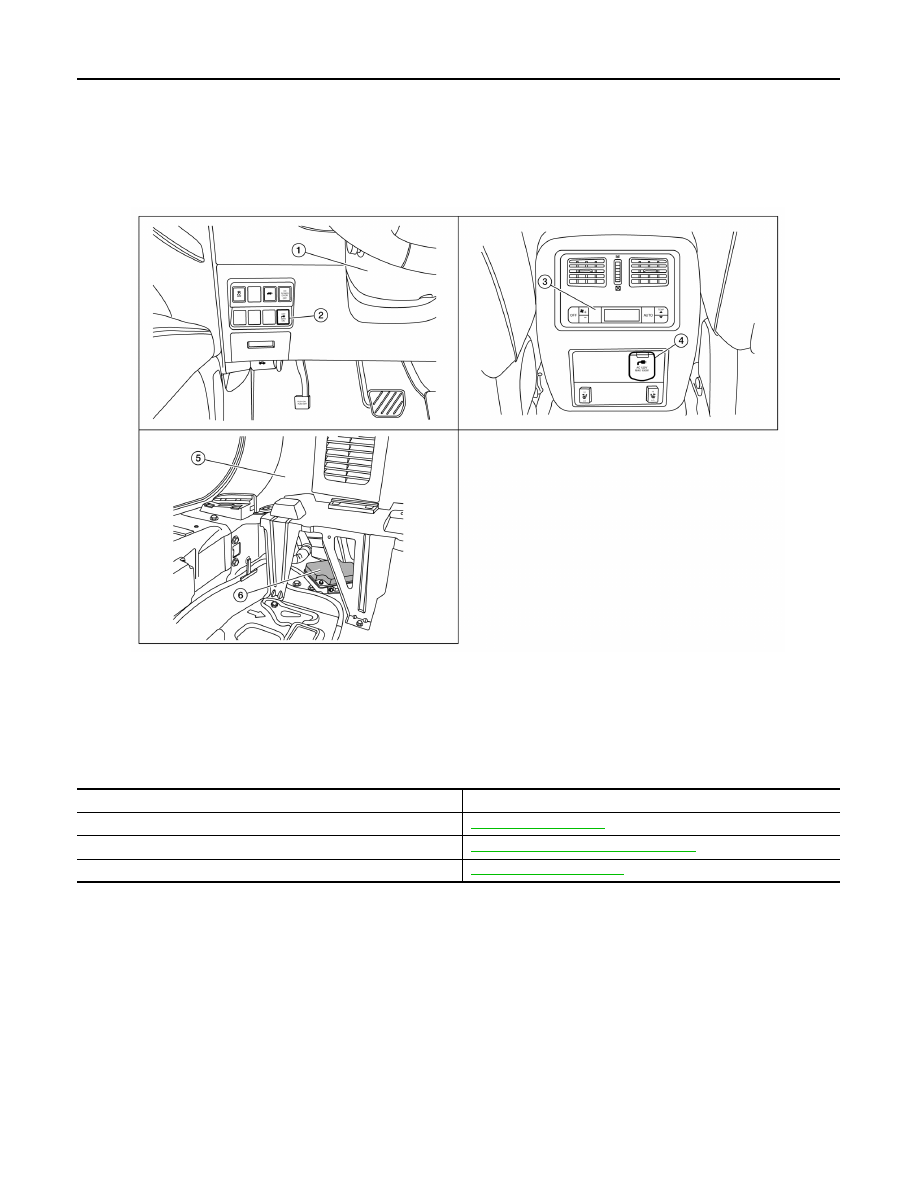

Component Parts Location

INFOID:0000000009174836

Component Description

INFOID:0000000009174837

Inverter Unit

INFOID:0000000009174838

The inverter unit converts 12V DC to 120V AC.

AC 120V Outlet Main Switch

INFOID:0000000009174839

The AC outlet main switch allows operation of the inverter unit in 150W AC 120V mode.

AC 120V Outlet

INFOID:0000000009174840

The AC 120V outlet allow use of AC components up to 150W.

Steering column

AC 120V outlet main switch

Rear air control

AC 120V outlet

Luggage side finisher lower LH

Inverter unit (view with storage box
removed)

AWMIA1327ZZ

Component

Reference

Inverter unit

PWO-12, "Inverter Unit"

AC 120V outlet main switch

PWO-12, "AC 120V Outlet Main Switch"

AC 120V outlet

PWO-12, "AC 120V Outlet"
