< SYMPTOM DIAGNOSIS >

[LH & RH FRONT AUTO UP/DOWN]

POWER WINDOW SWITCH DOES NOT ILLUMINATE

POWER WINDOW SWITCH DOES NOT ILLUMINATE

DRIVER SIDE
DRIVER SIDE : Diagnosis Procedure

INFOID:0000000009176262

1.

REPLACE POWER WINDOW MAIN SWITCH

Replace power window main switch.

Refer to

PWC-137, "Removal and Installation"

.

>> Inspection End.

PASSENGER SIDE
PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000009176263

1.

REPLACE POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

Replace power window and door lock/unlock switch RH.

Refer to

PWC-138, "Removal and Installation"

.

>> Inspection End.

REAR LH
REAR LH : Diagnosis Procedure

INFOID:0000000009176264

1.

REPLACE REAR POWER WINDOW SWITCH LH

Replace rear power window switch LH.

Refer to

PWC-139, "Removal and Installation"

.

>> Inspection End.

REAR RH
REAR RH : Diagnosis Procedure

INFOID:0000000009176265

1.

REPLACE REAR POWER WINDOW SWITCH RH

Replace rear power window switch RH.

Refer to

PWC-139, "Removal and Installation"

.

>> Inspection End.

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

PWC-137

< REMOVAL AND INSTALLATION >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009176266

REMOVAL

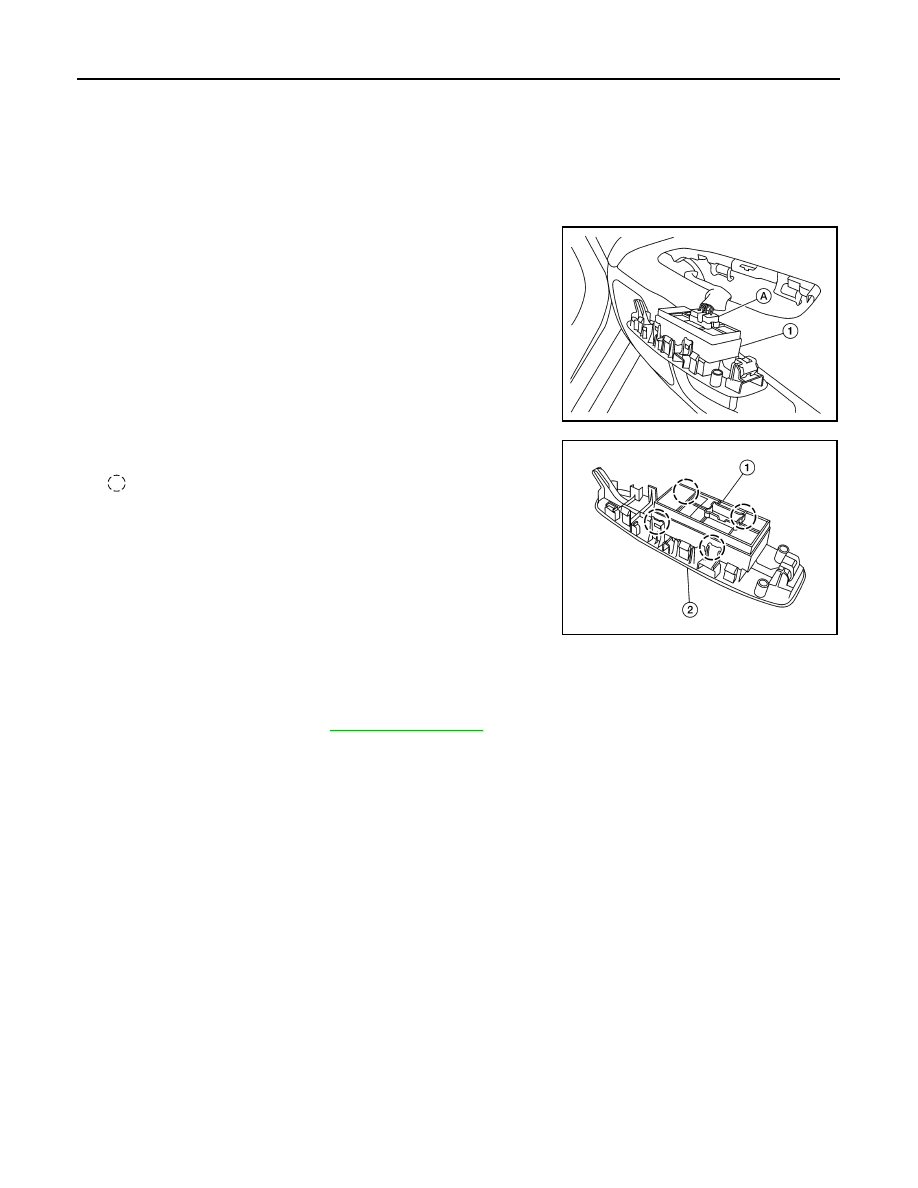

1. Remove the main power window and door lock/unlock switch from the front door finisher using a suitable

tool.

2. Disconnect the harness connectors (A) from the main power

window and door lock/unlock switch (1) and harness connector

(B) from the mirror control switch (2).

3. Release the pawls, then separate the main power window and

door lock/unlock switch (1) from the switch finisher (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When the main power window and door lock/unlock switch is removed or replaced, it is necessary to perform

the initialization procedure. Refer to

PWC-89, "Work Flow"

.

ALKIA2855ZZ

ALKIA2856ZZ

PWC-138

< REMOVAL AND INSTALLATION >

[LH & RH FRONT AUTO UP/DOWN]

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

Removal and Installation

INFOID:0000000009176267

REMOVAL

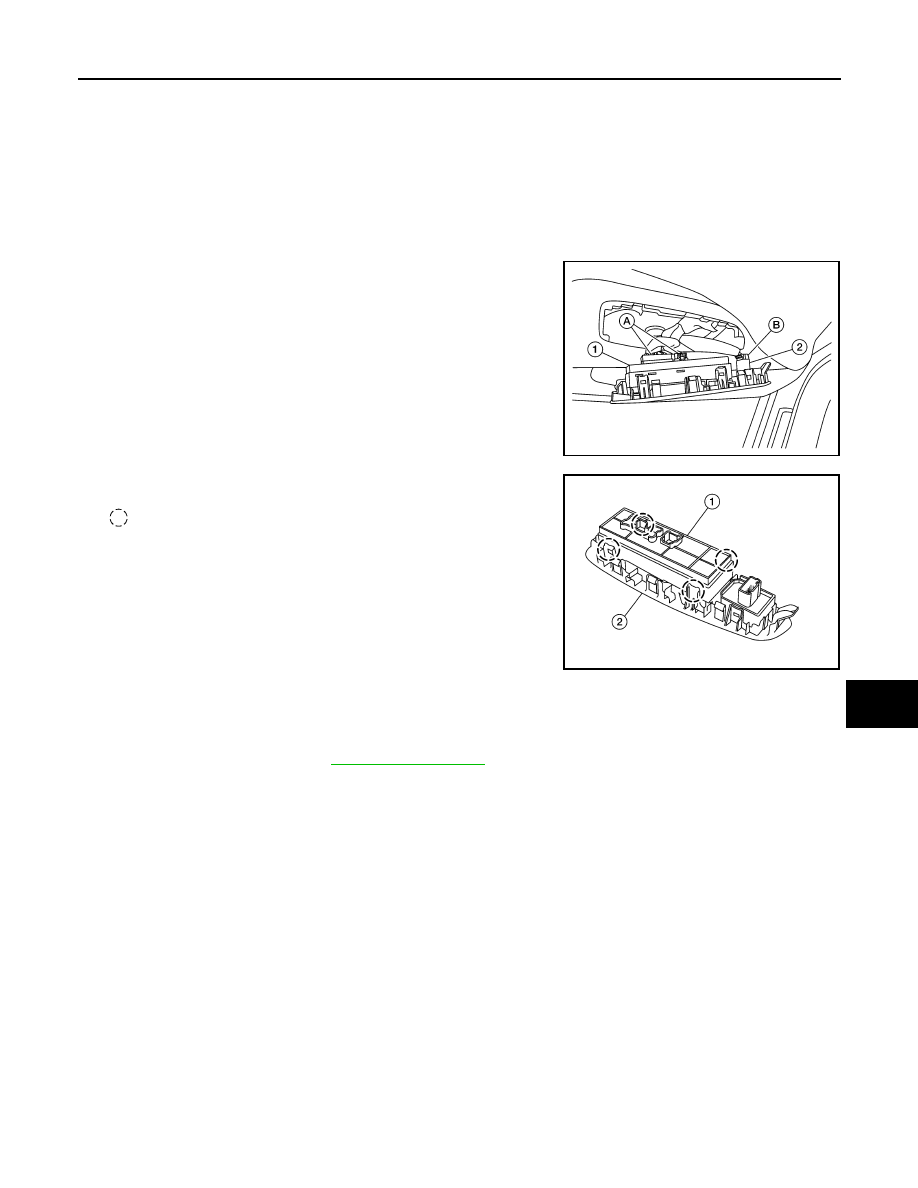

1. Remove the power window and door lock/unlock switch (RH) from the front door finisher using a suitable

tool.

2. Disconnect the harness connector (A) from the power window

and door lock/unlock switch (RH) (1).

3. Release four pawls, then separate power window and door lock/

unlock switch (RH) (1) from switch finisher (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When the power window and door lock/unlock switch (RH) is removed or replaced, it is necessary to perform

the initialization procedure. Refer to

PWC-89, "Work Flow"

.

ALKIA2857ZZ

ALKIA2858ZZ

REAR POWER WINDOW SWITCH

PWC-139

< REMOVAL AND INSTALLATION >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000009176268

REMOVAL

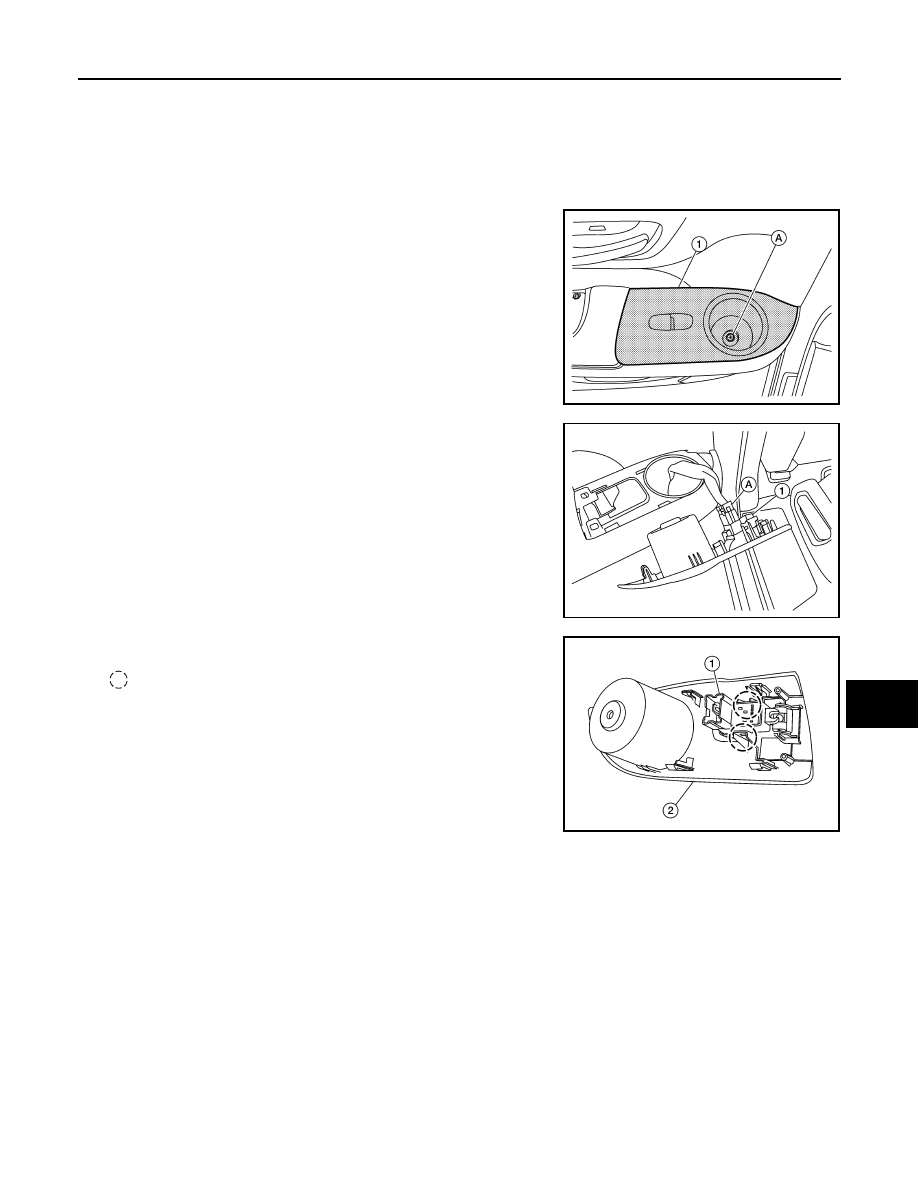

1. Remove the rear door cup holder mat.
2. Remove the rear power window switch finisher screw (A) and

the rear power window switch finisher (1) from the rear door fin-

isher using a suitable tool.

3. Disconnect the harness connector (A) from the rear power win-

dow switch (1).

4. Release the two pawls, then separate the rear power window

switch (1) from the switch finisher (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3018ZZ

ALKIA2865ZZ

ALKIA2866ZZ
