Nissan Pathfinder. Manual - part 946

PWC-80

< WIRING DIAGRAM >

[LH & RH FRONT AUTO UP/DOWN]

POWER WINDOW SYSTEM

WIRING DIAGRAM

POWER WINDOW SYSTEM

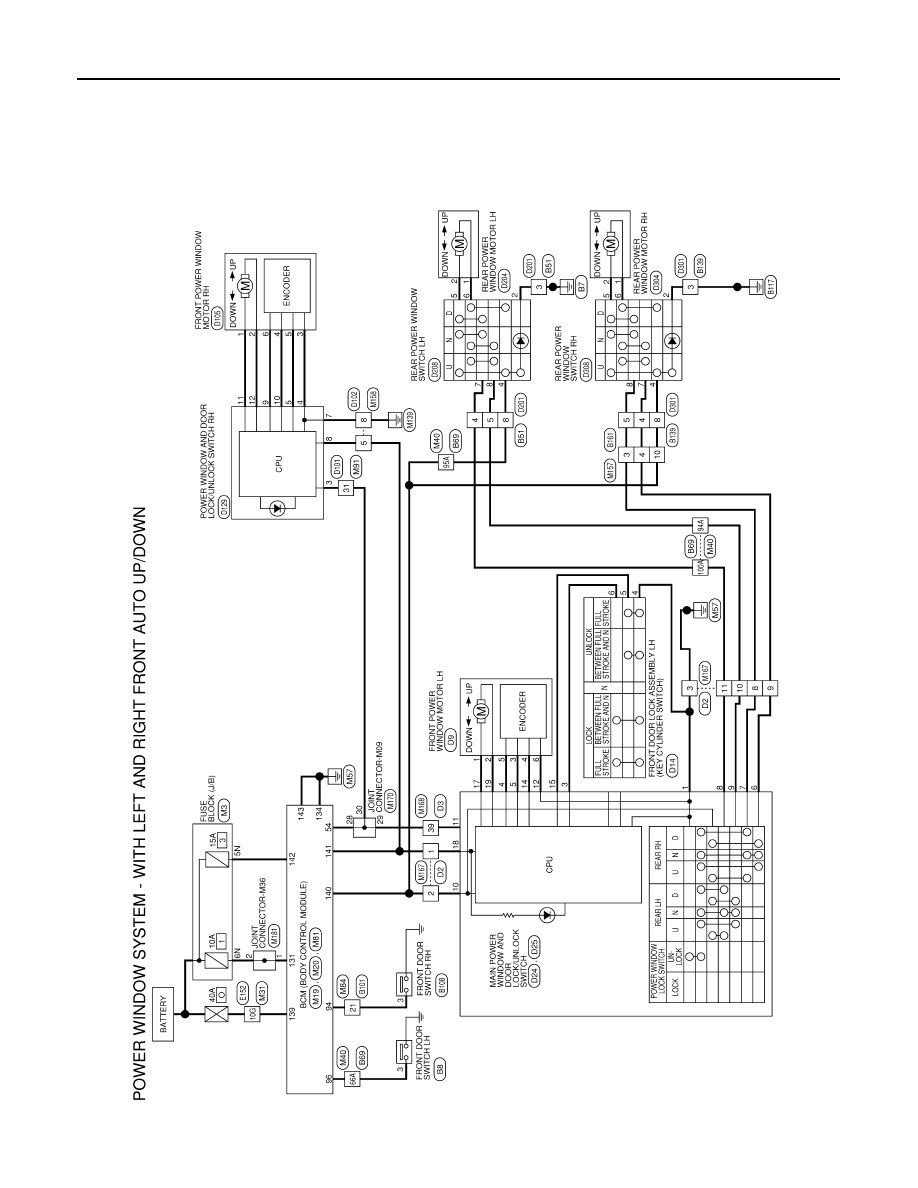

Wiring Diagram - With Left & Right Front Auto Up/Down

INFOID:0000000009176189

ABKWA2164GB

POWER WINDOW SYSTEM

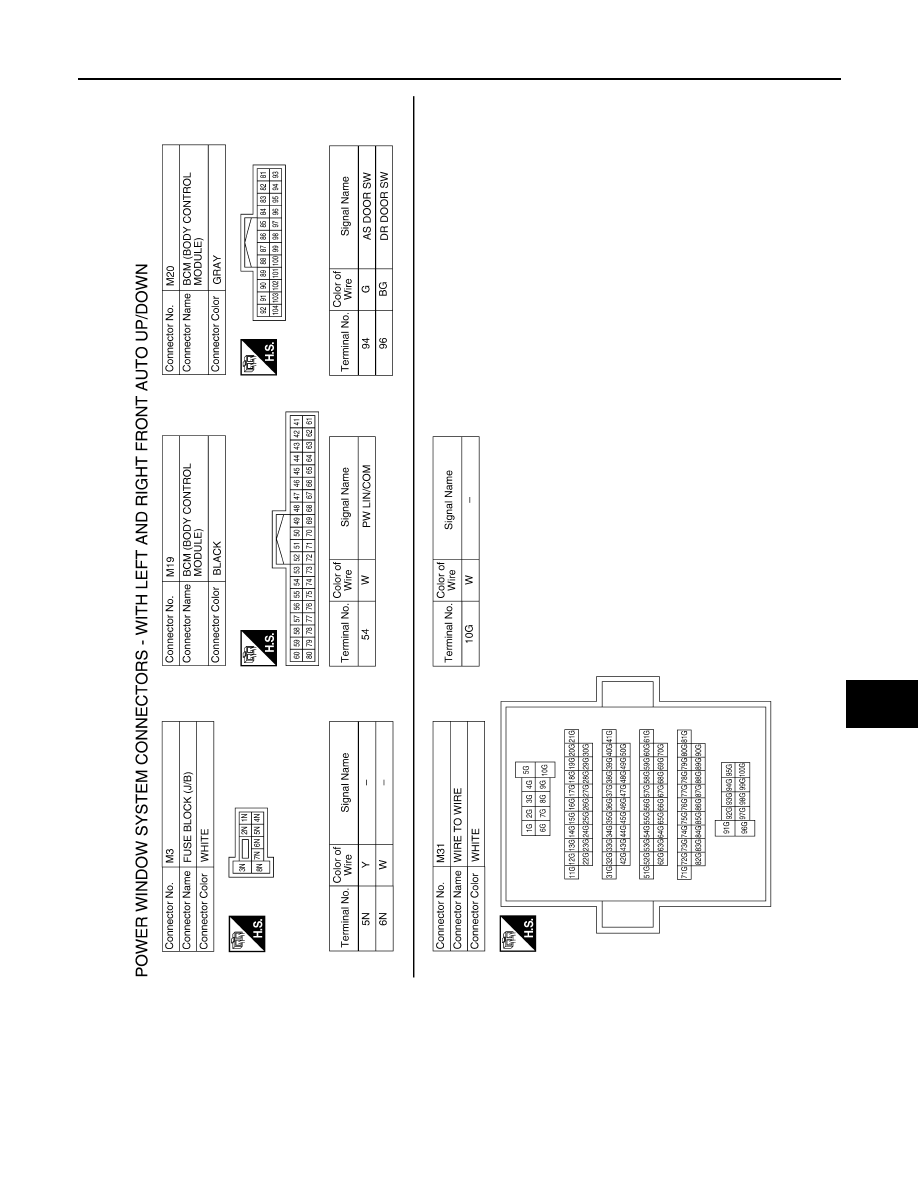

PWC-81

< WIRING DIAGRAM >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA4749GB

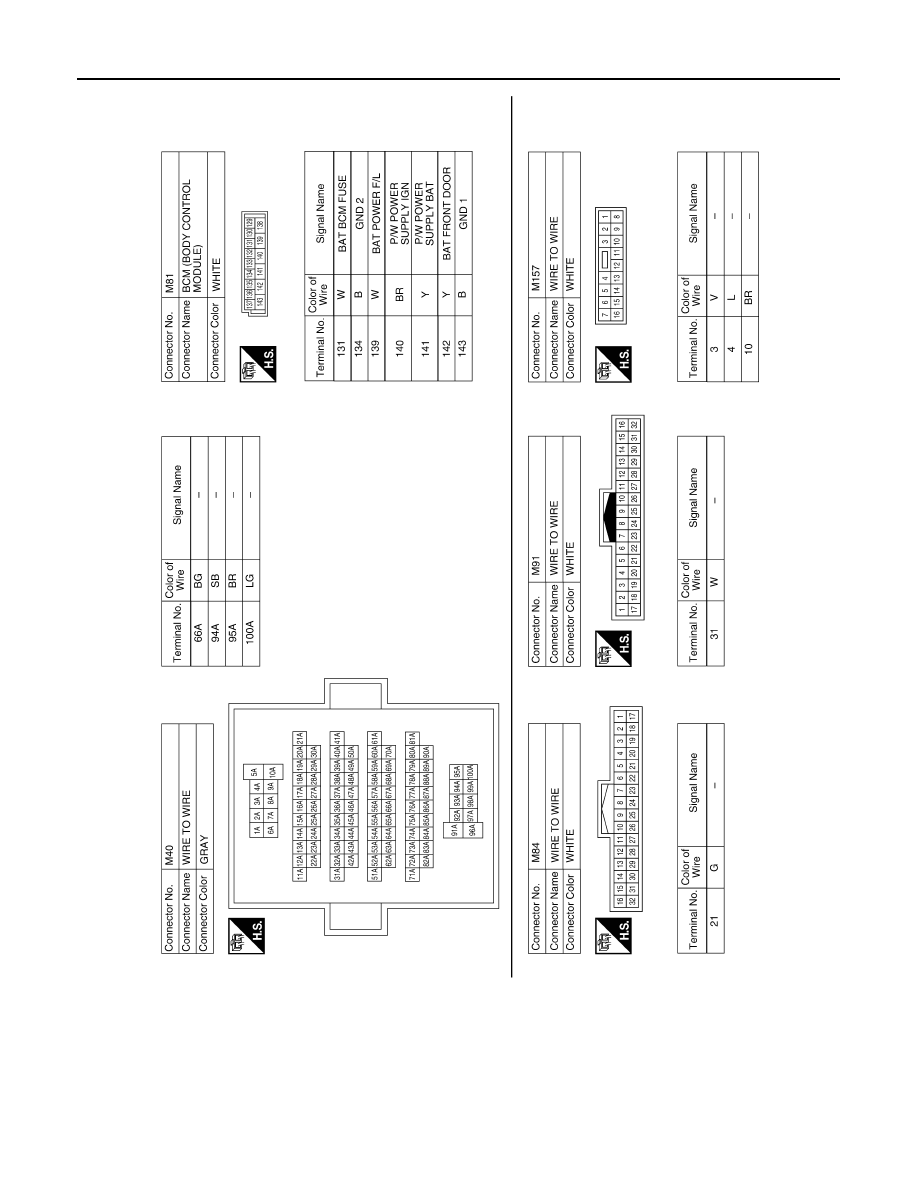

PWC-82

< WIRING DIAGRAM >

[LH & RH FRONT AUTO UP/DOWN]

POWER WINDOW SYSTEM

ABKIA4750GB

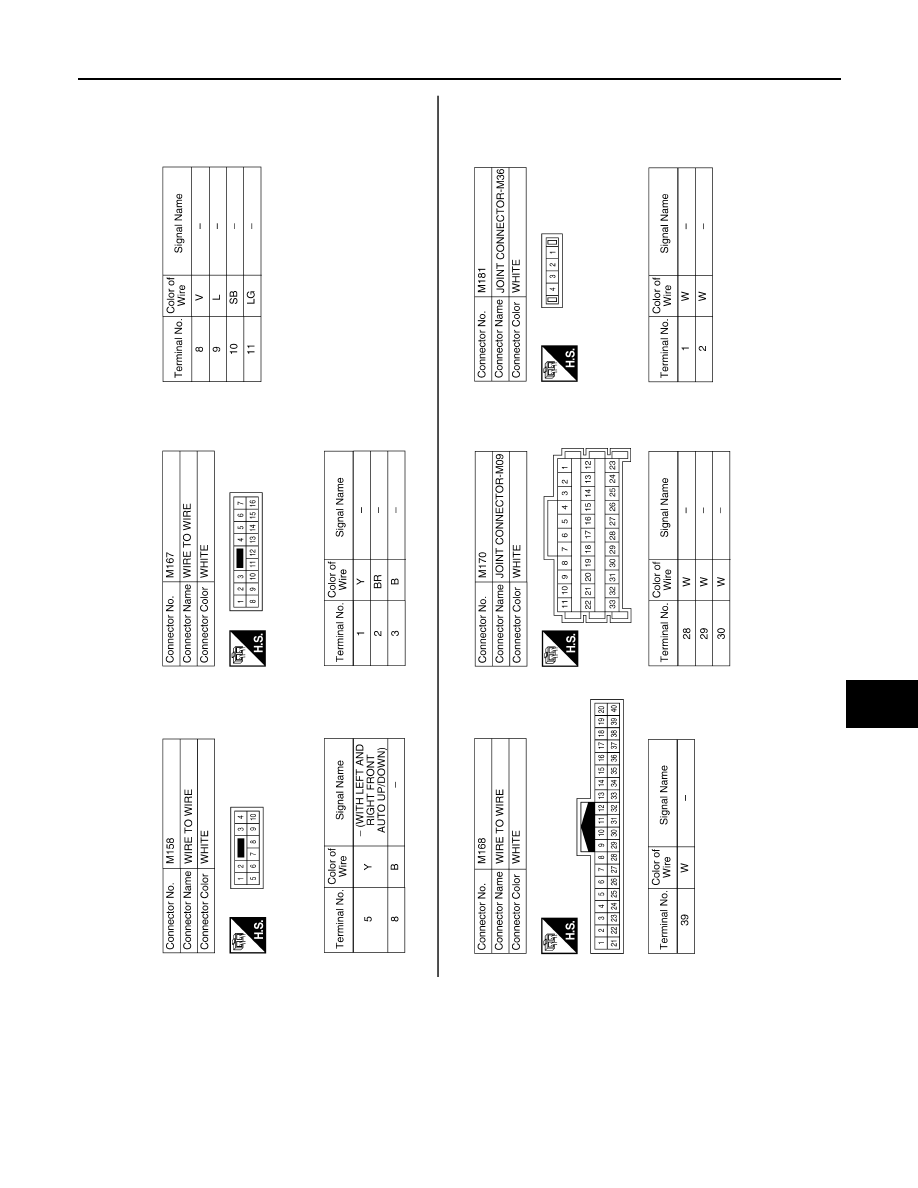

POWER WINDOW SYSTEM

PWC-83

< WIRING DIAGRAM >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ABKIA4751GB
