PWC-72

< SYSTEM DESCRIPTION >

[LH & RH FRONT AUTO UP/DOWN]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009764034

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

 ON (for at least 5 seconds)  OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

Ecu I

de

nti

ficat

ion

Se

lf Di

ag

no

sti

Res

ult

Dat

a Monitor

Active T

e

st

W

ork su

pp

ort

Co

nf

ig

ur

at

io

n

CAN Diag

Su

pp

ort

 Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

DIAGNOSIS SYSTEM (BCM)

PWC-73

< SYSTEM DESCRIPTION >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000009764035

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

 ON (for at least 5 seconds)  OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

DATA MONITOR

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

igu

rat

ion

CAN Diag

Support Mntr

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

PWC-74

< ECU DIAGNOSIS INFORMATION >

[LH & RH FRONT AUTO UP/DOWN]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009176184

ECU

Reference

BCM

BCS-30, "Reference Value"

BCS-50, "Fail Safe"

BCS-50, "DTC Inspection Priority Chart"

BCS-52, "DTC Index"

POWER WINDOW MAIN SWITCH

PWC-75

< ECU DIAGNOSIS INFORMATION >

[LH & RH FRONT AUTO UP/DOWN]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009176185

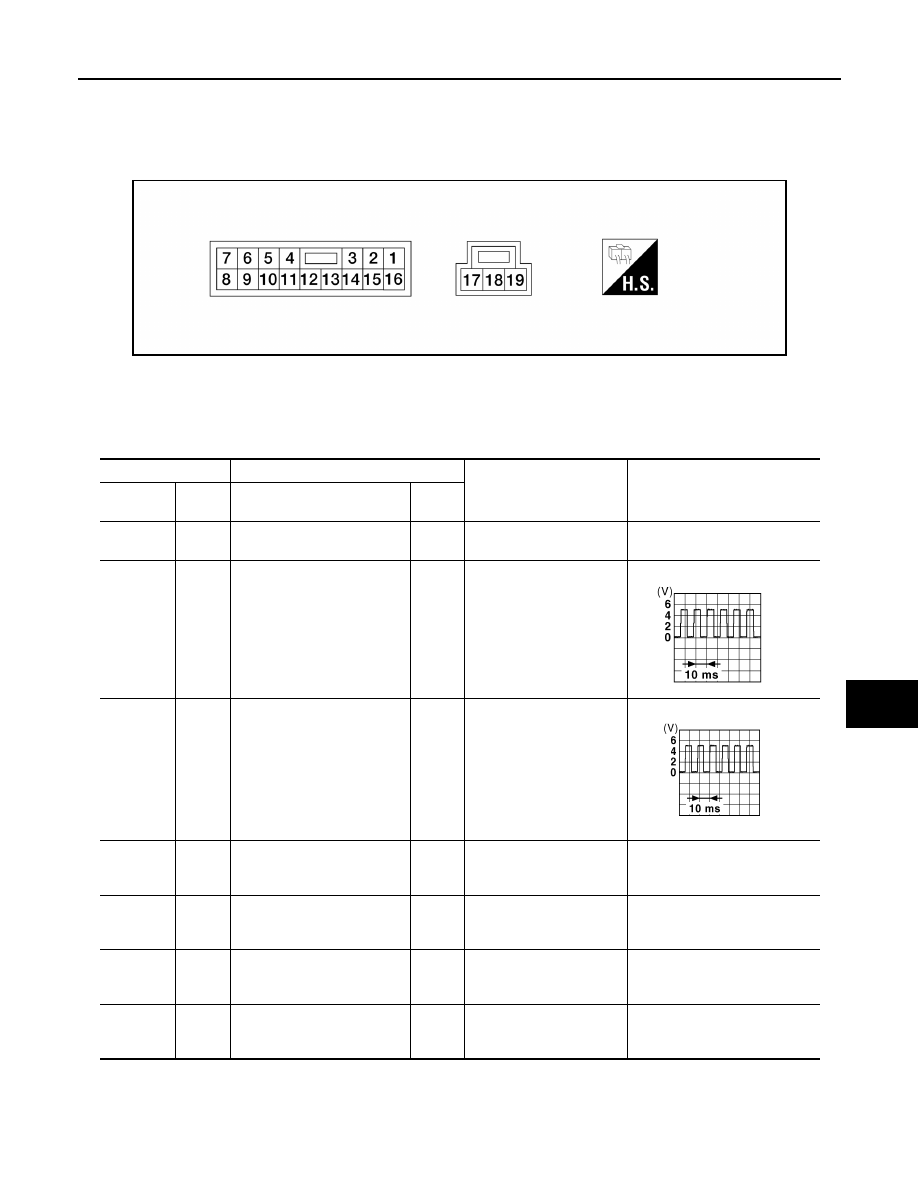

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

AWKIA2145ZZ

Terminal No.

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground Ground

0

4

(SB)

12

Encoder pulse signal 2

Input

When power window mo-
tor operates.

5

(Y)

12

Encoder pulse signal 1

Input

When power window mo-
tor operates.

6

(L)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is operated DOWN.

Battery voltage

7

(V)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is operated UP.

Battery voltage

8

(LG)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is operated DOWN.

Battery voltage

9

(SB)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is operated UP.

Battery voltage

JMKIA0070GB

JMKIA0070GB
