PWC-76
< ECU DIAGNOSIS INFORMATION >
[LH & RH FRONT AUTO UP/DOWN]
POWER WINDOW MAIN SWITCH
Fail Safe
INFOID:0000000009176186
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
10
(BR)
Ground RAP signal
Input
IGN SW ON
Battery voltage
Within 45 second after ig-
nition switch is turned to
OFF.
Battery voltage
When front LH or RH door
is opened during retained
power operation.
0
11
(P)
Ground Power window serial link
Input/
Output
IGN SW ON or power win-
dow timer operating.
12
(BR)
Ground Encoder ground
—
—
0
14
(LG)
Ground Encoder power supply
Output
When ignition switch ON or
power window timer oper-
ates.
10
17
(Y)
19
Front door power window mo-
tor LH UP signal
Output
When front LH switch in
power window main switch
is operated UP.
Battery voltage
18
(Y)
Battery power supply
Input
—
Battery voltage
19
(L)
17
Front door power window mo-
tor LH DOWN signal
Output
When front LH switch in
power window main switch
is operated DOWN.
Battery voltage

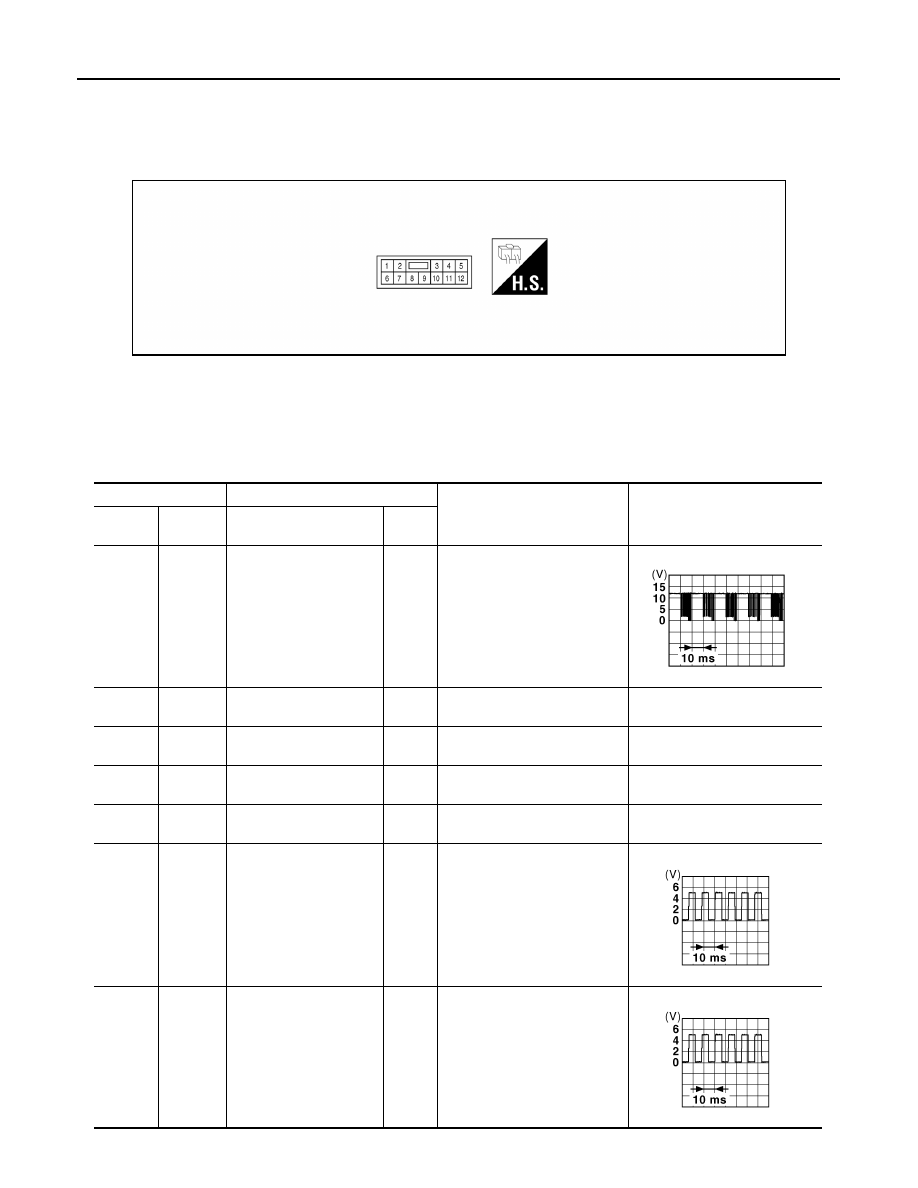

Terminal No.
Description
Condition
Voltage
(Approx.)
+
-
Signal name
Input/
Output
JPMIA0013GB
Error
Error condition
Pulse sensor malfunction
When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function
When both pulse signals have not been detected for more than the specified value during glass open/
close operation.
Pulse direction malfunction
When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.
Glass recognition position
malfunction 1
When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2
When it detects pulse count more than the value of glass full stroke during glass open/close operation.
Malfunction of not yet up-
dated closed position of
glass
When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).
