Nissan Pathfinder. Manual - part 760

CLUSTER LID C

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

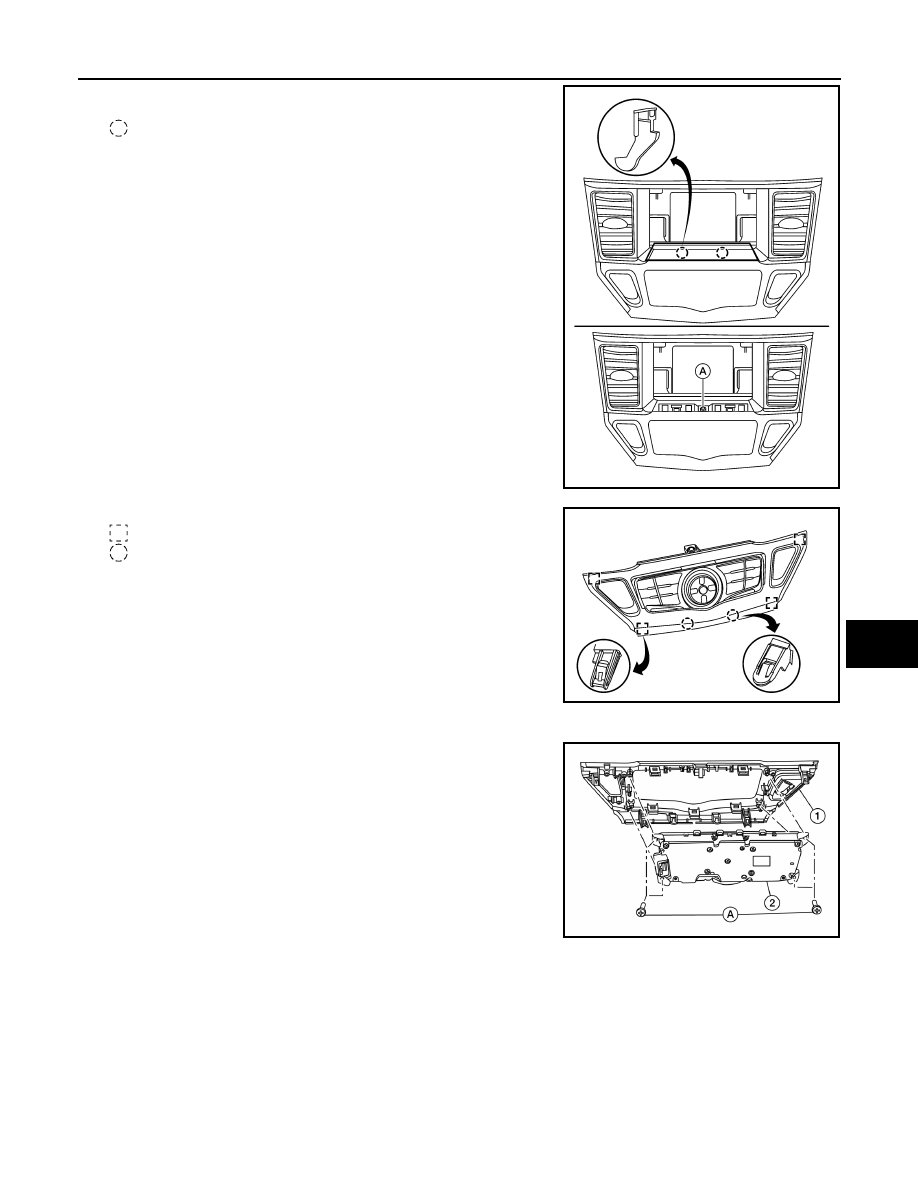

1. Release cluster lid C finisher pawls using a suitable tool and

remove.

: Pawl

2. Remove cluster lid C screw (A).

3. Release cluster lid C clips and pawls using a suitable tool.

: Metal clip
: Pawl

4. Disconnect the harness connectors from cluster lid C and remove.
5. Remove screws (A) and separate cluster lid C (1) from multi-

function switch assembly (2) (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1086ZZ

ALJIA1085ZZ

ALJIA1084ZZ

IP-24

< REMOVAL AND INSTALLATION >

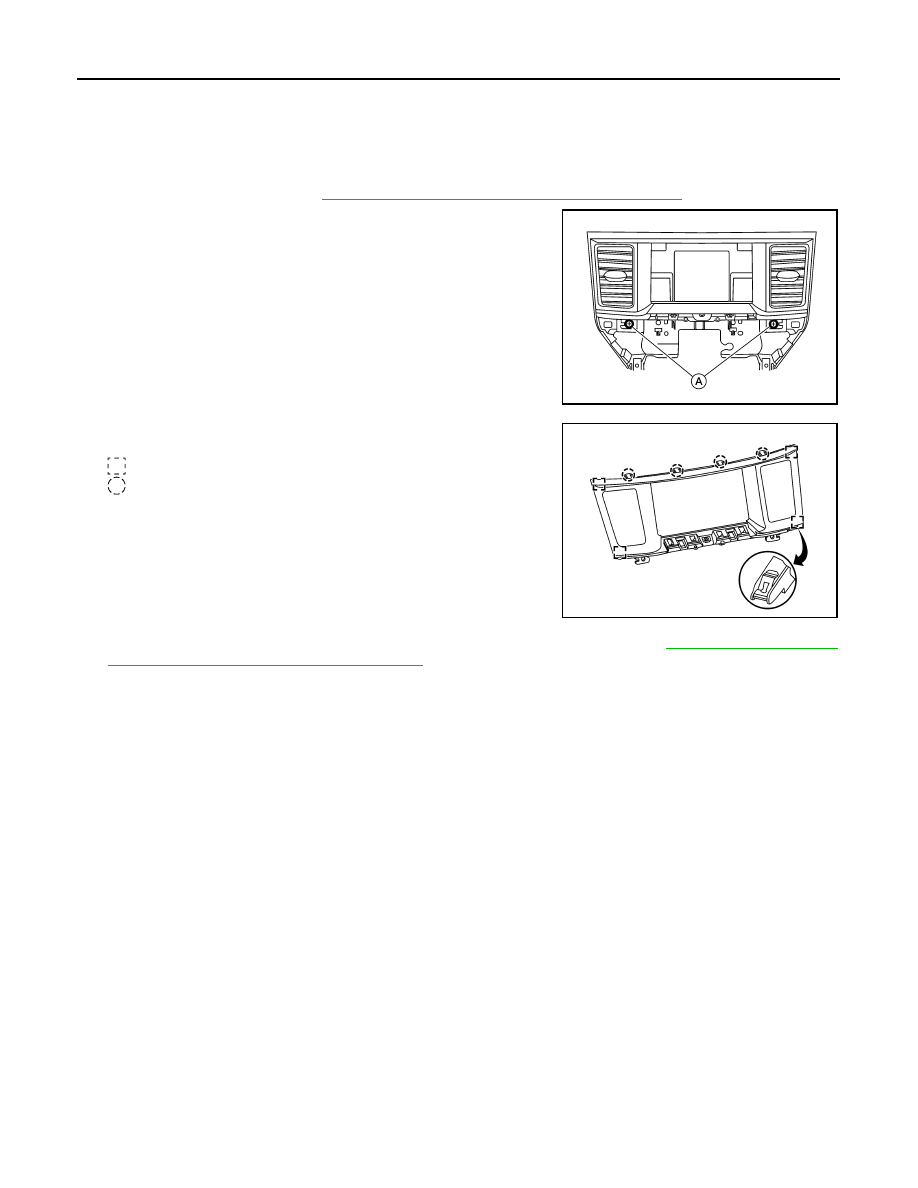

CLUSTER LID D

CLUSTER LID D

Removal and Installation

INFOID:0000000009176448

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "CLUSTER LID C : Removal and Installation"

.

2. Remove cluster lid D screws (A).

3. Release cluster lid D clips and pawls using a suitable tool and

remove.

: Metal clip
: Pawl

4. Remove center ventilator grille (LH/RH) from cluster lid D (if necessary). Refer to

VTL-15, "CENTER VEN-

TILATOR GRILLE : Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1087ZZ

ALJIA1088ZZ

INSTRUMENT LOWER PANEL LH

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

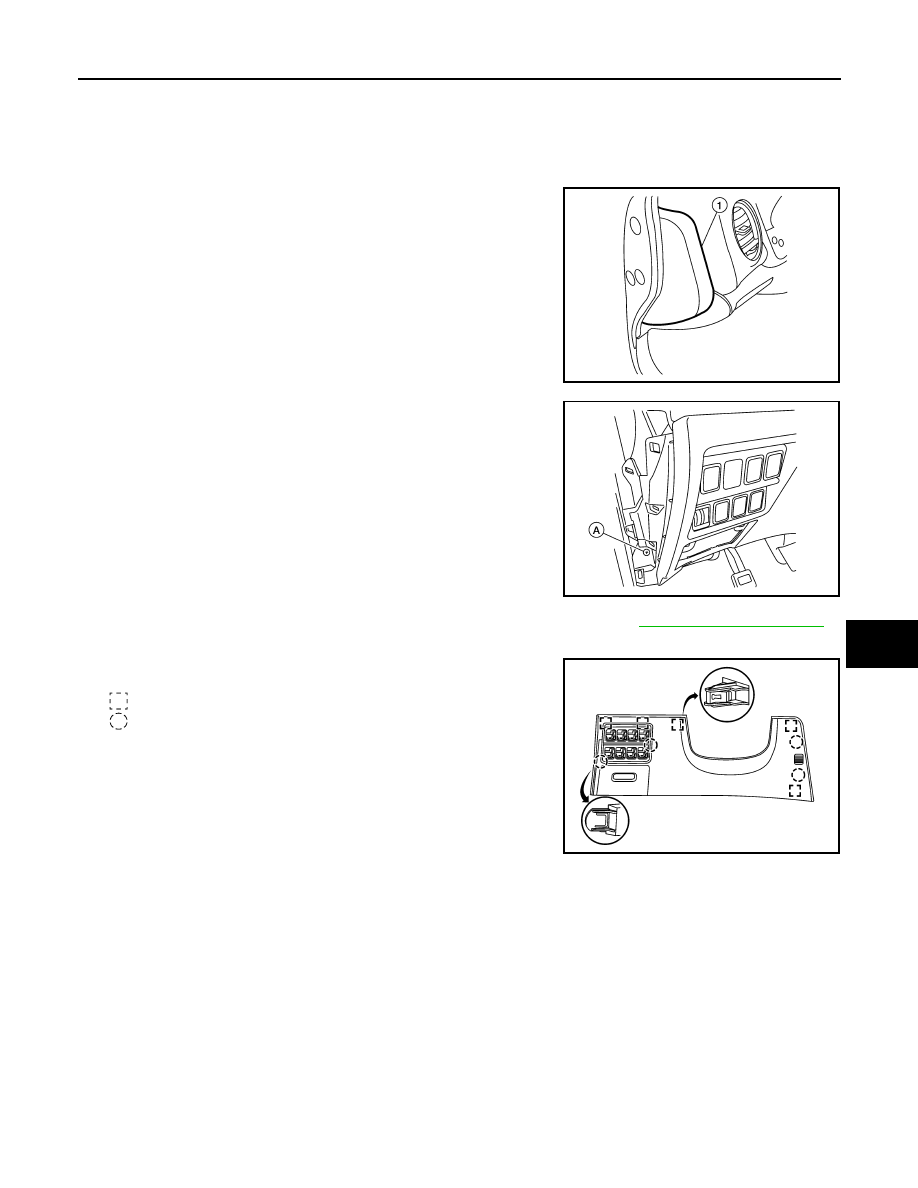

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009176449

REMOVAL

1. Remove instrument side finisher (LH) (1) using a suitable tool.

2. Remove instrument lower panel LH screw (A).

3. Remove hood lock release handle from instrument lower panel LH. Refer to

DLK-298, "Exploded View"

.

4. Remove data link connector from instrument lower panel LH.
5. Release instrument lower panel LH clips and pawls using a suit-

able tool.

: Metal clip
: Pawl

6. Disconnect aspiriator hose from instrument lower panel LH.
7. Disconnect the harness connectors and remove instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0335ZZ

ALJIA1259ZZ

ALJIA1089ZZ

IP-26

< REMOVAL AND INSTALLATION >

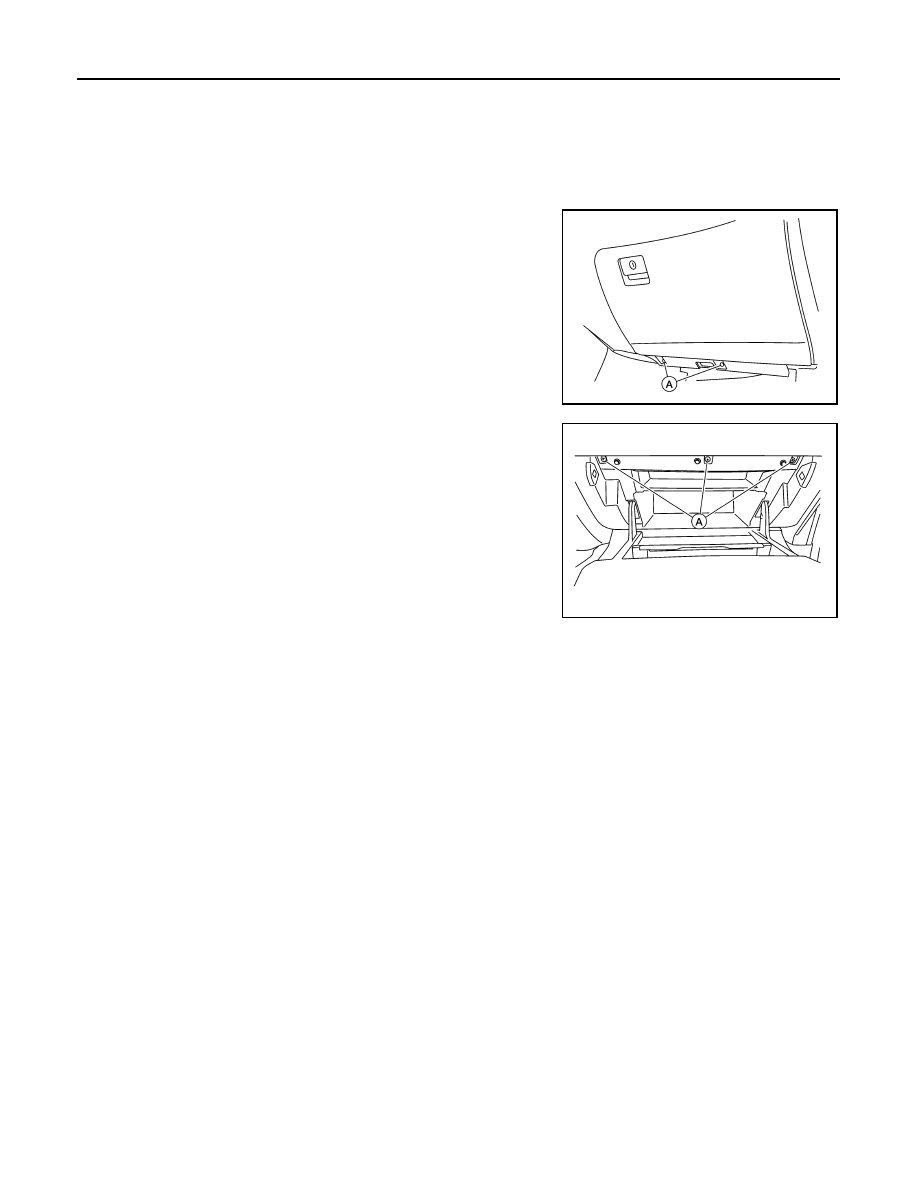

GLOVE BOX ASSEMBLY

GLOVE BOX ASSEMBLY

Removal and Installation

INFOID:0000000009176450

REMOVAL

1. Remove instrument side finisher (RH) using a suitable tool.
2. Remove glove box assembly lower screws (A).

3. Open glove box lid, then remove the glove box assembly upper

screws (A).

4. Disconnect the harness connectors from the glove box assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1260ZZ

ALJIA1261ZZ
