CENTER CONSOLE ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

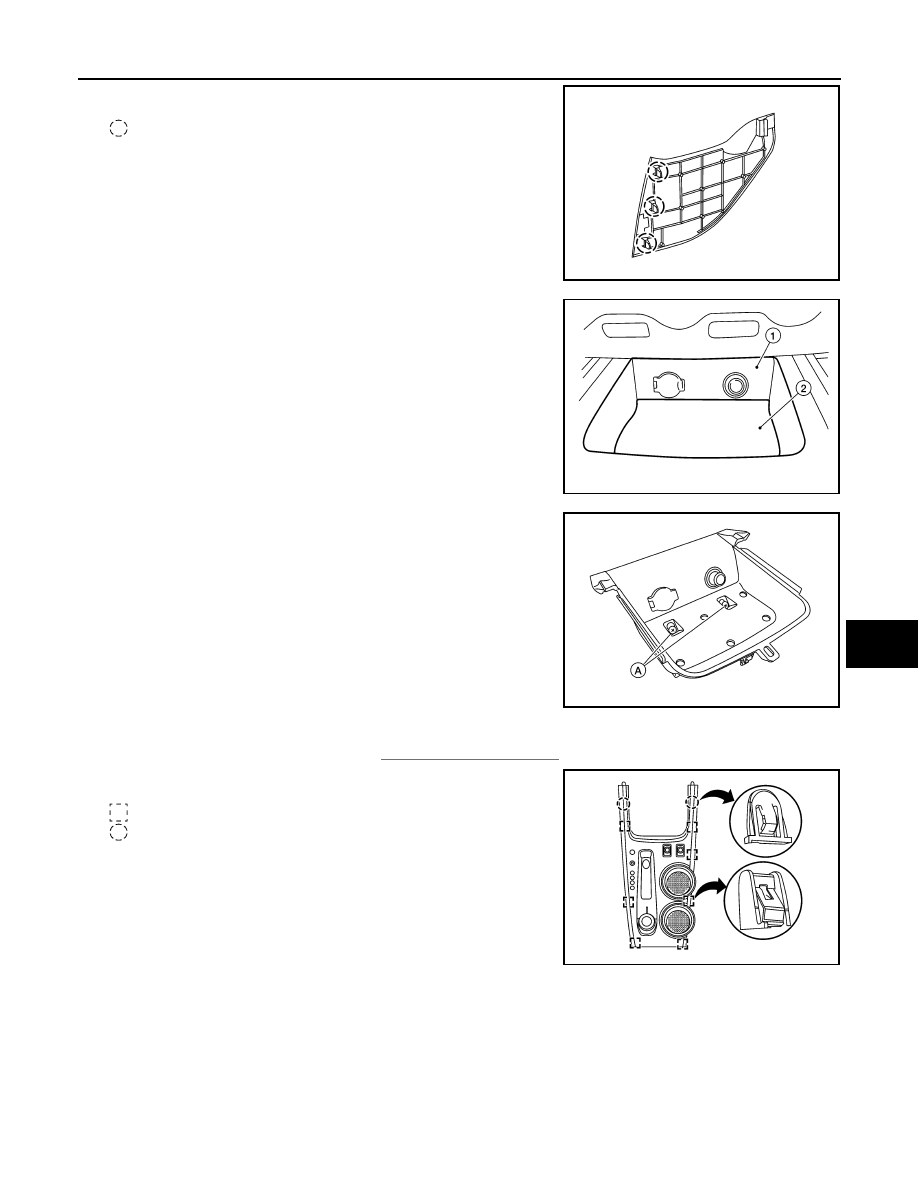

1. Release center console side finisher (LH/RH) pawls using a suit-

able tool and remove.

: Pawl

2. Remove front console mat (2) from front console tray (1).

3. Remove front console tray screws (A).

4. Release front console tray clips using a suitable tool, disconnect the harness connectors and remove.
5. Remove shift selector handle. Refer to

TM-189, "Exploded View"

.

6. Release shift selector finisher clips and pawls using a suitable

tool, disconnect the harness connectors and remove.

: Metal clip
: Pawl

ALJIA1077ZZ

ALJIA1254ZZ

ALJIA1255ZZ

ALJIA1076ZZ

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

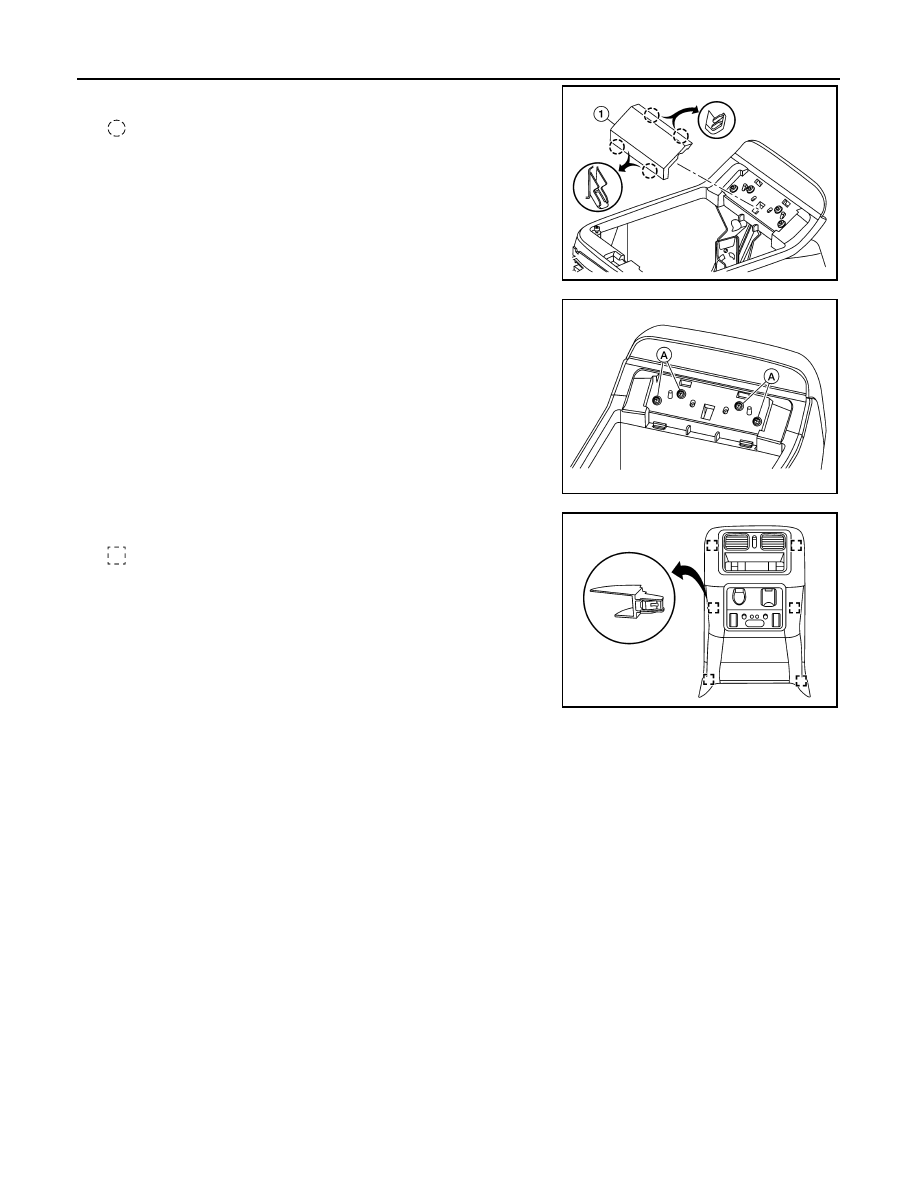

7. Release center console rear brace finisher (1) pawls using a

suitable tool and remove.

: Pawl

NOTE:

Center console bin lid removed for clarity.

8. Remove center console rear finisher screws (A).

9. Release center console rear finisher clips using a suitable tool,

disconnect the harness connectors and remove.

: Metal clip

10. Remove center console screws.
11. Disconnect the harness connectors from the center console assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1078ZZ

ALJIA1092ZZ

ALJIA1079ZZ

CLUSTER LID A

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal and Installation

INFOID:0000000009176444

REMOVAL

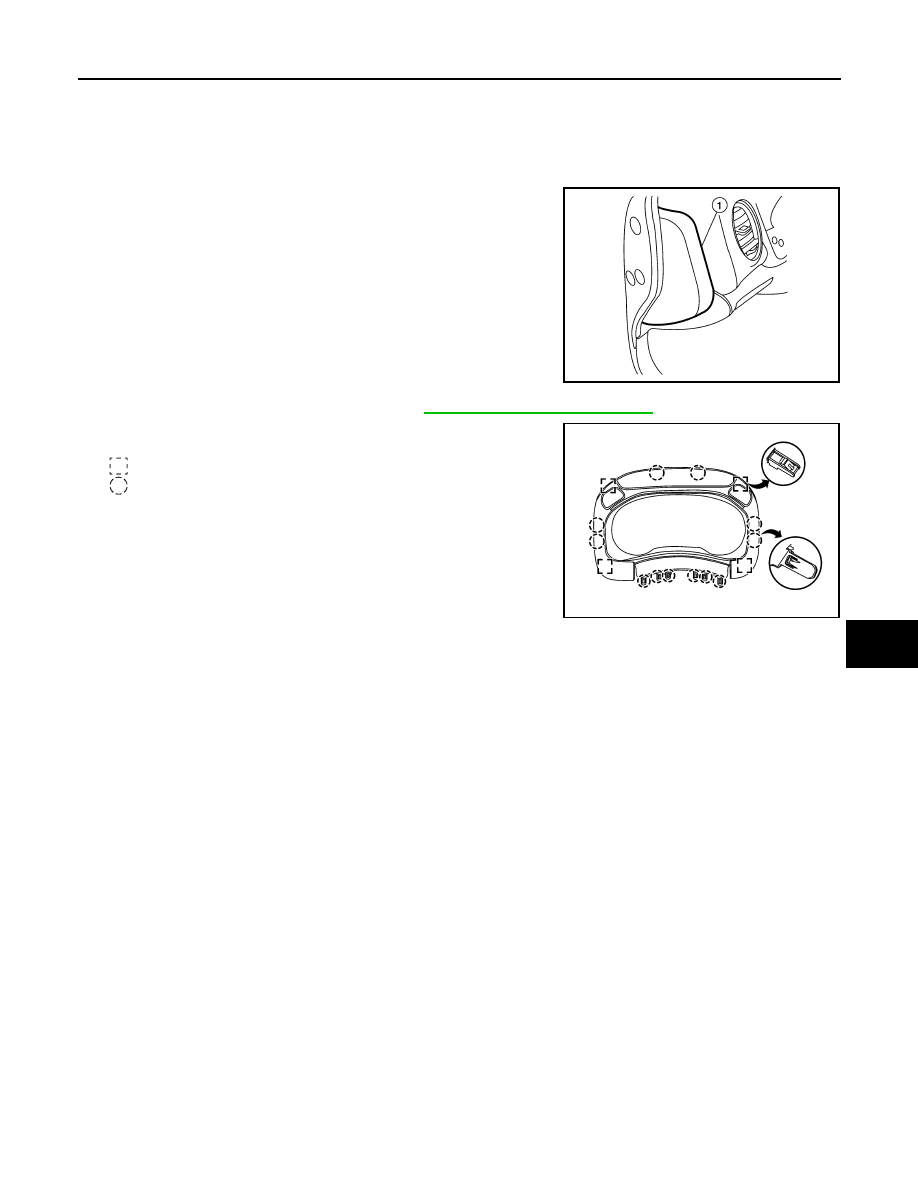

1. Remove instrument side finisher (LH) (1) using a suitable tool.

2. Remove instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

3. Release cluster lid A pawls and clips using a suitable tool, dis-

connect the harness connector and remove.

: Metal clip
: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0335ZZ

ALJIA1075ZZ

IP-22

< REMOVAL AND INSTALLATION >

CLUSTER LID C

CLUSTER LID C

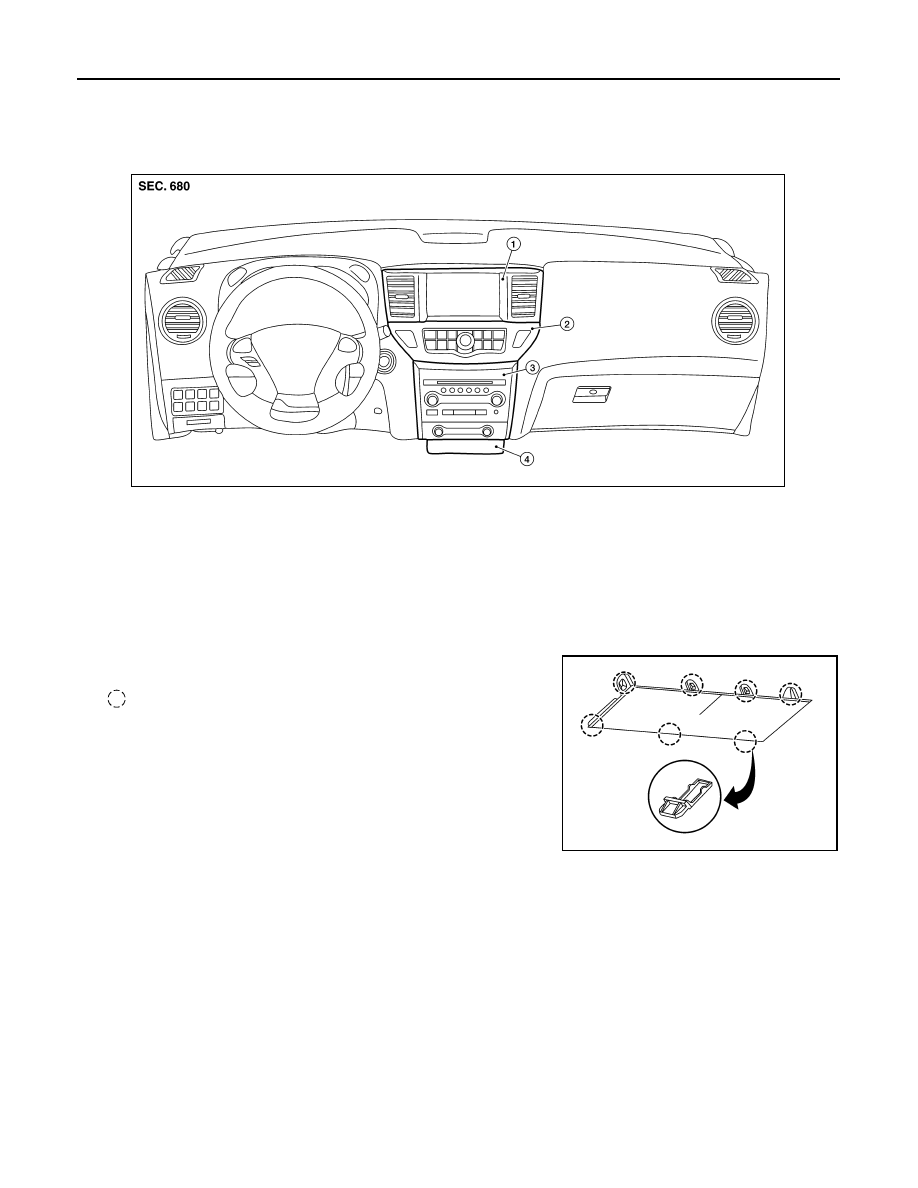

Exploded View

INFOID:0000000009176445

CLUSTER LID C LOWER
CLUSTER LID C LOWER : Removal and Installation

INFOID:0000000009176446

REMOVAL

1. Release cluster lid C lower pawls using a suitable tool and

remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CLUSTER LID C
CLUSTER LID C : Removal and Installation

INFOID:0000000009176447

REMOVAL

1.

Cluster lid D

2. Cluster lid C

3.

A/C and AV switch assembly

4.

Cluster lid C lower

ALJIA1081ZZ

ALJIA1082ZZ
