BACK DOOR TRIM

INT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• When installing back door upper finisher, check that the metal clips are securely placed in body

panel holes.

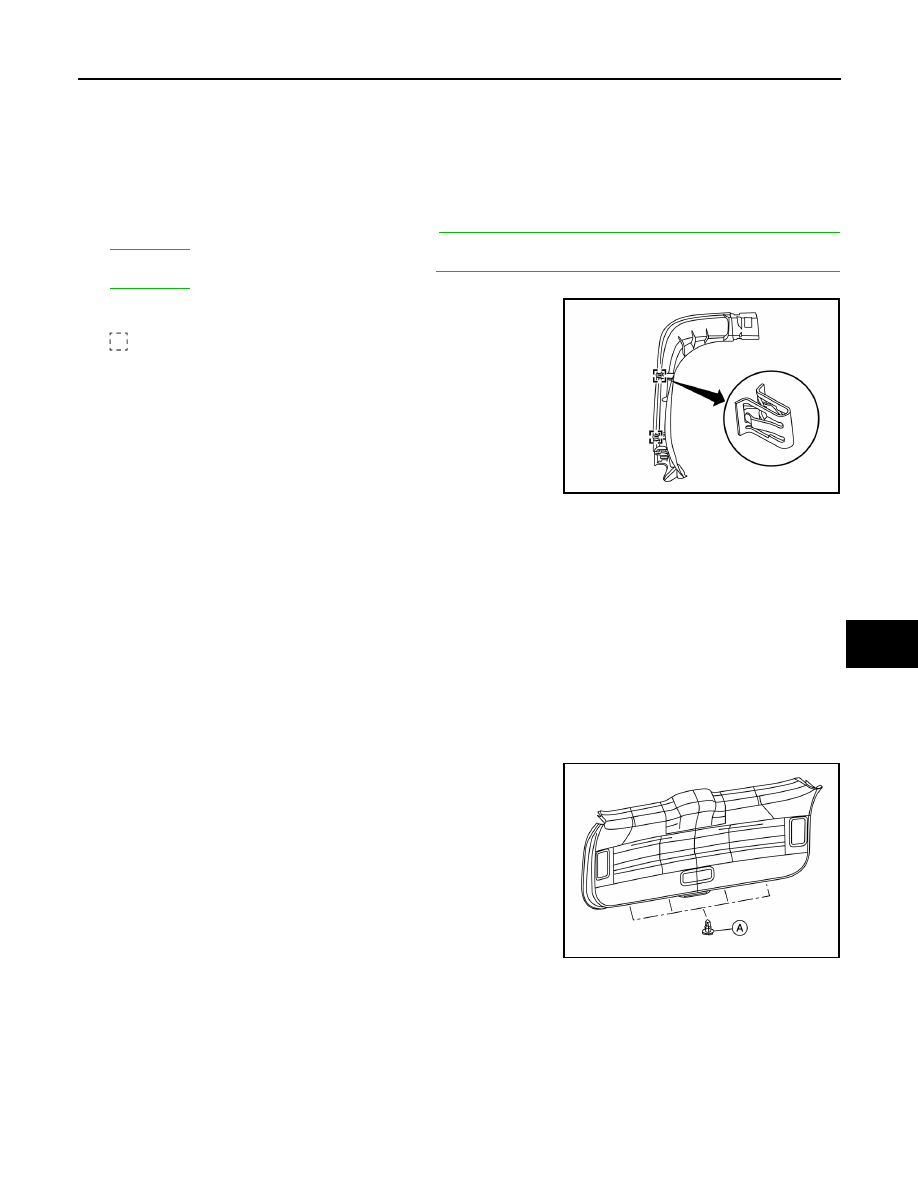

BACK DOOR SIDE FINISHER
BACK DOOR SIDE FINISHER : Removal and Installation

INFOID:0000000009176428

REMOVAL

1. Remove the back door upper finisher. Refer to

INT-34, "BACK DOOR UPPER FINISHER : Removal and

Installation"

.

2. Remove the back door lower finisher. Refer to

INT-35, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3. Release the back door side finisher metal clips using a suitable

tool, then remove the back door side finisher.

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the metal clips for deformation and damage during installation. Replace with new

ones if necessary.

• When installing back door upper finisher, check that the metal clips are securely placed in body

panel holes.

BACK DOOR LOWER FINISHER
BACK DOOR LOWER FINISHER : Removal and Installation

INFOID:0000000009176429

REMOVAL

1. Remove the back door pull handle.
2. Remove the back door lower finisher clips (A).

ALJIA0827ZZ

ALJIA0830ZZ

INT-36

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

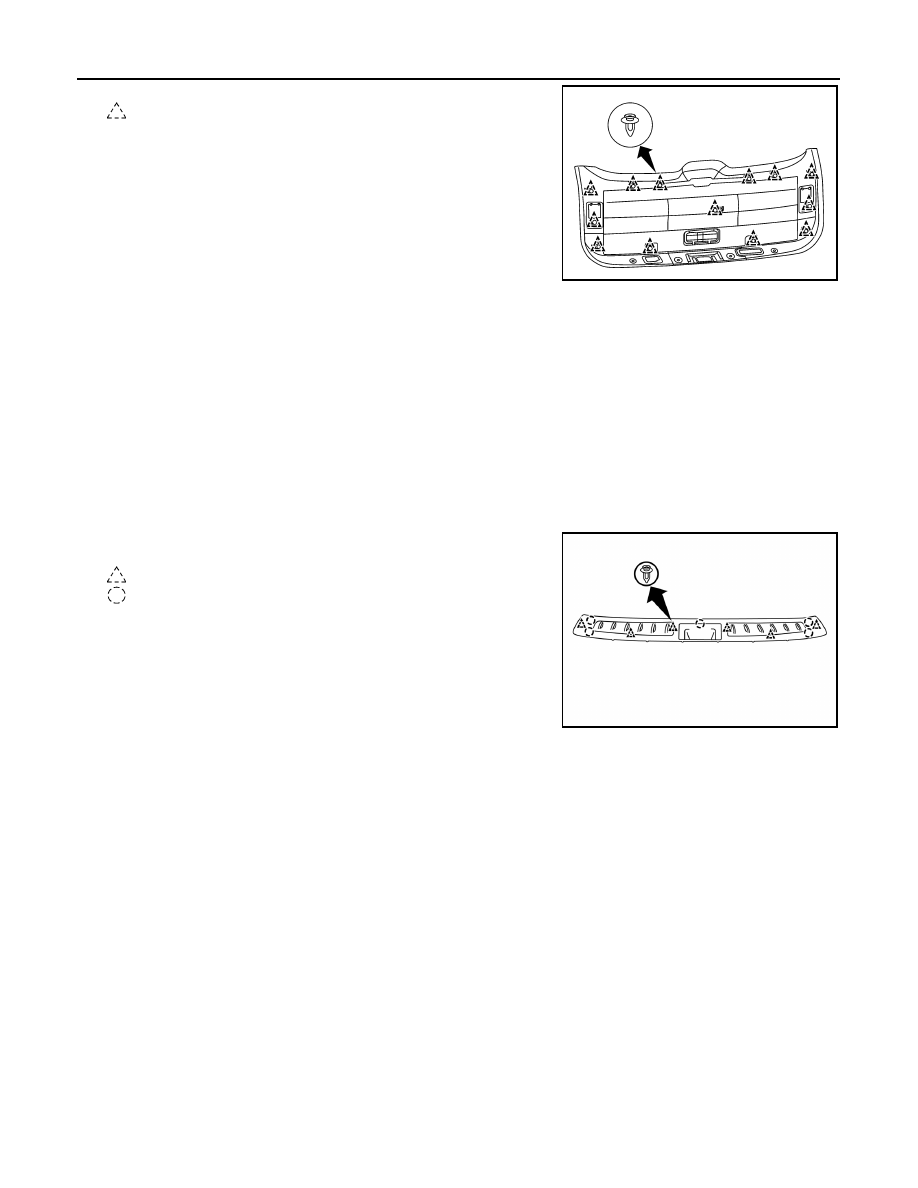

3. Release the back door lower finisher clips using a suitable tool.

: Clip

4. Disconnect the harness connectors from the back door lower finisher and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing back door finisher, check that clips are securely placed in body panel holes.

BACK DOOR KICKING PLATE
BACK DOOR KICKING PLATE : Removal and Installation

INFOID:0000000009176430

REMOVAL

1. Release the back door kicking plate clips and pawls using a suit-

able tool.

: Clip
: Pawl

2. Remove the back door kicking plate.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing back door kicking plate, check that clips and pawls are securely placed in body

panel holes.

AWJIA1148ZZ

ALJIA0820ZZ

IP-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

IP

A

B

IP

N

O

P

CONTENTS

INSTRUMENT PANEL

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tools .......................................

3

CLIP LIST  ............................................................

4

Descriptions for Clips  ................................................

4

SYMPTOM DIAGNOSIS  ...............................

8

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

8

Work Flow  .................................................................

8

Generic Squeak and Rattle Troubleshooting  ............

9

Diagnostic Worksheet  .............................................

12

REMOVAL AND INSTALLATION ...............

14

INSTRUMENT PANEL ASSEMBLY  ..................

14

Exploded View  ........................................................

14

Removal and Installation .........................................

15

STEERING COLUMN COVERS .........................

17

Removal and Installation .........................................

17

CENTER CONSOLE ASSEMBLY  ....................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

CLUSTER LID A  ...............................................

21

Removal and Installation  .........................................

21

CLUSTER LID C  ...............................................

22

Exploded View .........................................................

22

CLUSTER LID C LOWER ..........................................

22

CLUSTER LID C LOWER : Removal and Installa-
tion ...........................................................................

22

CLUSTER LID C  ........................................................

22

CLUSTER LID C : Removal and Installation  ...........

22

CLUSTER LID D  ...............................................

24

Removal and Installation  .........................................

24

INSTRUMENT LOWER PANEL LH ..................

25

Removal and Installation  .........................................

25

GLOVE BOX ASSEMBLY  ................................

26

Removal and Installation  .........................................

26

UNIT DISASSEMBLY AND ASSEMBLY  ....

27

CENTER CONSOLE ASSEMBLY  ....................

27

Exploded View .........................................................

27

Disassembly and Assembly .....................................

27

CENTER CONSOLE REAR FINISHER  ............

29

Exploded View .........................................................

29

Disassembly and Assembly .....................................

29

IP-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009725193

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000009725194

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.
