HEADLINING

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Without moonroof

Removal and Installation

INFOID:0000000009176418

REMOVAL

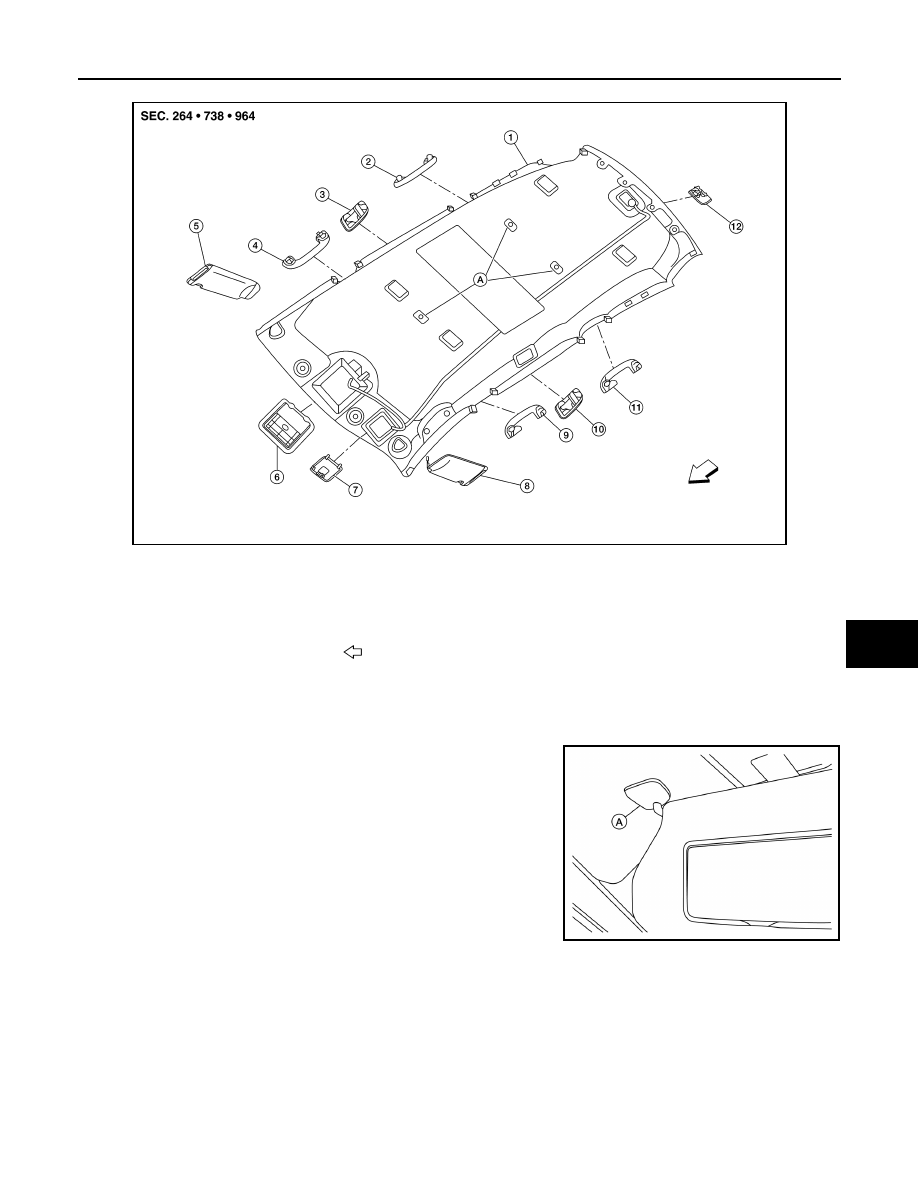

1. Remove sun visor cap (LH/RH) (A) using a suitable tool.

2. Remove sun visor screws (LH/RH).
3. Disconnect the harness connector from the vanity mirror lamp, and remove sun visors (LH/RH).

AWJIA1157ZZ

1.

Headlining

2.

Rear assist grip (RH)

3.

Personal lamp (RH)

4.

Front assist grip (RH)

5.

Sun visor (RH)

6.

Front room/map lamp assembly

7.

Headlining access cover

8.

Sun visor (LH)

9.

Front assist grip (LH)

10. Personal lamp (LH)

11. Rear assist grip (LH)

12. Cargo lamp

A.

Magnetic clip

Front

ALJIA0834ZZ

INT-28

< REMOVAL AND INSTALLATION >

HEADLINING

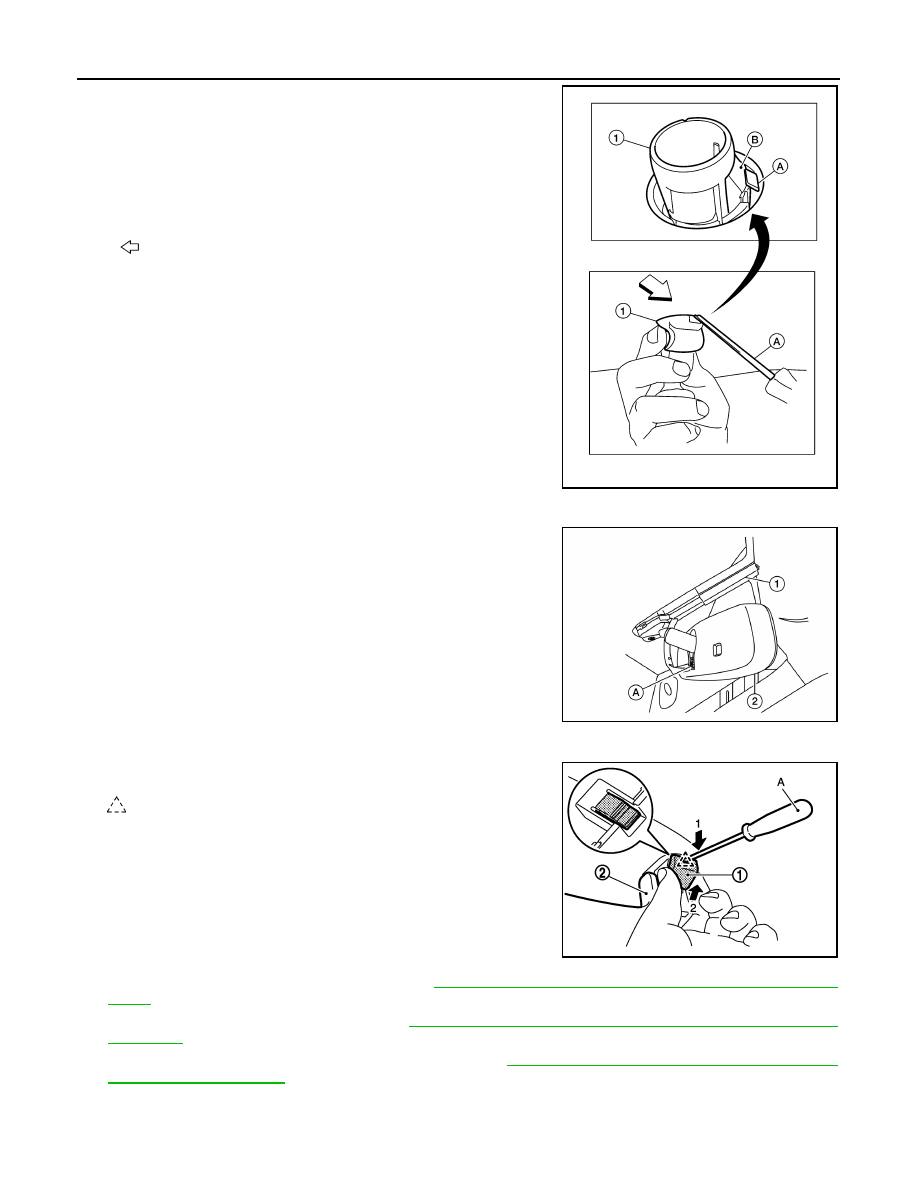

4. Insert a suitable tool (A) at approximately a 30 degree angle into

the sun visor holder notch on the front of the sun visor holder

(1). Press in to release the locking tab (B). While holding in lock-

ing tab (B), turn the sun visor holder (1) 90 degrees to release it

from the headliner.

• If the sun visor holder (1) does not fully rotate, make sure that

the suitable tool (A) is pressing in on the locking tab (B) and is

not positioned under locking tab (B). Reinsert the suitable tool

(A) as necessary to release the locking tab (B).

•

: Front

CAUTION:

Do not force the sun visor holder when removing as the

locking tab may be damaged if the suitable tool is not posi-

tioned correctly.

5. Remove the inside mirror finisher(1).
6. Disconnect the harness connector (A) from the inside mirror (2).

7. Remove all assist grips.
a. Disengage assist grip clip (1) using a suitable tool (A).

Slide assist grip clip forward and remove.

: Clip

b. Slide assist grip (2) forward and remove.

8. Remove front pillar finishers (LH/RH). Refer to

INT-19, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

9. Remove front door welts (LH/RH). Refer to

INT-22, "BODY SIDE WELT : Removal and Installation - Front

Door Welt"

.

10. Remove luggage side upper finishers (LH/RH). Refer to

INT-32, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

11. Remove headlining clips located at the rear of the headlining.
12. Disconnect harness connectors from headlining.

ALJIA0537ZZ

ALJIA1096ZZ

JMJIA4398ZZ

HEADLINING

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

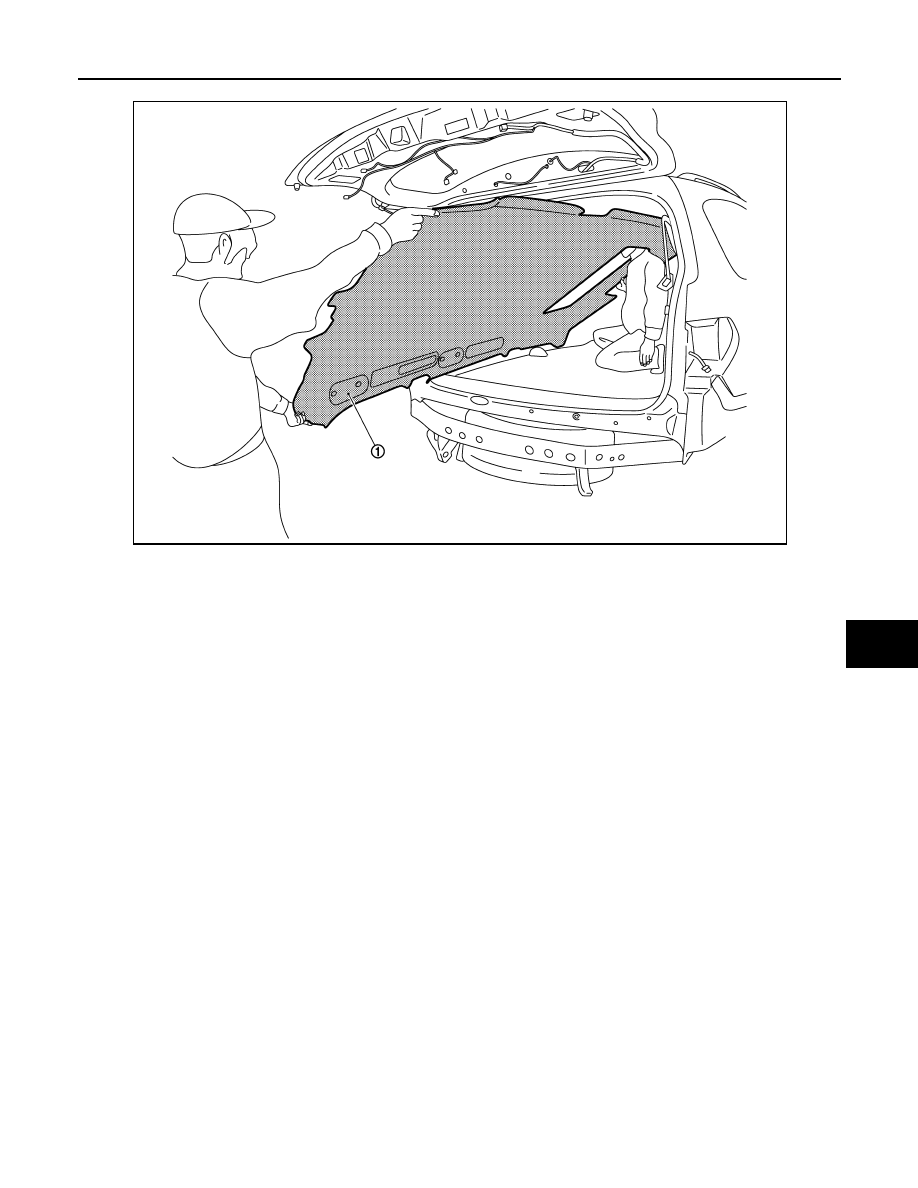

13. Remove headlining (1) through the back door.

CAUTION:

• When removing headlining, two people are required.

• Do not bend headlining when removing.

• Be careful not to scratch or damage any part of the body while removing the headlining.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not to bend headlining when installing.

• Install metal clips of front room/map lamp assembly and clips of the rear end of headlining for posi-

tioning.

JMJIA4068ZZ

INT-30

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

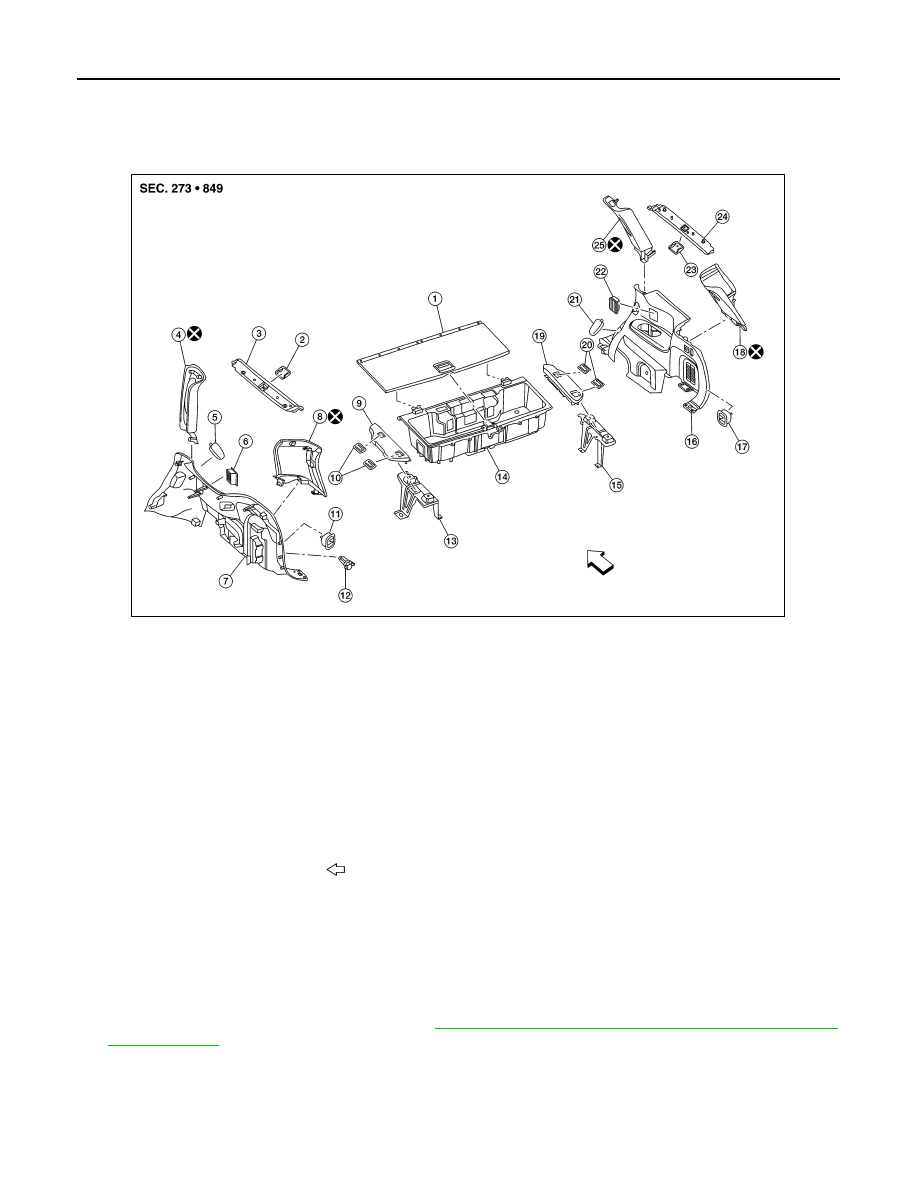

Exploded View

INFOID:0000000009176419

REAR PILLAR FINISHER
REAR PILLAR FINISHER : Removal and Installation

INFOID:0000000009176420

REMOVAL

1. Remove the seat belt bolt cover and bolt from the luggage side lower finisher.
2. Remove luggage side lower finisher. Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

1.

Storage box lid

2.

Luggage side upper finisher cover (LH)

3.

Luggage side upper finisher (LH)

4.

Rear pillar finisher (LH)

5.

Luggage side lower finisher cover (LH)

6.

Rear ventilator grille (LH)

7.

Luggage side lower finisher (LH)

8.

Back pillar finisher (LH)

9.

Storage box side finisher (LH)

10. Storage box side finisher hook (LH)

11. Luggage side lower finisher coat hook

(LH)

12. Power socket

13. Storage box side finisher bracket

(LH)

14. Storage box

15. Storage box side finisher bracket

(RH)

16. Luggage side lower finisher (RH)

17. Luggage side lower finisher coat hook

(RH)

18. Back pillar finisher (RH)

19. Storage box side finishers (RH)

20. Storage box side finisher hook (RH)

21. Luggage side lower finisher cover

(RH)

22. Rear ventilator grille (RH)

23. Luggage side upper finisher cover (RH)

24. Luggage side upper finisher (RH)

25. Rear pillar finisher (RH)

Front

AWJIA0950ZZ
