LUGGAGE FLOOR TRIM

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

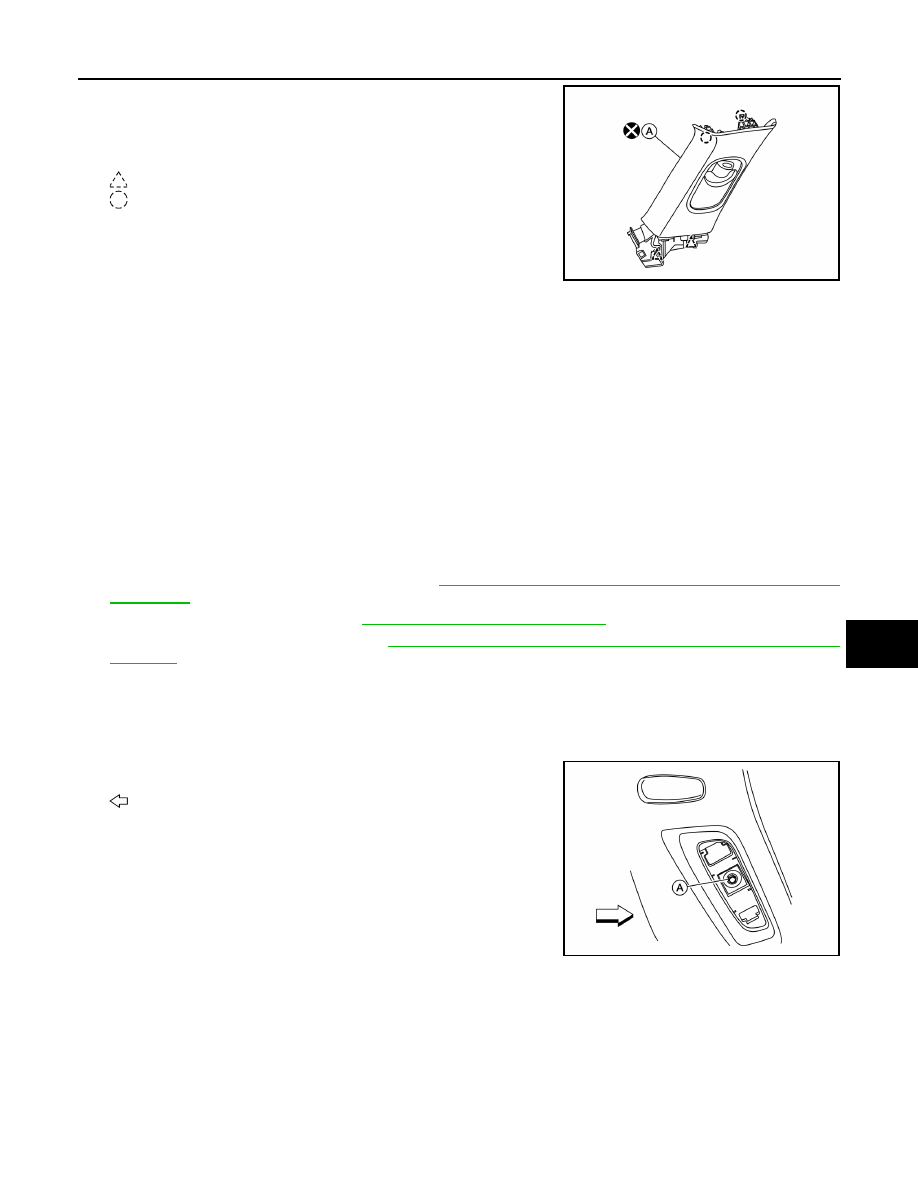

3. Release the rear pillar finisher clips and pawls using a suitable

tool.

CAUTION:

Do not bend the sheet metal when removing the rear pillar

finisher from the sheet metal.

: Clip
: Pawl

4. Remove the rear pillar finisher (A) from the luggage side lower

finisher.

5. Remove the seat belt from the rear pillar finisher (A), then

remove the rear pillar finisher.

CAUTION:

Do not reuse rear pillar finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse rear pillar finisher. Replace with new part for installation.

• Visually check the clip and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing rear pillar finisher, check that clips and pawls are securely placed in body panel

holes.

LUGGAGE SIDE LOWER FINISHER
LUGGAGE SIDE LOWER FINISHER : Removal and Installation

INFOID:0000000009176421

REMOVAL

1. Remove the storage box side finisher. Refer to

INT-33, "STORAGE BOX SIDE FINISHER : Removal and

Installation"

.

2. Remove the third row seat. Refer to

SE-107, "Removal and Installation"

.

3. Remove the rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation - Rear Kick-

ing Plate"

4. Partially remove the rear door welt.
5. Remove the seat belt bolt cover and bolt from the luggage side lower finisher.
6. Remove the seat belt from the luggage side lower finisher.
7. Remove the luggage side lower finisher coat hook bolt using a suitable tool.
8. Remove the luggage side lower finisher cover, then remove the

luggage side lower finisher bolt (A).

: Front

9. Disconnect the harness connector from power socket (LH only) and speakers (LH/RH) (if equipped).
10. Remove the luggage side lower finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage side lower finisher, check that clips and pawls are securely placed in body

panel holes.

ALJIA0823ZZ

ALJIA0824ZZ

INT-32

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE SIDE UPPER FINISHER
LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000009176422

REMOVAL

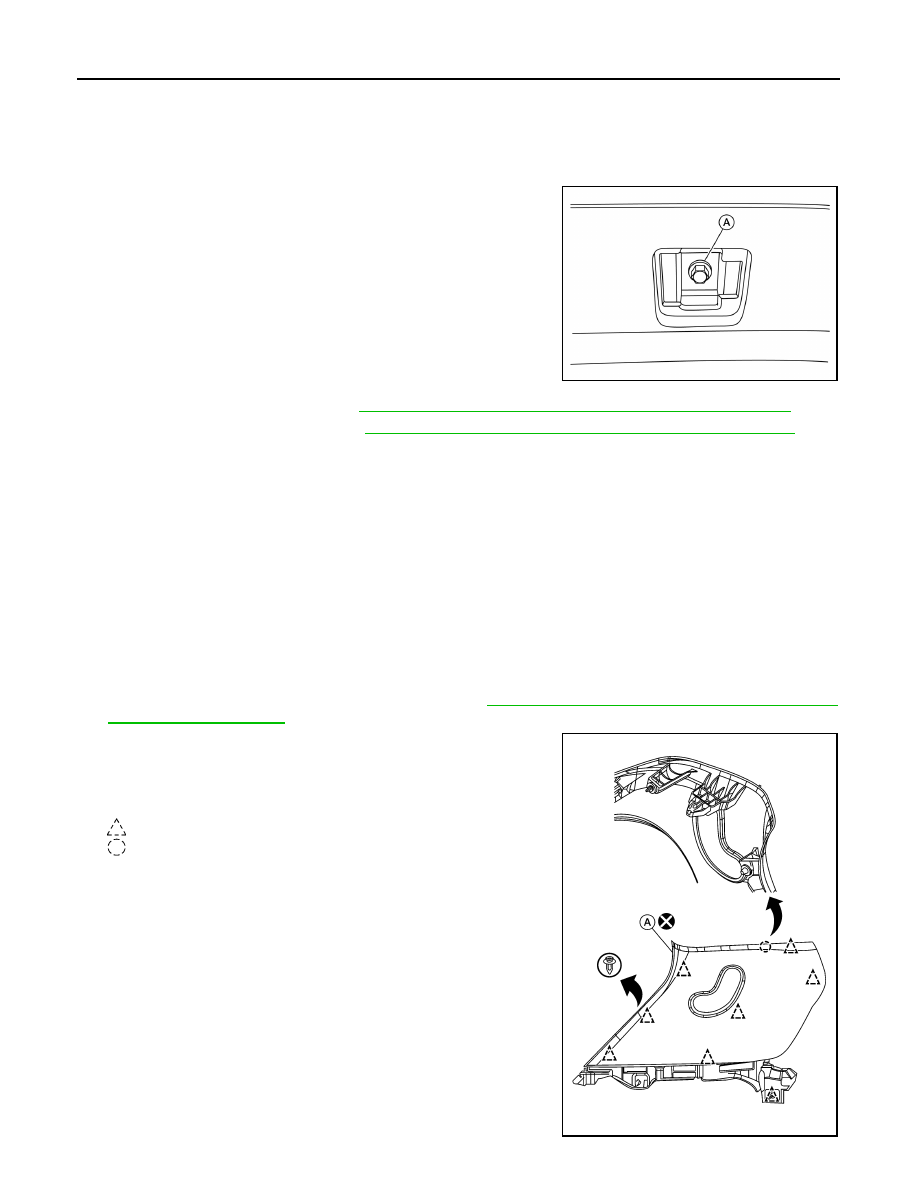

1. Remove the luggage side upper finisher cover, then remove the

luggage side upper finisher bolt (A).

2. Remove rear pillar finisher. Refer to

INT-30, "REAR PILLAR FINISHER : Removal and Installation"

.

3. Remove back pillar finisher. Refer to

INT-32, "BACK PILLAR FINISHER : Removal and Installation"

.

4. Release the clips, then remove the luggage side upper finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing luggage side upper finisher, check that clips are securely placed in body panel

holes.

BACK PILLAR FINISHER
BACK PILLAR FINISHER : Removal and Installation

INFOID:0000000009176423

REMOVAL

1. Remove the luggage side lower finisher. Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

2. Release the back pillar finisher clips and pawl using a suitable

tool.

CAUTION:

Do not bend the sheet metal when removing the back pillar

finisher from the sheet metal.

: Clip
: Pawl

3. Remove the seat belt from the back pillar finisher (A), then

remove the back pillar finisher (A).

CAUTION:

Do not reuse back pillar finisher. Replace with new part

after removal.

ALJIA0825ZZ

ALJIA1095ZZ

LUGGAGE FLOOR TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse back pillar finisher. Replace with new part for installation.

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing back pillar finisher, check that the clips and pawl are securely placed in body panel

holes.

STORAGE BOX
STORAGE BOX : Removal and Installation

INFOID:0000000009176424

REMOVAL

1. Release the clips that retain the seat back board to the storage box lid.
2. Open the storage box lid.
3. Remove the subwoofer from the storage box (if equipped). Refer to

AV-379, "Removal and Installation"

[MID AUDIO SYSTEM - WITH BOSE AUDIO SYSTEM] or

AV-625, "Removal and Installation"

 [PREMIUM

AUDIO SYSTEM - WITH NAVIGATION].

4. Remove the back door kicking plate. Refer to

INT-36, "BACK DOOR KICKING PLATE : Removal and

Installation"

5. Remove the storage box screws and the storage box.

INSTALLATION

Installation is in the reverse order of removal.

STORAGE BOX SIDE FINISHER
STORAGE BOX SIDE FINISHER : Removal and Installation

INFOID:0000000009176425

REMOVAL

1. Remove the storage box. Refer to

INT-33, "STORAGE BOX : Removal and Installation"

.

2. Release the clips using a suitable tool, then remove the storage box side finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing storage box side finisher, check that the clips and pawls are securely placed in body

panel holes.

INT-34

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

BACK DOOR TRIM

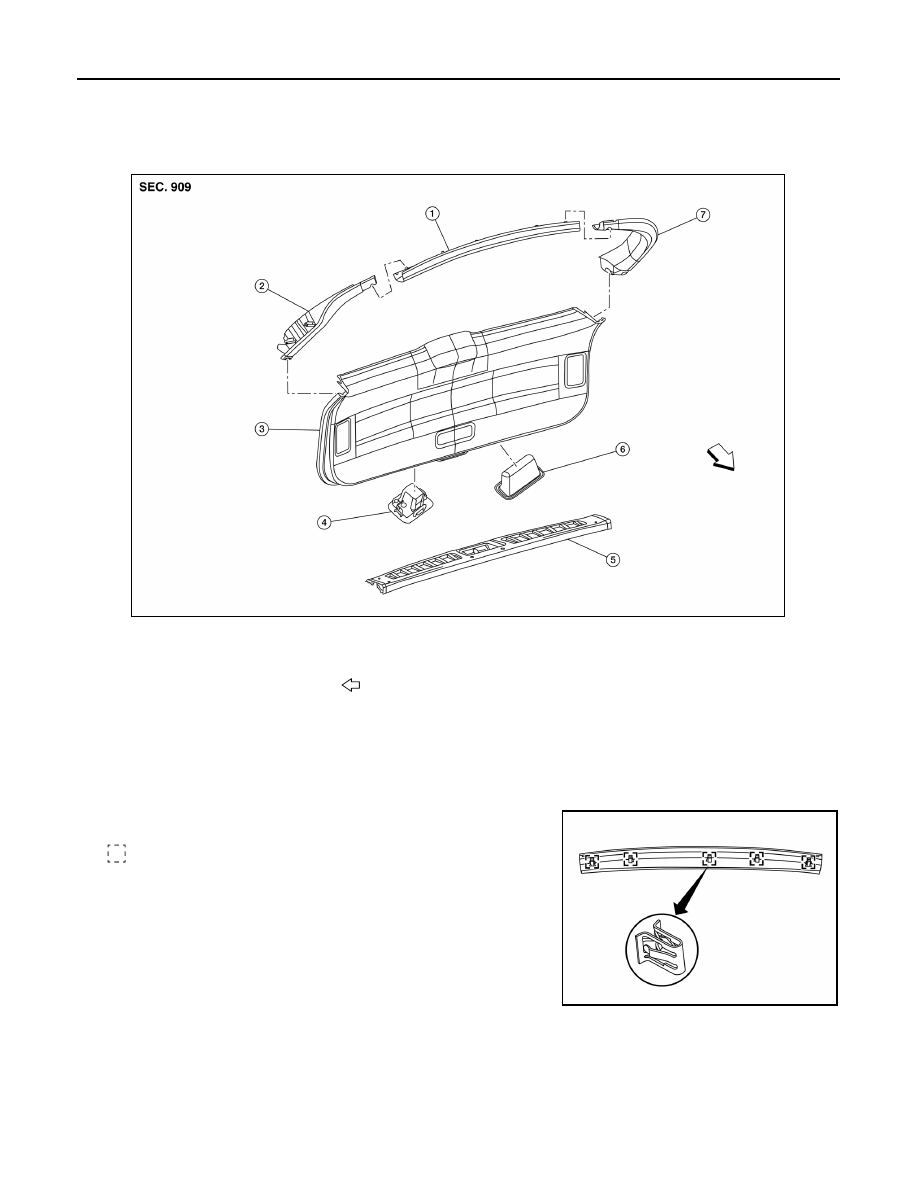

Exploded View

INFOID:0000000009176426

BACK DOOR UPPER FINISHER
BACK DOOR UPPER FINISHER : Removal and Installation

INFOID:0000000009176427

REMOVAL

1. Release the back door upper finisher metal clips using a suitable

tool, then remove the back door upper finisher.

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the metal clips for deformation and damage during installation. Replace with new

ones if necessary.

1.

Back door upper finisher

2.

Back door side finisher (RH)

3.

Back door lower finisher

4.

Back door switch

5.

Back door kicking plate

6.

Back door pull handle

7.

Back door side finisher (LH)

Front

ALJIA0828ZZ

ALJIA0826ZZ
