BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

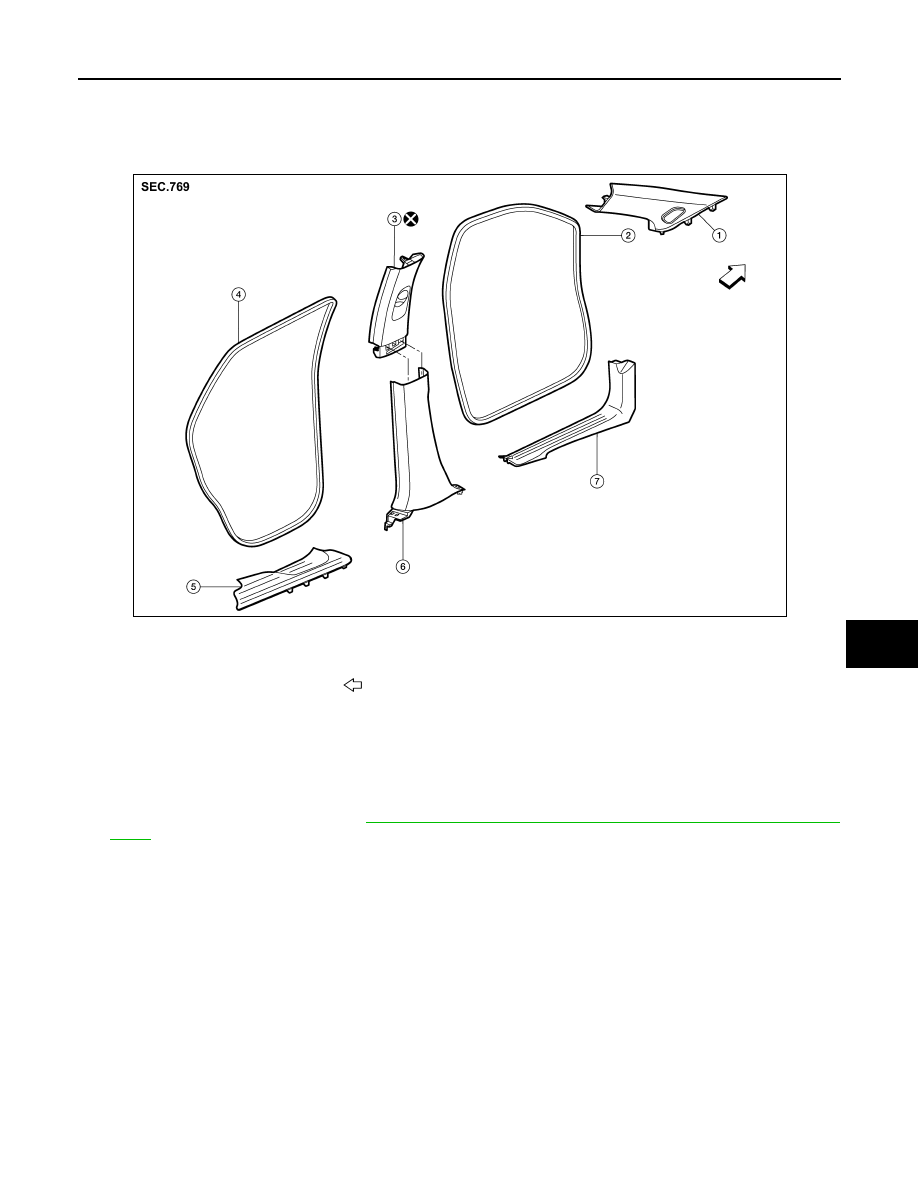

Exploded View

INFOID:0000000009176407

FRONT PILLAR FINISHER
FRONT PILLAR FINISHER : Removal and Installation

INFOID:0000000009176408

REMOVAL

1. Remove front kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation - Front Kicking

Plate"

.

2. Partially remove the front door welt.

1.

Front pillar finisher

2.

Front door welt

3.

Center pillar upper finisher

4.

Rear door welt

5.

Rear kicking plate

6.

Center pillar lower finisher

7.

Front kicking plate

Front

AWJIA1150ZZ

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

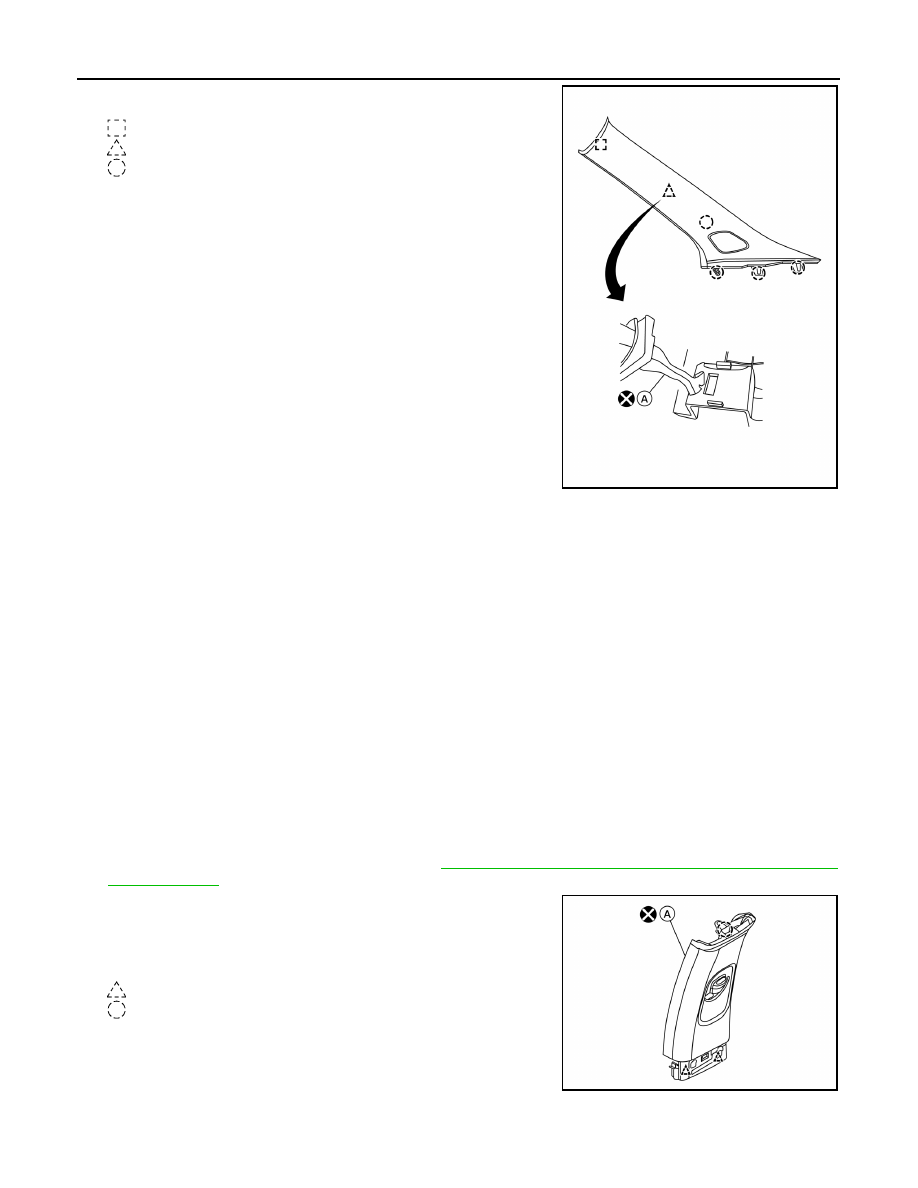

3. Release the front pillar finisher metal clip and pawls using a suit-

able tool.

: Metal clip
: Clip
: Pawl

4. Cut and discard front pillar finisher tether clip  (A).

CAUTION:

Do not reuse tether clips. Replace with new part after

removal.

5. Remove the remaining piece of tether clip (A) using a suitable

tool.

6. Disconnect the harness connector (if equipped) from the front pillar finisher, then remove the front pillar

finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse tether clips. Replace with new part after removal.

• Make sure to install tether clip to front pillar finisher before installing front pillar finisher.

• When installing tether clip to front pillar finisher, be sure to install by aligning to the cutout.

• Visually check the metal clip for deformation and damage during installation. Replace with new one

if necessary.

• When installing front pillar finisher, check that metal clip, tether clip and pawls are securely placed

into body panel holes.

CENTER PILLAR UPPER FINISHER
CENTER PILLAR UPPER FINISHER : Removal and Installation

INFOID:0000000009176409

REMOVAL

1. Move the front seat to the full forward position.
2. Remove the center pillar lower finisher. Refer to

INT-21, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

3. Release the center pillar upper finisher (A) pawl and clips using

a suitable tool.

CAUTION:

Do not bend the sheet metal when removing the center pil-

lar upper finisher from the sheet metal.

: Clip
: Pawl

ALJIA0817ZZ

ALJIA0819ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

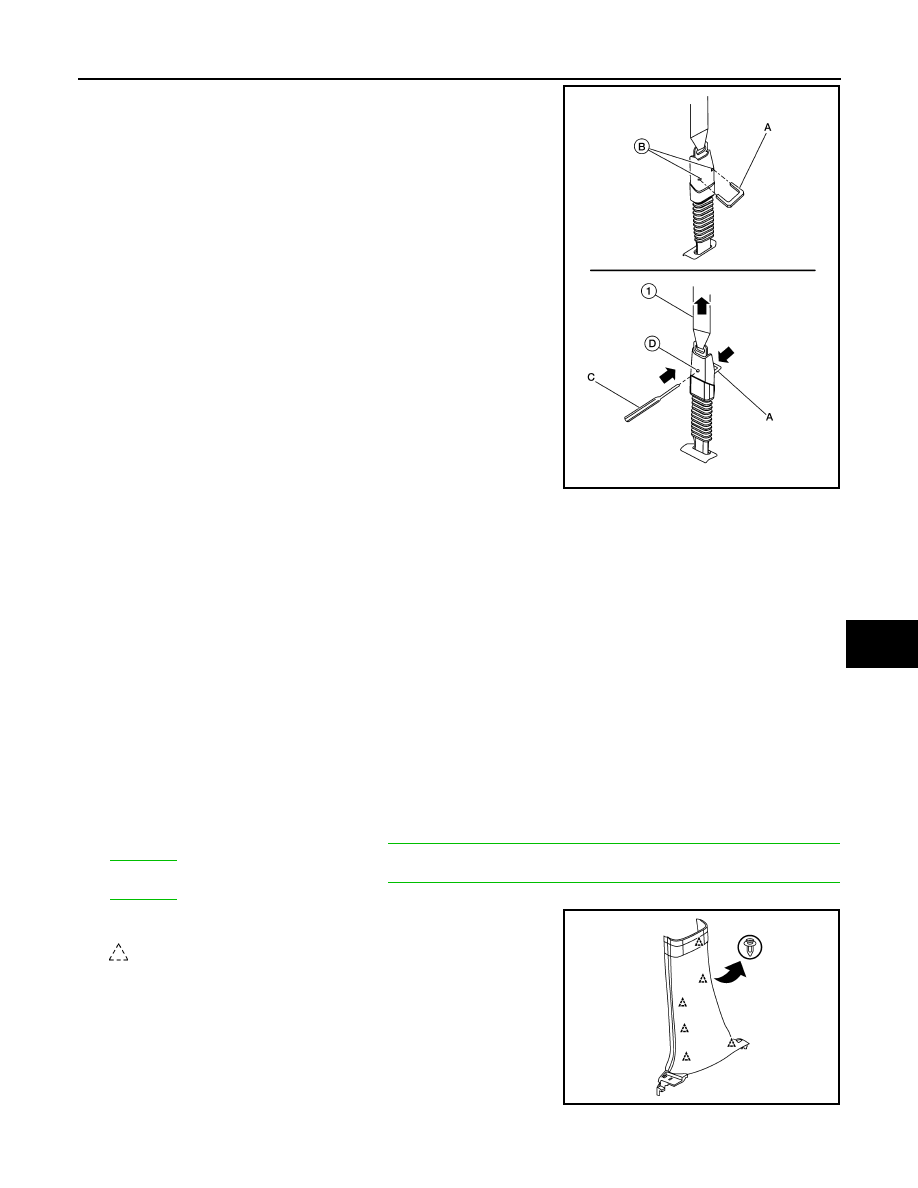

4. Release seat belt retractor (1) from the lap belt pretensioner.
a. Insert suitable tool (A) into slots (B).
b. On opposite side insert suitable tool (C) into hole (D).
c. Depress suitable tools (A) and (C) at the same time and remove

seat belt retractor (1) as shown.

5. Remove the seat belt from the center pillar upper finisher and remove center pillar upper finisher.

CAUTION:

Do not reuse center pillar upper finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse center pillar upper finisher. Replace with new part for installation.

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing center pillar upper finisher, check that the clips and pawl are securely placed in body

panel holes.

CENTER PILLAR LOWER FINISHER
CENTER PILLAR LOWER FINISHER : Removal and Installation

INFOID:0000000009176410

REMOVAL

1. Move the front seat to the full forward position.
2. Remove the front kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation - Front Kick-

ing Plate"

.

3. Remove the rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation - Rear Kick-

ing Plate"

.

4. Release the center pillar lower finisher clips using a suitable

tool, then remove the center pillar lower finisher.

: Clip

INSTALLATION

ALHIA0321ZZ

AWJIA1149ZZ

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing center pillar lower finisher, check that clips are securely placed in body panel holes.

BODY SIDE WELT
BODY SIDE WELT : Removal and Installation - Front Door Welt

INFOID:0000000009176411

REMOVAL

1. Remove the center pillar upper finisher. Refer to

INT-20, "CENTER PILLAR UPPER FINISHER : Removal

and Installation"

.

2. Remove the front body side welt.

INSTALLATION

Installation is in the reverse order of removal.

BODY SIDE WELT : Removal and Installation - Rear Door Welt

INFOID:0000000009176412

REMOVAL

1. Remove the center pillar upper finisher. Refer to

INT-20, "CENTER PILLAR UPPER FINISHER : Removal

and Installation"

.

2. Remove the rear body side welt.

INSTALLATION

Installation is in the reverse order of removal.

KICKING PLATE
KICKING PLATE : Removal and Installation - Front Kicking Plate

INFOID:0000000009176413

REMOVAL

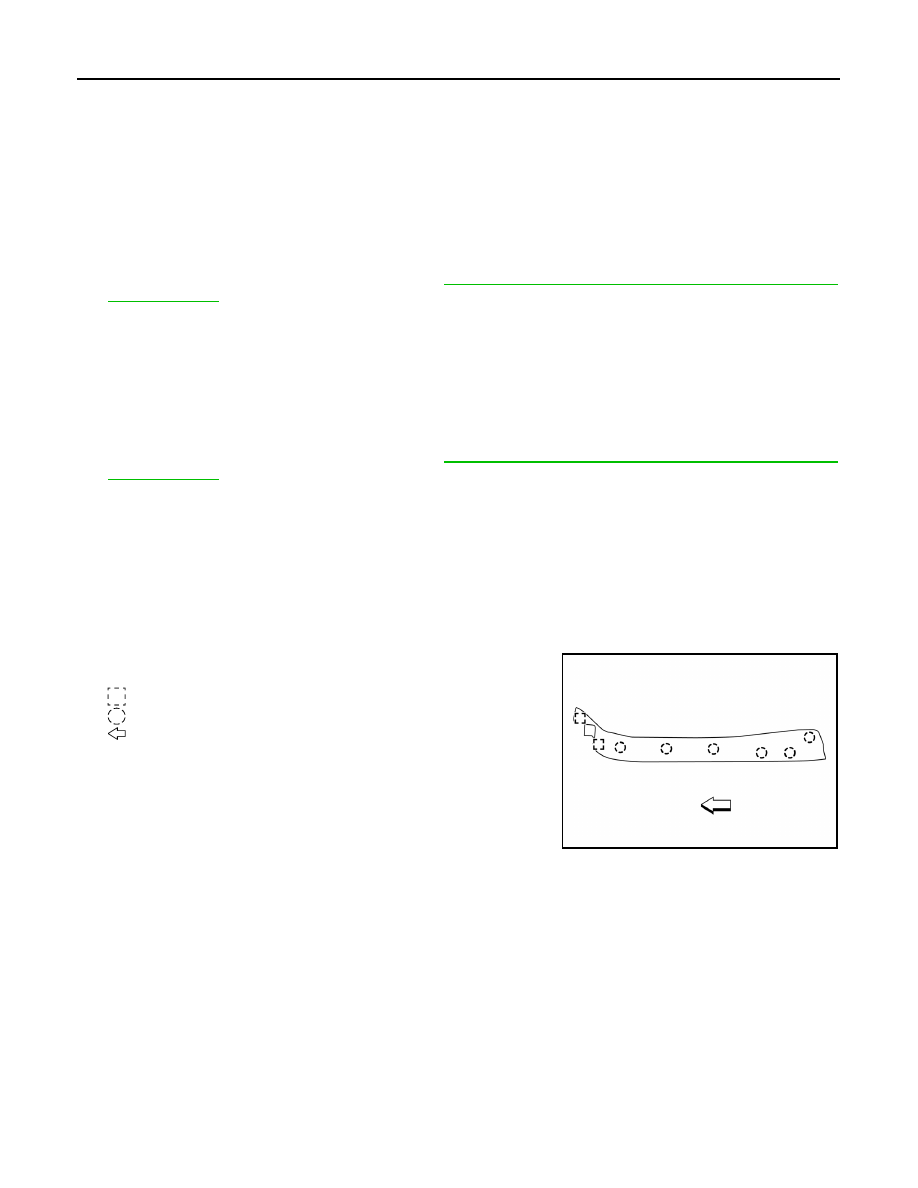

1. Release the front kicking plate metal clips and pawls using a

suitable tool.

: Metal clip
: Pawl

: Front

2. Remove the front kicking plate.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing front kicking plate, check that the clips and pawls are securely placed in body panel

holes.

KICKING PLATE : Removal and Installation - Rear Kicking Plate

INFOID:0000000009176414

REMOVAL

ALJIA0814ZZ
