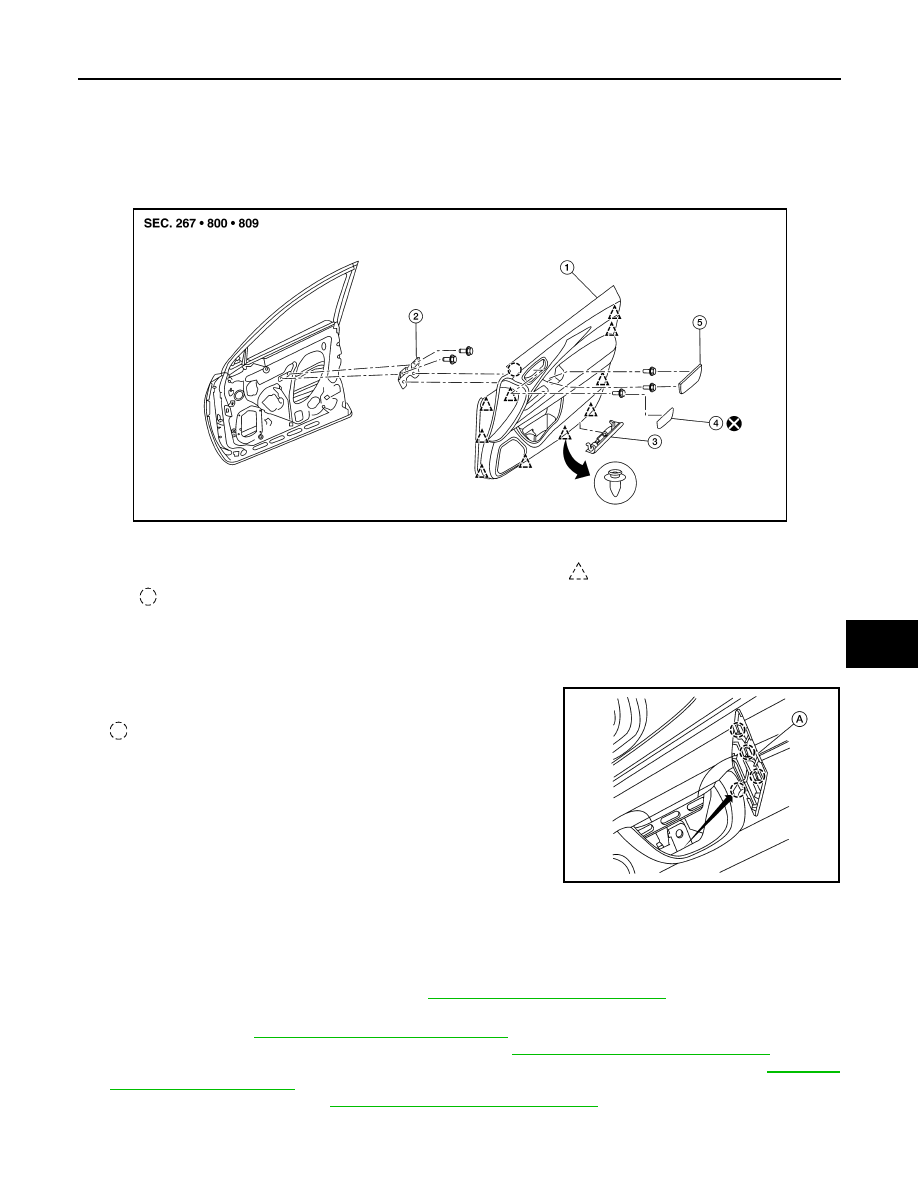

FRONT DOOR FINISHER INT-15 < REMOVAL AND INSTALLATION > C D E F G H I K L M A B INT N O P REMOVAL AND INSTALLATION FRONT DOOR FINISHER Exploded View INFOID:0000000009176403 Removal and Installation INFOID:0000000009176404 REMOVAL 1. Release pawls using a suitable tool and remove armrest cover (A). : Pawl 2. Remove the front door finisher bolts. CAUTION: Do not reuse inside door handle escutcheon. Replace with new part after removal. 4. Remove the step lamp (if equipped). Refer to INL-64, "Removal and Installation" . 5. Remove the main power window and door lock/unlock switch or power windows and door lock/unlock switch RH. Refer to PWC-62, "Removal and Installation" [MAIN POWER WINDOW AND DOOR LOCK/ UNLOCK SWITCH - LH FRONT ONLY AUTO DOWN], PWC-63, "Removal and Installation" [POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH - LH FRONT ONLY AUTO DOWN], [MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH - LH & RH FRONT AUTO UP/DOWN] or PWC-138, "Removal and Installation" [POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH - LH & RH FRONT AUTO UP/DOWN]. 1. Front door finisher 2. Inside door pull handle bracket 3. Front step lamp 4. Inside door handle escutcheon 5. Armrest cover Clip Pawl AWJIA1171ZZ AWJIA1147ZZ |
