Nissan Pathfinder. Manual - part 745





ILLUMINATION CONTROL SWITCH

INL-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SWITCH

Removal and Installation

INFOID:0000000009175474

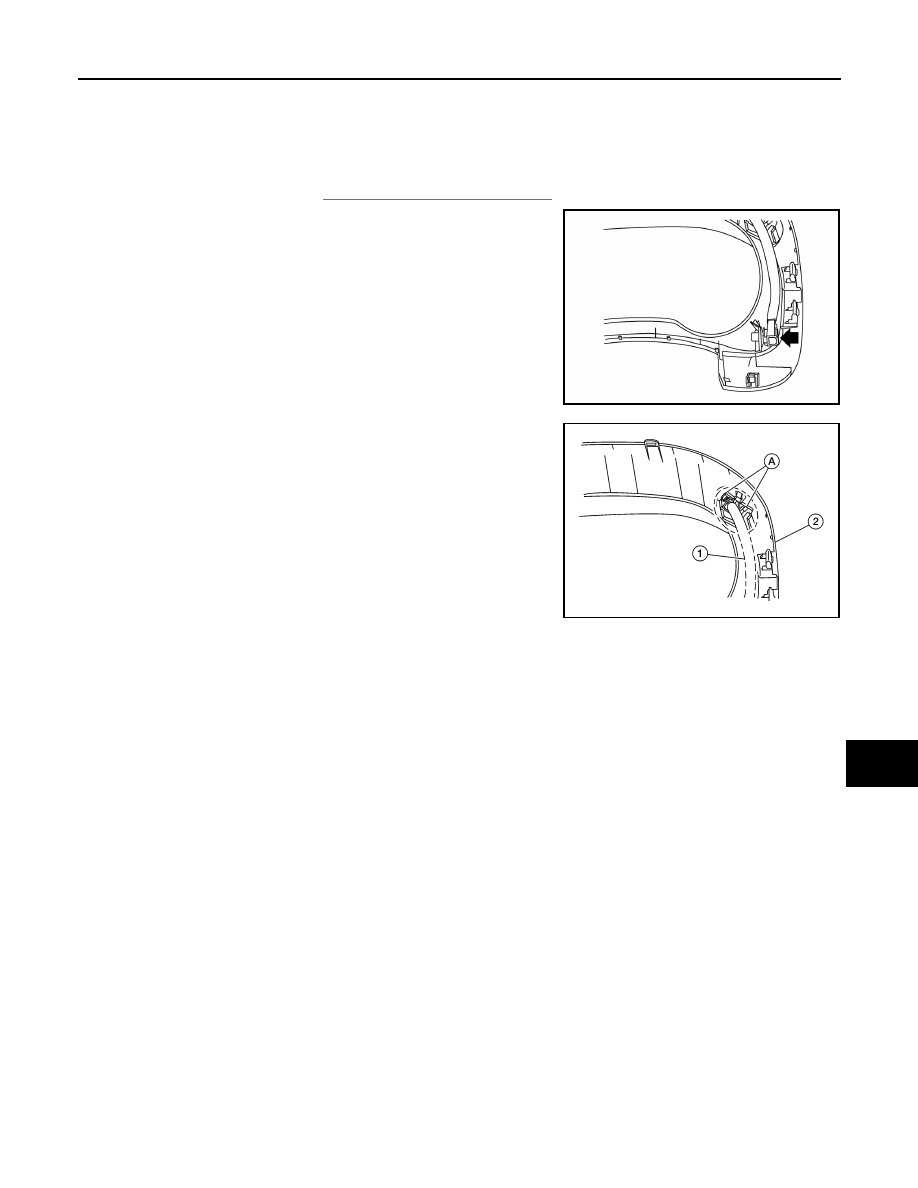

Removal

1. Remove cluster lid A. Refer to

IP-21, "Removal and Installation"

.

2. Release the harness connector from cluster lid A.

3. Release the pawls (A) and remove illumination control switch (1)

through the front of cluster lid A (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1437ZZ

ALNIA1438ZZ

INL-68

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009175475

*:Always check with the parts department for the latest parts information.

Item

Wattage (W)*

Front room/map lamp

LED

Illumination control switch

—

Vanity lamp (if equipped)

2

Glove box lamp

3.4

Foot lamp (if equipped)

3.4

Step lamp (If equipped)

3.4

Personal lamp

8

Cargo lamp

8

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tools  ........................................

4

CLIP LIST  ............................................................

5

Descriptions for Clips  ................................................

5

SYMPTOM DIAGNOSIS  ...............................

9

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

9

Work Flow  .................................................................

9

Generic Squeak and Rattle Troubleshooting  ..........

10

Diagnostic Worksheet  .............................................

13

REMOVAL AND INSTALLATION ...............

15

FRONT DOOR FINISHER  ..................................

15

Exploded View  ........................................................

15

Removal and Installation .........................................

15

REAR DOOR FINISHER  ....................................

17

Exploded View  ........................................................

17

Removal and Installation .........................................

17

BODY SIDE TRIM  ..............................................

19

Exploded View  ........................................................

19

FRONT PILLAR FINISHER  .......................................

19

FRONT PILLAR FINISHER : Removal and Instal-
lation ........................................................................

19

CENTER PILLAR UPPER FINISHER .......................

20

CENTER PILLAR UPPER FINISHER : Removal
and Installation  ........................................................

20

CENTER PILLAR LOWER FINISHER .......................

21

CENTER PILLAR LOWER FINISHER : Removal
and Installation  ........................................................

21

BODY SIDE WELT .....................................................

22

BODY SIDE WELT : Removal and Installation -
Front Door Welt  .......................................................

22

BODY SIDE WELT : Removal and Installation -
Rear Door Welt ........................................................

22

KICKING PLATE ........................................................

22

KICKING PLATE : Removal and Installation -
Front Kicking Plate  ..................................................

22

KICKING PLATE : Removal and Installation -
Rear Kicking Plate ...................................................

22

FLOOR TRIM  ....................................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

HEADLINING ....................................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

27

LUGGAGE FLOOR TRIM  .................................

30

Exploded View .........................................................

30

REAR PILLAR FINISHER ..........................................

30

REAR PILLAR FINISHER : Removal and Installa-
tion ...........................................................................

30

LUGGAGE SIDE LOWER FINISHER ........................

31

LUGGAGE SIDE LOWER FINISHER : Removal
and Installation  ........................................................

31

LUGGAGE SIDE UPPER FINISHER .........................

32

LUGGAGE SIDE UPPER FINISHER : Removal
and Installation  ........................................................

32

BACK PILLAR FINISHER  .........................................

32
