FOOT LAMP

INL-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PASSENGER SIDE : Exploded View

INFOID:0000000009175463

PASSENGER SIDE : Bulb Replacement

INFOID:0000000009175464

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

1. Reach under instrument panel on RH side, locate foot lamp socket, rotate the bulb socket and remove.
2. Grasp the bulb and pull straight out of the bulb socket to remove.
3. Install foot lamp bulb to bulb socket.
4. Insert bulb socket into instrument panel substrate and rotate to lock in position.

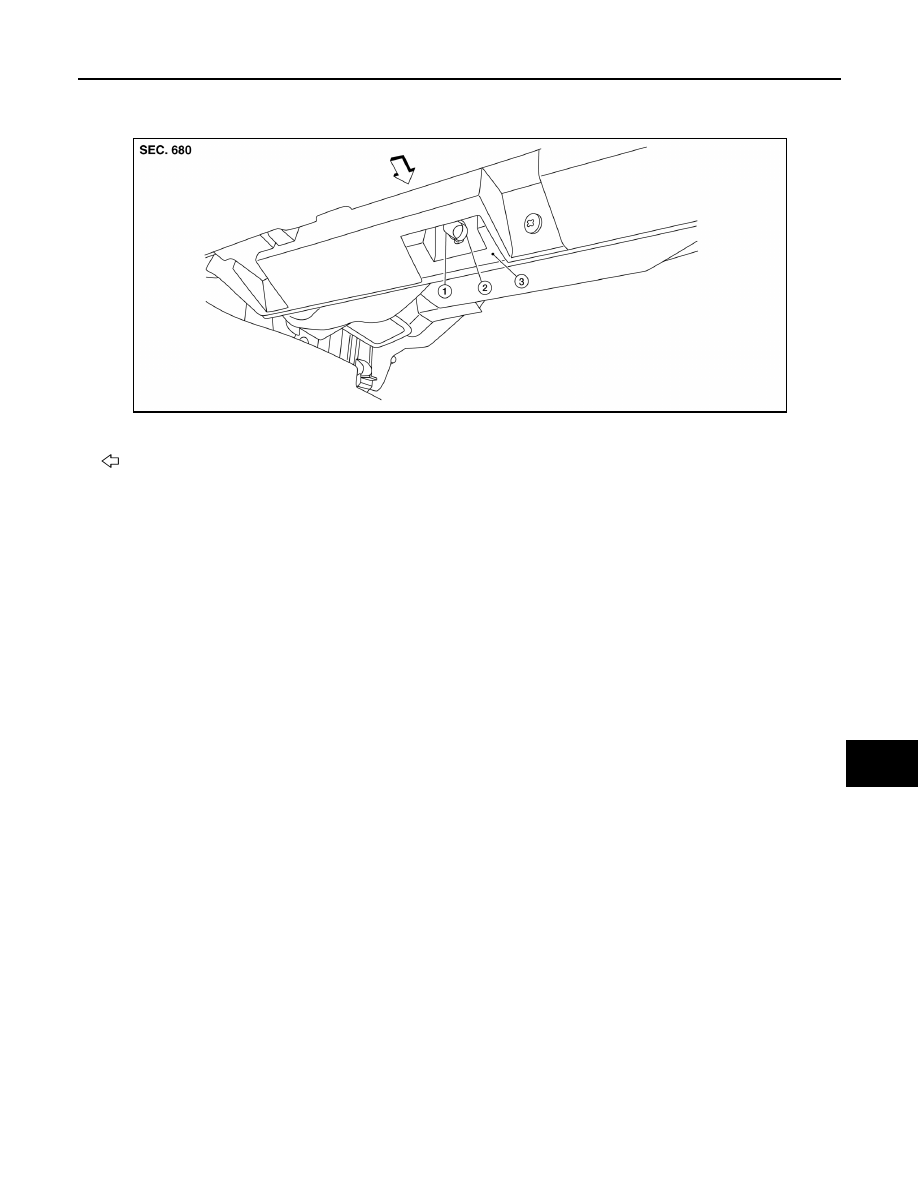

1.

Bulb

2.

Bulb socket

3.

Instrument panel substrate

Front

ALLIA1086ZZ

INL-64

< REMOVAL AND INSTALLATION >

FRONT STEP LAMP

FRONT STEP LAMP

Exploded View

INFOID:0000000009175465

Removal and Installation

INFOID:0000000009175466

REMOVAL

1. Insert a suitable tool into the gap between the front step lamp and front door finisher and gently release

the pawls and the front step lamp.

2. Disconnect the harness connector from the front step lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb or Lens Replacement

INFOID:0000000009175467

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

1. Remove the front step lamp. Refer to

INL-64, "Removal and Installation"

.

2. Grasp the bulb and pull straight out from the front step lamp to remove.
3. Install the front step lamp bulb to front step lamp.
4. Install the front step lamp. Refer to

INL-64, "Removal and Installation"

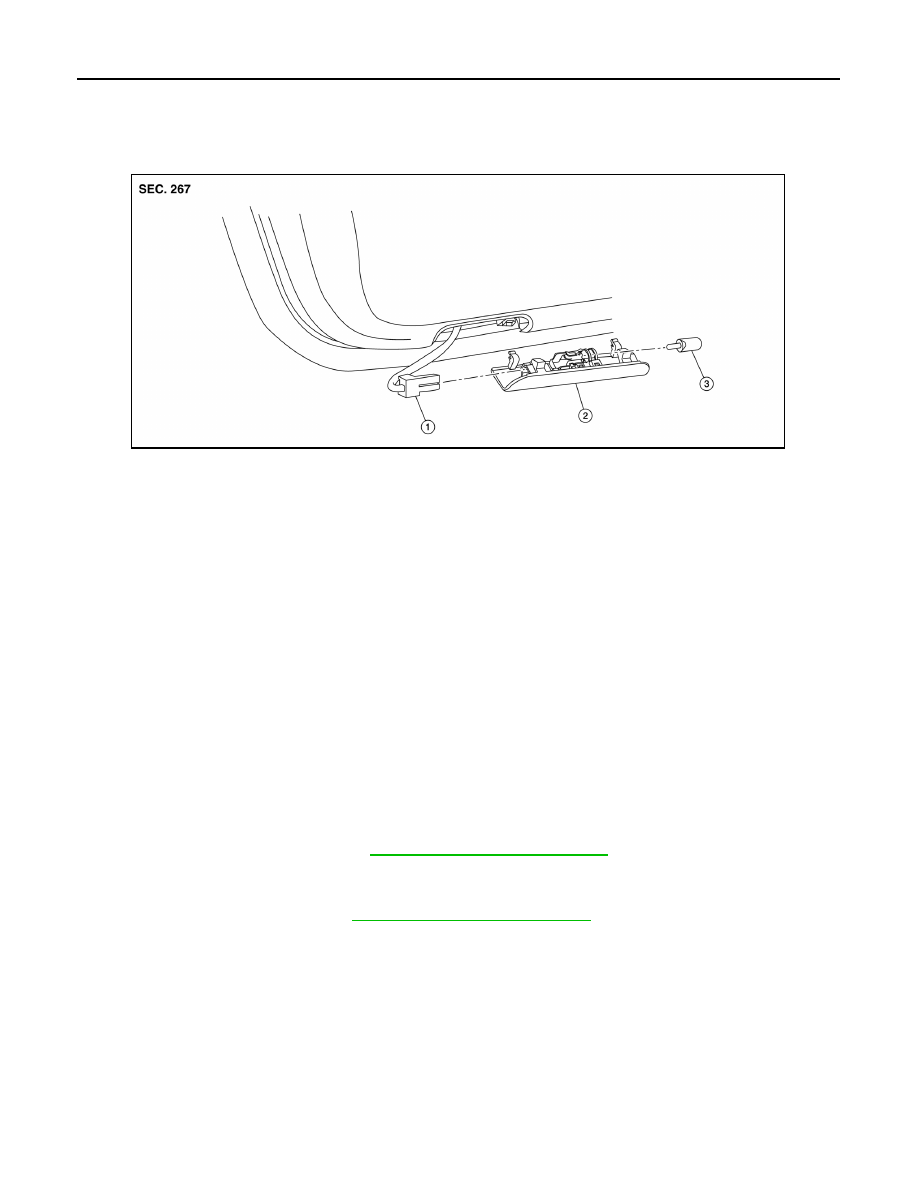

1.

Step lamp harness connector

2.

Step lamp

3.

Bulb

ALLIA1087ZZ

PERSONAL LAMP

INL-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PERSONAL LAMP

Removal and Installation

INFOID:0000000009175469

REMOVAL

The personal lamp is serviced as part of headlining. Refer to

INT-27, "Removal and Installation"

Bulb or Lens Replacement

INFOID:0000000009175470

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

• Do not attempt to separate the personal lamp from the headlining or damage may occur.
1. Insert a suitable tool into the gap between the lens and personal lamp, then gently release the lens pawls

and remove.

2. Grasp the bulb and pull straight out from its socket to remove.
3. Install personal lamp bulb to personal lamp.
4. Install the personal lamp lens.

INL-66

< REMOVAL AND INSTALLATION >

CARGO LAMP

CARGO LAMP

Exploded View

INFOID:0000000009175471

Removal and Installation

INFOID:0000000009175472

REMOVAL

1. Insert a suitable tool into the gap between the headlining and cargo lamp and gently release the metal

clips and remove.

2. Disconnect the harness connector from cargo lamp.

INSTALLATION

Installation is in the reverse order of removal.

Bulb or Lens Replacement

INFOID:0000000009175473

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

• Release and insert pawl as indicated in exploded view or damage may occur.
1. Beginning at the switch end, insert a suitable tool into the gap between the lens and cargo lamp, then gen-

tly release the lens pawls and remove.

2. Push the tab to release one bulb end, then grasp the bulb and pull out the second end from its socket to

remove.

3. Install cargo lamp bulb to cargo lamp.
4. Insert pawl at the end opposite the switch first, then insert the remaining two pawls to lock the lens in posi-

tion.

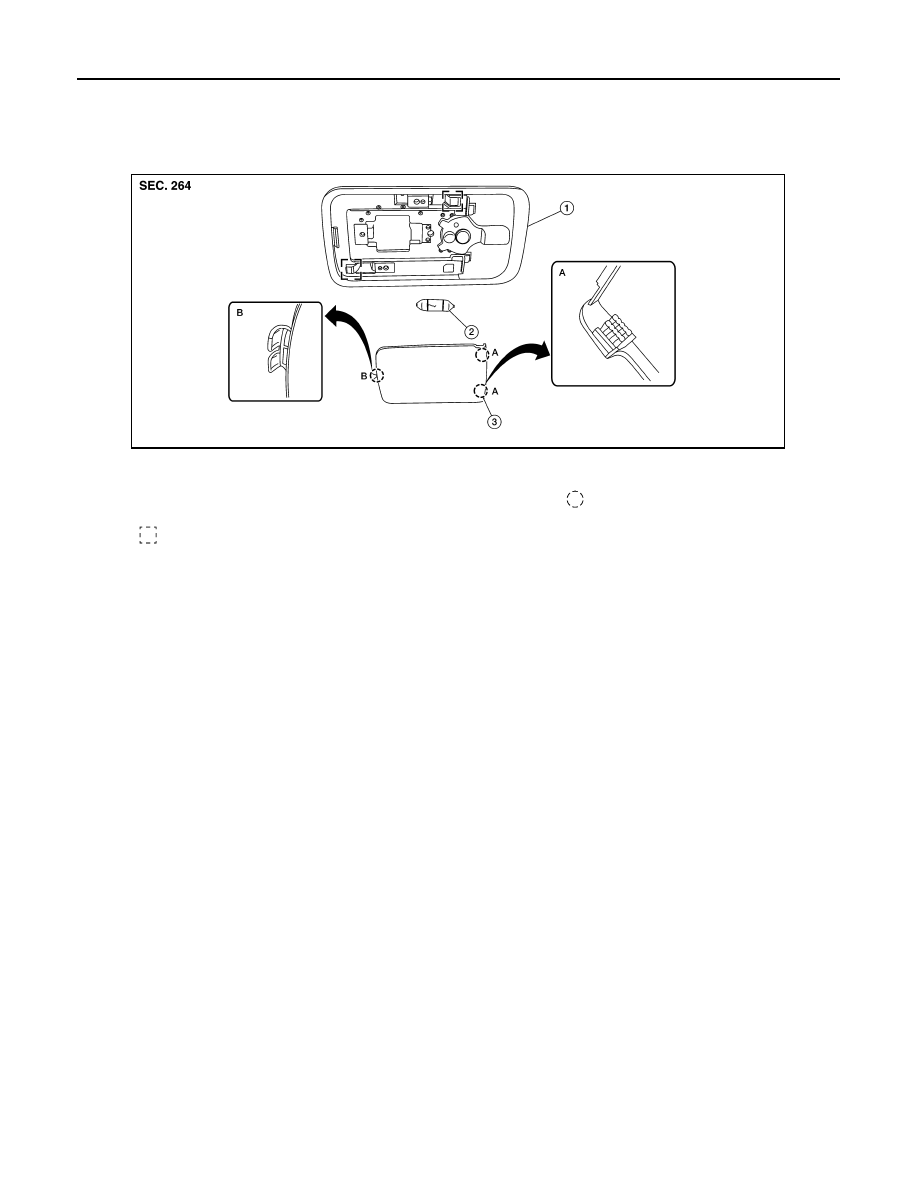

1.

Cargo lamp

2.

Bulb

3.

Lens

A.

Pawls to release first for lens re-
moval

B.

Pawl to install first for lens in-
stallation

Pawl

Metal clip

AWLIA2174ZZ
