Nissan Pathfinder. Manual - part 743





FRONT ROOM/MAP LAMP ASSEMBLY

INL-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Visually check the metal clips and pawls for deformation and damage during installation. Replace with

new ones if necessary.

Bulb or Lens Replacement

INFOID:0000000009723955

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

Do not attempt to seperate the LED bulb from the front room/map lamp assembly or damage to the

components may occur

The LED bulb is replaced as part of the front room/map lamp assembly. Refer to

INL-58, "Removal and Instal-

lation"

INL-60

< REMOVAL AND INSTALLATION >

VANITY LAMP

VANITY LAMP

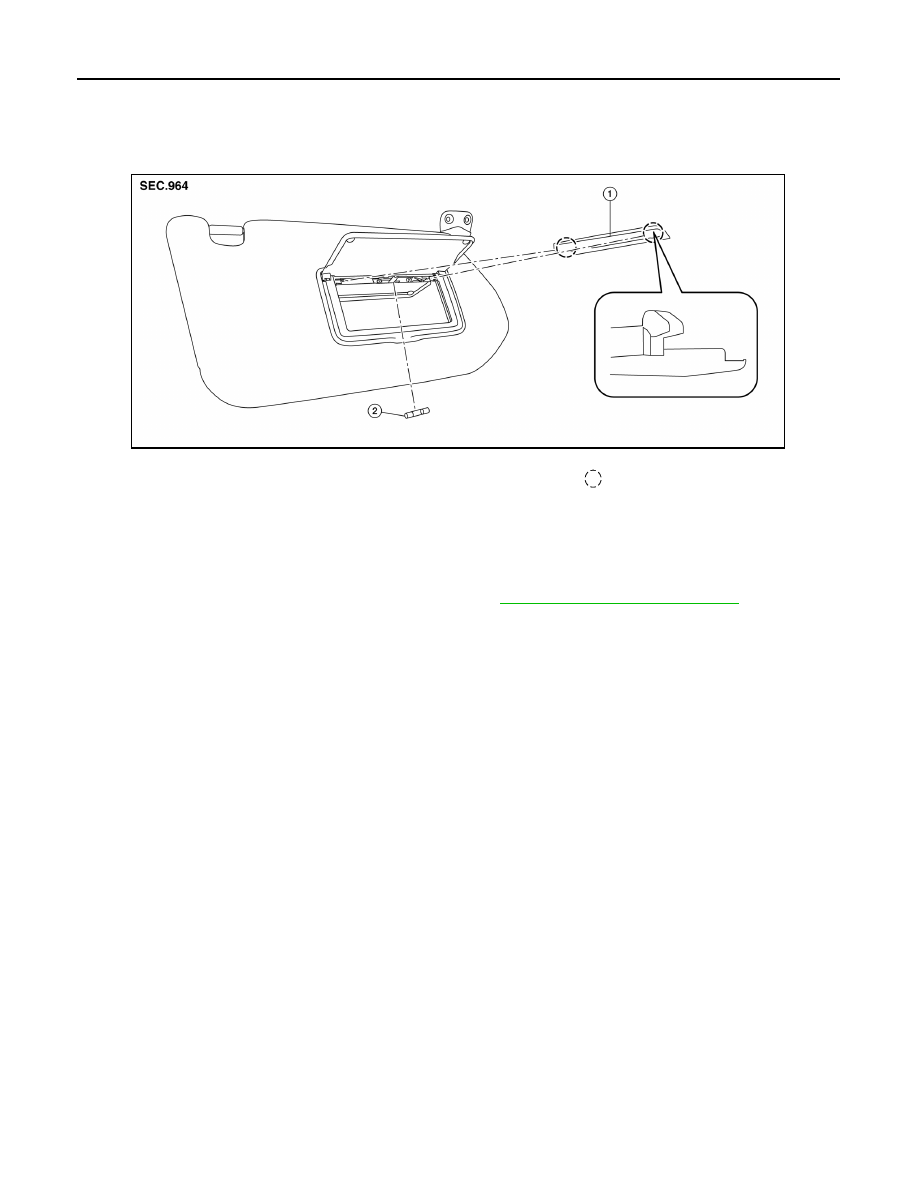

Exploded View

INFOID:0000000009175455

Removal and Installation

INFOID:0000000009175456

CAUTION:

Do not attempt to separate the vanity lamp from the sun visor or damage to the components may

occur.

The vanity lamp is replaced as part of the sun visor. Refer to

INT-27, "Removal and Installation"

Bulb or Lens Replacement

INFOID:0000000009175457

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

• Do not attempt to separate the vanity lamp from the sun visor or damage to the components may

occur.

1. Insert a suitable tool into the gap between the lens and vanity lamp, then gently release the lens pawls

and remove.

2. Grasp the bulb and pull straight out of the vanity lamp to remove.
3. Install vanity lamp bulb to vanity lamp.
4. Install the vanity lamp lens.

1.

Lens

2.

Bulb

Pawl

ALLIA1083ZZ

GLOVE BOX LAMP

INL-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

GLOVE BOX LAMP

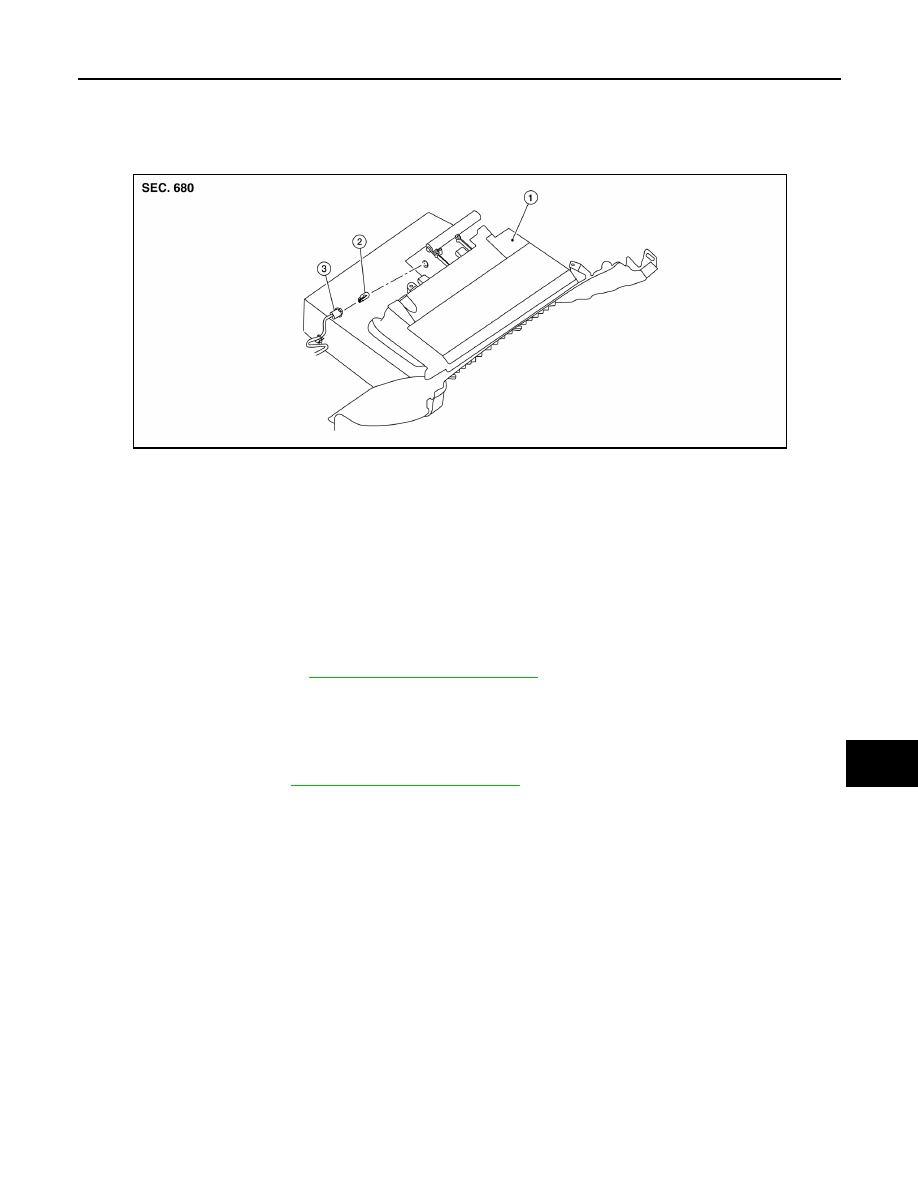

Exploded View

INFOID:0000000009175458

Bulb Replacement

INFOID:0000000009175459

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

1. Remove glove box. Refer to

IP-26, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and remove.
3. Grasp the bulb and pull straight out of the bulb socket to remove.
4. Install glove box lamp bulb to bulb socket.
5. Insert bulb socket into glove box and rotate clockwise to lock in position.
6. Install glove box. Refer to

IP-26, "Removal and Installation"

.

1.

Glove box assembly

2.

Bulb

3.

Bulb socket

ALLIA1084ZZ

INL-62

< REMOVAL AND INSTALLATION >

FOOT LAMP

FOOT LAMP

DRIVER SIDE

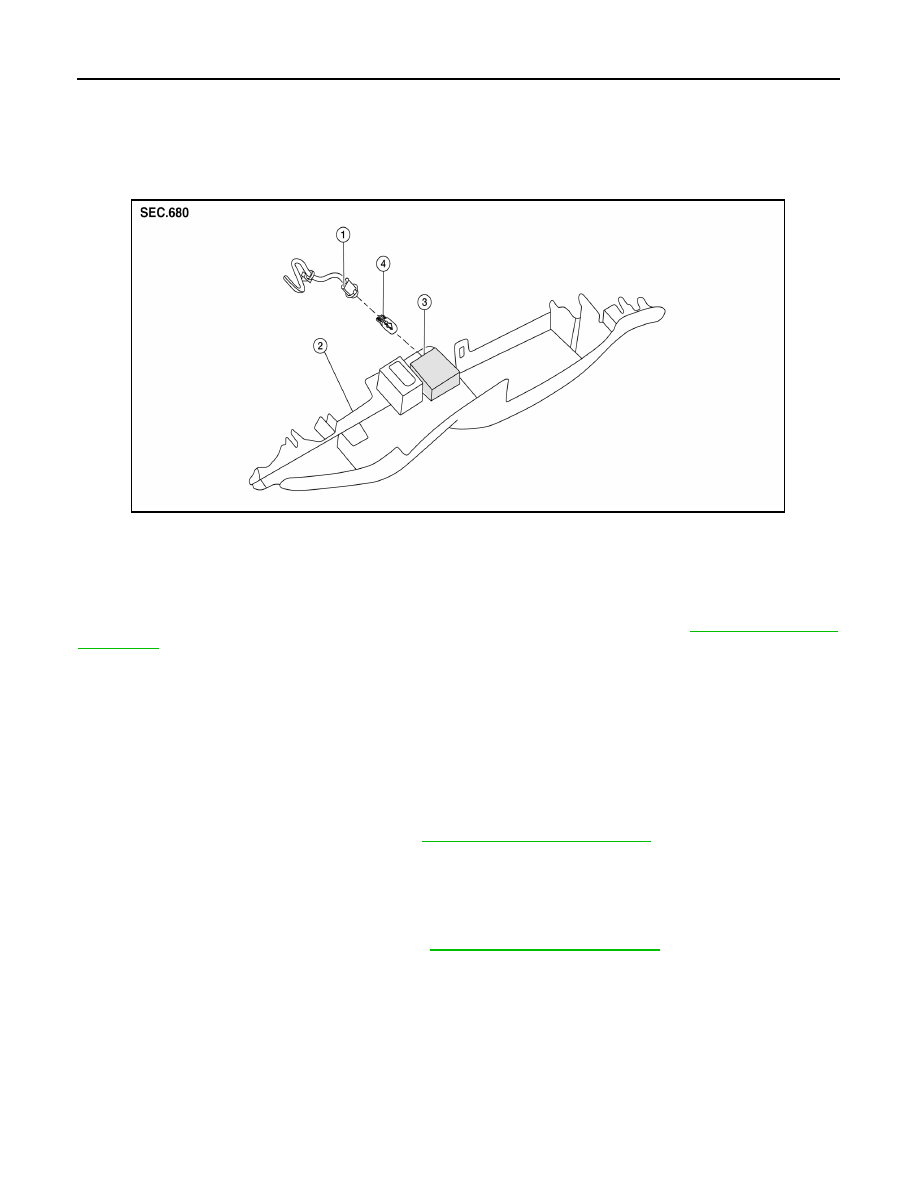

DRIVER SIDE : Exploded View

INFOID:0000000009175460

DRIVER SIDE : Removal and Installation

INFOID:0000000009175461

The foot lamp housing is replaced as part of the instrument lower panel LH. Refer to

IP-25, "Removal and

Installation"

.

DRIVER SIDE : Bulb Replacement

INFOID:0000000009175462

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

1. Remove instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

2. Rotate the bulb socket counterclockwise and remove.
3. Grasp the bulb and pull straight out of the bulb socket to remove.
4. Install foot lamp bulb to bulb socket.
5. Insert bulb socket into foot lamp housing and rotate clockwise to lock in position.
6. Install the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

PASSENGER SIDE

1.

Bulb socket

2.

Instrument lower panel LH

3.

Foot lamp housing

4.

Bulb

AWLIA1975ZZ
