QUARTER WINDOW GLASS
GW-25
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
L
M
A
B
GW
N
O
P
Unit : mm (in)
• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.
• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out
by passenger compartment air pressure when a door is closed.
• Check gap along bottom to confirm that glass does not contact sheet metal.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:
• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.
If affected by vapor inhalation, immediately move to an area with fresh air.
• Driving the vehicle before the urethane adhesive has completely cured may affect the performance
of the glass in case of an accident.
CAUTION:
• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed
on the box.
• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Do not leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely
cured. Curing time varies depending on temperature and humidity. The curing time will increase
under lower temperatures and lower humidity.
REPAIRING WATER LEAKS FOR QUARTER WINDOW GLASS
• Leaks can be repaired without removing or reinstalling glass.
• If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.
• This can be done by applying water to the quarter window glass area while pushing glass outward.
• To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.

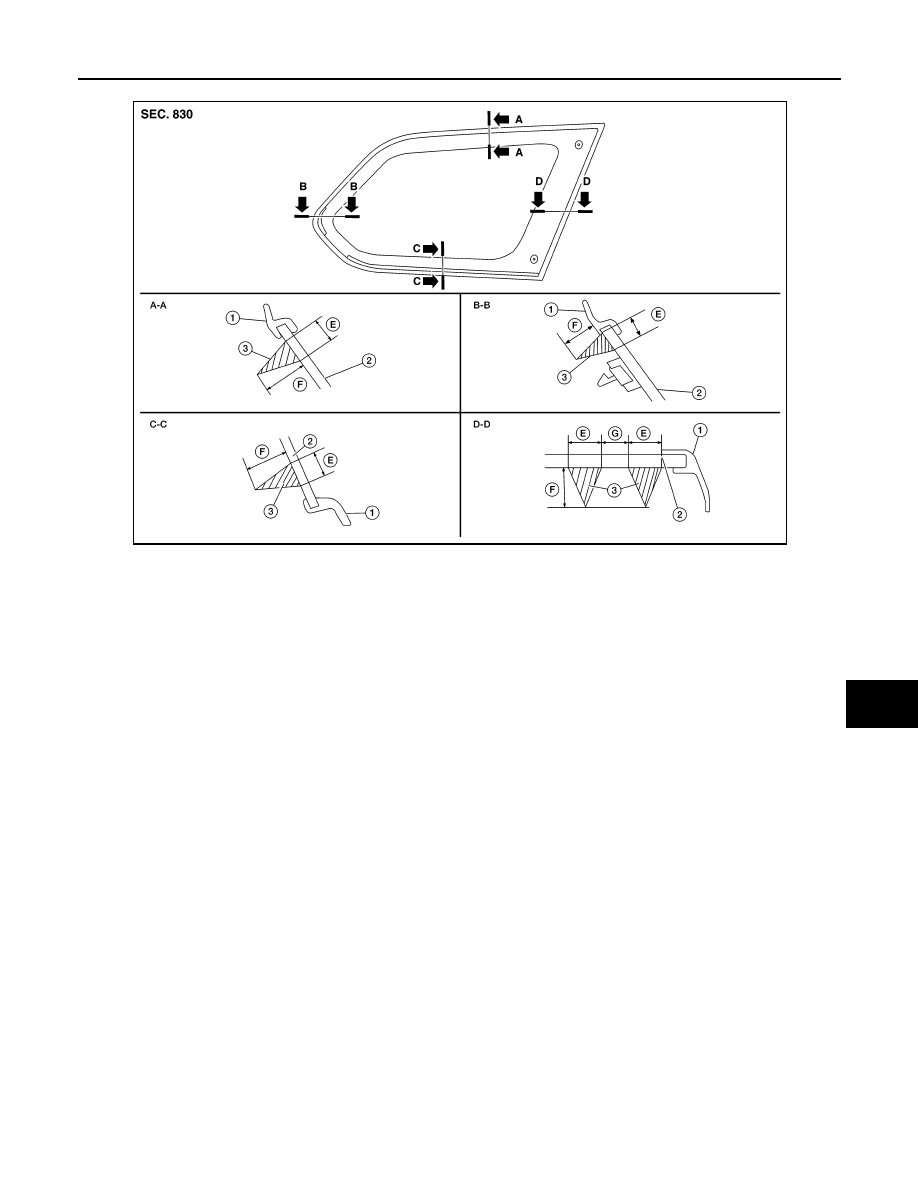

1. Quarter window glass molding
2. Quarter window glass
3. Adhesive
E. 7.0
± 2.0 (0.28 ± 0.08 in)
F. 12.0
± 2.0 (0.47 ± 0.08)
G.
10.0 (0.39)
AWKIA2591ZZ
