EC-8

< PRECAUTION >

[VQ35DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009760867

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

On Board Diagnostic (OBD) System of Engine and CVT

INFOID:0000000009177998

The ECM has an on board diagnostic system. It will illuminate the malfunction indicator lamp (MIL) to warn the

driver of a malfunction causing emission deterioration.

CAUTION:

• Always to turn the ignition switch OFF and disconnect the negative battery cable before any repair

or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will

cause the MIL to illuminate.

• Always to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to illuminate due to the open circuit. (Be sure the connector is free from water, grease,

dirt, bent terminals, etc.)

• Certain systems and components, especially those related to OBD, may use a new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-5, "Harness Connec-

tor"

• Always route and secure the harnesses properly after work. The interference of the harness with a

bracket, etc. may cause the MIL to illuminate due to the short circuit.

• Always to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MIL to illuminate due to the malfunction of the EVAP system or fuel injection system,

etc.

• Always to erase the unnecessary malfunction information (repairs completed) from the ECM and

TCM (Transmission control module) before returning the vehicle to the customer.

PRECAUTIONS

EC-9

< PRECAUTION >

[VQ35DE]

General Precautions

INFOID:0000000009177999

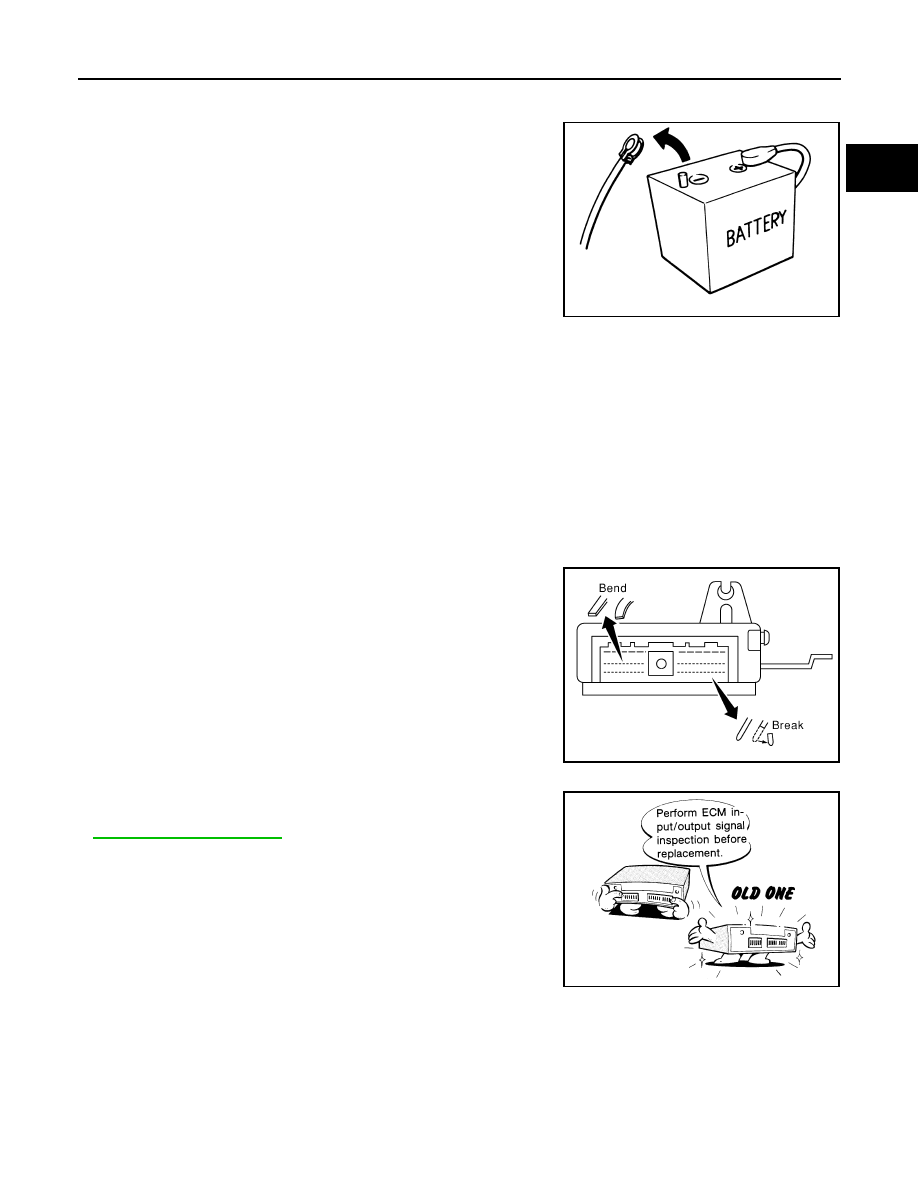

• Always use a 12 volt battery as power source.

• Never attempt to disconnect battery cables while engine is

running.

• Before connecting or disconnecting the ECM harness con-

nector, turn ignition switch OFF and disconnect negative bat-

tery cable. Failure to do so may damage the ECM because

battery voltage is applied to ECM even if ignition switch is

turned OFF.

• Before removing parts, turn ignition switch OFF and then dis-

connect battery ground cable.

• Never disassemble ECM.

• If a battery cable is disconnected, the memory will return to the ECM value.

The ECM will now start to self-control at its initial value. Thus, engine operation can vary slightly in

this case. However, this is not an indication of a malfunction. Never replace parts because of a slight

variation.

• If the battery is disconnected, the following emission-related diagnostic information will be lost

within 24 hours.

- Diagnostic trouble codes

- 1st trip diagnostic trouble codes

- Freeze frame data

- 1st trip freeze frame data

- System readiness test (SRT) codes

- Test values

• When connecting or disconnecting pin connectors into or

from ECM, never damage pin terminals (bends or break).

Check that there are not any bends or breaks on ECM pin ter-

minal, when connecting pin connectors.

• Securely connect ECM harness connectors.

A poor connection can cause an extremely high (surge) volt-

age to develop in coil and condenser, thus resulting in dam-

age to ICs.

• Keep engine control system harness at least 10 cm (4 in) away

from adjacent harness, to prevent engine control system mal-

functions due to receiving external noise, degraded operation

of ICs, etc.

• Keep engine control system parts and harness dry.

• Before replacing ECM, perform ECM Terminals and Reference

Value inspection and check ECM functions properly. Refer to

EC-73, "Reference Value"

• Handle mass air flow sensor carefully to avoid damage.

• Never clean mass air flow sensor with any type of detergent.

• Never disassemble electric throttle control actuator.

• Even a slight leakage in the air intake system can cause seri-

ous incidents.

• Never shock or jar the camshaft position sensor (PHASE),

crankshaft position sensor (POS).

SEF289H

PBIB0090E

MEF040D

Nissan Pathfinder. Manual - part 425
