DLN-134

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145K1]

REAR FINAL DRIVE ASSEMBLY

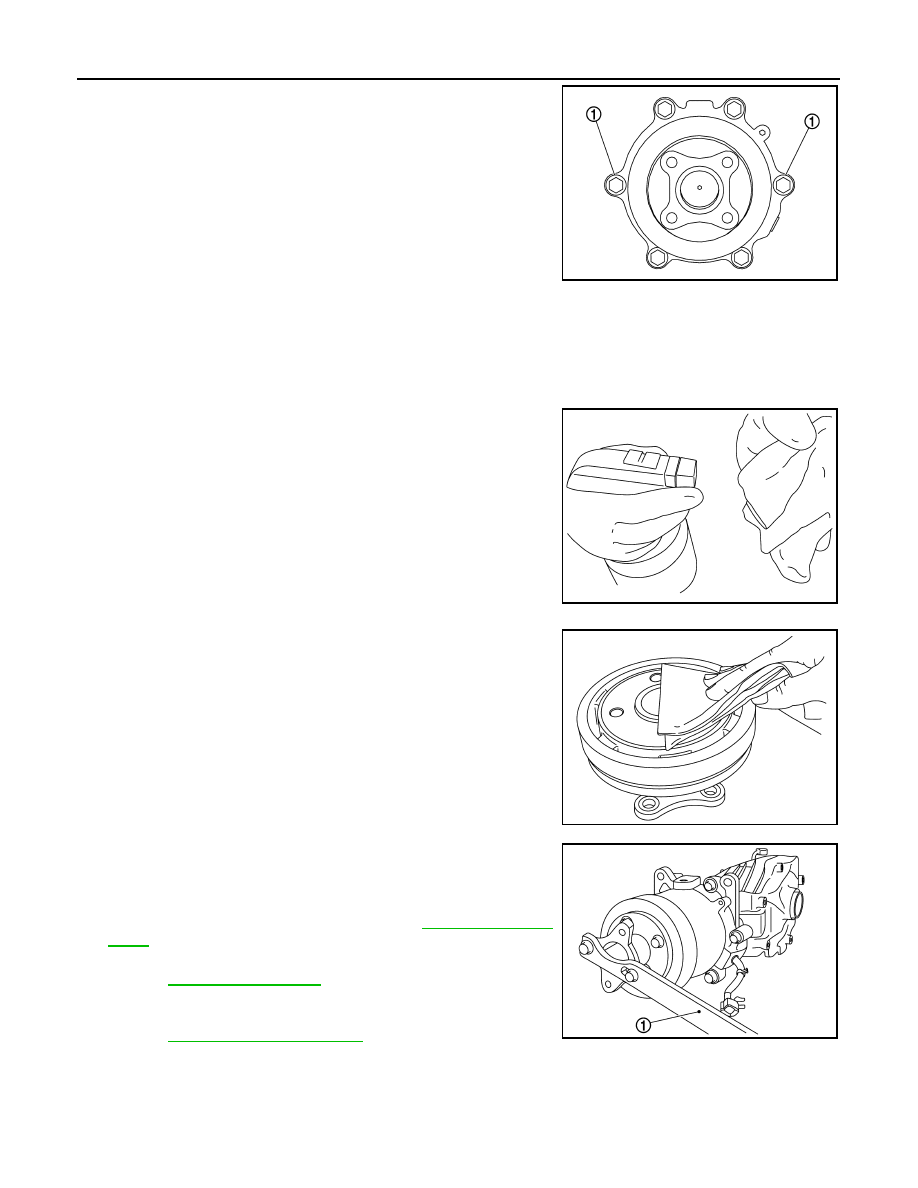

11. Temporarily tighten reamer bolts (1) to the positions shown in

the figure.

CAUTION:

• Never use tools. Always tighten by hand.

• If reamer bolts cannot be tightened all the way by hand,

the electric controlled coupling pin may not be positioned

in the groove of the final drive assembly. In this case,

remove electric controlled coupling and reinstall it.

12. Tighten reamer bolts and coupling cover mounting bolts to the

specified torque.

13. Install harness bracket, and tighten bolts to the specified torque.
14. Install torsional damper. (When torsional damper has been

reused.)

CAUTION:

Clean the mounting surface.

15. Install torsional damper. (When torsional damper has been replaced.)

Degrease the mounting surface of electric controlled coupling, according to the following instruction.

1. Spray alcohol on a cotton cloth four times per part.

CAUTION:

Always use a new cotton cloth.

2. Wipe the mounting surface of electric controlled coupling

five times.

CAUTION:

Complete the work within 180 seconds to prevent alco-

hol from evaporating.

16. Install torsional damper mounting nut, using flange wrench (1)

(commercial service tool) and tighten to the specified torque.

CAUTION:

Never reuse torsional damper mounting nut.

17. Check companion flange runout. Refer to

DLN-134, "Adjust-

ment"

.

18. When oil leaks while removing, check oil level after installation.

Refer to

DLN-115, "Inspection"

.

19. When replacing electric controlled coupling, perform writing unit

characteristics after installing final drive assembly to the vehicle.

Refer to

DLN-113, "Work Procedure"

.

Adjustment

INFOID:0000000009177830

COMPANION FLANGE RUNOUT

JSDIA3061ZZ

JSDIA3062ZZ

JSDIA3063ZZ

JSDIA3056ZZ

REAR FINAL DRIVE ASSEMBLY

DLN-135

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145K1]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

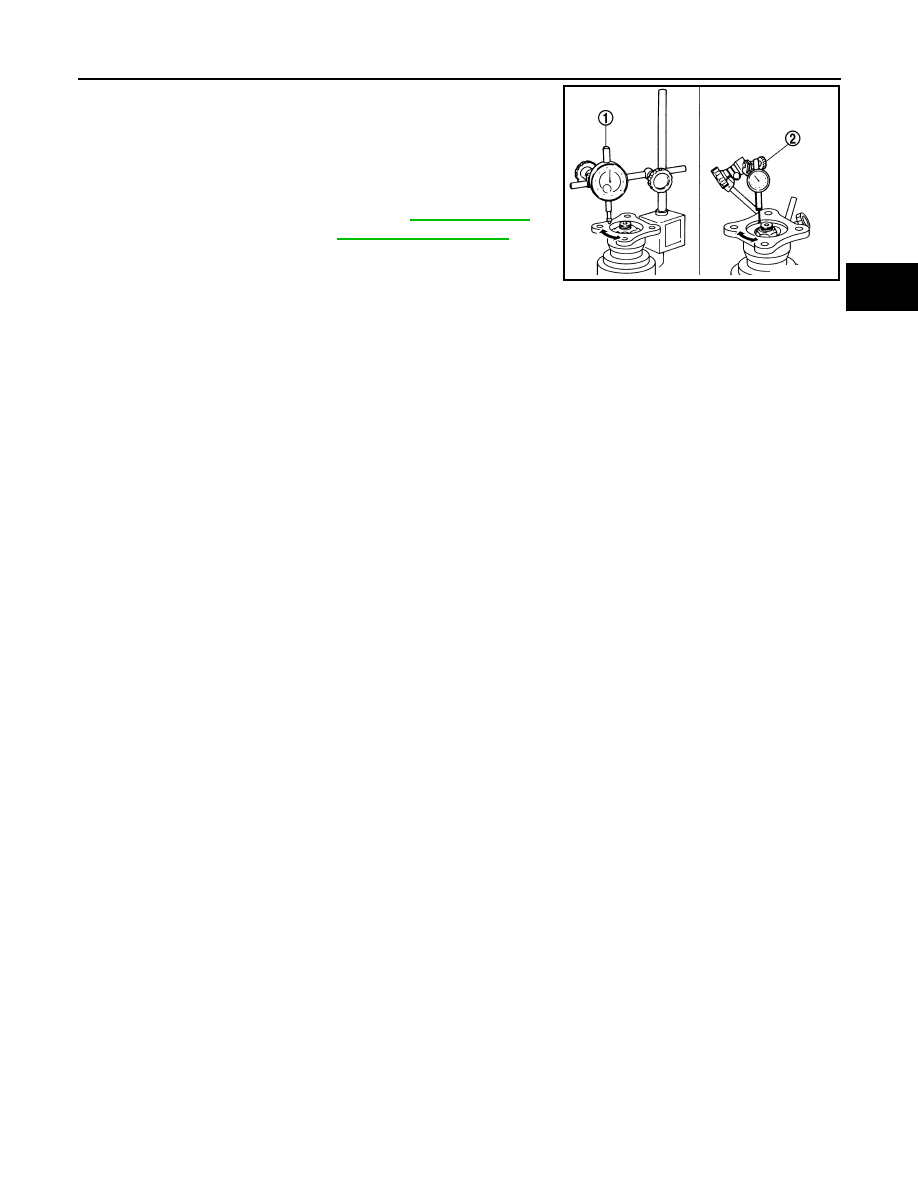

Check for companion flange runout as follows:

• For companion flange face, fit a dial indicator (1) onto the compan-

ion flange face (inner side of the propeller shaft mounting bolt

holes). For inner side of the companion flange, fit a test indicator

(2) to the inner side of companion flange (socket diameter).

• Rotate companion flange to check for runout.

• If the runout value is outside the runout limit, follow the procedure

below to adjust.

- Check for runout while changing the phase between companion

flange and drive pinion by 90

° step, and search for the position where the runout is the minimum.

- If the runout value is still outside of the limit after the phase has been changed, replace companion flange.

- If the runout value is still outside of the limit after companion flange has been replaced, possible cause will

be an electric controlled coupling.

Inspection

INFOID:0000000009177831

OIL SEAL

• Whenever disassembled, replace.

• If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.

COMPANION FLANGE

• Clean up the disassembled parts.

• If any chipped mark [about 0.1 mm, (0.004 in)] or other damage on the contact sides of the lips of the com-

panion flange is found, replace.

Companion flange runout : Refer to

DLN-136, "Com-

panion Flange Runout"

.

JSDIA2539ZZ

DLN-136

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: R145K1]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009177832

Companion Flange Runout

INFOID:0000000009177833

Unit: mm (in)

Applied model

4WD

VQ35DE

CVT

Final drive model

R145K1

Gear ratio

2.466

Number of teeth (Drive gear/Drive pinion)

37/15

Oil capacity (Approx.)

 (US pt, lmp pt)

0.5 (1, 7/8)

Number of pinion gears

2

Item

Limit

Companion flange face

0.12 (0.0047)

Inner side of the companion flange

0.27 (0.0106)
