EC-10

< PRECAUTION >

[VQ35DE]

PRECAUTIONS

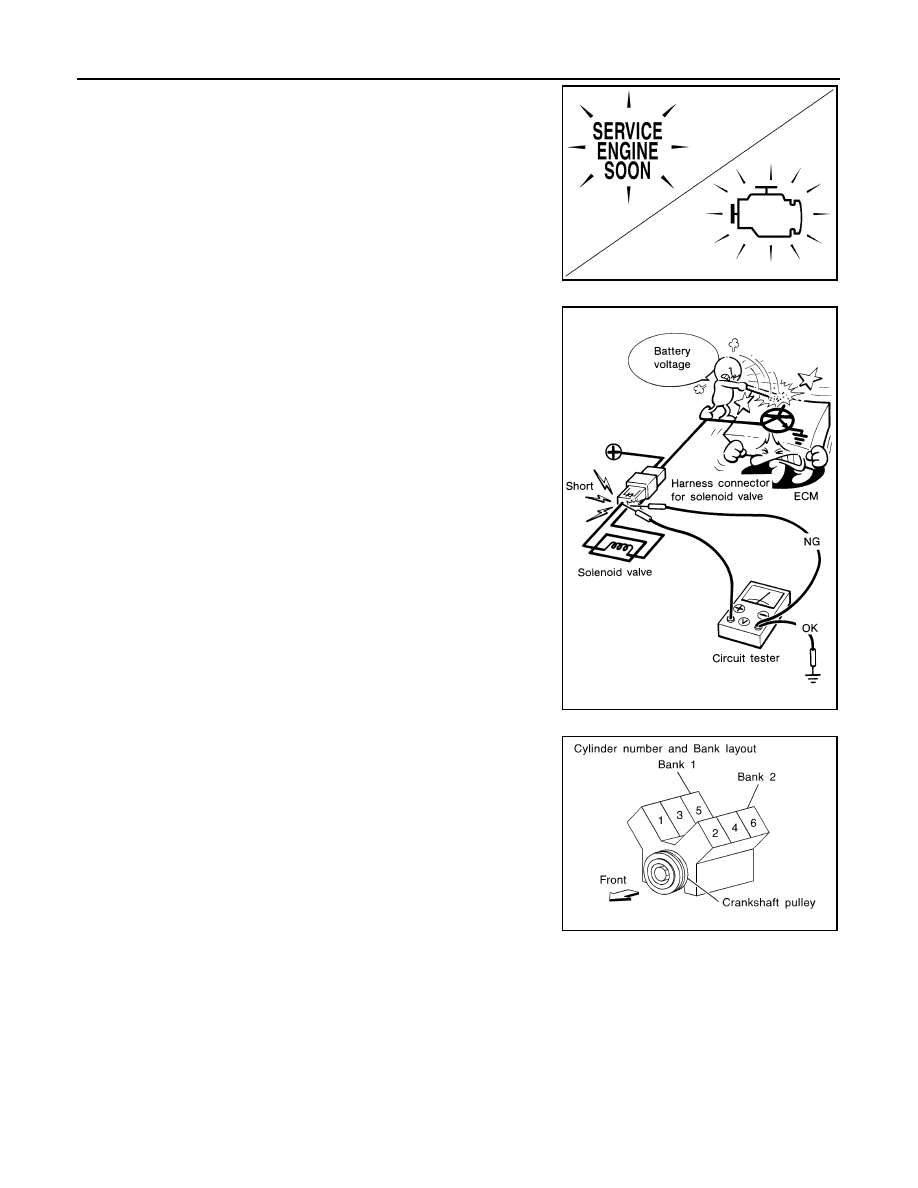

• After performing each TROUBLE DIAGNOSIS, perform DTC

Confirmation Procedure or Component Function Check.

The DTC should not be displayed in the DTC Confirmation

Procedure if the repair is completed. The Component Func-

tion Check should be a good result if the repair is completed.

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.

Accidental contact of probes will cause a short circuit and

damage the ECM power transistor.

• B1 indicates bank 1, B2 indicates bank 2 as shown in the fig-

ure.

• Never operate fuel pump when there is no fuel in lines.

• Tighten fuel hose clamps to the specified torque.

JSBIA1315ZZ

SEF348N

SEC893C

PRECAUTIONS

EC-11

< PRECAUTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

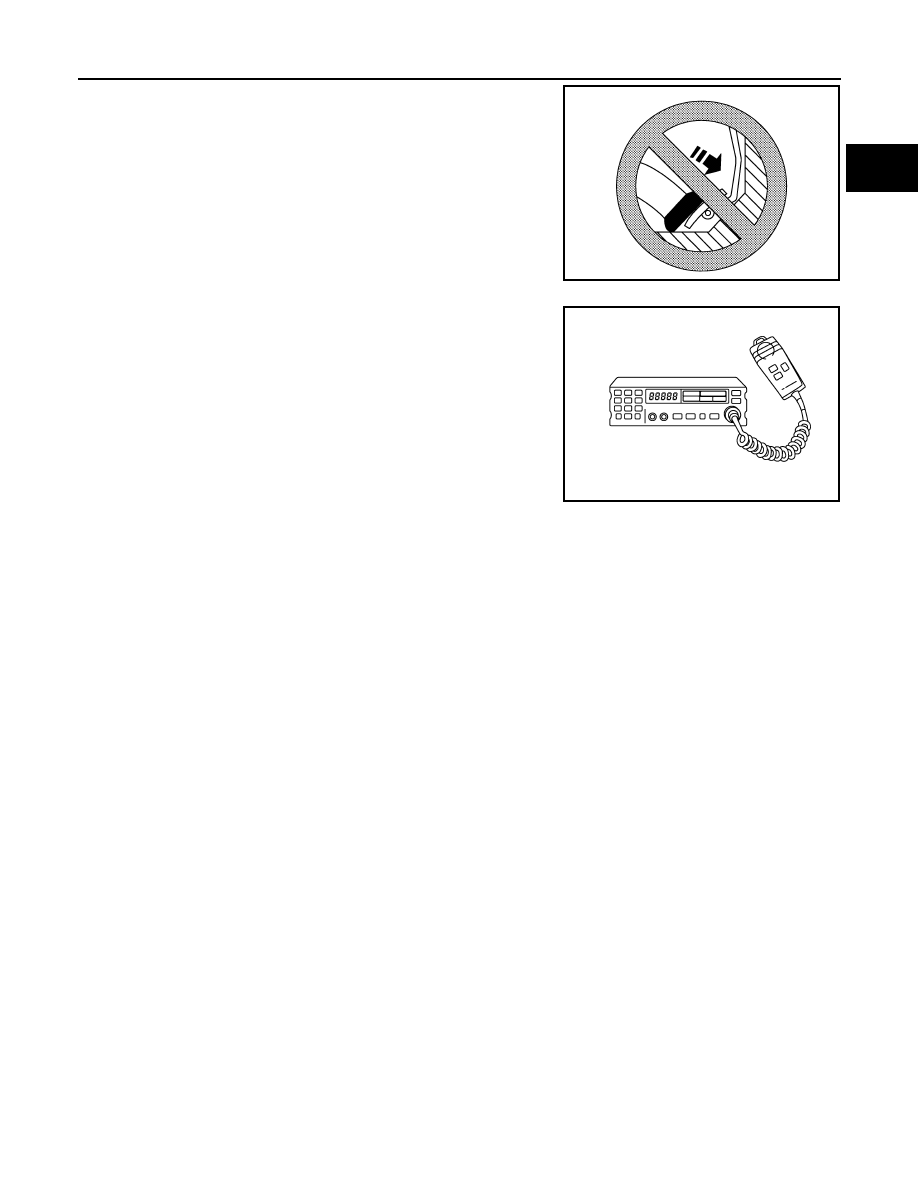

• Never depress accelerator pedal when starting.

• Immediately after starting, never rev up engine unnecessarily.

• Never rev up engine just prior to shutdown.

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic

control systems depending on installation location.

- Keep the antenna as far as possible from the electronic con-

trol units.

- Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.

Never let them run parallel for a long distance.

- Adjust the antenna and feeder line so that the standing-wave

ratio can be kept smaller.

- Be sure to ground the radio to vehicle body.

SEF709Y

SEF708Y

EC-12

< PREPARATION >

[VQ35DE]

PREPARATION

PREPARATION

PREPARATION

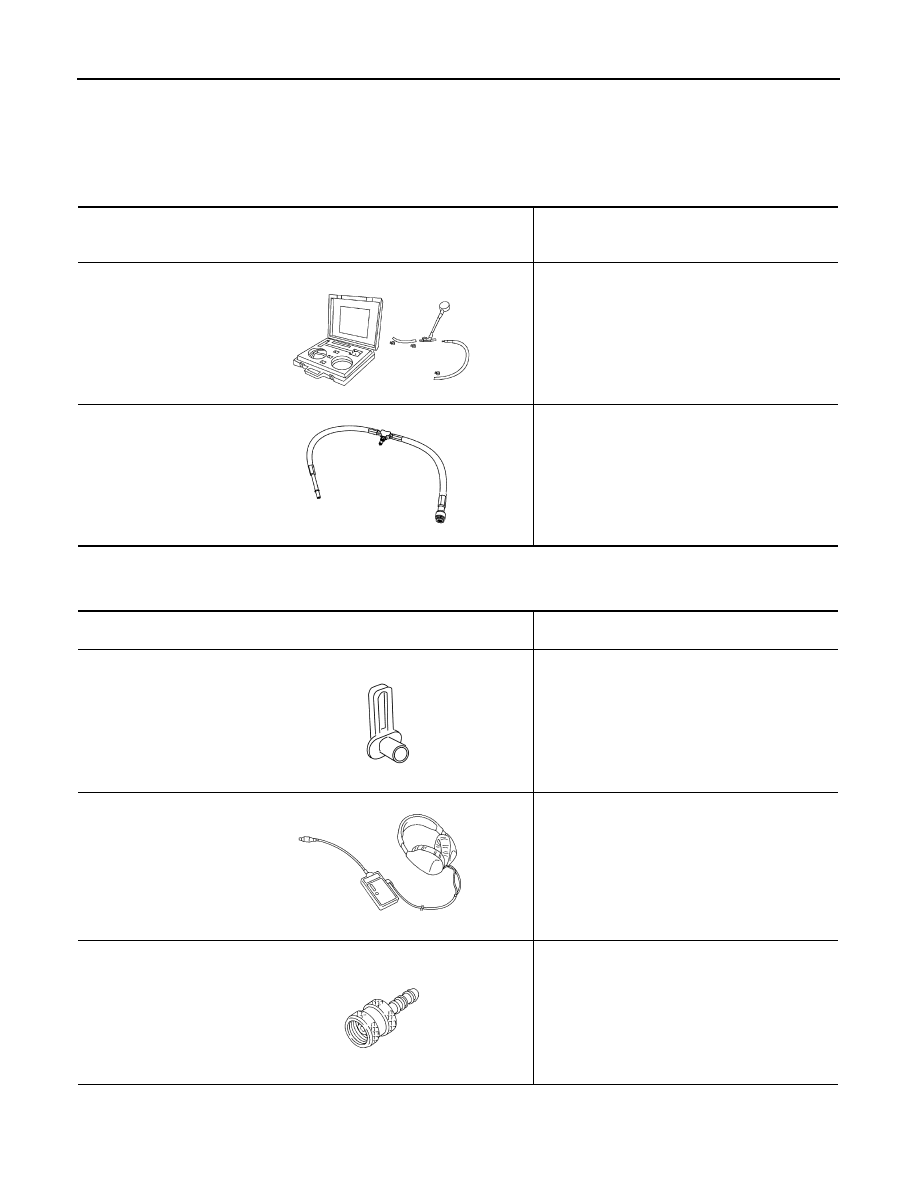

Special Service Tools

INFOID:0000000009178000

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009178001

Tool number
(Kent-Moore No.)
Tool name

Description

(J-44321)
Fuel pressure gauge
kit

Checks fuel pressure

(J-44321-6)
Fuel pressure adapter

Connects fuel pressure gauge to quick connector
type fuel lines

LEC642

LBIA0376E

Tool name
(Kent-Moore No.)

Description

(J-45488)
Quick connector re-
lease

Removes fuel tube quick connectors in engine
room

Leak detector
i.e.: (J-41416)

Locates the EVAP leakage

EVAP service port
adapter
i.e.: (J-41413-OBD)

Applies positive pressure through EVAP service
port

PBIC0198E

S-NT703

S-NT704

PREPARATION

EC-13

< PREPARATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

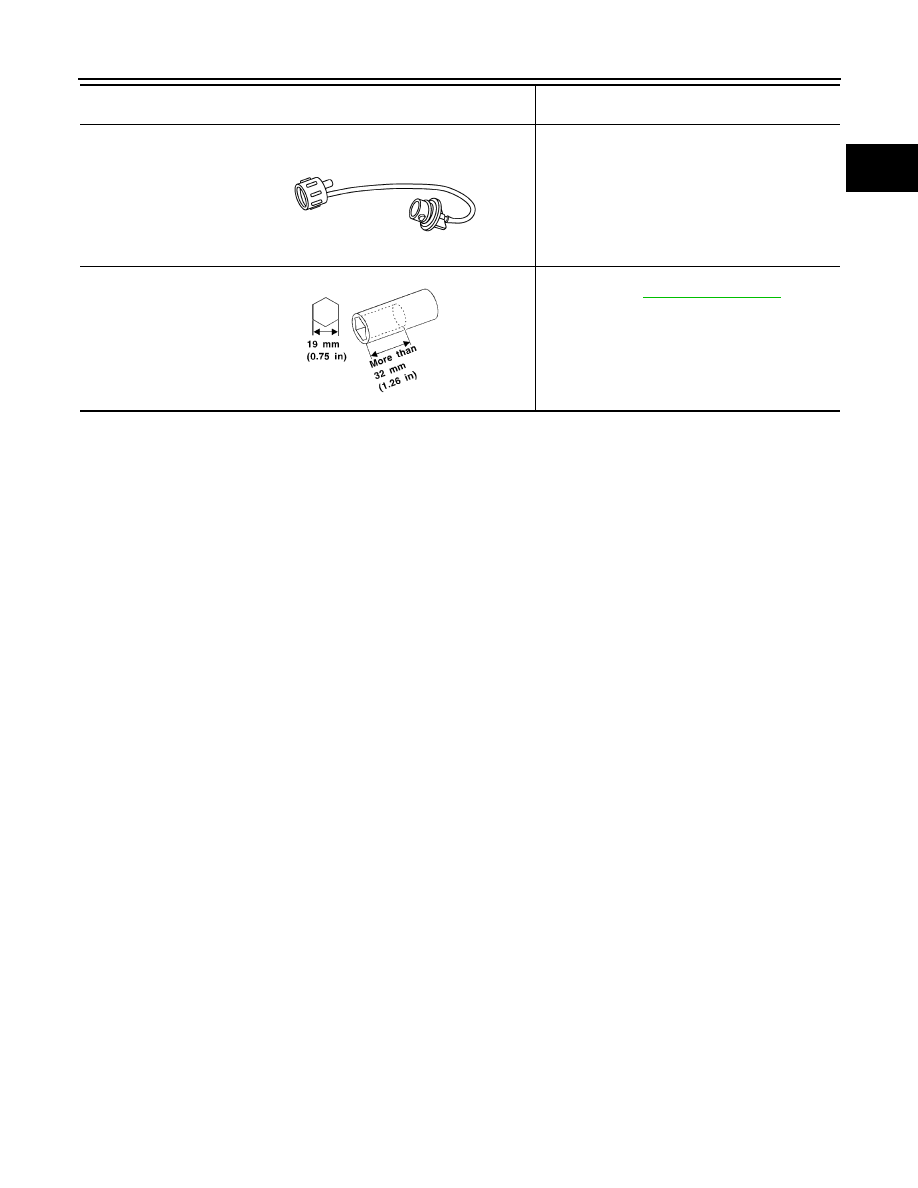

Fuel filler cap adapter
i.e.: (MLR-8382)

Checks fuel tank vacuum relief valve opening
pressure

Socket wrench

Removes and installs engine coolant temperature
sensor. Refer to

CO-26, "Exploded View"

.

Tool name
(Kent-Moore No.)

Description

S-NT815

S-NT705
