TRANSFER COVER

TRANSFER COVER

Removal and Installation

INFOID:0000000009760273

NOTE:

• Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.

• If transfer cover oil seal requires replacement, remove the transfer assembly from the vehicle before replac-

ing transfer cover oil seal. Refer to

DLN-95, "Disassembly"

.

TRANSFER ASSEMBLY

DLN-75

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

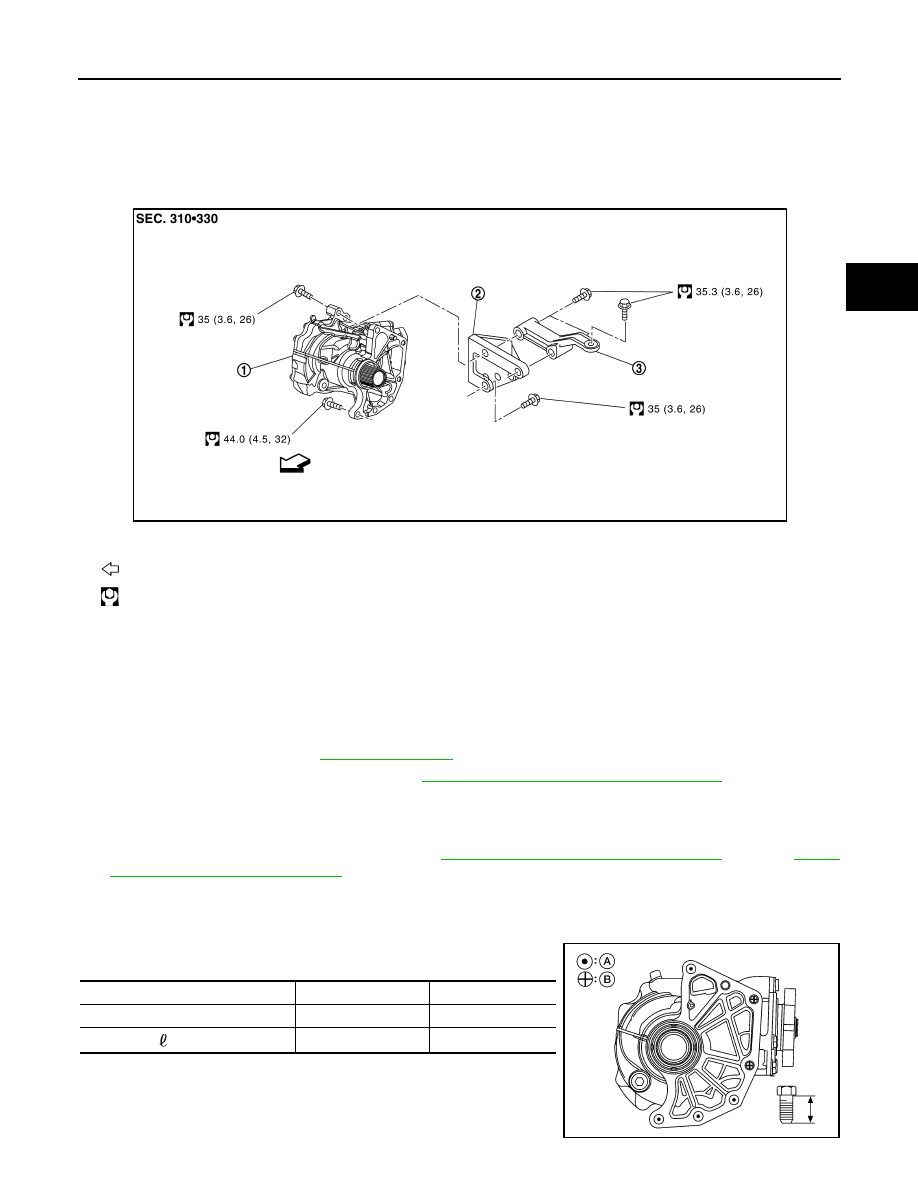

Exploded View

INFOID:0000000009704405

Removal and Installation

INFOID:0000000009704406

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Drain the transfer oil. Refer to

DLN-70, "Draining"

.

2. Remove exhaust manifold (bank 1). Refer to

EM-33, "Removal and Installation (bank 1)"

.

CAUTION:

Handle carefully to avoid any shock to three way catalyst.

3. Support transaxle with a suitable jack.
4. Remove the steering gear and linkage. Refer to

ST-48, "Removal and Installation - 2WD"

 (2WD) or

ST-49,

"Removal and Installation - 4WD"

 (4WD).

5. Remove rear gusset and transfer gusset.
6. Remove transaxle assembly to transfer assembly bolts.

CAUTION:

Be careful not to damage gear ring oil seal inside of CVT.

7. Remove transfer assembly from the vehicle.

CAUTION:

• Do not damage air breather hose.

1.

Transfer assembly

2.

Transfer gusset

3.

Rear gusset

: Vehicle front

: N·m (kg-m, ft-lb)

JSDIA4207GB

Bolt No.

(A)

(B)

Quantity

4

2

Bolt length “ ” mm (in)

40 (1.57)

40 (1.57)

ALDIA0389ZZ

DLN-76

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

TRANSFER ASSEMBLY

• After removing transfer from transaxle, always replace differential side oil seal of the transaxle

side with new one. Refer to

TM-204, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

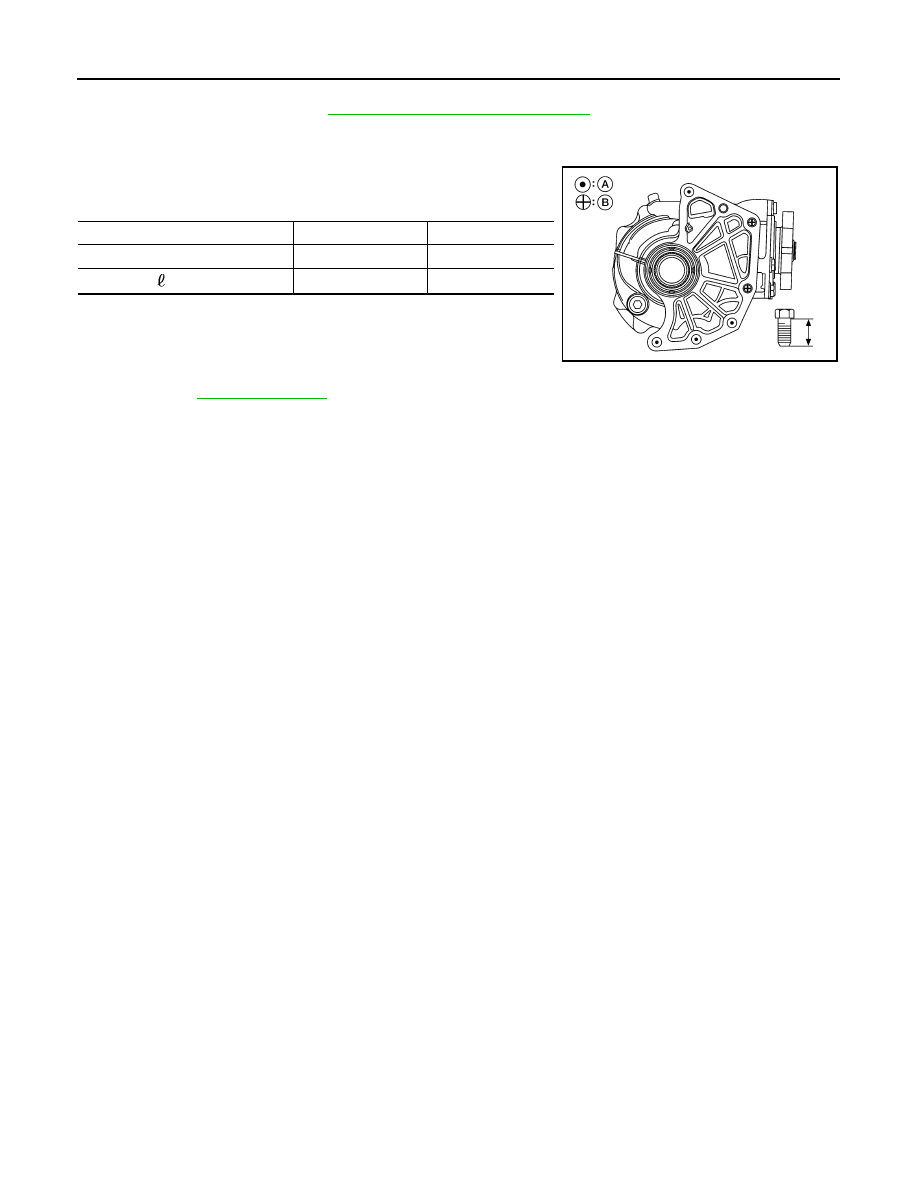

• When installing the transfer to the transaxle, install the bolts follow-

ing the standard below.

CAUTION:

• When installing transfer to transaxle, be careful not to dam-

age oil seal of transaxle.

• Do not reuse differential side oil seal.

• Check transfer oil level and check for transfer oil leaks after instal-

lation. Refer to

DLN-70, "Refilling"

.

Bolt No.

(A)

(B)

Quantity

4

2

Bolt length “ ” mm (in)

40 (1.57)

40 (1.57)

ALDIA0389ZZ

TRANSFER COVER

DLN-77

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSFER COVER

Exploded View
