Nissan Pathfinder. Manual - part 389





DLK-322

< REMOVAL AND INSTALLATION >

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

Removal and Installation

INFOID:0000000009175923

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

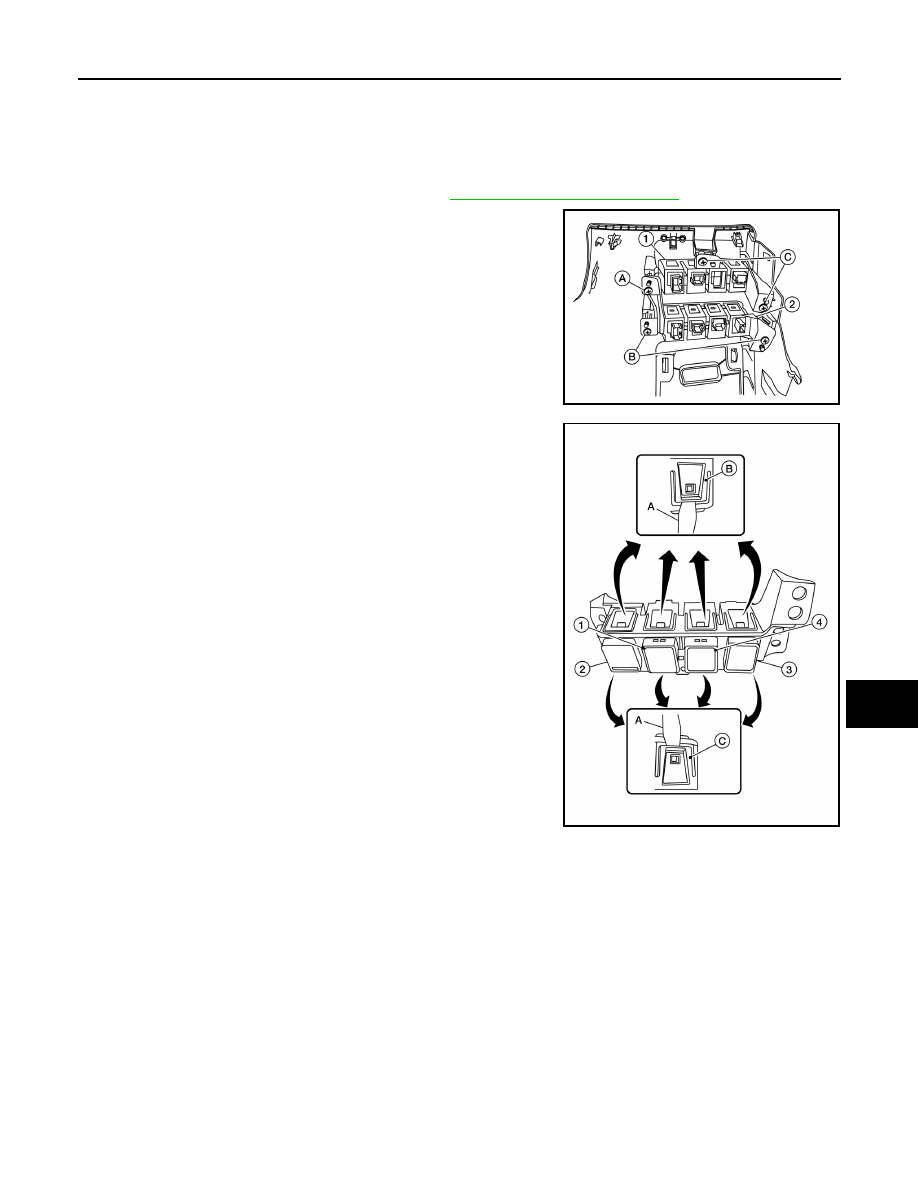

2. Remove the screws (A,B,C) that retain the upper (1) and lower

(2) switch carriers.

3. Release upper (B) and lower (C) tab using a suitable tool (A),

then remove the automatic back door main switch (3) from the

upper switch carrier.

(1): Heated steering wheel switch (if equipped)

(2): Traction control switch

(3): Automatic back door main switch (if equipped)

(4): Automatic back door switch (if equipped)

INSTALLATION

Installation is in the reverse order of removal.

ALMIA0554ZZ

ALMIA0567ZZ

AUTOMATIC BACK DOOR SWITCH

DLK-323

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR SWITCH

Removal and Installation

INFOID:0000000009175925

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

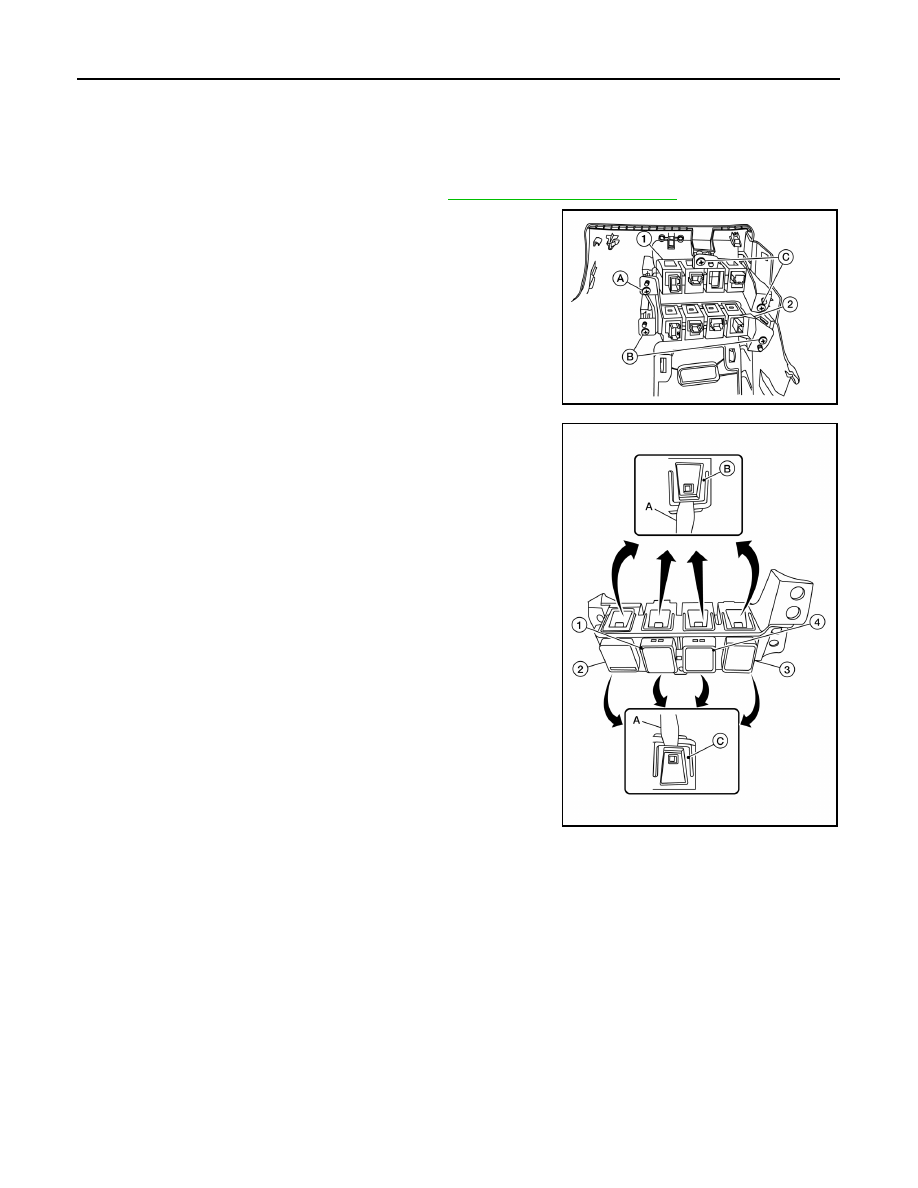

2. Remove the screws (A,B,C) that retain the upper (1) and lower

(2) switch carriers.

3. Release upper (B) and lower (C) tab using a suitable tool (A),

then remove the automatic back door opener switch (4) from the

upper switch carrier.

(1): Heated steering wheel switch (if equipped)

(2): Traction control switch

(3): Automatic back door main switch (if equipped)

(4): Automatic back door switch (if equipped)

INSTALLATION

Installation is in the reverse order of removal.

ALMIA0554ZZ

ALMIA0567ZZ

DLK-324

< REMOVAL AND INSTALLATION >

AUTOMATIC BACK DOOR CLOSE SWITCH

AUTOMATIC BACK DOOR CLOSE SWITCH

Removal and Installation

INFOID:0000000009175924

REMOVAL

1. Open back door assembly.
2. Release the automatic back door close switch pawls using a suitable tool.
3. Remove the automatic back door close switch screws.
4. Disconnect the harness connector from the automatic back door close switch and remove.

INSTALLATION

Installation is in the reverse order of removal.
