DLK-302

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

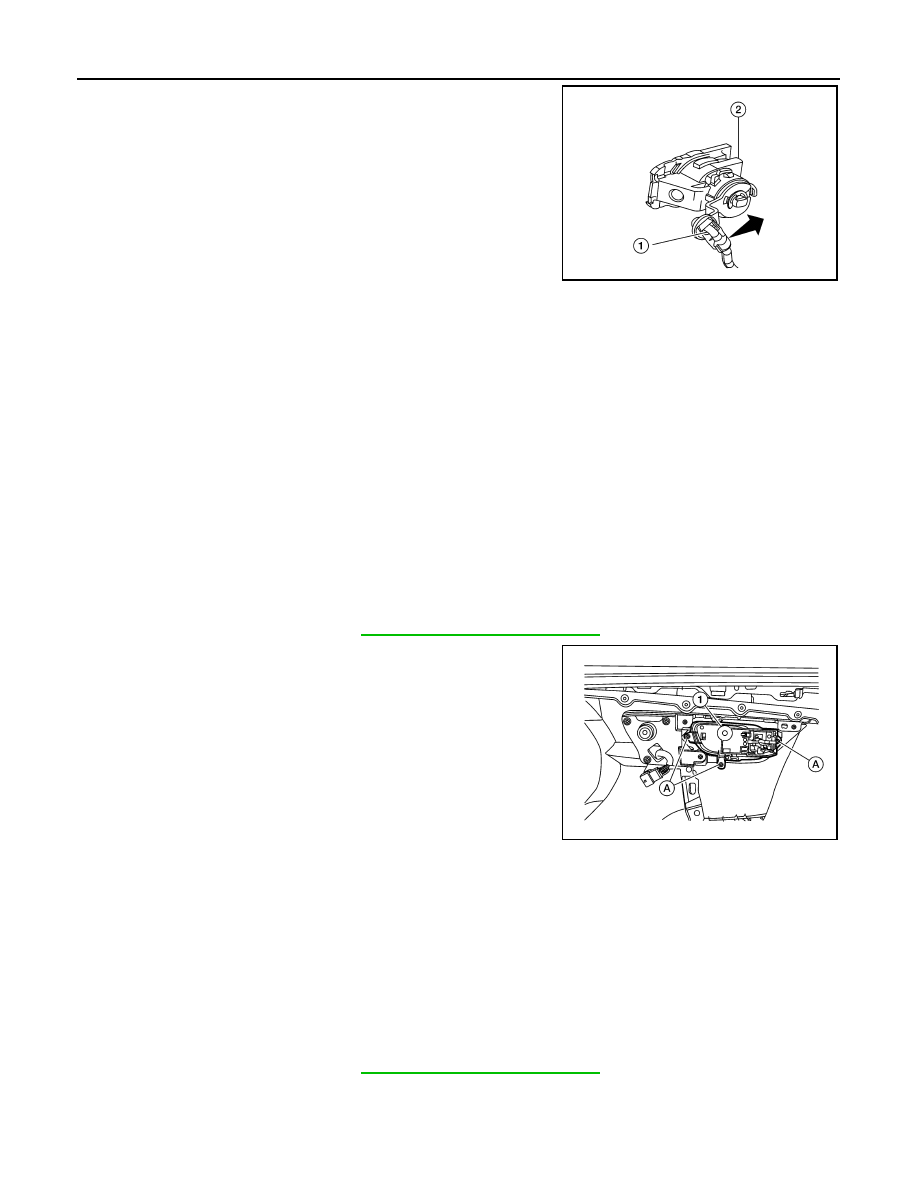

4. Disconnect door key cylinder rod (LH only) (1) from front door

lock (2) (LH only).

5. Disconnect door lock cables.
6. Disconnect the harness connector from the front door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse front door lock bolts.

• After installation, check door lock cables are properly engaged to inside handle and outside handle

bracket.

• When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a

click is felt.

• After installation, check door open/close and lock/unlock operation.

• Check door lock assembly for poor lubrication. If necessary apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009175895

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove inside handle screws (A) and the inside handle (1).

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

• After installation, check door lock cables are properly engaged to inside handle.

• After installation, check door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009175896

REMOVAL

1. Fully close front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove vapor barrier.

NOTE:

ALKIA2487ZZ

ALKIA2715ZZ

FRONT DOOR LOCK

DLK-303

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Cut the butyl tape so that some parts of the butyl tape remain on the vapor barrier, if the vapor barrier is

reused.

4. Disconnect the harness connectors from the Intelligent Key antenna and door request switch and then

remove harness clamp on outside handle bracket.

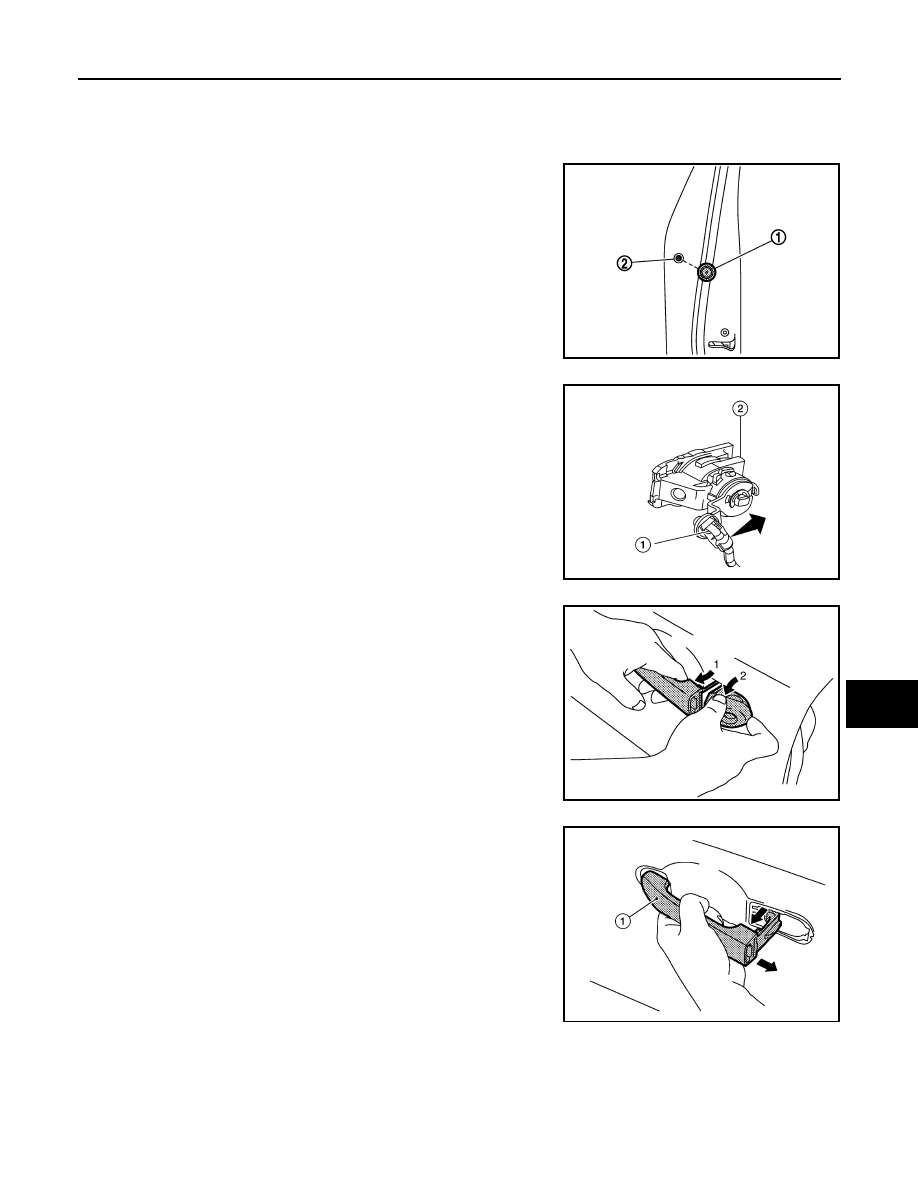

5. Remove door side grommet (1), and remove bolt from grommet

hole (2).

6. Separate door key cylinder rod (LH only) (1) from door key cylin-

der assembly (LH only) (2).

7. While pulling (1) outside handle, remove (2) door key cylinder

assembly (LH side) or outside handle escutcheon (RH side).

8. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

9. Remove front gasket and rear gasket.

JMKIA5888ZZ

ALKIA2487ZZ

ALKIA2487ZZ

JMKIA0560ZZ

AWKIA1997ZZ

DLK-304

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

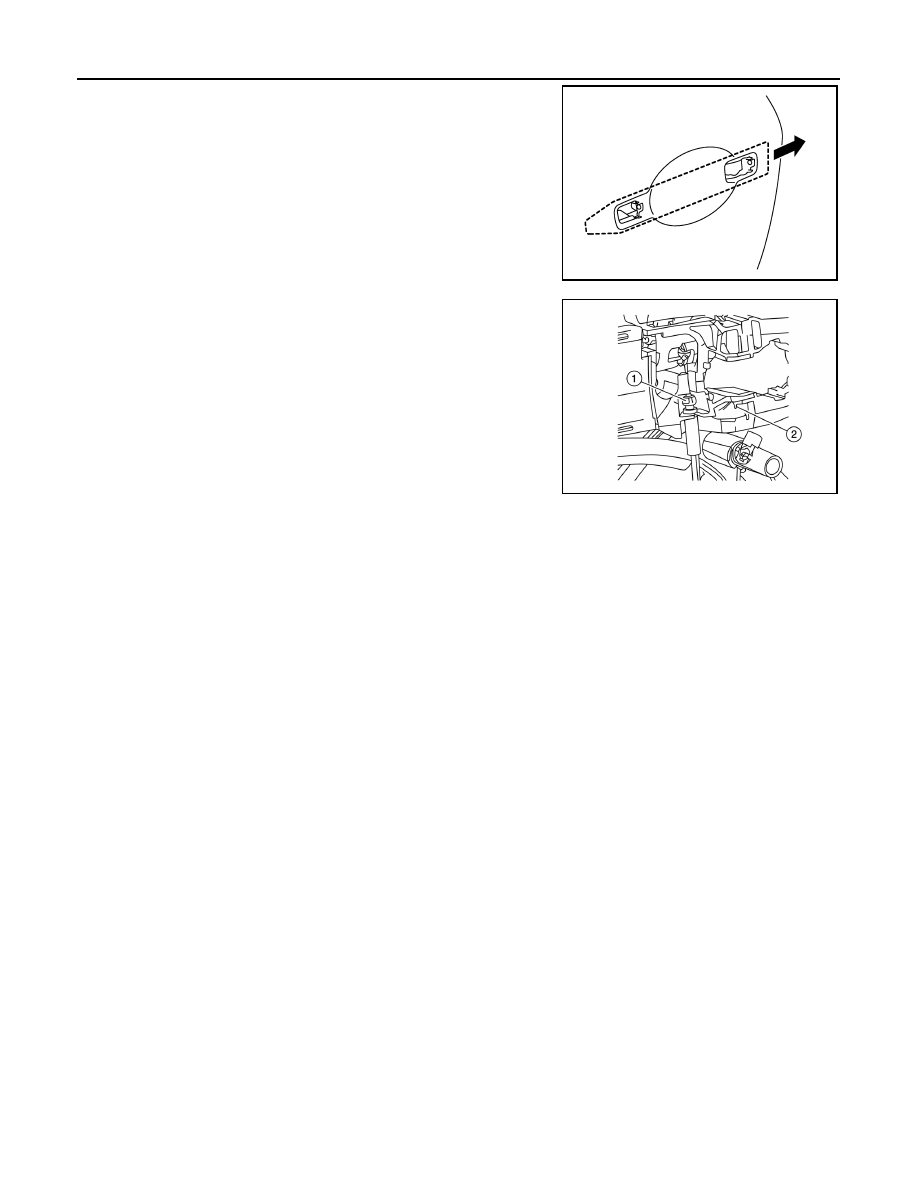

10. Slide outside handle bracket toward rear of vehicle to remove.

11. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a

click is felt.

• After installation, check door lock cable is properly engaged to outside handle bracket.

• After installation, check door open/close and lock/unlock operation.

JMKIA2652ZZ

ALKIA2489ZZ

REAR DOOR LOCK

DLK-305

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

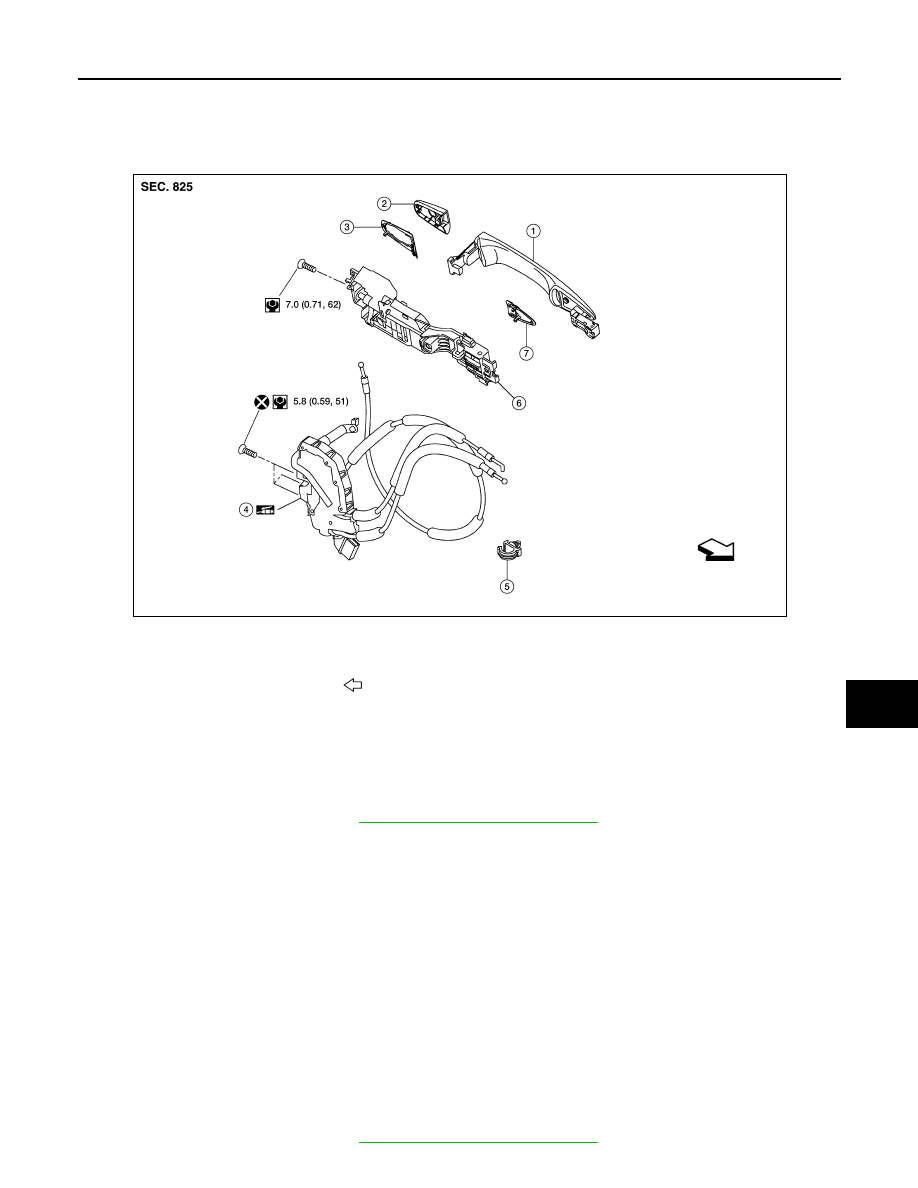

Exploded View

INFOID:0000000009175897

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009175898

REMOVAL

1. Remove rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove vapor barrier.
3. Remove rear door lock bolts.
4. Disconnect the door lock cables.
5. Disconnect the harness connector from the rear door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse rear door lock bolts.

• After installation, check door lock cables are properly engaged to inside handle and outside handle.

• After installation, check door open/close and lock/unlock operation.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009175899

REMOVAL

1. Remove rear door finisher. Refer to

INT-17, "Removal and Installation"

.

1.

Outside handle

2.

Outside handle escutcheon

3.

Rear gasket

4.

Rear door lock

5.

Cable clip

6.

Outside handle bracket

7.

Front gasket

Front

AWKIA2616ZZ
