DLK-306

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

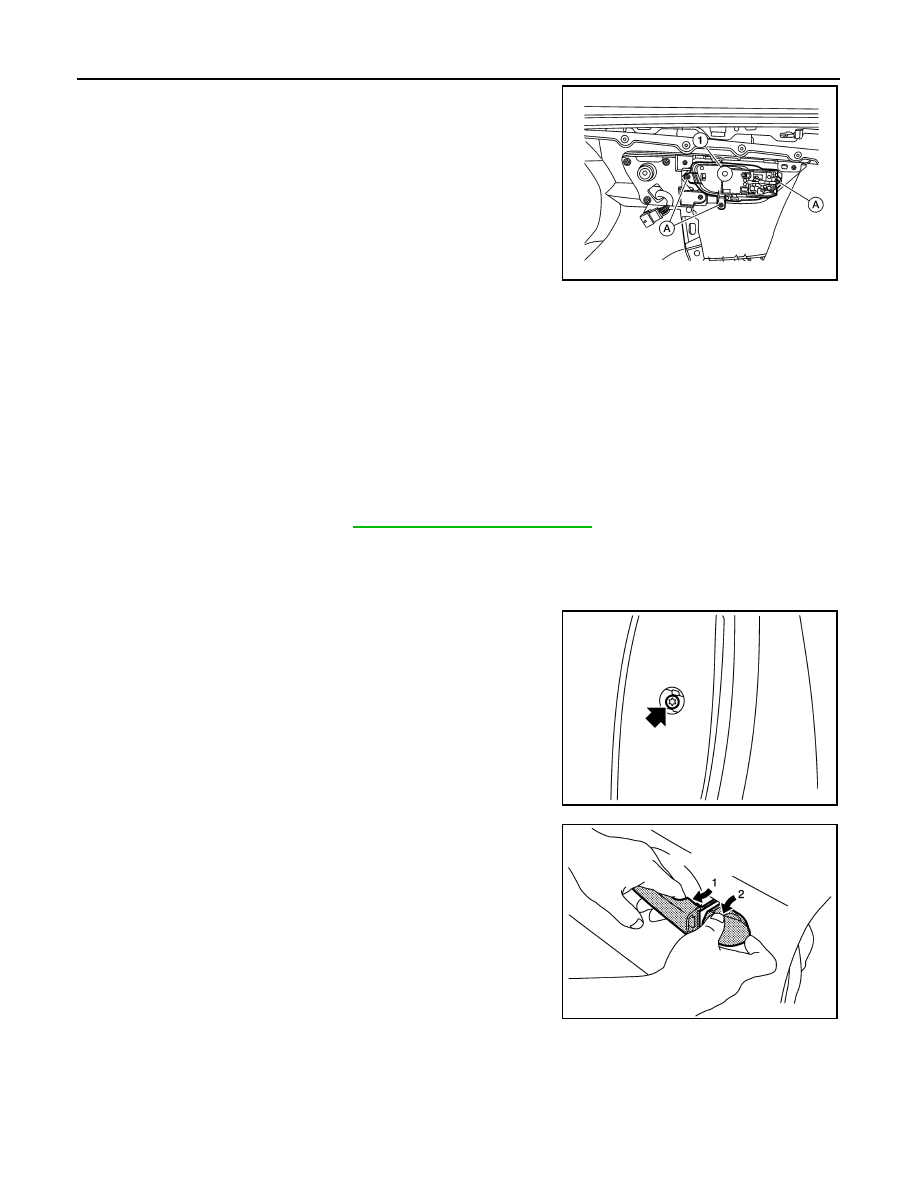

2. Remove inside handle screw (A) and inside handle (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check door lock cables are properly engaged to inside handle.

• After installation, check door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009175900

REMOVAL

1. Fully close rear door glass.
2. Remove rear door finisher. Refer to

INT-17, "Removal and Installation"

.

3. Remove rear door vapor barrier.

NOTE:

Cut the butyl tape so that some parts of the butyl tape remain on the vapor barrier, if the vapor barrier is

reused.

4. Remove door side grommet and bolt from grommet hole.

5. While pulling (1) outside handle, remove (2) outside handle

escutcheon.

ALKIA2715ZZ

JMKIA0025ZZ

JMKIA5342ZZ

REAR DOOR LOCK

DLK-307

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

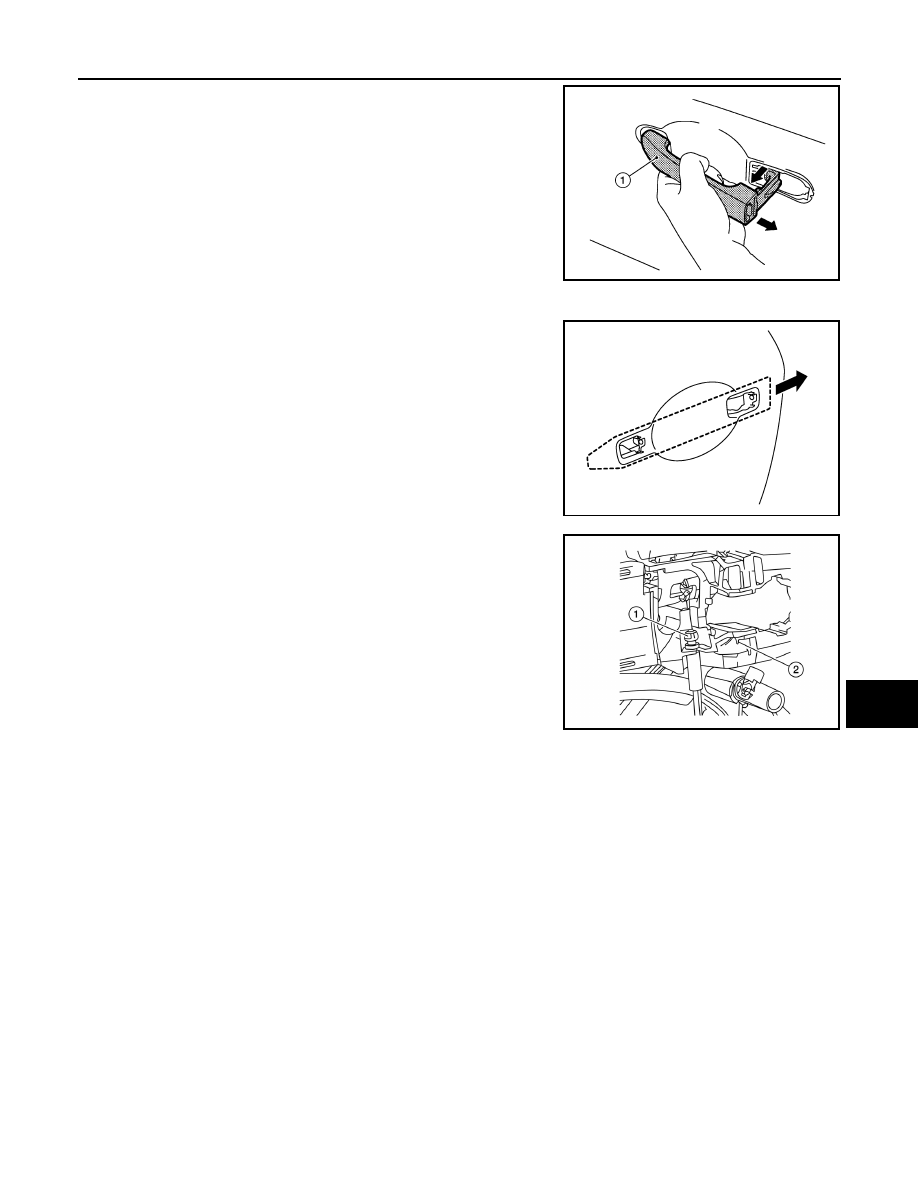

6. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

7. Remove front gasket and rear gasket.
8. Slide outside handle bracket toward rear of vehicle to remove.

9. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation in the reverse order of removal.

CAUTION:

• After installation, check door lock cable is properly engaged to outside handle bracket.

• After installation, check door open/close and lock/unlock operation.

AWKIA1997ZZ

JMKIA2652ZZ

ALKIA2489ZZ

DLK-308

< REMOVAL AND INSTALLATION >

BACK DOOR LOCK

BACK DOOR LOCK

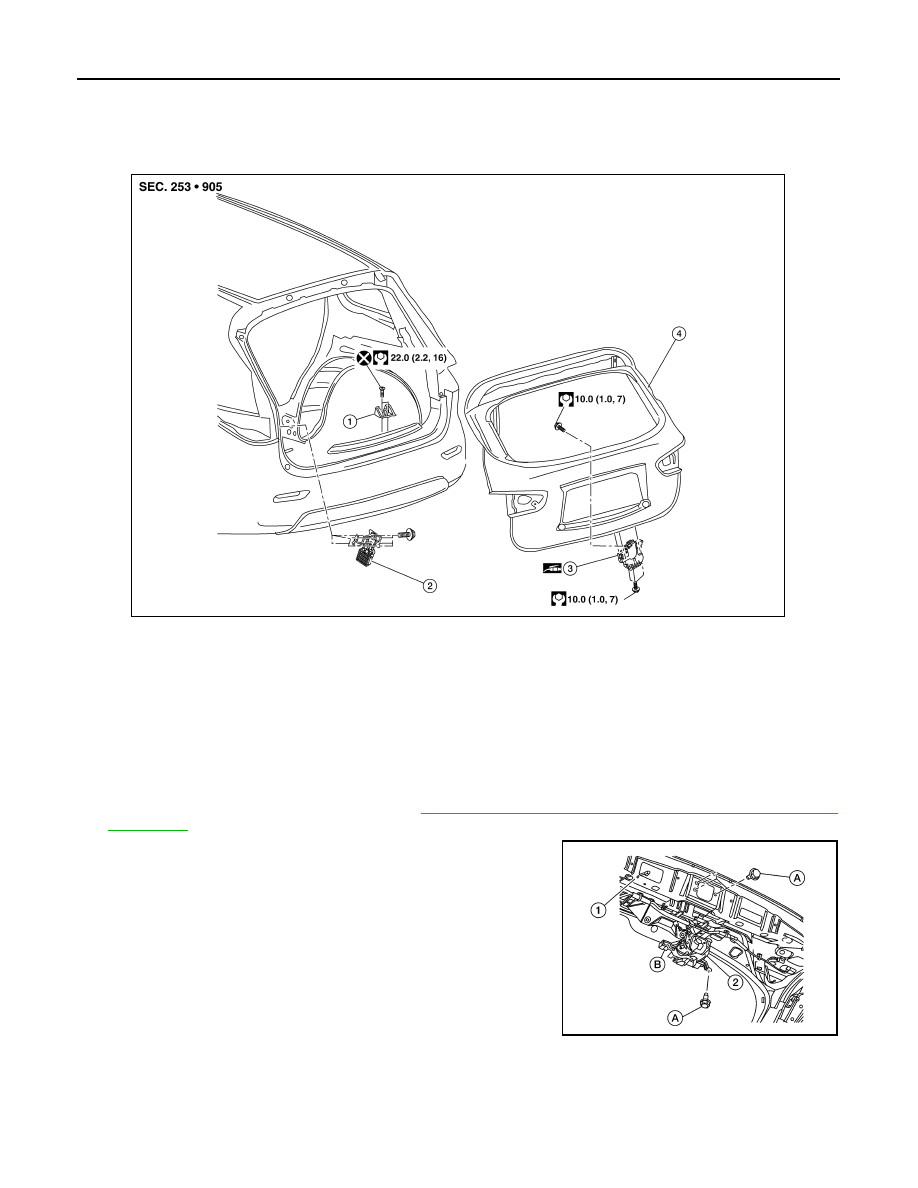

Exploded View

INFOID:0000000009175901

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009175902

REMOVAL

1. Remove back door lower finisher. Refer to

INT-35, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2. Disconnect harness connector (B) from the back door lock (2).
3. Remove back door lock bolts (A) and back door lock (2) from

back door assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check back door open/close and lock/unlock operation.

TOUCH SENSOR

1.

Door striker

2.

Automatic back door control module
(if equipped)

3.

Back door lock

4.

Back door panel

AWKIA2617ZZ

AWKIA2631ZZ

BACK DOOR LOCK

DLK-309

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TOUCH SENSOR : Removal and Installation

INFOID:0000000009175903

CAUTION:

Use care not to bend touch sensor.

REMOVAL

1. Remove back door side finishers. Refer to

INT-35, "BACK DOOR SIDE FINISHER : Removal and Installa-

tion"

.

2. Disconnect the harness connectors from the touch sensor.
3. Release clips and remove screws that retain touch sensor.
4. Remove touch sensor harness from the back door assembly, then remove touch sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check back door open/close and lock/unlock operation.

EMERGENCY LEVER
EMERGENCY LEVER : Unlock procedures

INFOID:0000000009175904

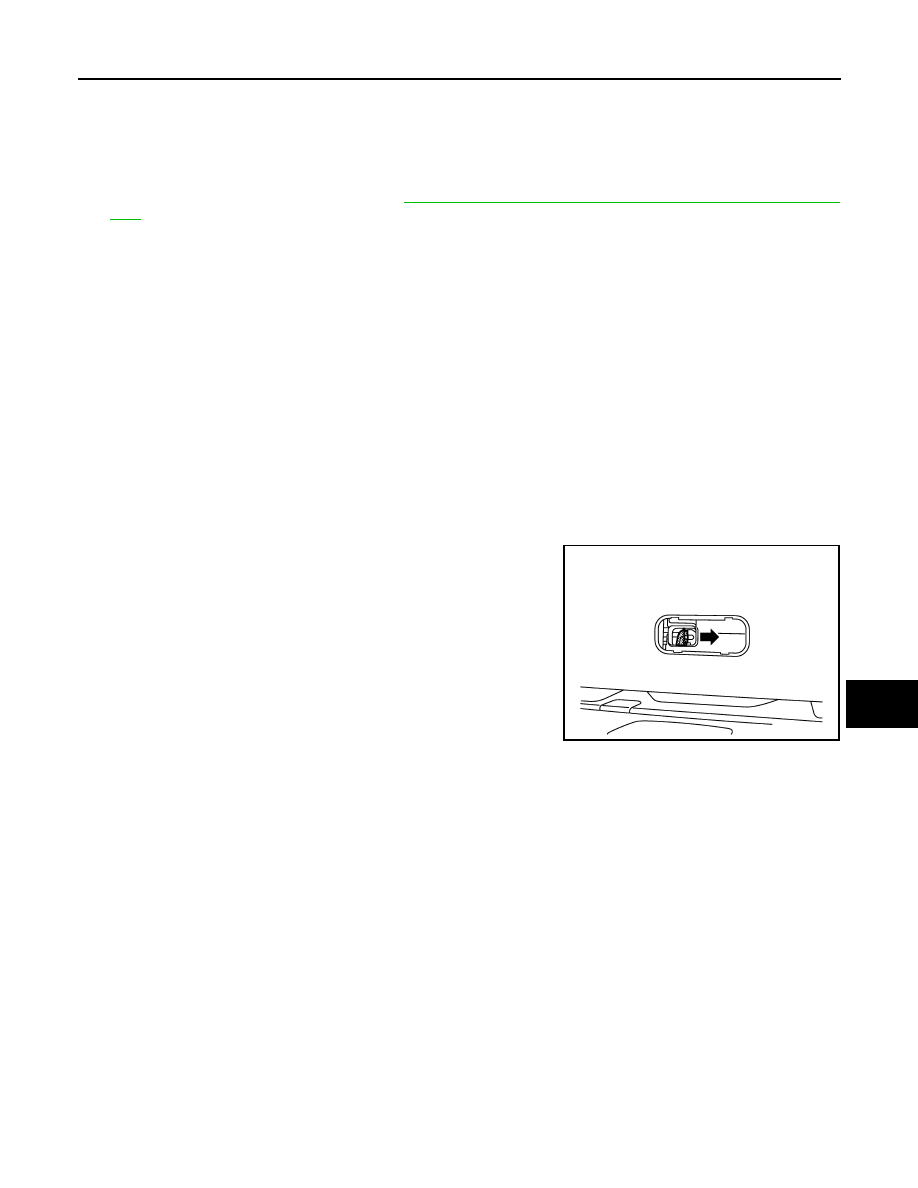

UNLOCK PROCEDURES

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, perform the following proce-

dures to unlock back door assembly.
1. Remove the emergency handle mask, using a suitable tool to release.
2. From inside the vehicle, rotate emergency lever in the direction

shown to unlock.
