REAR DOOR

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-288, "DOOR ASSEMBLY

: Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009175880

REMOVAL

1. Fully close the rear door window.
2. Remove rear door speaker. Refer to

AV-52, "Removal and Installation"

 (BASE AUDIO),

AV-194, "Removal

and Installation"

 (MID AUDIO WITHOUT BOSE),

AV-377, "Removal and Installation"

 (MID AUDIO WITH

BOSE) or

AV-623, "Removal and Installation"

 (PREMIUM AUDIO WITH NAVIGATION).

3. Remove rear door check link bolt (body side).
4. Remove rear door check link nuts (door side).
5. Remove rear door check link through the hole in rear door panel.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close and lock/unlock operation.

• Check rear door check link rotating point for poor lubrication. If necessary, apply a suitable multi-

purpose grease.

BACK DOOR

DLK-291

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

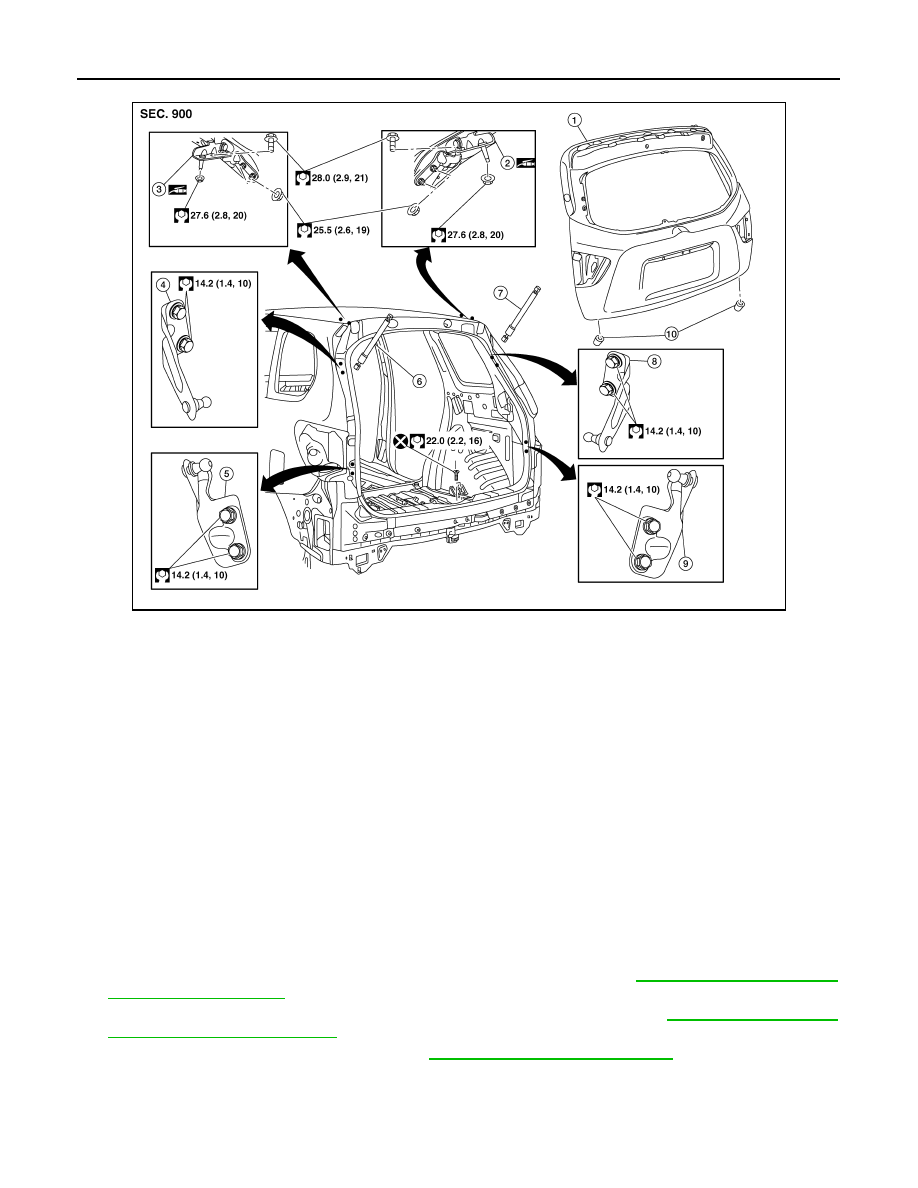

Exploded View

INFOID:0000000009175881

WITH POWER BACK DOOR

AWKIA2629ZZ

1.

Back door touch sensor (RH)

2.

Back door panel

3.

Back door touch sensor (LH)

4.

Back door hinge (RH)

5.

Back door hinge (LH)

6.

Spindle unit upper hinge (LH)

7.

Spindle unit lower hinge (LH)

8.

Spindle unit (LH)

9.

Spindle unit (RH)

10. Spindle unit upper hinge (RH)

11. Spindle unit lower hinge (RH) 12. Bumper rubber

DLK-292

< REMOVAL AND INSTALLATION >

BACK DOOR

WITHOUT POWER BACK DOOR

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009175882

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal and installation of

back door.

REMOVAL

1. Support the back door assembly using a suitable tool.

WARNING:

Bodily injury may occur if back door assembly is not supported properly when removing the back

door spindle unit.

2. Remove spindle units (LH/RH) (WITH POWER BACK DOOR). Refer to

DLK-296, "SPINDLE UNIT :

Removal and Installation"

.

3. Remove back door stays (LH/RH) (WITHOUT POWER BACK DOOR). Refer to

DLK-296, "BACK DOOR

STAY : Removal and Installation"

.

4. Remove roof side moldings (LH/RH). Refer to

EXT-31, "Removal and Installation"

.

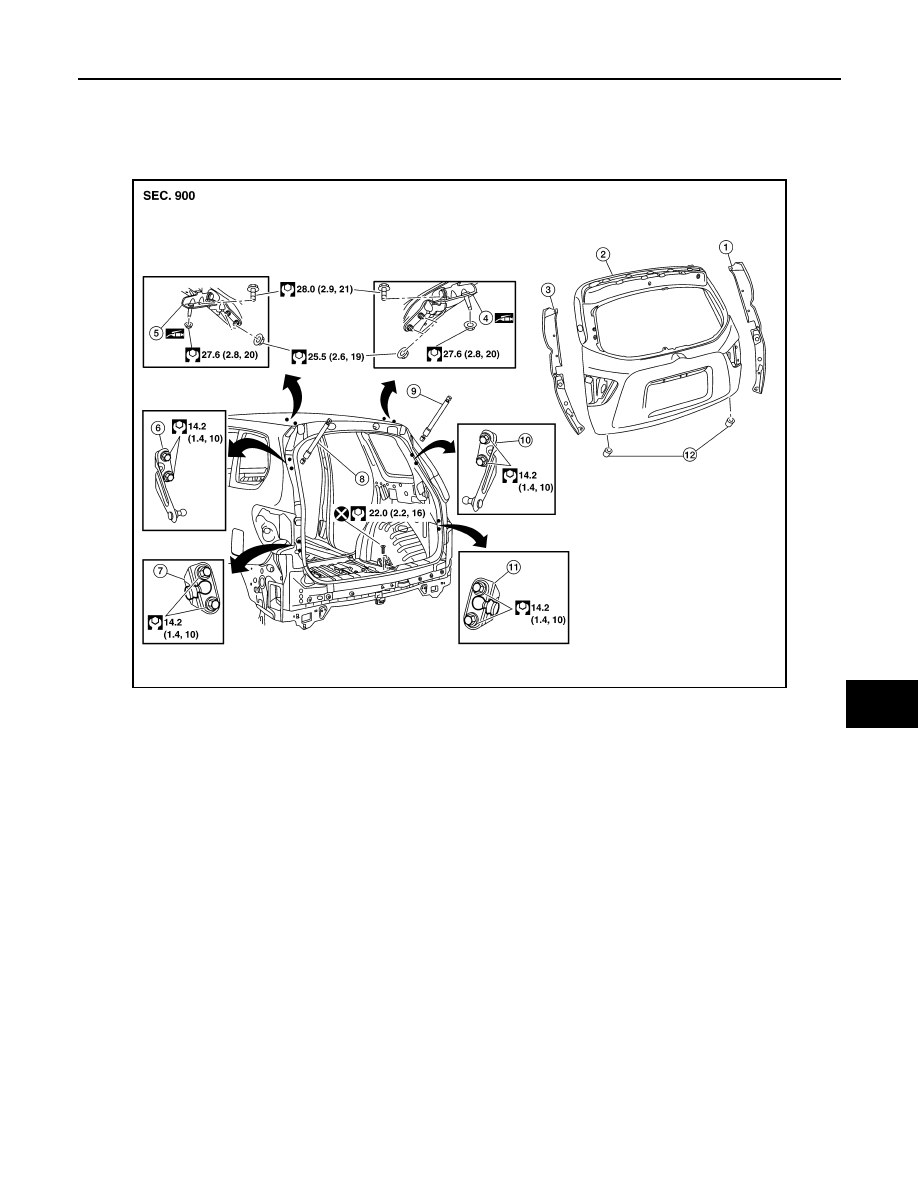

AWKIA2609ZZ

1.

Back door panel

2.

Back door hinge (RH)

3.

Back door hinge (LH)

4.

Back door stay upper hinge (LH) 5.

Back door stay lower hinge (LH) 6.

Back door stay (LH)

7.

Back door stay (RH)

8.

Back door stay upper hinge (RH) 9.

Back door stay lower hinge (RH)

10. Bumper rubber

BACK DOOR

DLK-293

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

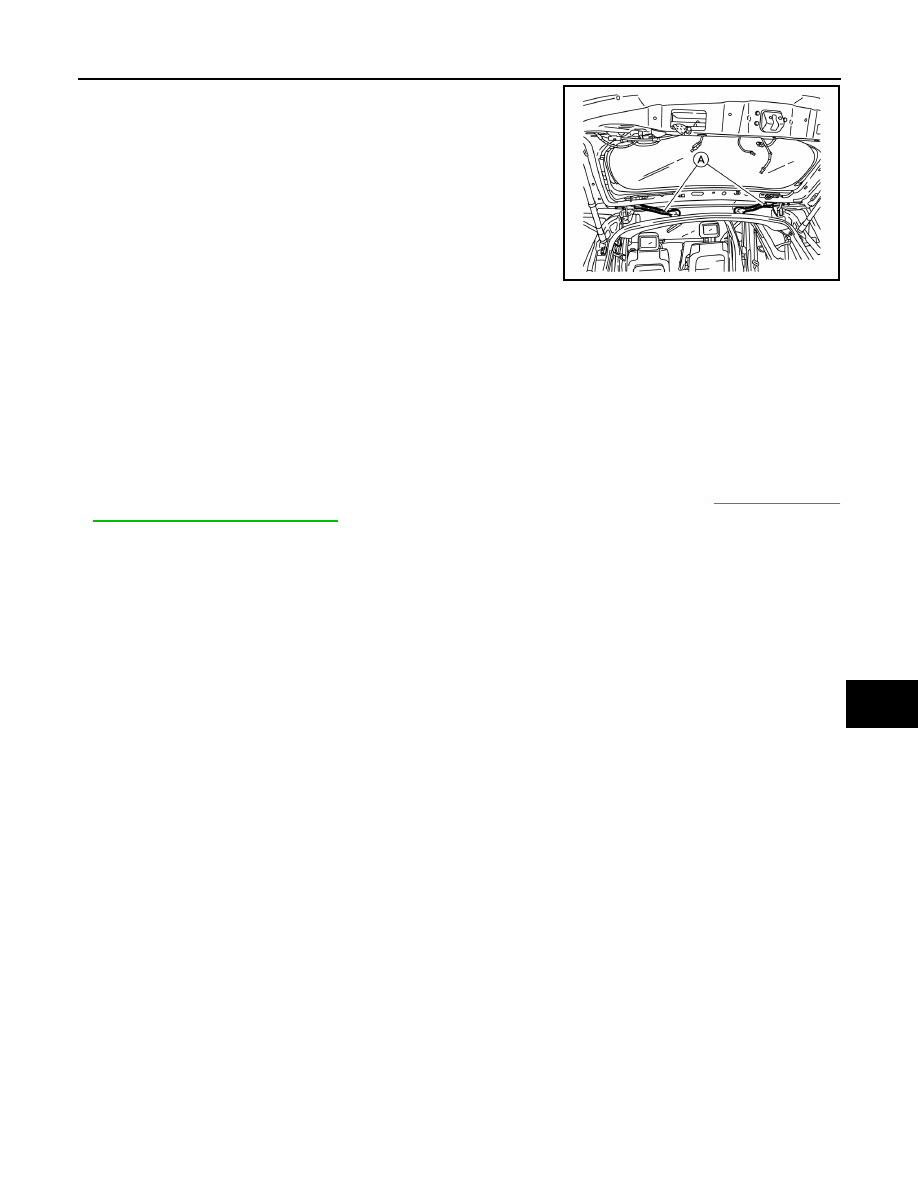

5. Disconnect harness connectors (A) from back door.

6. Remove back door harness grommet, then pull harness from the back door.
7. Disconnect washer tube.
8. Remove washer tube grommet and washer tube from the back door.
9. Remove back door hinge nuts (door side) and back door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the surface between hinge and door side.

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-294, "BACK

DOOR ASSEMBLY : Adjustment"

.

ALKIA2469ZZ
