DLK-286

< REMOVAL AND INSTALLATION >

FRONT DOOR

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After installation, perform the front door adjustment procedure. Refer to

DLK-284, "DOOR ASSEM-

BLY : Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009175874

REMOVAL

1. Fully close the front door window.
2. Remove front door speaker. Refer to

AV-50, "Removal and Installation"

 (BASE AUDIO),

AV-192,

"Removal and Installation"

 (MID AUDIO WITHOUT BOSE),

AV-373, "Removal and Installation"

 (MID

AUDIO WITH BOSE) or

AV-619, "Removal and Installation"

 (PREMIUM AUDIO WITH NAVIGATION).

3. Remove door check link bolt from body.
4. Remove door check link nuts on door assembly.
5. Remove door check link through the hole in door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check front door open/close and lock/unlock operation.

• Check door check link rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

REAR DOOR

DLK-287

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

Exploded View

INFOID:0000000009175875

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009175876

CAUTION:

• Use two people when removing or installing the rear door due to its heavy weight.

• When removing and installing rear door assembly, support rear door using a suitable tool.

REMOVAL

1. Remove rear door finisher. Refer to

DLK-287, "DOOR ASSEMBLY : Removal and Installation"

.

2. Disconnect the harness connectors from rear door.
3. Remove harness grommet from rear door, then pull out rear door harness from the rear door.
4. Remove rear door check link bolt (body side).
5. Remove rear door hinge nuts (door side) and rear door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent where necessary.

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-288, "DOOR ASSEMBLY

: Adjustment"

.

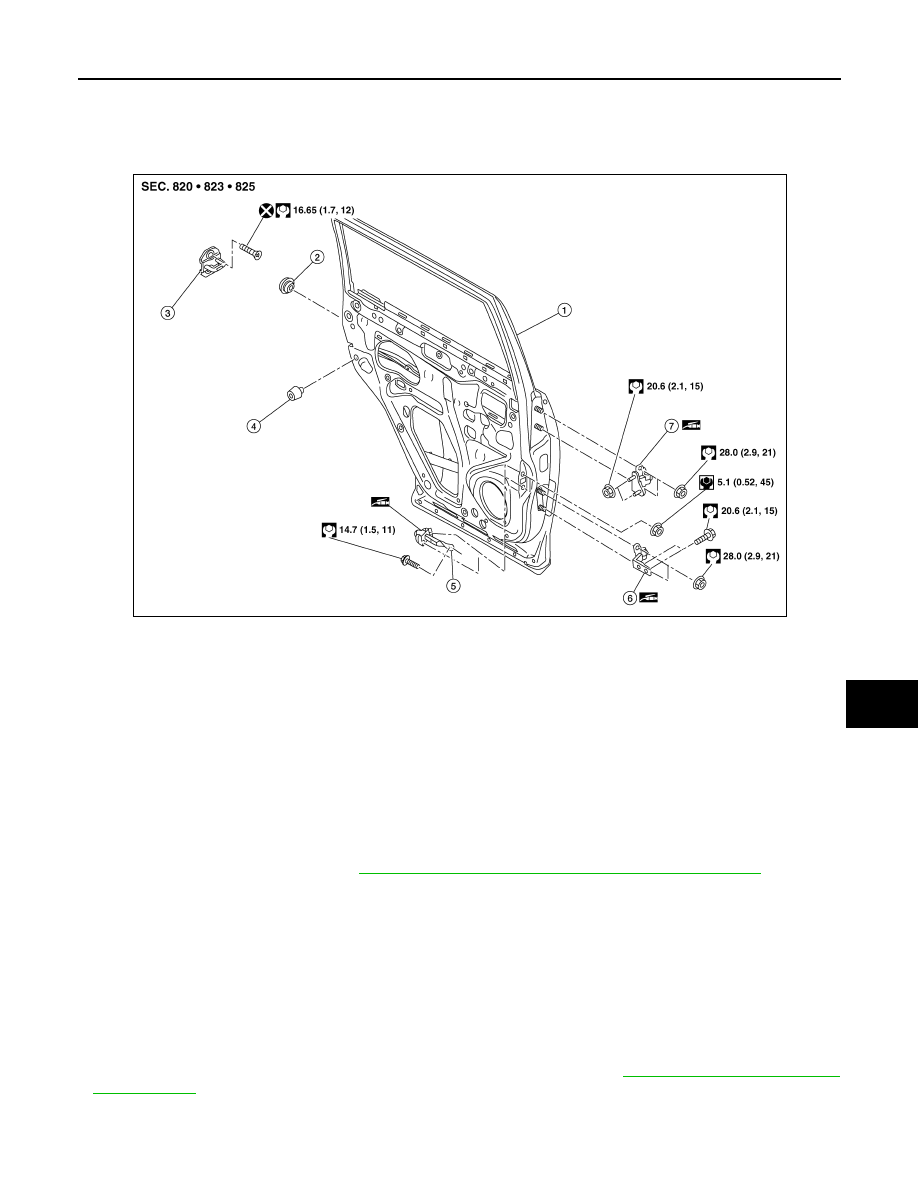

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

Bumper rubber

5.

Door check link

6.

Rear door lower hinge

7.

Rear door upper hinge

AWKIA2605ZZ

DLK-288

< REMOVAL AND INSTALLATION >

REAR DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009175877

Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dures.

Unit: mm (in)

1. Remove center pillar lower finisher. Refer to

INT-21, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

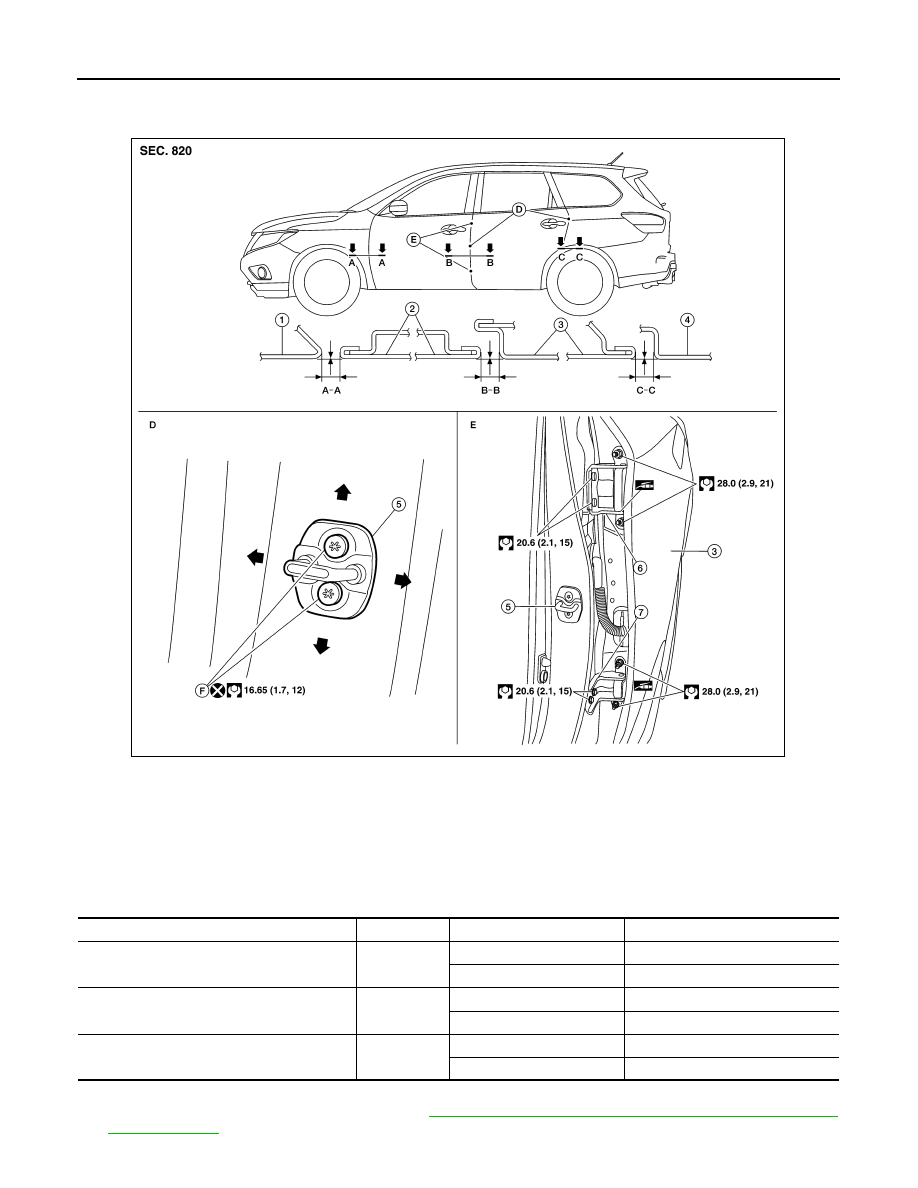

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Rear door upper hinge

7.

Rear door lower hinge

F.

Door striker bolts

AWKIA2628ZZ

Portion

Section

Measurement

Standard

Front fender - Front door

A – A

Clearance

4.0

± 1.0 (0.16 ± 0.04)

Surface height

± 1.0 (± 0.04)

Front door - Rear door

B – B

Clearance

4.3

± 1.0 (0.17 ± 0.04)

Surface height

± 1.0 (± 0.04)

Rear door - Body side outer

C – C

Clearance

3.7

± 1.0 (0.15 ± 0.04)

Surface height

± 1.0 (± 0.04)

REAR DOOR

DLK-289

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Loosen rear door hinge nuts (door side).
3. Adjust the surface height of rear door according to specifications provided.
4. Temporarily tighten rear door hinge nuts (door side).
5. Loosen rear door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Check rear door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.

8. Install center pillar lower finisher. Refer to

INT-21, "CENTER PILLAR LOWER FINISHER : Removal and

Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009175878

REMOVAL

Remove bolts and rear door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse rear door striker bolts.

• After installation, check rear door open/close operation. If necessary, adjust the door striker. Refer to

DLK-289, "DOOR STRIKER : Adjustment"

.

DOOR STRIKER : Adjustment

INFOID:0000000009729241

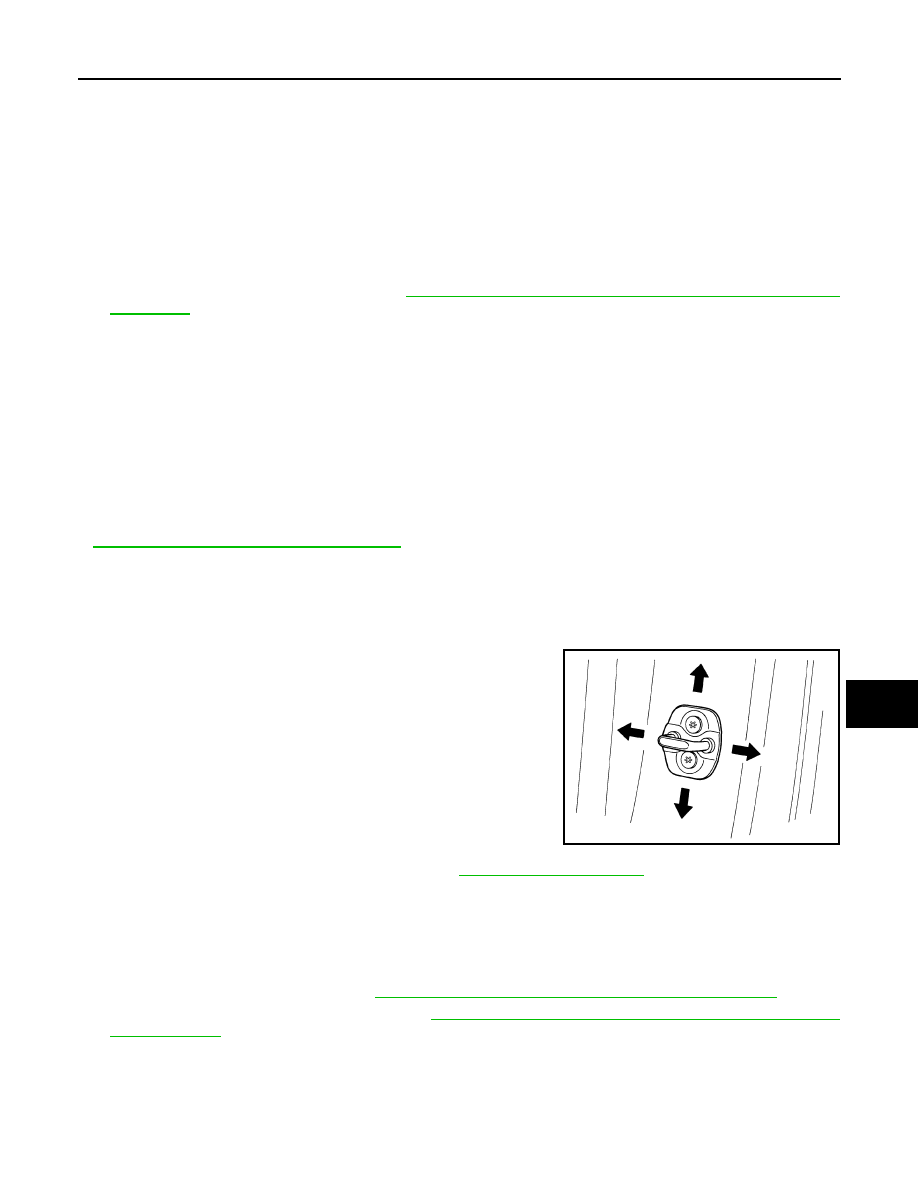

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-287, "Exploded View"

.

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009175879

REMOVAL

1. Remove rear door assembly. Refer to

DLK-287, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove center pillar lower finisher. Refer to

INT-21, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

3. Remove rear door hinge bolts and nuts and rear door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the hinge mating surface.

PIIB2804J
