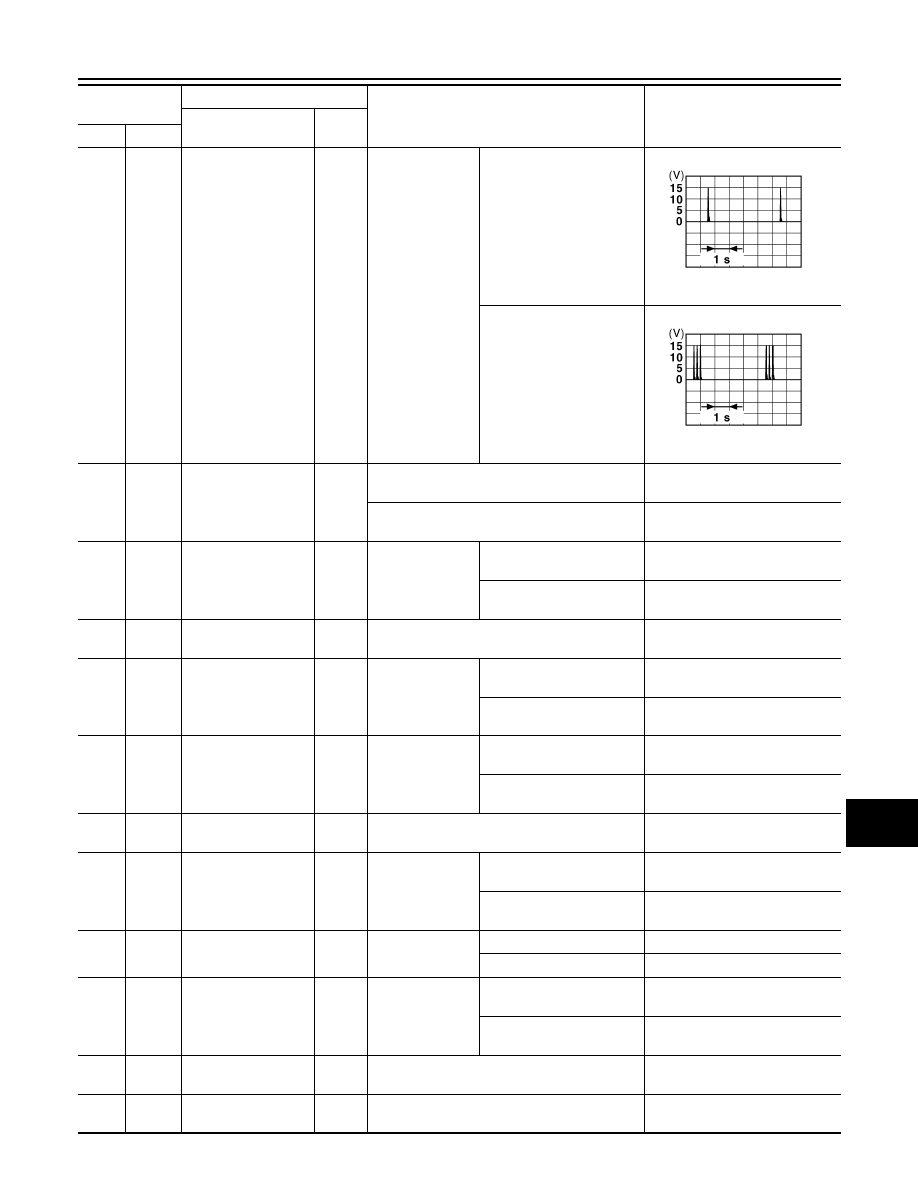

128

(R)

Ground

Inside key antenna
(console) B

Output

Push-button igni-
tion switch OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

129

(SB)

Ground Battery saver output

Output

After passing the interior room lamp battery sav-
er operation time

0V

Any other time after passing the interior room
lamp battery saver operation time

Battery voltage

130

(LG)

Ground

Passenger door un-
lock

Output Front door RH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

131
(W)

Ground BCM battery fuse

Input

Push-button ignition switch OFF

Battery voltage

132

(BR)

Ground Rear door lock

Output All doors

LOCK (actuator is activat-
ed)

Battery voltage

Other than LOCK (actuator
is not activated)

0V

133

(Y)

Ground Rear door unlock

Output

Rear door RH
and rear door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

134

(B)

Ground Ground 2

—

Push-button ignition switch ON

0V

135

(L)

Ground

Driver, passenger
and fuel door lock

Output All doors

LOCK (actuator is activat-
ed)

Battery voltage

Other than LOCK (actuator
is not activated)

0V

136

(LG)

Ground Room lamp control

Output

Interior room
lamp

OFF

Battery voltage

ON

0V

137

(V)

Ground Driver unlock

Output Front door LH

UNLOCK (actuator is acti-
vated)

Battery voltage

Other than UNLOCK (actu-
ator is not activated)

0V

138

(V)

Ground Rear door battery

Input

Push-button ignition switch OFF

Battery voltage

139
(W)

Ground

Fusible link battery
power

Input

Push-button ignition switch OFF

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0062GB

JMKIA0063GB

BCS-50

< ECU DIAGNOSIS INFORMATION >

[BCM]

BCM

Fail Safe

INFOID:0000000009174892

DTC Inspection Priority Chart

INFOID:0000000009174893

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

140

(BR)

Ground

Power window igni-
tion power supply

Output Push-button ignition switch ON

Battery voltage

141

(Y)

Ground

Power window bat-
tery power supply

Output Push-button ignition switch OFF

Battery voltage

142

(Y)

Ground Front door battery

Input

Push-button ignition switch OFF

Battery voltage

143

(B)

Ground Ground 1

—

Push-button ignition switch ON

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

CONSULT Display

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI-SCANNING

Inhibit engine cranking

Ignition switch ON

→ OFF

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Starter control relay signal
• Starter relay status signal

B2562: LO VOLTAGE

Inhibit engine cranking

100 ms after the power supply voltage increases to more than 8.8 V

B2608: STARTER RELAY

Inhibit engine cranking

500 ms after the following signal communication status becomes
consistent
• Starter motor relay control signal
• Starter relay status signal (CAN)

B260A: IGNITION RELAY

Inhibit engine cranking

500 ms after the following conditions are fulfilled
• IGN relay (IPDM E/R) control signal: OFF (Battery voltage)
• Ignition ON signal (CAN to IPDM E/R): OFF (Request signal)
• Ignition ON signal (CAN from IPDM E/R): OFF (Condition signal)

B2617: STARTER RELAY CIRC

Inhibit engine cranking

1 second after the starter motor relay control inside BCM becomes
normal

B2618: BCM

Inhibit engine cranking

1 second after the ignition relay (IPDM E/R) control inside BCM be-
comes normal

B261E: VEHICLE TYPE

Inhibit engine cranking

BCM initialization

Priority

DTC

1

• B2562: LOW VOLTAGE

2

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

3

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING
• B2196: DONGLE UNIT
• B2198: NATS ANTENNA AMP

BCS

BCM

BCS-51

< ECU DIAGNOSIS INFORMATION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

4

• B2555: STOP LAMP
• B2556: PUSH-BTN IGN SW
• B2557: VEHICLE SPEED
• B2560: STARTER CONT RELAY
• B2601: SHIFT POSITION
• B2602: SHIFT POSITION
• B2603: SHIFT POSI STATUS
• B2604: PNP SW
• B2605: PNP SW
• B2608: STARTER RELAY
• B260A: IGNITION RELAY
• B2614: ACC RELAY CIRC
• B2615: BLOWER RELAY CIRC
• B2616: IGN RELAY CIRC
• B2617: STARTER RELAY CIRC
• B2618: BCM
• B261A: PUSH-BTN IGN SW
• B261B: RES ENG RUN
• B261E: VEHICLE TYPE
• B26F1: IGNITION RELAY
• B26F2: IGNITION RELAY
• B26F3: STARTER CONTROL RELAY
• B26F4: STARTER CONTROL RELAY
• B26F6:  BCM
• B26F7:  BCM
• B26F8:  BCM
• B26FD: SHIFT LOCK SOLENOID
• B26FE: HOOD SWITCH
• B26FF: INTELLIGENT TUNER
• C1729: VHCL SPEED SIG ERR
• U0415: VEHICLE SPEED SIG

5

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL
• C1730: FLAT TIRE FL
• C1731: FLAT TIRE FR
• C1732: FLAT TIRE RR
• C1733: FLAT TIRE RL
• C1734: CONTROL UNIT
• C1735: IGNITION SIGNAL

Priority

DTC

BCS-52

< ECU DIAGNOSIS INFORMATION >

[BCM]

BCM

DTC Index

INFOID:0000000009174894

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

6

• B2621: INSIDE ANTENNA
• B2622: INSIDE ANTENNA
• B2623: INSIDE ANTENNA

7

B259A: ROOM LAMP FUSE

Priority

DTC

CONSULT display

Fail-safe

Intelligent Key

warning lamp

ON

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
Further testing may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

—

—

—

BCS-68, "Description"

U1010: CONTROL UNIT (CAN)

—

—

—

BCS-69, "DTC Logic"

U0415: VEHICLE SPEED SIG

—

—

—

BCS-70, "Description"

B2190: NATS ANTENNA AMP

×

—

—

SEC-90, "Description"

B2191: DIFFERENCE OF KEY

×

—

—

SEC-92, "Description"

B2192: ID DISCORD BCM-ECM

×

—

—

SEC-93, "DTC Logic"

B2193: CHAIN OF BCM-ECM

×

—

—

SEC-94, "DTC Logic"

B2195: ANTI SCANNING

×

—

—

SEC-95, "DTC Logic"

B2196: DONGLE UNIT

—

—

—

SEC-96, "Description"

B2198: NATS ANTENNA AMP.

—

—

—

SEC-98, "DTC Logic"

B2555: STOP LAMP

—

—

—

SEC-100, "DTC Logic"

B2556: PUSH-BTN IGN SW

—

×

—

SEC-103, "DTC Logic"

B2557: VEHICLE SPEED

—

×

—

SEC-105, "DTC Logic"

B2560: STARTER CONT RELAY

×

×

—

SEC-106, "Description"

B2562: LOW VOLTAGE

×

—

—

BCS-71, "DTC Logic"

B259A: ROOM LAMP FUSE

—

—

—

BCS-72, "DTC Logic"

B2601: SHIFT POSITION

—

×

—

SEC-107, "DTC Logic"

B2602: SHIFT POSITION

—

×

—

SEC-110, "DTC Logic"

B2603: SHIFT POSI STATUS

—

×

—

SEC-112, "DTC Logic"

B2604: PNP SW

—

×

—

SEC-116, "DTC Logic"

B2605: PNP SW

—

×

—

SEC-119, "DTC Logic"

B2608: STARTER RELAY

×

×

—

SEC-122, "DTC Logic"

B260A: IGNITION RELAY

×

×

—

PCS-60, "DTC Logic"

B2614: ACC RELAY CIRC

—

×

—

PCS-62, "DTC Logic"

B2615: BLOWER RELAY CIRC

—

×

—

PCS-64, "DTC Logic"

B2616: IGN RELAY CIRC

—

×

—

PCS-66, "DTC Logic"

B2617: STARTER RELAY CIRC

×

×

—

SEC-124, "Description"

B2618: BCM

×

×

—

PCS-68, "DTC Logic"
