Nissan Pathfinder. Manual - part 211
BCS

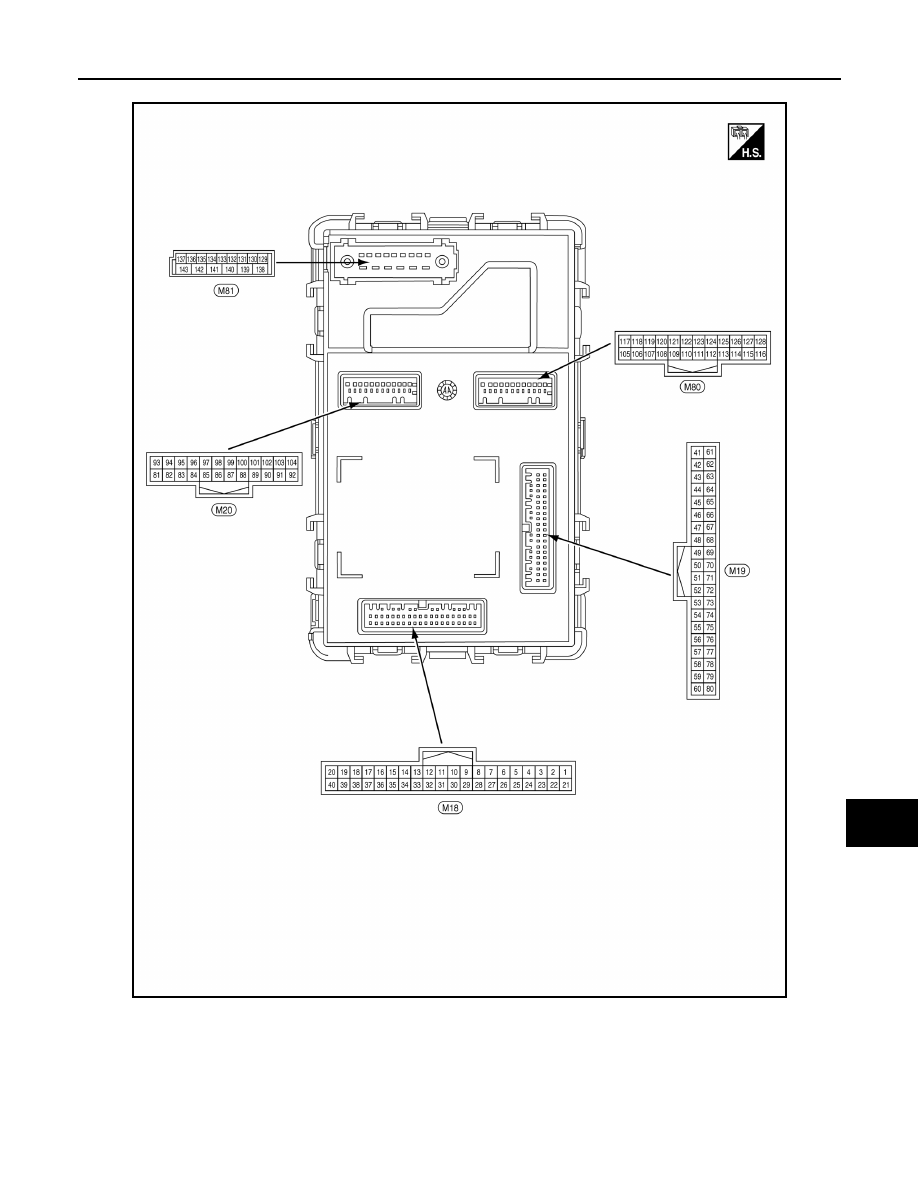

BCM
BCS-33
< ECU DIAGNOSIS INFORMATION >
[BCM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
RKE PBD
I-Key power back door button not pressed
Off
I-Key power back door button pressed
On
OPTI SEN (DTCT)
Bright outside of the vehicle
Close to 5V
Dark outside of the vehicle
Close to 0V
OPTI SEN (FILT)
Bright outside of the vehicle
Close to 5V
Dark outside of the vehicle
Close to 0V
PASSING SW
Other than lighting switch PASS
Off
Lighting switch PASS
On
PRBT ENG STRT
When the engine start is prohibited
Reset
When the engine start is permitted
Set
PRMT ENG STRT
When the engine start is prohibited
Reset
When the engine start is permitted
Set
PRMT RKE STRT
When the engine start is prohibited
Reset
When the engine start is permitted
Set
PUSH SW
Return ignition switch to LOCK position
Off
Press ignition switch
On
PUSH SW-IPDM
When engine switch (push switch) is not pressed
Off
When engine switch (push switch) is pressed
On
REAR DEF SW
Rear window defogger switch OFF
Off
Rear window defogger switch ON
On
RR WASHER SW
Rear washer switch OFF
Off
Rear washer switch ON
On
RR WIPER INT
Rear wiper switch OFF
Off
Rear wiper switch INT
On
RR WIPER ON
Rear wiper switch OFF
Off
Rear wiper switch ON
On
RR WIPER STOP
Any position other than rear wiper stop position
Off
Rear wiper stop position
On
REQ SW-AS
When passenger door request switch is not pressed
Off
When passenger door request switch is pressed
On
REQ SW-BD/TR
When back door request switch is not pressed
Off
When back door request switch is pressed
On
REQ SW-DR
When driver door request switch is not pressed
Off
When driver door request switch is pressed
On
RKE-LOCK
When LOCK button of Intelligent Key is not pressed
Off
When LOCK button of Intelligent Key is pressed
On
RKE-MODE CHG
When LOCK/UNLOCK button of Intelligent Key is not pressed and
held simultaneously
Off
When LOCK/UNLOCK button of Intelligent Key is pressed and held
simultaneously
On
RKE OPE COUN1
Operation frequency of Intelligent Key
0-19
RKE OPE COUN2
Operation frequency of Intelligent Key
0-19
RKE-PANIC
When PANIC button of Intelligent Key is not pressed
Off
When PANIC button of Intelligent Key is pressed
On
Monitor Item
Condition
Value/Status
