Nissan Pathfinder. Manual - part 201

AV

SIDE CAMERA

AV-631

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIDE CAMERA

Removal and Installation

INFOID:0000000009174819

REMOVAL

1. Remove the door mirror. Refer to

MIR-17, "Removal and Installation"

.

2. Remove the door mirror rear finisher. Refer to

MIR-19, "Removal and Installation"

.

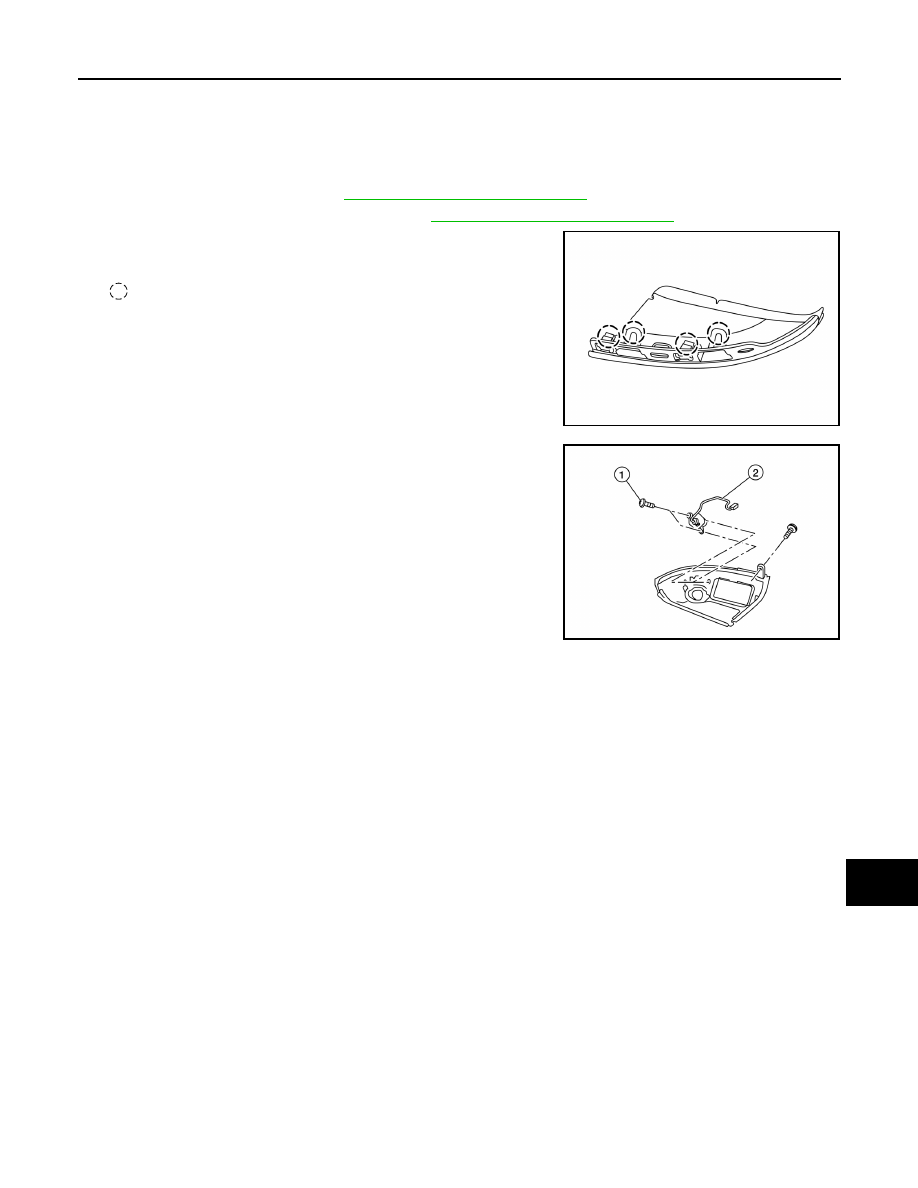

3. Release the side camera finisher pawls using a suitable tool,

disconnect the harness connector from the side camera, then

remove the side camera finisher.

: Pawl

4. Remove the screws (1) and the side camera (2).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1121ZZ

AWNIA2558ZZ

AV-632

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

VIDEO DISTRIBUTOR

VIDEO DISTRIBUTOR

Removal and Installation

INFOID:0000000009174820

REMOVAL

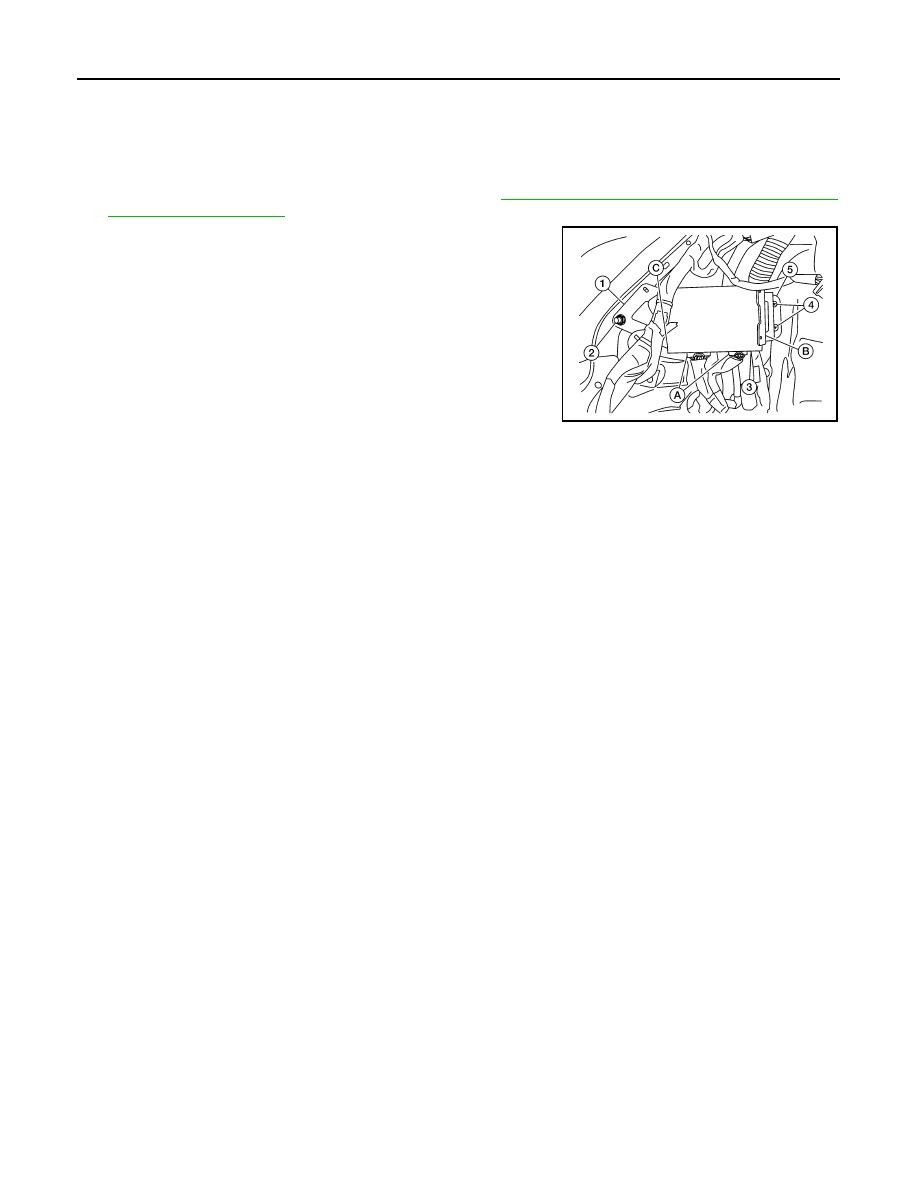

1. Remove the luggage side lower finisher (LH). Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect the video distributor harness connectors (A).
3. Remove the video distributor nut (2) and bolts (4).
4. Remove the video distributor (3) and brackets (1, 5) from the

vehicle as a single unit.

5. Remove screws (B, C), then remove video distributor (3).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3156ZZ

AV

REAR AUXILIARY INPUT JACKS

AV-633

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009174821

REMOVAL

1. Remove rear center ventilator duct. Refer to

VTL-12, "REAR CENTER VENTILATOR DUCT : Removal

and Installation"

.

2. Remove rear auxiliary input jack screws and the rear auxiliary input jack.

INSTALLATION

Installation is in the reverse order of removal.

AV-634

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

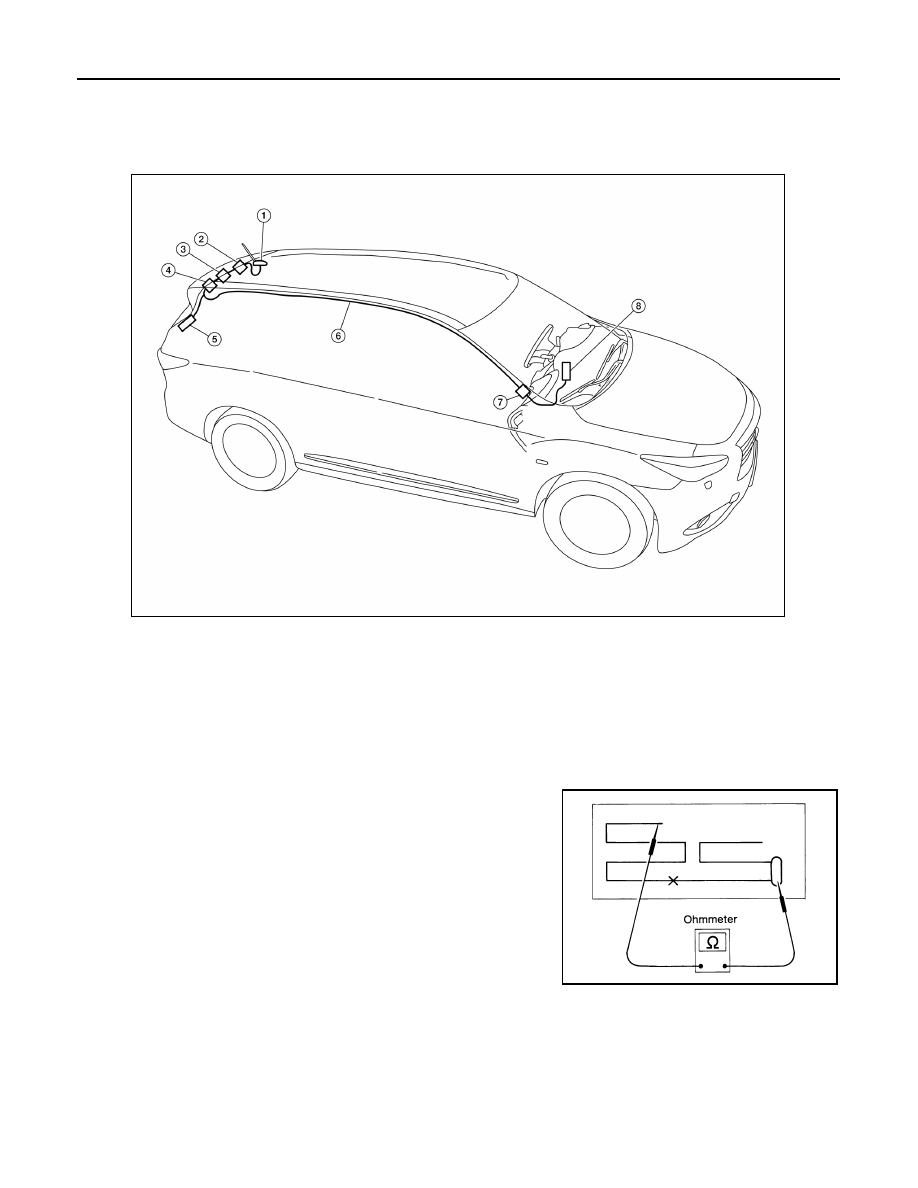

Location of Antennas

INFOID:0000000009174822

Window Antenna Repair

INFOID:0000000009174823

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna base (satellite antenna and antenna
amp)

2.

M502

3.

M501

4.

M503, M504

5.

M505

6.

Antenna Feeder

7.

M95, M151, M500, M509

8.

AV control unit M155, M156

AWNIA2589ZZ

SEL250I
