REAR SPEAKERS

Removal and Installation

INFOID:0000000009763260

REMOVAL

1. Remove the luggage side lower finisher. Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

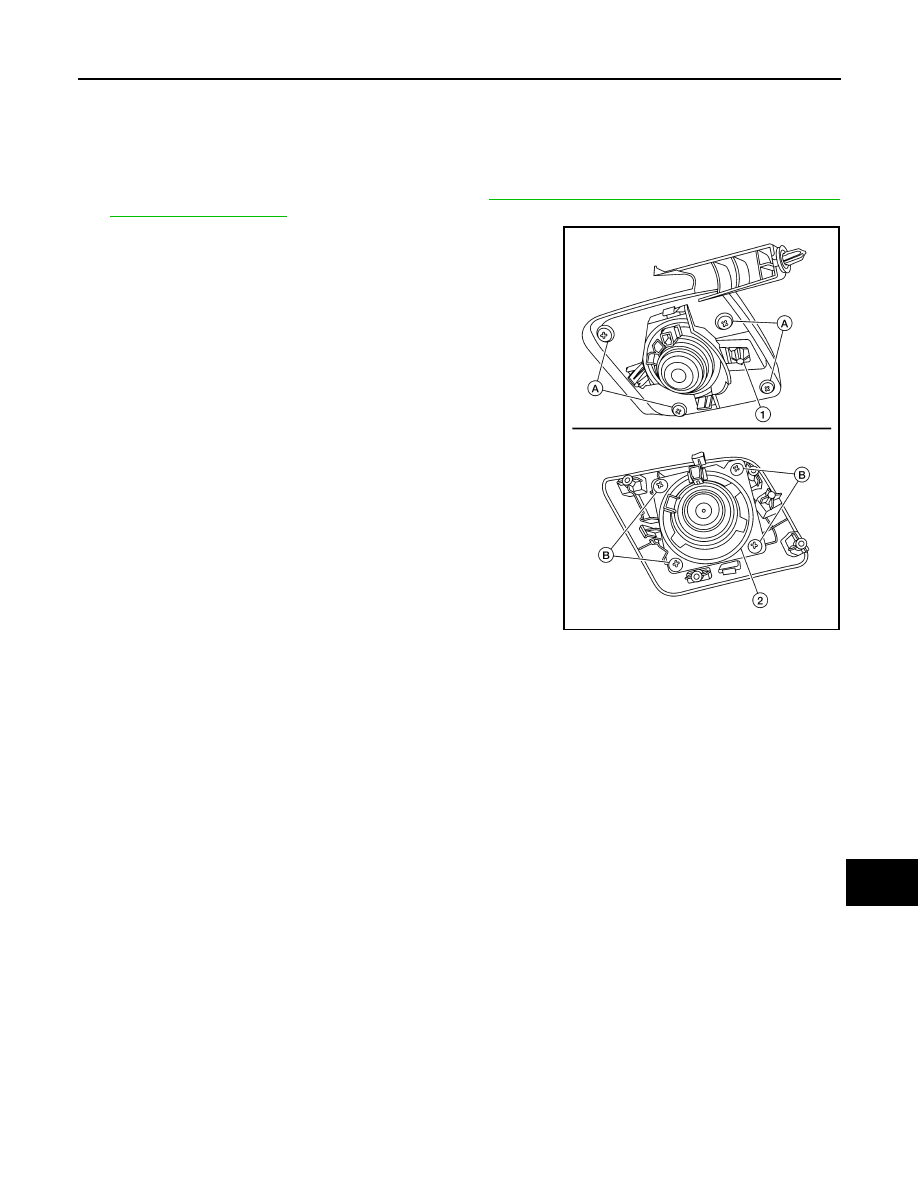

2. Remove rear side speaker screws (A), then remove the rear

side and grille assembly (1) from the luggage side lower finisher.

3. Remove the screws (B) from the rear side speaker grille, then

remove the rear side speaker (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1428ZZ

AV-624

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

SUBWOOFER

SUBWOOFER

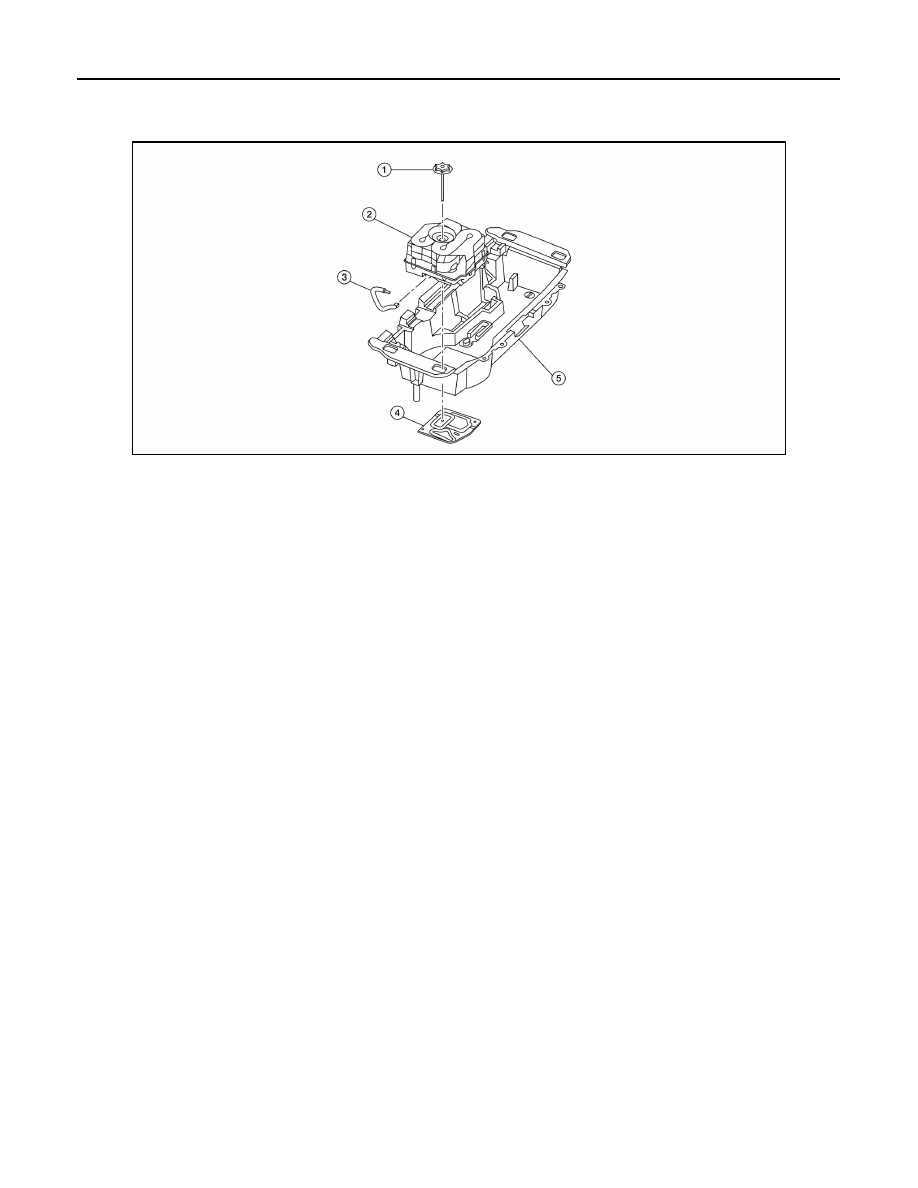

Exploded View

INFOID:0000000009763262

Removal and Installation

INFOID:0000000009763261

REMOVAL

1. Open the storage box lid.
2. Remove the spare tire clamp.
3. Lift subwoofer to disconnect the harness connector and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1328ZZ

1.

Spare tire clamp

2.

Subwoofer

3.

Harness

4.

Bracket

5.

Rear storage box

AV

USB INTERFACE

AV-625

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB INTERFACE

Removal and Installation

INFOID:0000000009763263

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the USB interface.
3. Release the pawl from the back of USB interface, then remove USB interface.

INSTALLATION

Installation is in the reverse order of removal.

AV-626

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

FRONT AUXILIARY INPUT JACKS

FRONT AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009763264

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the front auxiliary input jack.
3. Remove front auxiliary input jack screws and the front auxiliary input jack.

INSTALLATION

Installation is in the reverse order of removal.
