Nissan Pathfinder. Manual - part 200





AV

MICROPHONE

AV-627

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

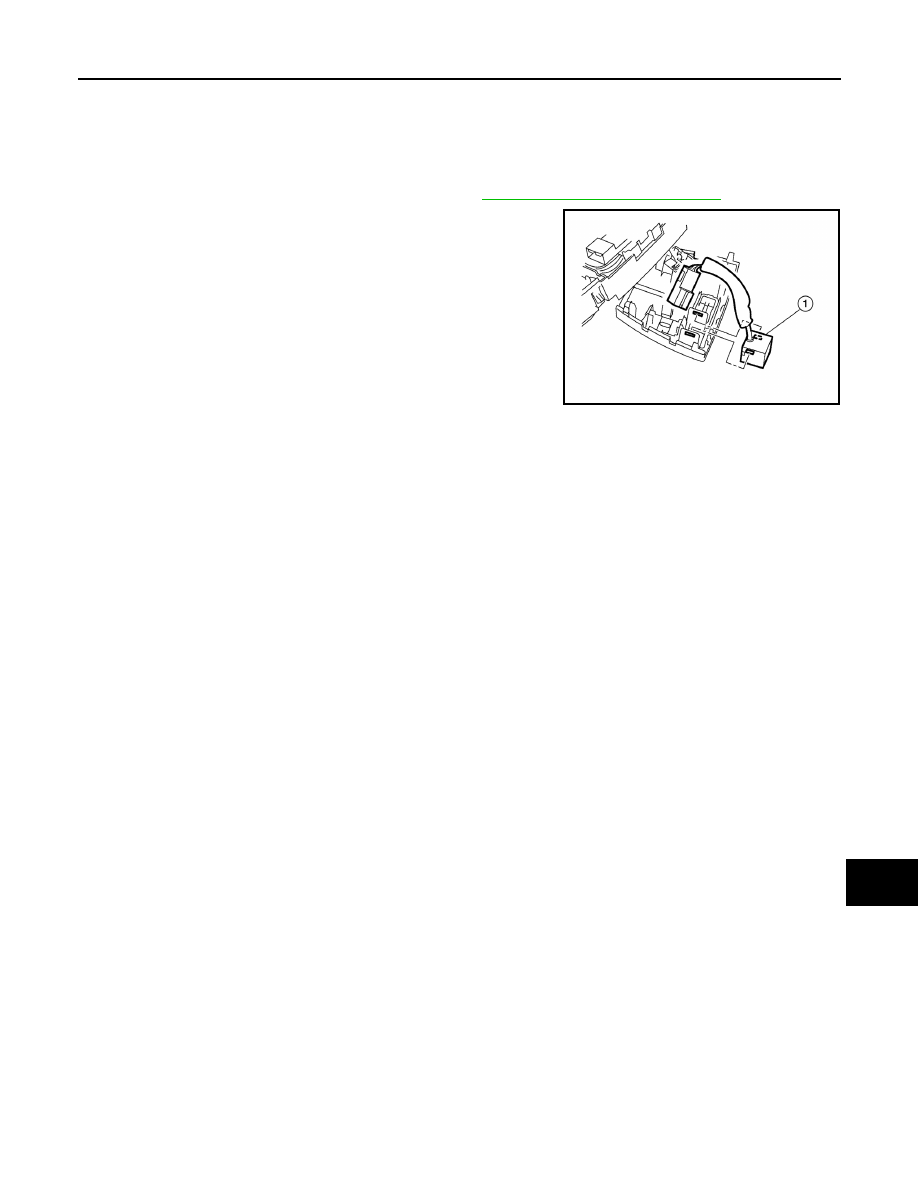

MICROPHONE

Removal and Installation

INFOID:0000000009763265

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-58, "Removal and Installation"

.

2. Remove the microphone (1) from the front room/map lamp

assembly.

CAUTION:

Carefully handle the pawls that retain the microphone to

avoid damaging.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure the microphone is firmly secure after installation.

AWNIA2584ZZ

AV-628

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

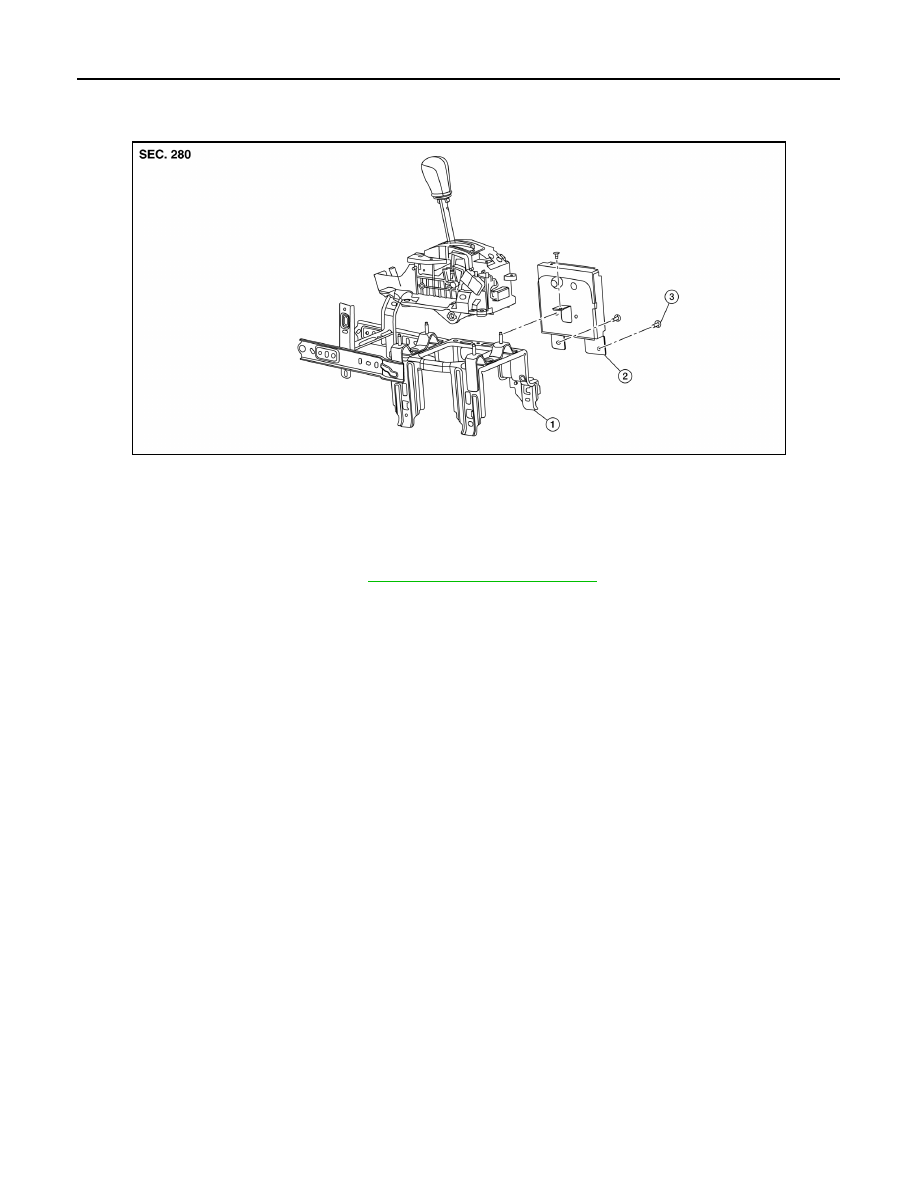

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

INFOID:0000000009174815

Removal and Installation

INFOID:0000000009174816

REMOVAL

1. Remove the center console. Refer to

IP-18, "Removal and Installation"

.

2. Remove the around view monitor control unit screws.
3. Disconnect the harness connector from around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1332ZZ

1.

Bracket

2.

Around view monitor control unit

3.

Screw

AV

FRONT CAMERA

AV-629

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

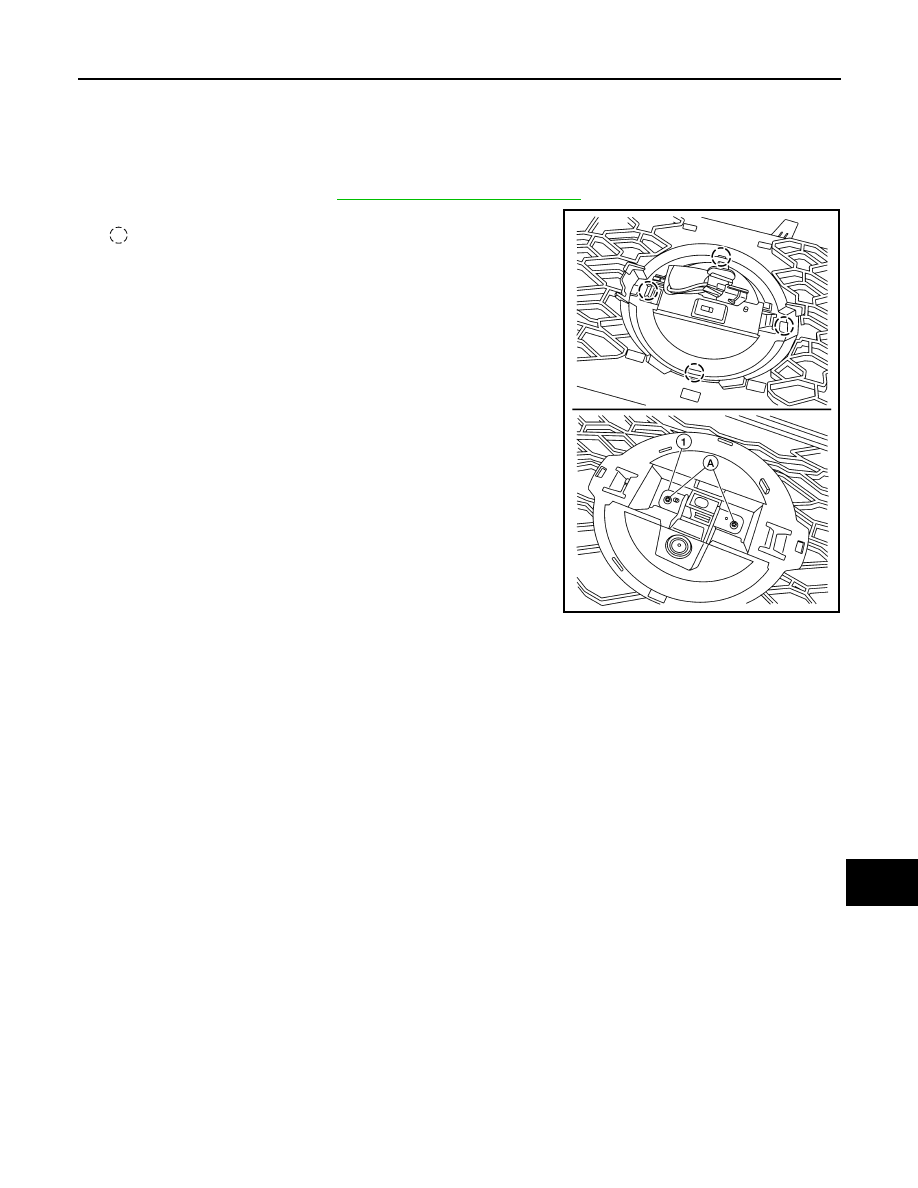

FRONT CAMERA

Removal and Installation

INFOID:0000000009174817

REMOVAL

1. Remove the front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Release the emblem pawls and remove.

: Pawl

3. Remove the front camera screws (A) and the front camera (1)

from the front grille.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1426ZZ

AV-630

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

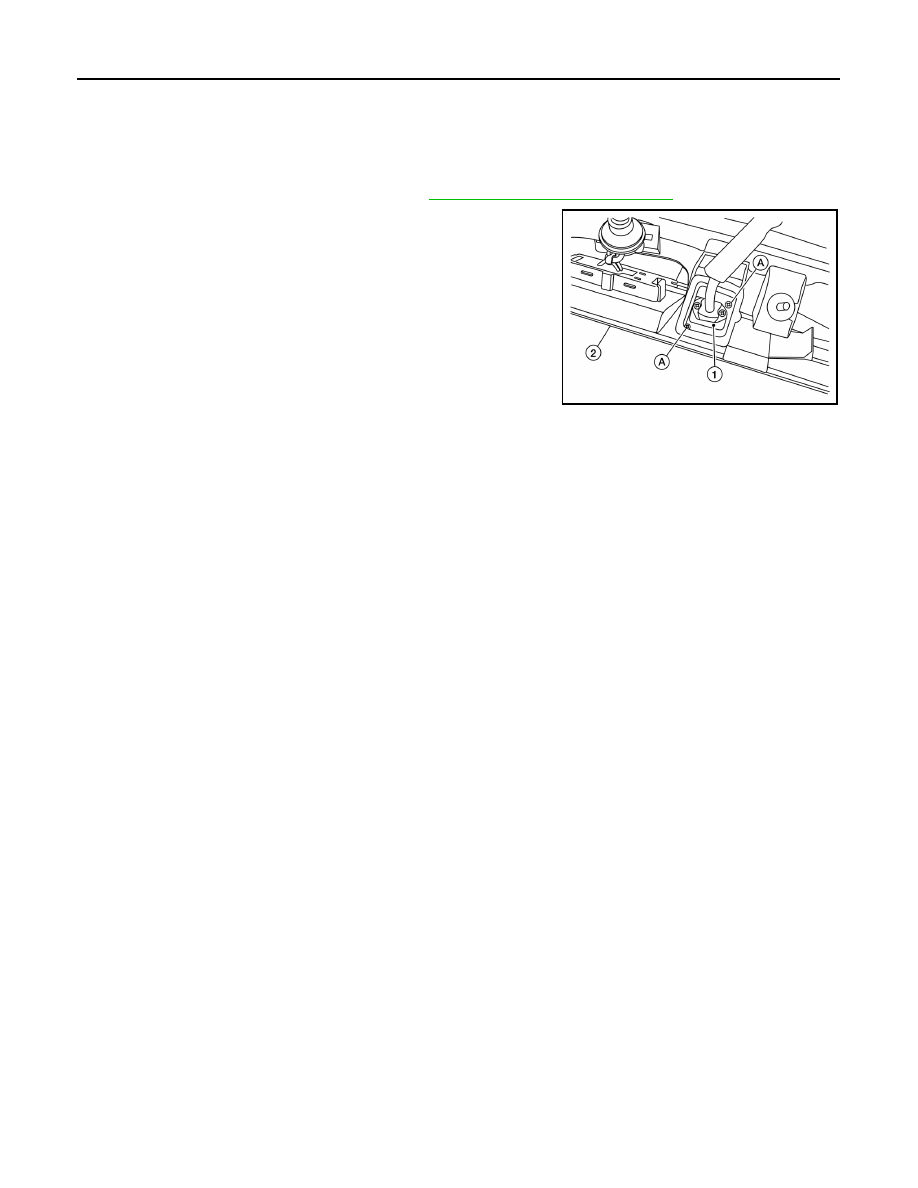

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009763266

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-43, "Removal and Installation"

.

2. Remove rear view camera screws (A), then remove rear view

camera (1) from the back door outer finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1427ZZ
