HEADREST DISPLAY UNIT

Removal and Installation

INFOID:0000000009763248

REMOVAL

CAUTION:

• Do not press on the panel surface of display (glass area).

• Do not press or pull out the movable part of display.

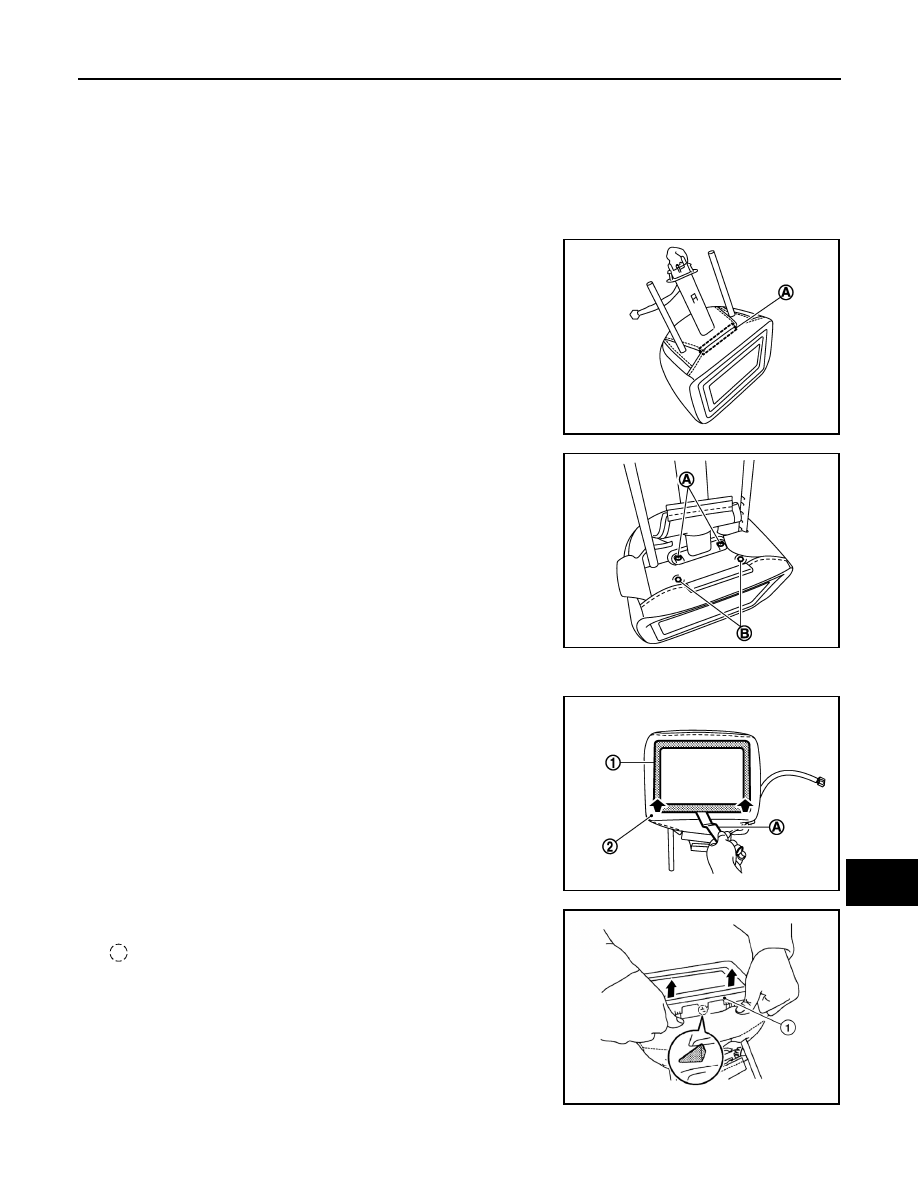

1. Remove the headrest trim retainer (A).

2. Remove the headrest display harness and upper tube screws

(A), then remove headrest display unit bolts (B).

3. Remove the headrest display escutcheon and headrest display.
a. Insert a suitable tool (A) between lower side of headrest display

escutcheon (1) and headrest trim (2) and pull out lower side of

escutcheon.

b. Pull out headrest display escutcheon (1) to the position that pawl

is visible and disengage pawl.

: Pawl

c. Pull out lower side of headrest display escutcheon from headrest.

JMJIA4069ZZ

JMJIA4070ZZ

JMJIA4071ZZ

AWNIA2554ZZ

AV-616

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

HEADREST DISPLAY UNIT

CAUTION:

Be careful not to damage pawls on upper side headrest display escutcheon.

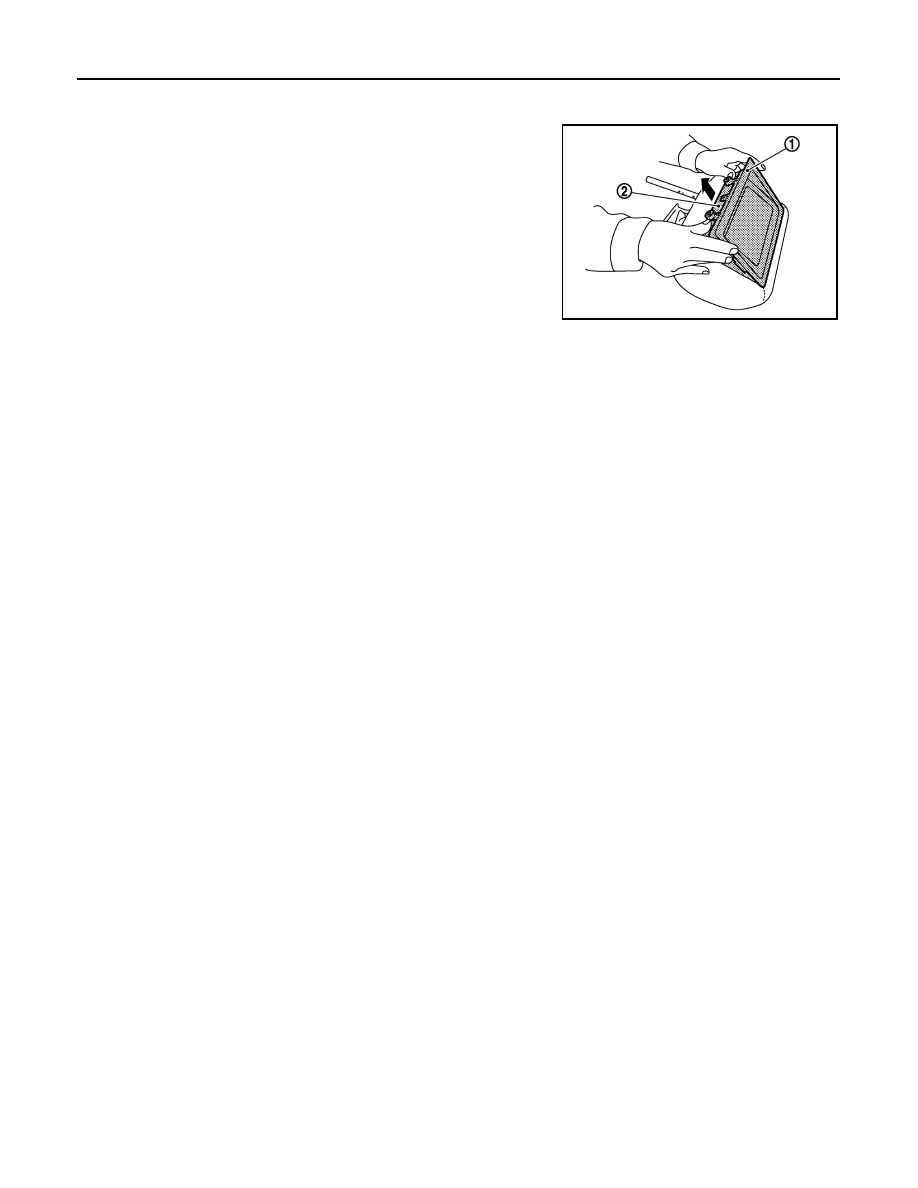

d. Pull downward and remove headrest display escutcheon (1) and

headrest display unit (2) by pulling them out and removing pins

on upper side of display.

e. Disconnect inner harness connector.
f.

Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side and

remove headrest display escutcheon.

4. Remove the headrest display harness upper tube from headrest trim.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA4233ZZ

AV

BOSE SPEAKER AMP

AV-617

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009763249

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

2. Remove third row seat. Refer to

SE-107, "Removal and Installation"

.

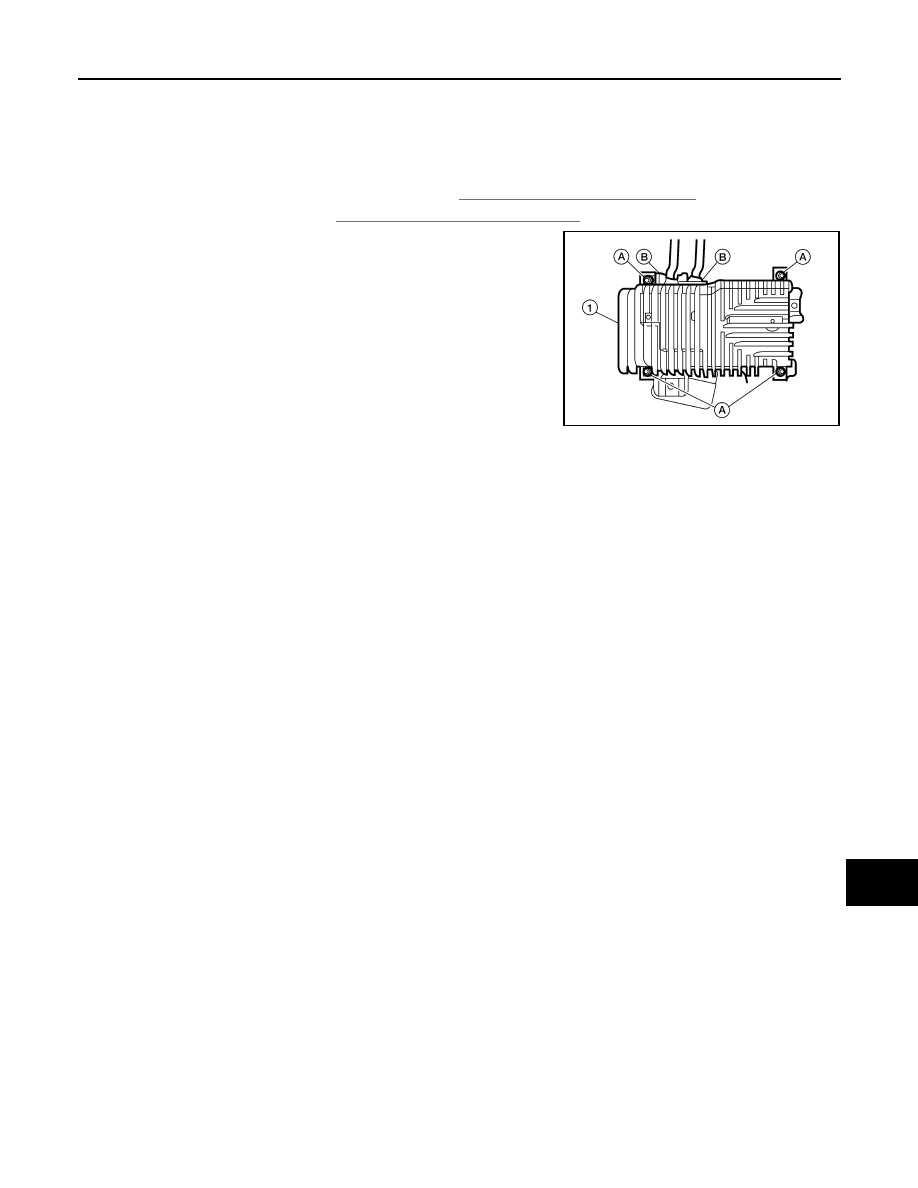

3. Remove Bose speaker amp screws (A).
4. Disconnect the harness connectors (B) from the Bose speaker

amp. and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0918ZZ

AV-618

< REMOVAL AND INSTALLATION >

[PREMIUM AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

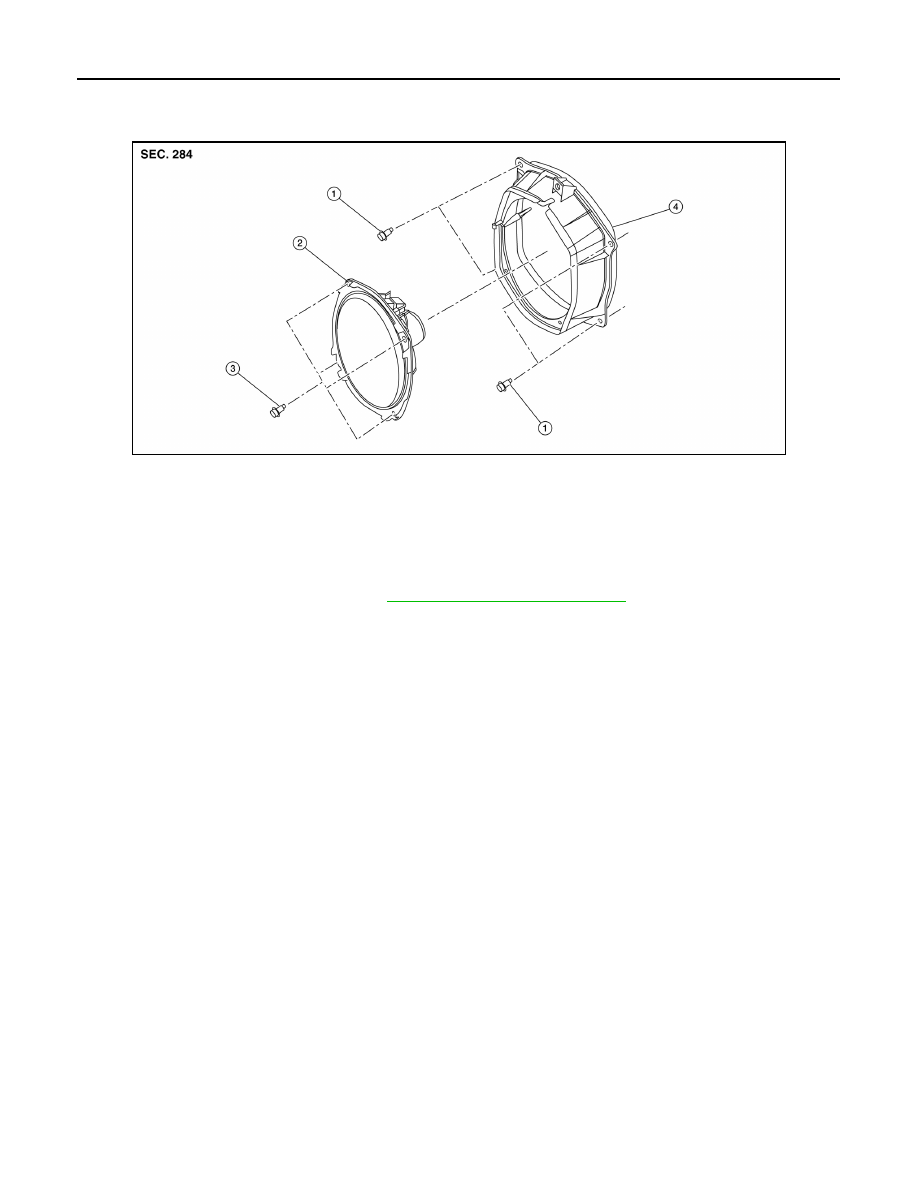

Exploded View

INFOID:0000000009763252

Removal and Installation

INFOID:0000000009763251

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker bolts.
3. Pull out the front door speaker from the speaker bracket.
4. Disconnect the harness connector from front door speaker and remove.
5. Remove the speaker bracket bolts and the speaker bracket from front door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1329ZZ

1. Speaker bracket bolt

2. Front door speaker

3. Speaker bolt

4. Speaker bracket
