AROUND VIEW MONITOR CONTROL UNIT

Reference Value

INFOID:0000000009174674

VALUES ON THE DIAGNOSIS TOOL

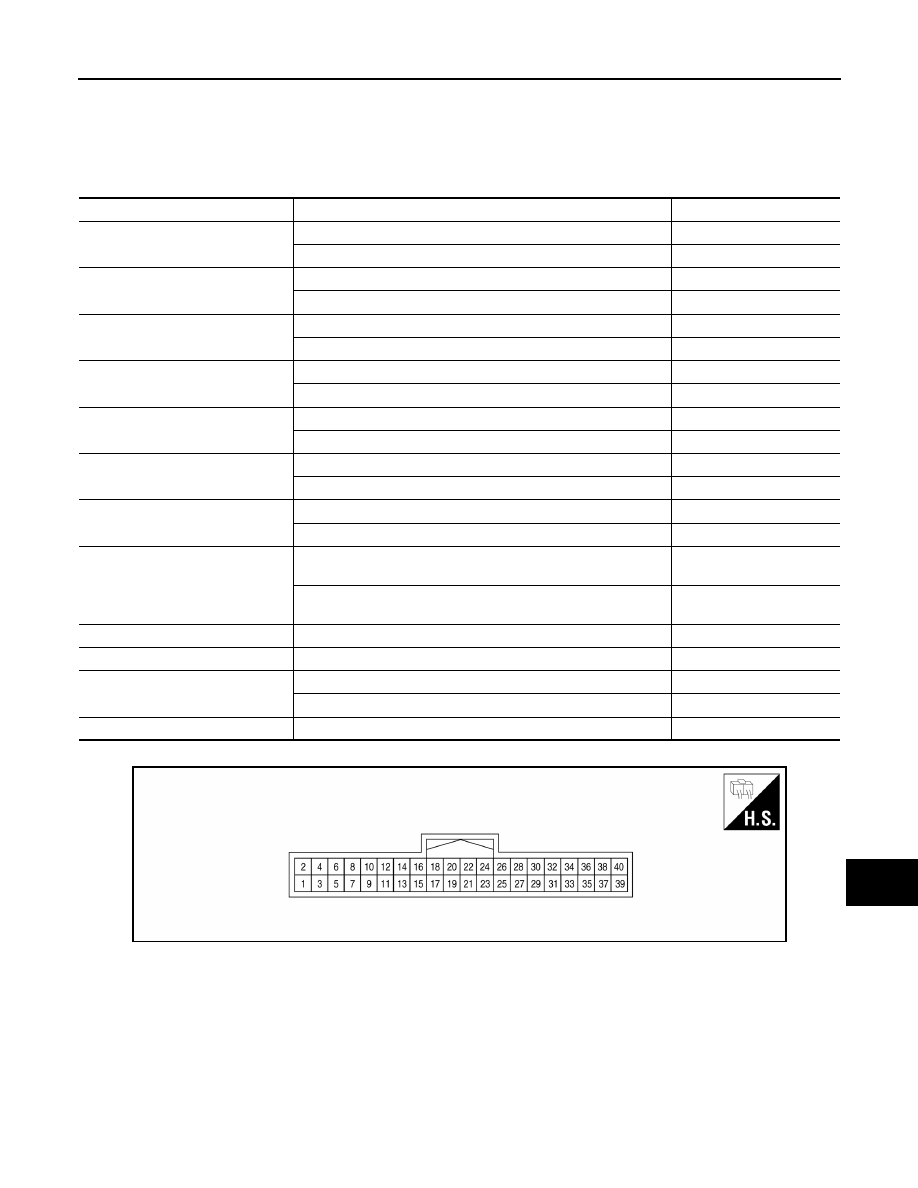

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

CAMERA OFF SIGNAL

CAMERA switch ON.

Off

CAMERA switch OFF.

On

CAMERA SWITCH SIGNAL

CAMERA switch OFF.

Off

CAMERA switch ON.

On

DR-SIDE CAMERA IMAGE SIG

Side camera LH inoperative.

NG

Side camera LH operative.

OK

F-CAMERA IMAGE SIG

Front camera inoperative.

NG

Front camera operative.

OK

PA-SIDE CAMERA IMAGE SIG

Side camera RH inoperative.

NG

Side camera RH operative.

OK

REAR CAMERA IMAGE SIGNAL

Rear camera LH inoperative.

NG

Rear camera LH operative.

OK

REVERSE SIGNAL

When selector lever is in any position other than R (reverse).

Off

When selector lever in R (reverse).

On

ST ANGLE SENSOR SIGNAL

Around view monitor control unit is not receiving steering angle
sensor signal.

Off

Around view monitor control unit is receiving steering angle sen-
sor signal.

On

ST ANGLE SENSOR TYPE

Steering angle sensor type.

Absolute

STEERING GEAR RATIO TYPE

Steering gear ratio type.

Type O

STEERING POSITION

Left hand drive vehicle.

LHD

Right hand drive vehicle.

RHD

VEHICLE SPEED SIGNAL

While driving, equivalent to speedometer reading

mph, km/h

AWNIA2812ZZ

AV-440

< ECU DIAGNOSIS INFORMATION >

[PREMIUM AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR CONTROL UNIT

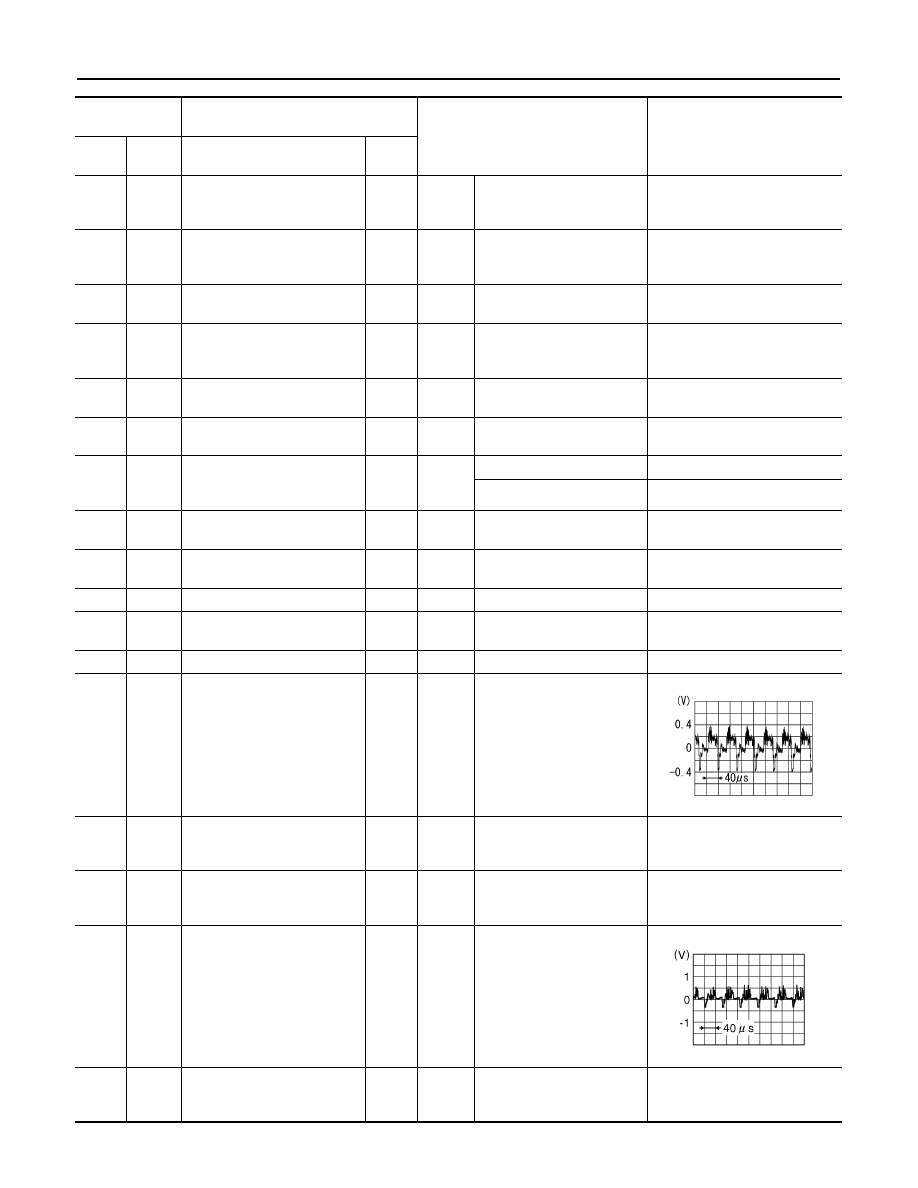

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground Ground

—

Ignition

switch

ON

—

0  V

2

(Y)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

3

(G)

—

Signal ground

—

—

—

—

4

(LG)

Ground Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

5

(P)

—

Camera direct OFF

—

—

—

—

7

(BG)

—

RX

—

—

—

—

8

(LG)

Ground Reverse signal

Input

Ignition

switch

ON

R position

Battery voltage

Other than R position

0 V

10

(P)

—

V-CAN (L)

—

—

—

—

12

(L)

—

V-CAN (H)

—

—

—

—

19

—

Shield

—

— —

—

20

(B)

—

External video output

—

—

—

—

23

—

Shield

—

— —

—

24

(B)

Ground Camera image signal

Output

Ignition

switch

ON

At camera image display

25

(B)

Ground Rear camera ground

—

Ignition

switch

ON

—

0  V

26

(W)

Ground Rear camera power supply

Output

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

28

(R)

27

Rear camera image signal

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

29

(B)

Ground

Side camera driver side
ground

—

Ignition

switch

ON

—

0  V

SKIB2251J

JSNIA0834GB

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-441

< ECU DIAGNOSIS INFORMATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

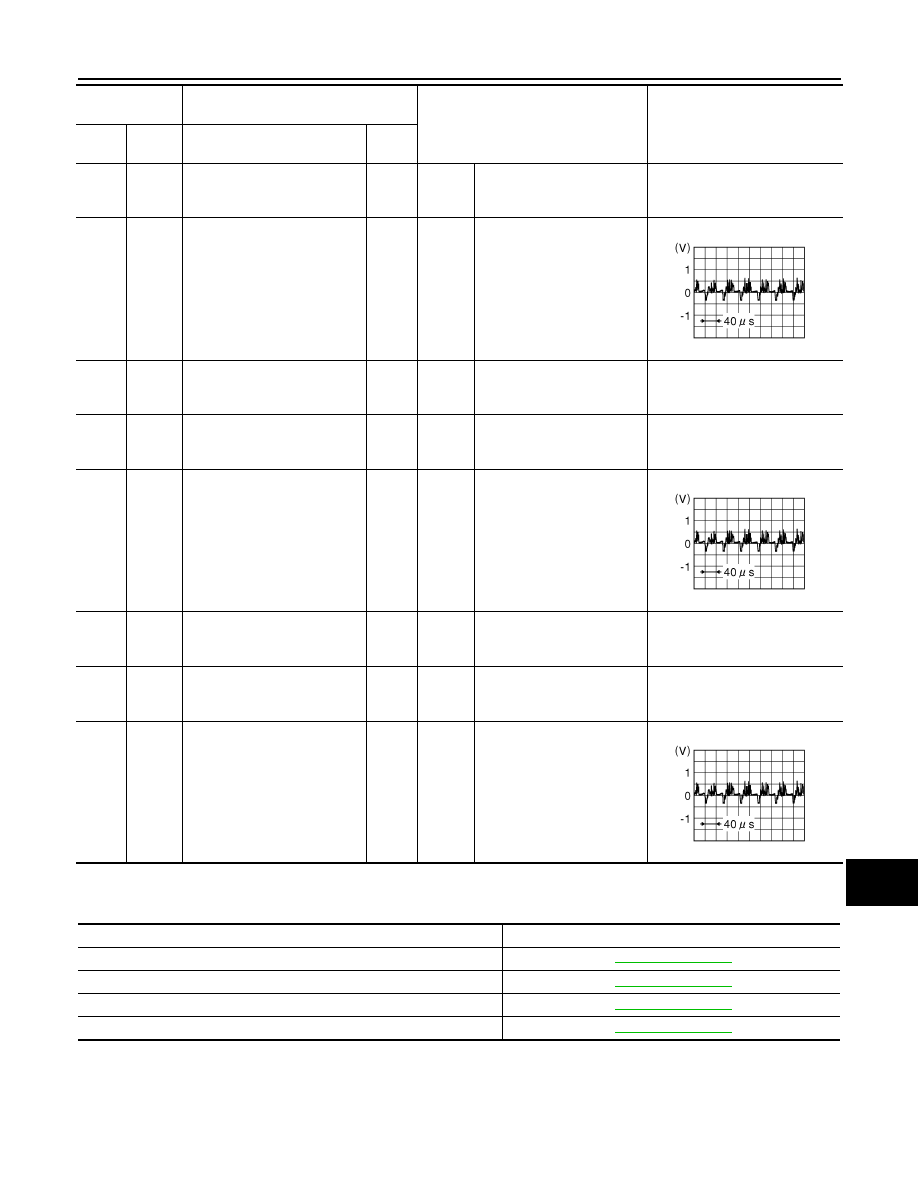

DTC Index

INFOID:0000000009174675

30

(W)

Ground

Side camera driver side power
supply

Output

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

32

(R)

31

Side camera driver side image
signal

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

33

(B)

Ground

Side camera passenger side
ground

—

Ignition

switch

ON

—

0  V

34

(W)

Ground

Side camera passenger side
power supply

Output

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

36

(R)

35

Side camera passenger side
image signal

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

37

(B)

Ground Front camera ground

—

Ignition

switch

ON

—

0  V

38

(R)

Ground Front camera power supply

Output

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

6.0 V

40

(W)

39

Front camera image signal

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0834GB

JSNIA0834GB

JSNIA0834GB

CONSULT Display

Reference Page

U1302: CAMERA SUPPLY POWER SUPPLY VOLTAGE ABNORMALITY

AV-534, "DTC Logic"

U1303: LED SUPPLY POWER SUPPLY VOLTAGE ABNORMALITY

AV-538, "DTC Logic"

U1304: NON-COMPLETION OF THE CALIBRATION

AV-540, "DTC Logic"

U1305: NON-COMPLETION OF THE WRITE CONFIGURATION

AV-541, "DTC Logic"

AV-442

< WIRING DIAGRAM >

[PREMIUM AUDIO WITH NAVIGATION]

PREMIUM AUDIO SYSTEM

WIRING DIAGRAM

PREMIUM AUDIO SYSTEM

Wiring Diagram

INFOID:0000000009174676

ABNWA1844GB
