COMPONENT PARTS

AV-395

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

Component Description

INFOID:0000000009174658

16. Rear door tweeter LH

17. Rear side speaker LH

18. Rear side speaker RH

19. Headrest display unit (driver seat)

20. Rear auxiliary input jacks

21. Headrest display unit (passenger seat)

22. Subwoofer

23. Bose speaker amp.

24. Around view monitor control unit

25. Front camera

26. Rear camera

27. Door mirror LH (side camera)

28. Door mirror RH (side camera)

29. Video distributor

Part name

Description

AV control unit

• Master unit of MULTI AV system.
• AV control unit includes audio, hands-free phone, navigation, USB connection,

DVD play and vehicle status functions.

• Integrates hard disk drive (HDD) allowing map data and music data to be stored.
• Connected to MULTI AV system control units via AV communication.
• Connected to other vehicle control units via CAN communication to obtain neces-

sary information for vehicle function.

• Receives steering angle signal via CAN communication from steering angle sen-

sor and controls an expected course line during around view monitor operation.

• Inputs signals for driving status recognition (vehicle speed, reverse and parking

brake).

• Composite image signal are output to front display unit.
• Transmits image and sound output to video distributor and inputs image switch sig-

nal from headrest display units via AV communication.

• Receives an Intelligent Key identification signal necessary for Intelligent Key inter-

locking function via hard wire from BCM.

• Transmits Amp. ON signal and mode change signal to BOSE speaker amp.
• Update of map data is performed using DVD-ROM.

Display unit

• Display image is controlled by AV control unit via serial communication.
• Receives power from AV control unit.
• Composite image signals are input from AV control unit.
• Synchronizing signals are output to AV control unit.
• Camera image signals are input from around view monitor control unit via video

output signal.

• Touch panel functions can be operated by touching display directly.

BOSE speaker amp.

Receives sound signals from AV control unit and outputs sound signals to each
speaker.

Instrument panel tweeter

Outputs high range sound signals from BOSE speaker amp.

Center speaker

Outputs mid and high range sound signals from BOSE speaker amp.

Front tweeter

Outputs high range sound signals from BOSE speaker amp.

Front door speaker

Outputs low, mid and high range sound signals from BOSE speaker amp.

Rear door tweeter

Outputs high range sound signals from BOSE speaker amp.

Rear door speaker

Outputs low, mid and high range sound signals from BOSE speaker amp.

Rear side speaker

Outputs low, mid and high range sound signals from BOSE speaker amp.

Subwoofer

Outputs low range sound signals from BOSE speaker amp.

A/C and AV switch assembly

• Operation panels are equipped with switches for audio and air conditioner opera-

tions.

• Operation signal is transmitted via AV communication to AV control unit and

around view monitor.

• Disk eject operation signal is performed via hardwire.

Steering switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal (operation signal) is output to AV control unit.

Steering angle sensor

Connected to AV control unit via CAN communication and transmits steering angle
sensor signal.

AV-396

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

COMPONENT PARTS

Video distributor

• Receives image and sound signals from AV control unit and transmits them to

headrest display units.

• Receives image and sound signals from rear auxiliary input jacks and transmits

them to headrest display units.

• Transmits image and sound signals to headrest display unit and receives image

switch signal from headrest display units.

Headrest display units

• Composite image signals are input from video distributor.
• Receives DVD/AUX/USB sound signals from video distributor and transmits them

to headphones.

• Transmits image switch signal to video distributor according to remote control op-

eration.

• Transmits image switch signal to AV control unit via AV communication according

to remote control operation.

Front auxiliary input jacks

Transmits image and sound signals to AV control unit.

Rear auxiliary input jacks

Transmits image and sound signals to video distributor and headrest display units.

Around view monitor control unit

• Supplies power to front, rear and side cameras.
• Superimposes images from each camera and outputs them to display unit.
• Superimposes guiding line, predicted course line and sonar indicator to camera

image that outputs to display unit.

• Performs reception/transmission of communication signals with cameras.
• Transmits sonar operation signal from sonar control unit via CAN communication.
• Receives sonar information from sonar control unit via CAN communication.
• Transmits data received/transmitted from sonar control unit to AV control unit via

CAN communication.

Front camera

• Inputs power supply from around view monitor control unit.
• Outputs image of vehicle front to around view monitor control unit.
• Performs reception/transmission of communication signal with around view moni-

tor control unit.

Rear view camera

• Inputs power supply from around view monitor control unit.
• Outputs image of vehicle rear to around view monitor control unit.
• Performs reception/transmission of communication signal with around view moni-

tor control unit.

Side camera LH

• Inputs power supply from around view monitor control unit.
• Outputs image of vehicle LH side to around view monitor control unit.
• Performs reception/transmission of communication signal with around view moni-

tor control unit.

Side camera RH

• Inputs power supply from around view monitor control unit.
• Outputs image of vehicle RH side to around view monitor control unit.
• Performs reception/transmission of communication signal with around view moni-

tor control unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to AV control unit.
• Power (Microphone VCC) is supplied from AV control unit.

GPS antenna

GPS signal is received and transmitted to AV control unit.

Antenna amp.

• Radio signal received by window antenna is amplified and transmitted to AV con-

trol unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

USB connector

USB sound and data input signals are transmitted to AV control unit.

Part name

Description

SYSTEM

AV-397

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

SYSTEM

MULTI AV SYSTEM

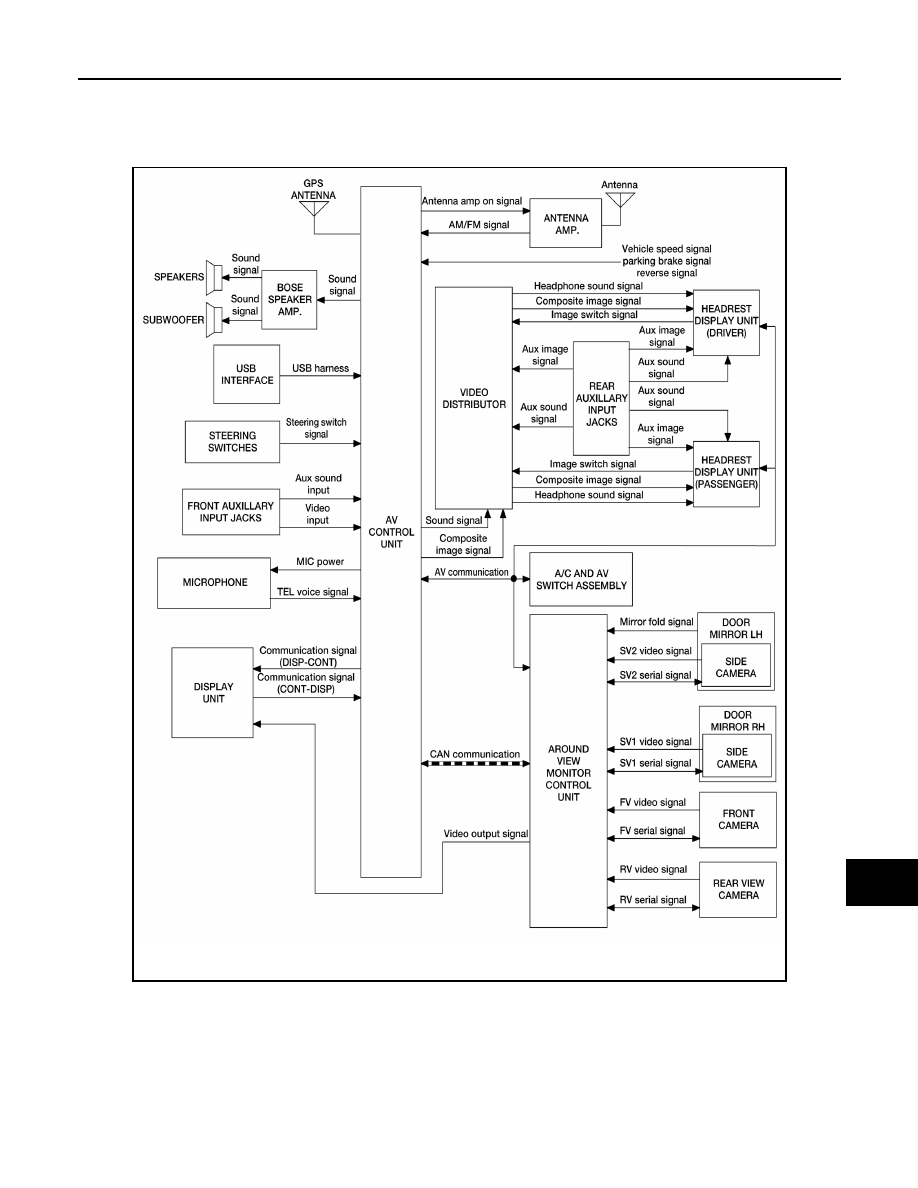

MULTI AV SYSTEM : System Diagram

INFOID:0000000009174659

MULTI AV SYSTEM : System Description

INFOID:0000000009174660

AUDIO SYSTEM

The audio system consists of the following components

• AV control unit

• A/C and AV switch assembly

• Display unit

AWNIA2810GB

AV-398

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

SYSTEM

• Steering switches

• BOSE speaker amp.

• Center speaker

• Instrument panel tweeters

• Front tweeters

• Front door speakers

• Rear door tweeters

• Rear door speakers

• Rear side speakers

• Subwoofer

• Antenna

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before

sending them to the speakers, tweeters and subwoofer.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

telephone

system.
The Bluetooth

telephone system allows users who have a Bluetooth

cellular telephone to make a wireless

connection between their cellular telephone and the AV control unit. Hands-free cellular telephone calls can be
sent and received. Some Bluetooth

cellular telephones may not be recognized by the AV control unit. When

a cellular telephone or the AV control unit is replaced, the telephone must be paired with the AV control unit.

Different cellular telephones may have different pairing procedures, refer to the cellular telephone operating

manual.
Refer to the Owner's Manual for Bluetooth

telephone system operating instructions.

AV Control Unit

When the ignition switch is turned to ACC or ON, the AV control unit will power up. During power up, the AV

control unit is initialized and performs various self-checks. Initialization may take up to 20 seconds.

Steering Switches

When buttons on the steering switches are pushed, the resistance in steering switch circuits change, depend-

ing on which button is pushed.

The following functions can be performed using the steering switches:
• Initiate self-diagnosis of the Bluetooth

telephone system

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

Microphone

The microphone is located in the roof console assembly. The microphone sends a signal to the AV control unit.

The microphone can be actively tested during self-diagnosis.

NAVIGATION SYSTEM

System Operation

NOTE:

Refer to NAVI System Owner's Manual for system operation.

The navigation system periodically calculates the vehicle's current position according to the following three

signals: Travel distance of the vehicle as determined by the vehicle speed sensor, turning angle of the vehicle

as determined by the gyroscope (angular velocity sensor), and the direction of vehicle travel as determined by

the GPS antenna (GPS information).

The current position of the vehicle is then identified by comparing the calculated vehicle position with map data

read from the map data, which is stored in the hard disk drive (HDD) (map-matching), and indicated on the

screen with a current-location mark.
