INPUT SPEED SENSOR

TM-199

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

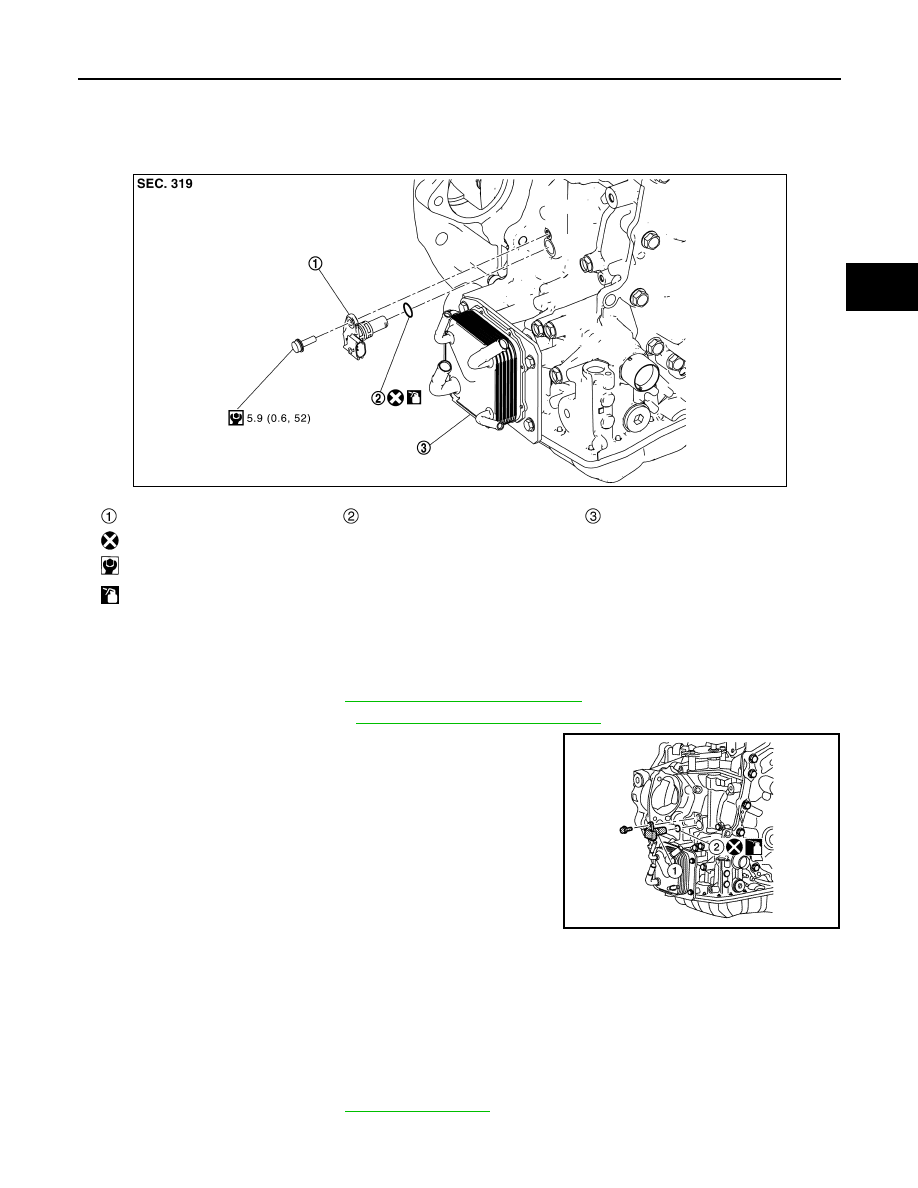

INPUT SPEED SENSOR

Exploded View

INFOID:0000000009177660

Removal and Installation

INFOID:0000000009177661

REMOVAL

1. Remove the battery tray. Refer to

PG-92, "Removal and Installation"

.

2. Remove the starter motor. Refer to

STR-20, "Removal and Installation"

.

3. Disconnect the harness connector from the input speed sensor

(1).

4. Remove the input speed sensor bolt, then the input speed sen-

sor (1).

5. Remove the O-ring (2) from the input speed sensor (1).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009177662

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-185, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Input speed sensor

O-ring

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA4131GB

ALDIA0362ZZ

TM-200

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

INPUT SPEED SENSOR

Adjust CVT fluid level. Refer to

TM-187, "Adjustment"

.

PRIMARY SPEED SENSOR

TM-201

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

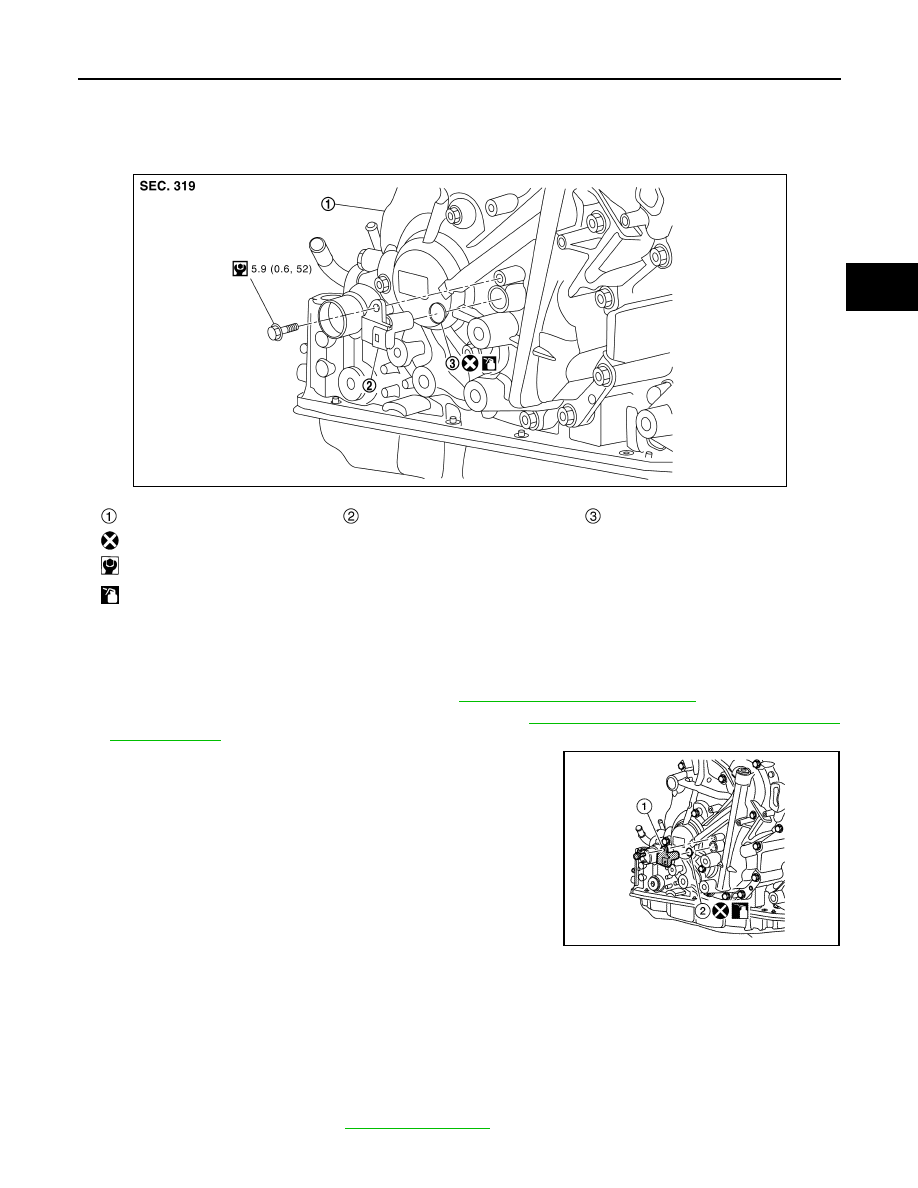

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000009177663

Removal and Installation

INFOID:0000000009177664

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

.

2. Remove the front fender protector side cover (LH). Refer to

EXT-28, "FENDER PROTECTOR : Removal

and Installation"

.

3. Disconnect the harness connector from primary speed sensor

(1).

4. Remove the primary speed sensor bolt, then the primary speed

sensor (1).

5. Remove the O-ring (2) from the primary speed sensor (1).

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INFOID:0000000009177665

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-185, "Inspection"

.

Transaxle assembly

Primary speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA3620GB

ALDIA0361ZZ

TM-202

< REMOVAL AND INSTALLATION >

[CVT: RE0F10E]

PRIMARY SPEED SENSOR

ADJUSTMENT AFTER INSTALLATION

Adjust CVT fluid level. Refer to

TM-187, "Adjustment"

.
