STEERING GEAR AND LINKAGE

ST-51

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

CAUTION:

• Do not reuse O-rings.

• Do not reuse steering gear nuts.

ST-52

< REMOVAL AND INSTALLATION >

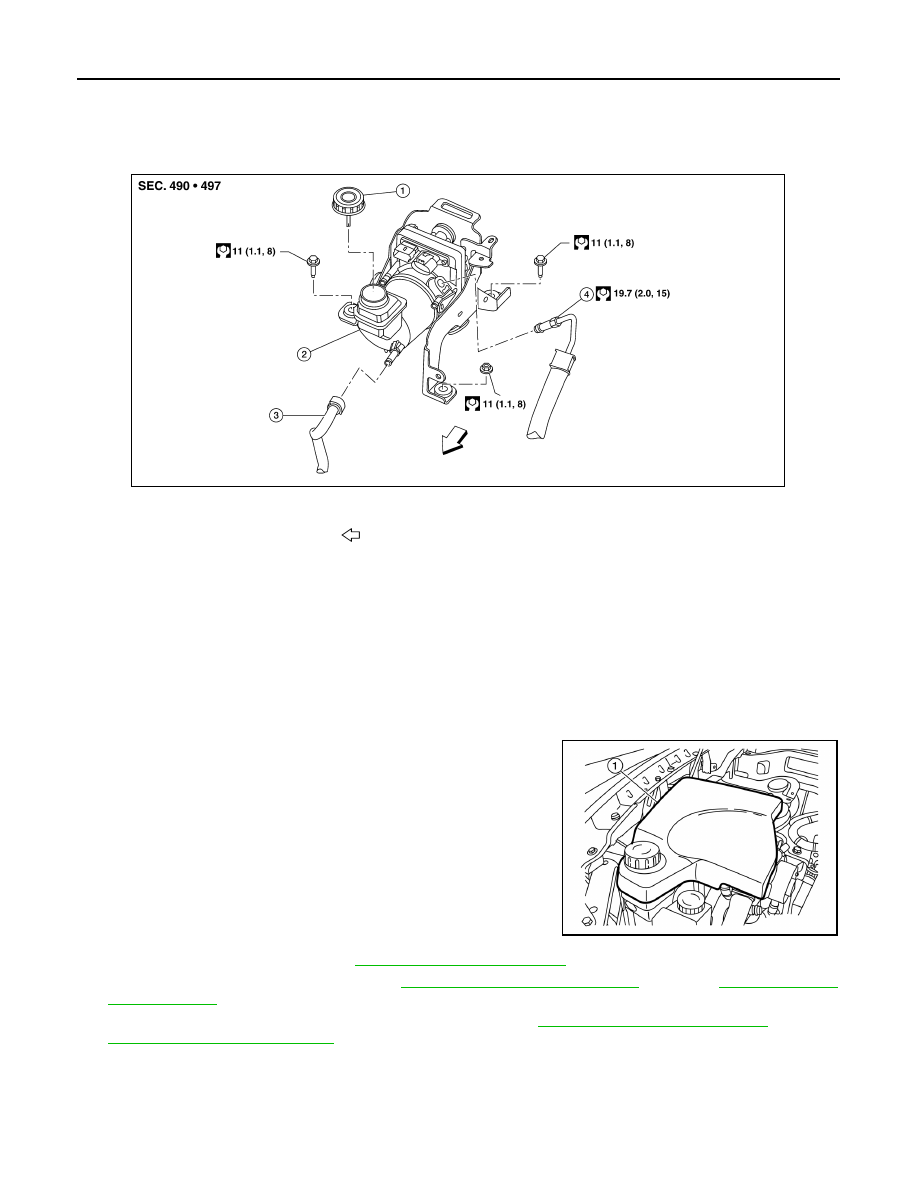

POWER STEERING OIL PUMP

POWER STEERING OIL PUMP

Exploded View

INFOID:0000000009177108

Removal and Installation

INFOID:0000000009177109

WARNING:

Power steering pump outer shell will be hot while running and after driving. When working, be sure to

wear protective equipment to avoid getting burned.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the power steering pump cover (1).

2. Drain power steering fluid. Refer to

ST-42, "Draining and Refilling"

.

3. Remove the upper torque rod. Refer to

EM-102, "2WD : Exploded View"

 (2WD) or

EM-106, "4WD :

Exploded View"

 (4WD).

4. Remove the RH upper engine mount insulator nuts. Refer to

EM-102, "2WD : Exploded View"

 (2WD) or

EM-106, "4WD : Exploded View"

 (4WD).

1.

Power steering reservoir cap

2.

Power steering pump

3.

Low pressure piping

4.

High pressure piping

Front

AWGIA0300ZZ

ALGIA0116ZZ

POWER STEERING OIL PUMP

ST-53

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

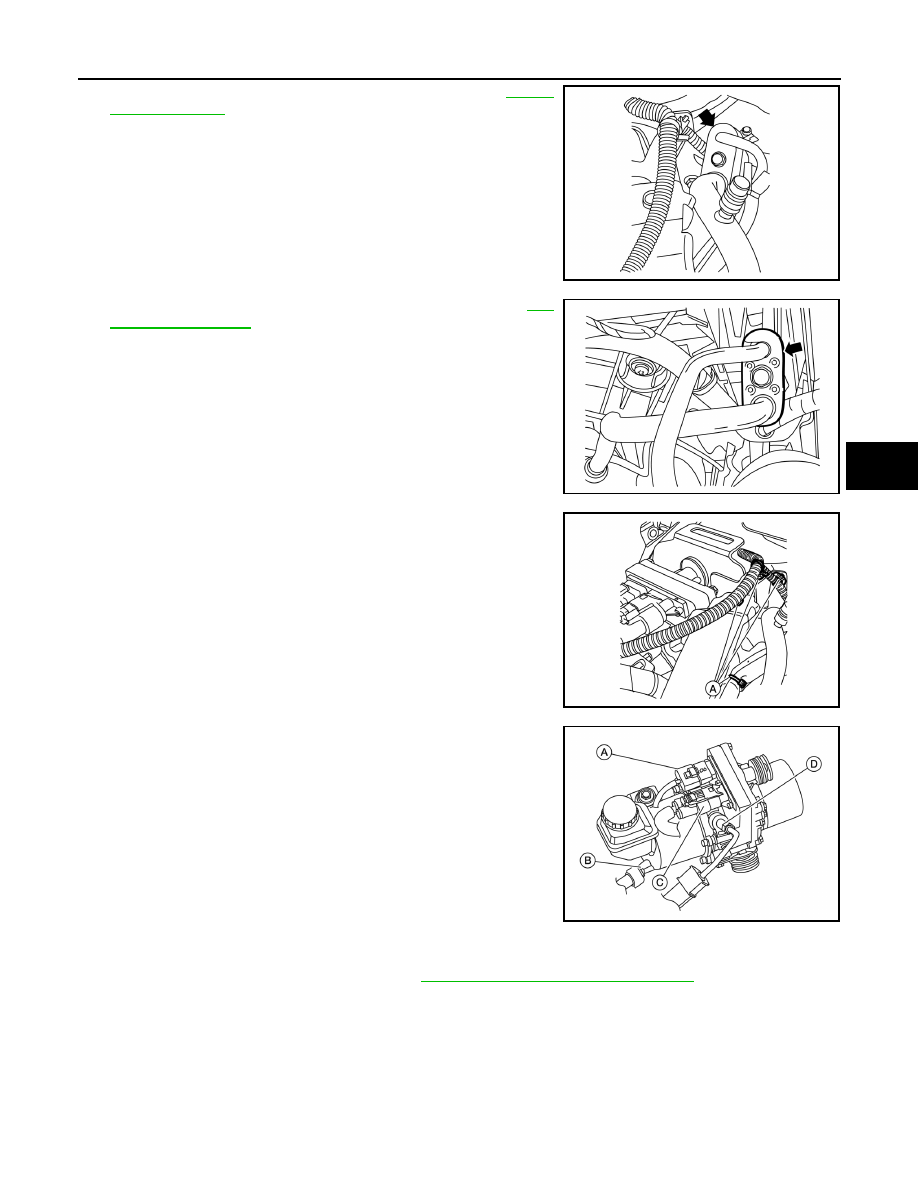

5. Disconnect the A/C rear lines at lower pipes. Refer to

HA-34,

"Exploded View"

.

6. Disconnect the A/C front lines at junction. Refer to Refer to

HA-

34, "Exploded View"

.

7. Disconnect wiring harness clips from bracket (A).

8. Disconnect the following components from the power steering

pump:

• LH power steering pump harness connector (A).

• Reservoir hose (B).

• RH power steering pump harness connector (C).

• High pressure piping (D).

9. Remove power steering pump bolts, and then remove power

steering pump.

INSTALLATION

Installation is in the reverse order of removal.

• Bleed air from power steering system. Refer to

ST-42, "Air Bleeding Hydraulic System"

.

CAUTION:

Do not reuse O-rings.

ALGIA0118ZZ

ALGIA0119ZZ

ALGIA0122ZZ

ALGIA0114ZZ

ST-54

< REMOVAL AND INSTALLATION >

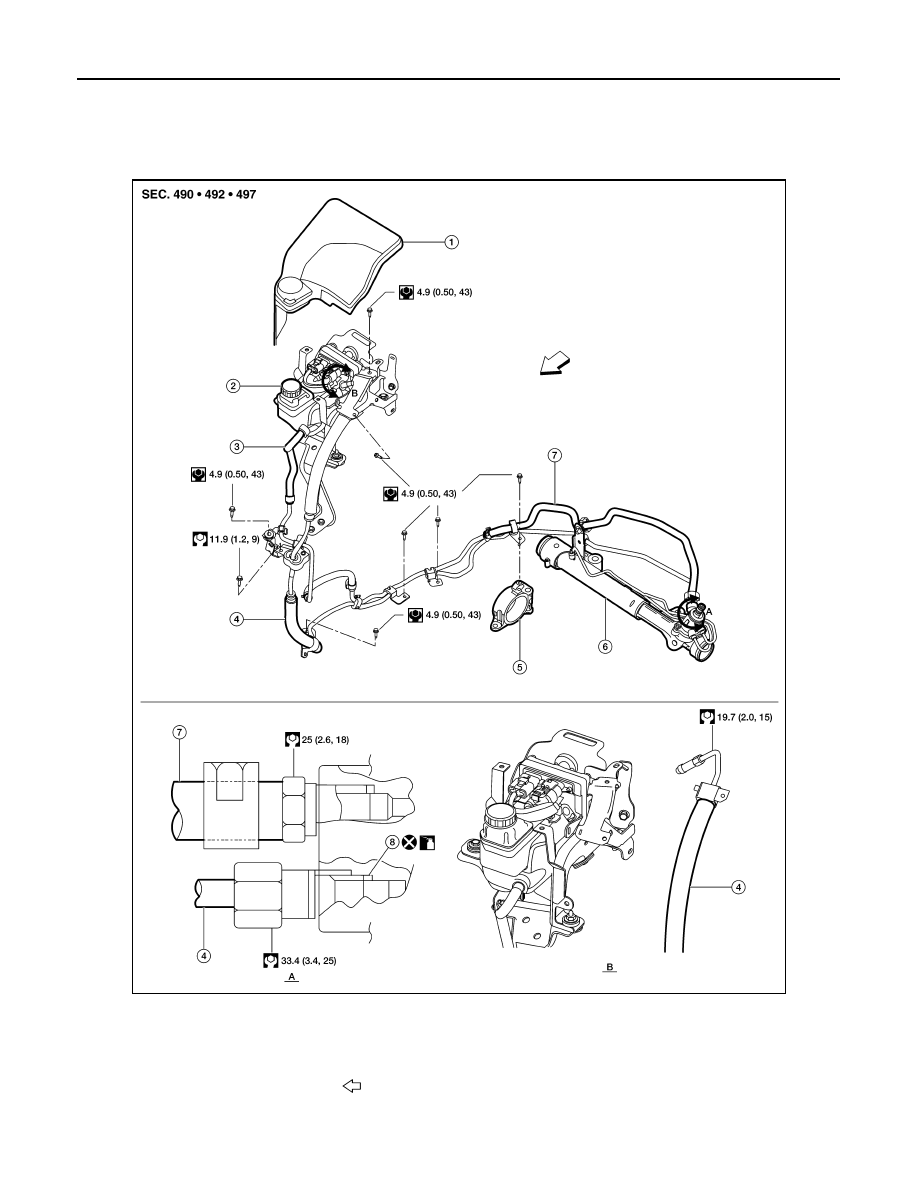

HYDRAULIC LINE

HYDRAULIC LINE

Exploded View

INFOID:0000000009177110

2WD

AWGIA0301ZZ

1.

Cover

2.

Power steering pump

3.

Low pressure piping (upper)

4.

High pressure piping

5.

Engine mount

6.

Power steering gear

7.

Low pressure piping (lower)

8.

O-ring

A.

Steering gear connection detail

B.

Power steering pump connec-
tion detail

Front
