Removal and Installation

INFOID:0000000009177111

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

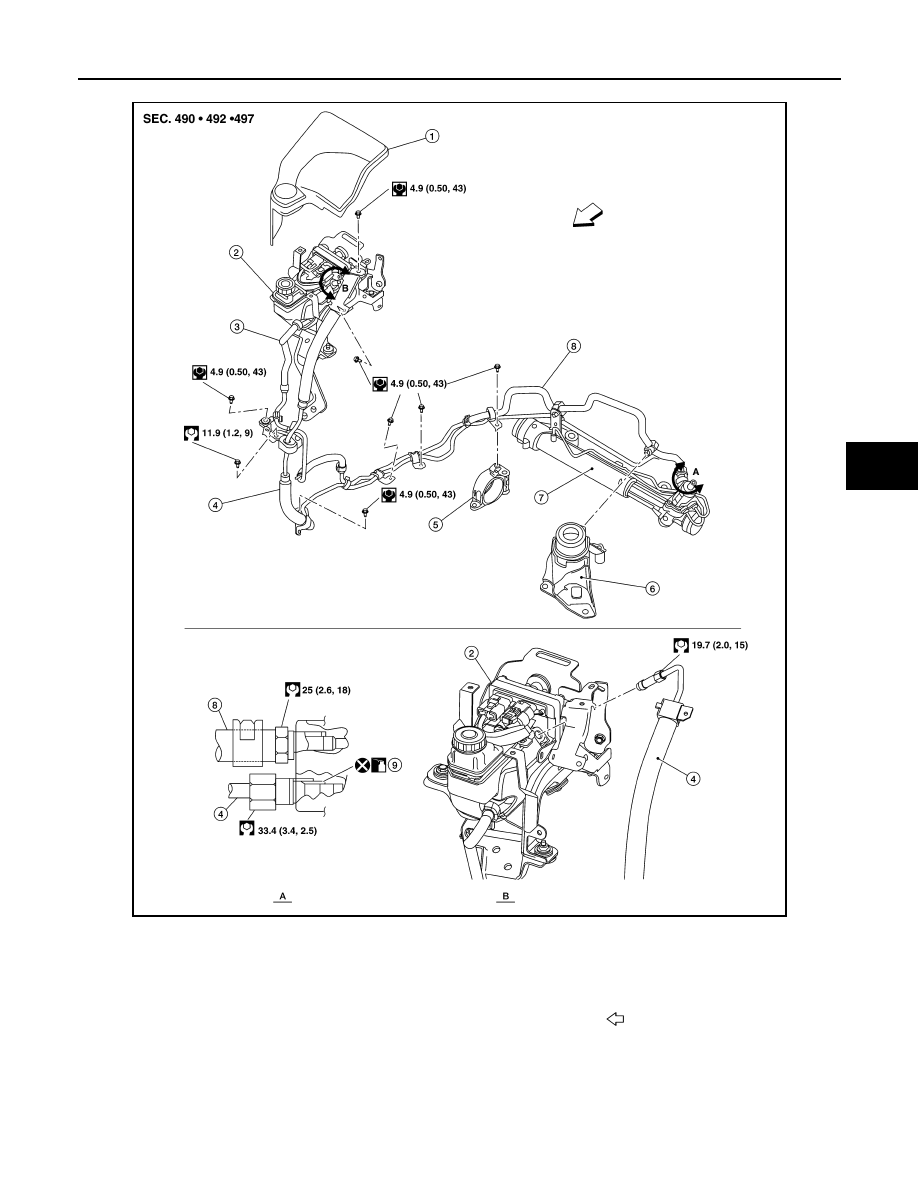

AWGIA0302ZZ

1.

Cover

2.

Power steering pump

3.

Low pressure piping (up-
per)

4.

High pressure piping

5.

Engine mount

6.

Engine mount bracket

7.

Power steering gear

8.

High pressure piping (lower)

9.

O-ring

A.

Steering gear connection detail

B.

Power steering pump connection
detail

Front

ST-56

< REMOVAL AND INSTALLATION >

HYDRAULIC LINE

REMOVAL

Refer to the component parts location illustration for hydraulic line removal. Refer to

ST-54, "Exploded View"

.

CAUTION:

• Do not reuse O-rings.

INSTALLATION

Installation is in the reverse order of removal.

• Bleed air from power steering system. Refer to

ST-42, "Air Bleeding Hydraulic System"

.

• Check for fluid leaks. Repair as necessary.

CAUTION:

• Do not reuse O-rings.

STEERING GEAR AND LINKAGE

ST-57

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

STEERING GEAR AND LINKAGE

Exploded View

INFOID:0000000009177112

Disassembly and Assembly

INFOID:0000000009177113

DISASSEMBLY

1. Remove outer socket locknut and outer socket.
2. Remove boot clamps and boot.
3. Remove inner socket.

ASSEMBLY

1. Apply Three Bond 1111B or equivalent to inner socket and turn pinion fully to retract inner socket into gear

housing.

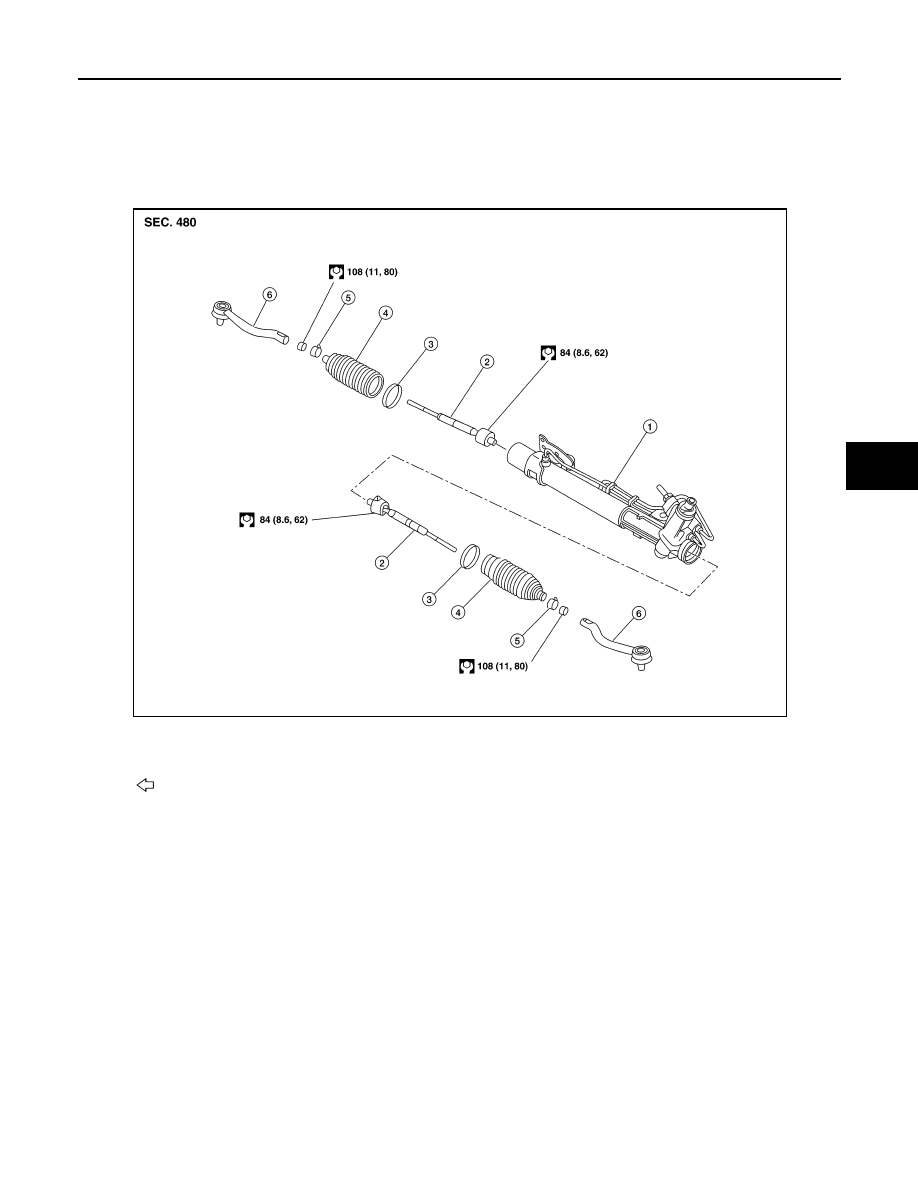

1.

Steering gear

2.

Inner socket

3.

Inner boot clamp

4.

Boot

5.

Outer boot clamp

6.

Outer socket

Front

AWGIA0303ZZ

ST-58

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

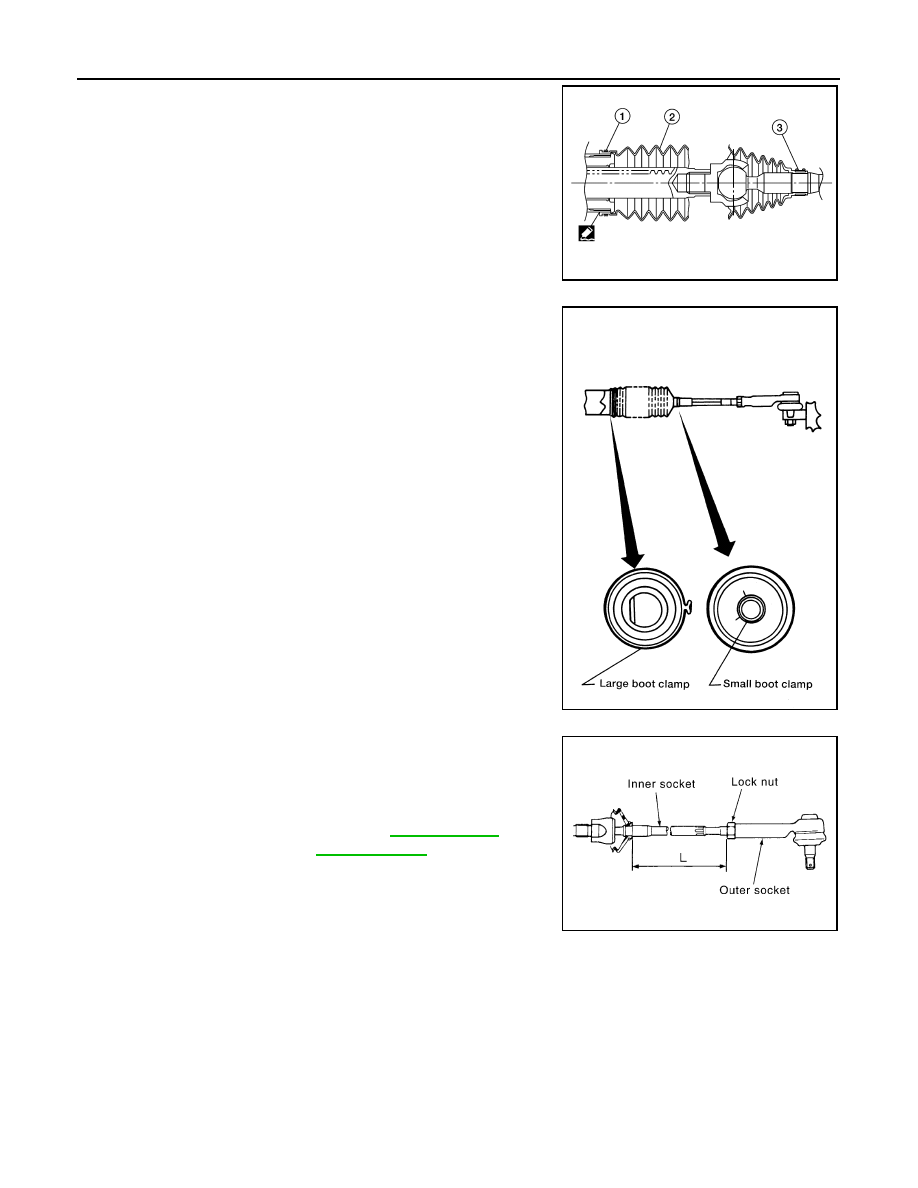

2. Install large end (1) of boot (2) to gear housing.
3. Install small end (3) of boot (2) to inner socket boot mounting

groove.

4. Install boot clamp to boot small end.
5. Install boot clamp to boot large end using suitable tool.

CAUTION:

Do not reuse boot clamps.

6. Adjust inner socket to standard length (L), and then tighten lock

nut to the specified torque. Check length of inner socket (L)

again after tightening lock nut. Make sure that the length is the

standard.

CAUTION:

Adjust toe-in after this procedure. The length achieved after

toe-in adjustment is not necessarily the above value.

AWGIA0107ZZ

AST139

Inner socket length (L)

: Refer to

ST-61, "Power

Steering Gear"

.

SGIA0167E
