Nissan Pathfinder. Manual - part 1034





SE-134

< UNIT DISASSEMBLY AND ASSEMBLY >

THIRD ROW SEAT

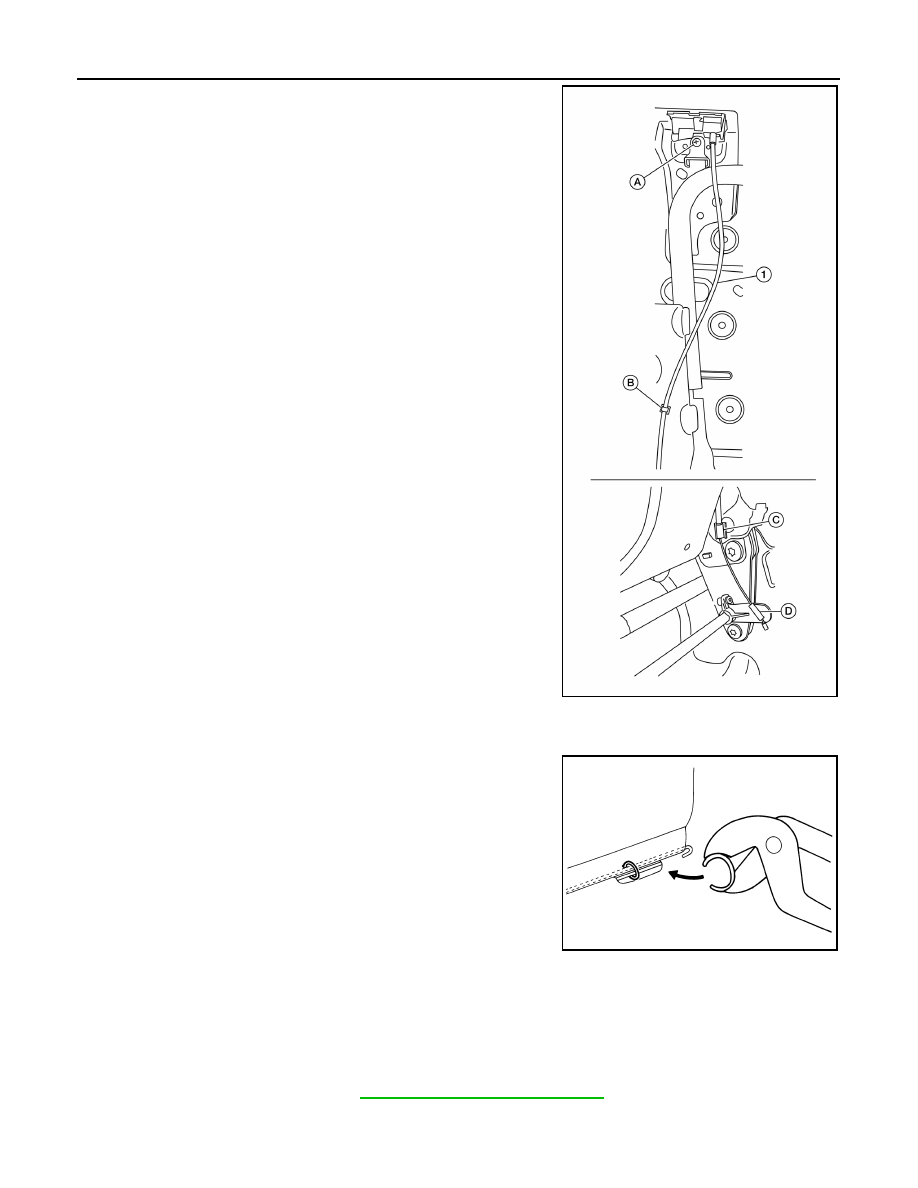

9. Remove the seatback release lever and cable (1).

CAUTION:

Note the cable routing for correct installation.

a. Remove the screw (A) and release the cable clip (B) from the

seat frame assembly.

b. Rotate cable end (C) and release from the seat frame assembly.
c.

Rotate cable end (D) and remove the seatback release lever

and cable.

Assembly

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

CAUTION:

Route cable correctly for proper function.

Seat Cushion

INFOID:0000000009727799

DISASSEMBLY

1. Remove the third row seat. Refer to

SE-107, "Removal and Installation"

.

ALJIA0842ZZ

PIIB3356J

THIRD ROW SEAT

SE-135

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

2. Remove seat cushion pad and seat cushion trim.

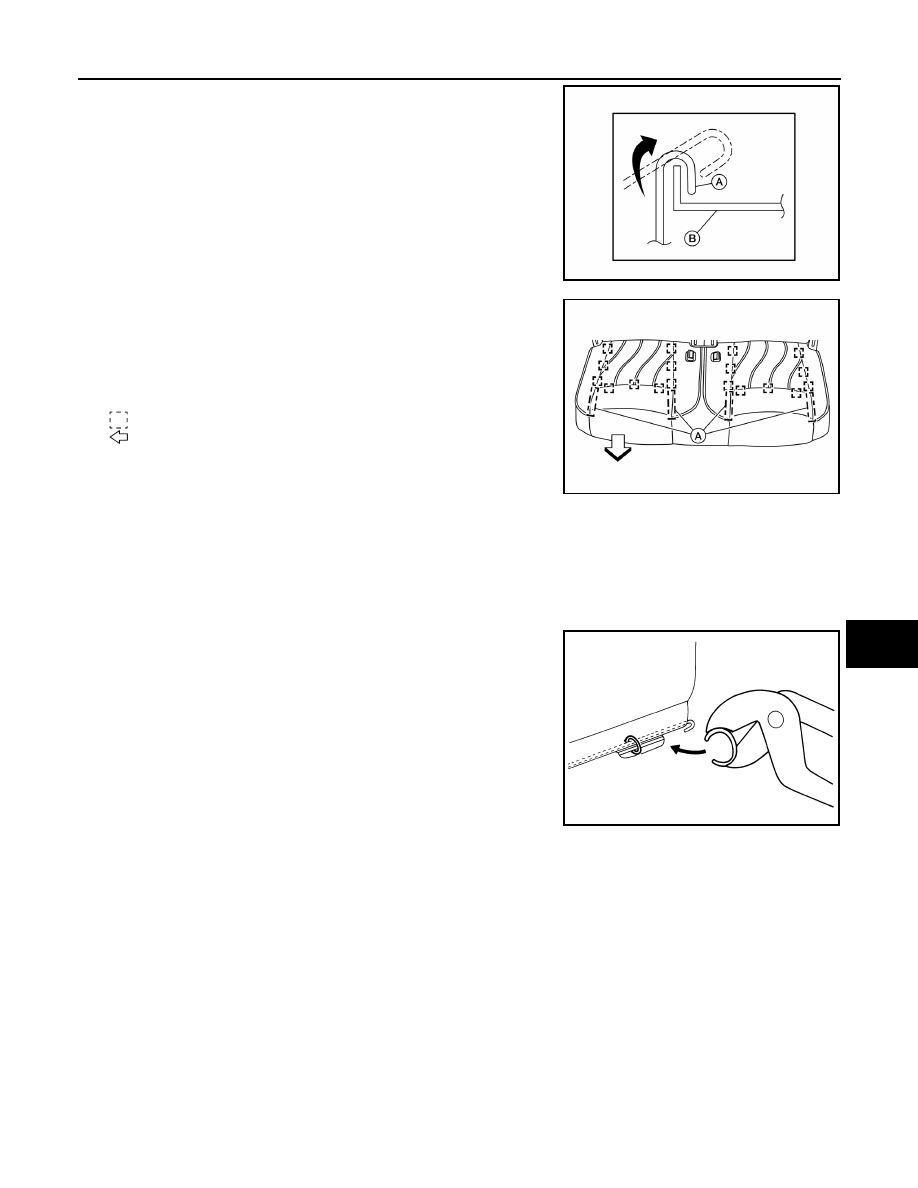

a. Release the J-clips (A) holding the seat cushion trim to the seat

frame (B).

b. Release the elastic band and remove the seat belt buckles (LH/

RH) from the seat cushion.

c. Remove the seat cushion pad and seat cushion trim as an

assembly from the seat frame assembly.

3. Separate the seat cushion trim from the seat cushion pad.
a. Pull seat cushion trim upward to release hook fasteners (A).
b. Remove hog rings and separate the seat cushion trim from the

seat cushion pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

: Front

4. Remove the screw, release the metal clip and pawls, then remove the seat hinge finishers (LH/RH) from

the seat frame.

5. Release the pawls and remove the seat hinge finisher (center) from the seat frame.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

ALJIA0748ZZ

ALJIA0837ZZ

PIIB3356J
