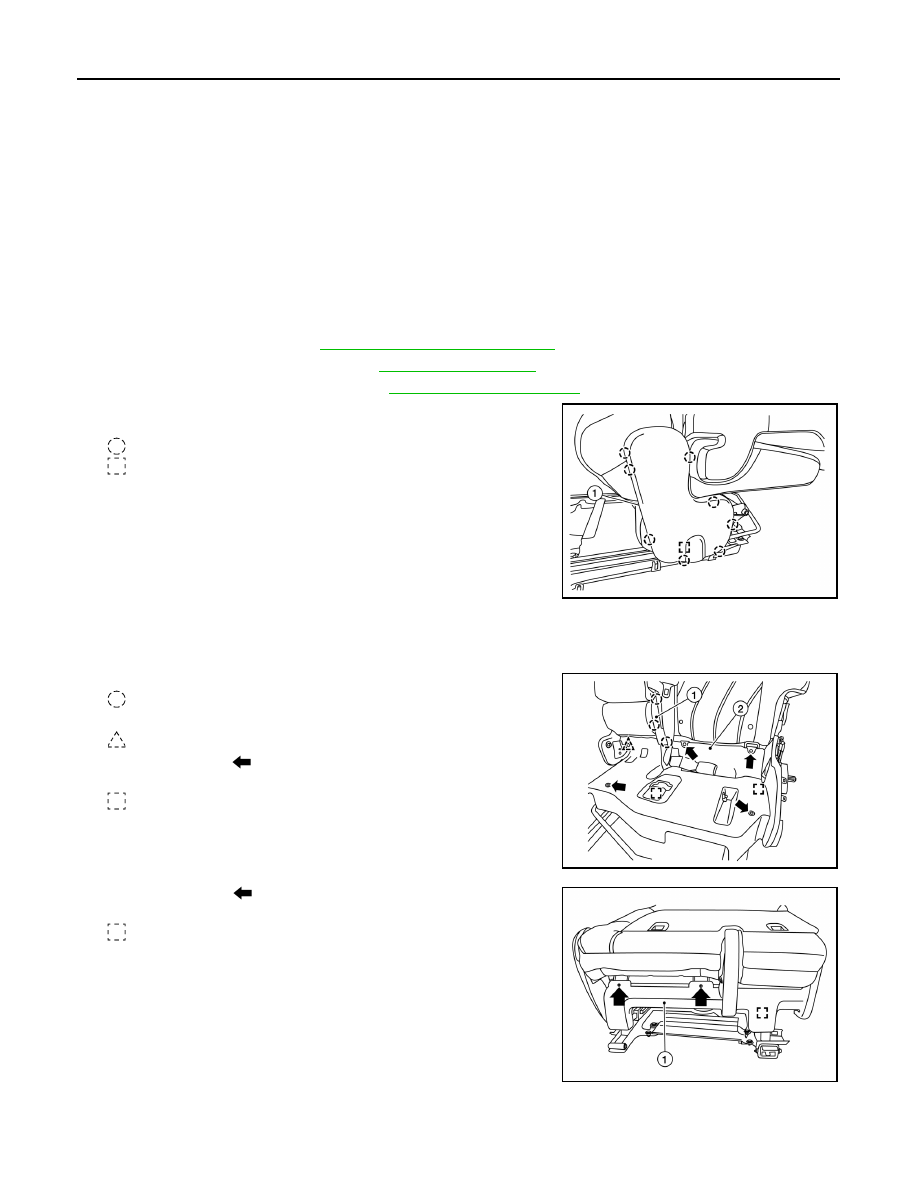

SE-126

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

LH SEAT
LH SEAT : Seatback

INFOID:0000000009727793

DISASSEMBLY

1. Remove the LH seat. Refer to

SE-94, "Removal and Installation"

.

2. Remove the LH seat cushion. Refer to

SE-97, "Seat Cushion"

.

3. Remove the armrest assembly. Refer to

SE-96, "Armrest Assembly"

.

4. Release pawls and metal clip, and remove the outer finisher

(RH) (1).

: Pawl
: Metal clip

5. Release the seatback heater harness (if equipped) from all attachments.

NOTE:

Take note of harness routing and attachment locations for correct installation.

6. Release pawls and remove the recliner finisher (center) (1).

: Pawl

7. Release clip.

: Clip

8. Remove screws (

), then release metal clips and remove the

seat cushion latch finisher (2).

: Metal clip

9. Remove screws (

), then release metal clip and remove the

rear finisher (1).

: Metal clip

10. Remove seat belt retractor (center) bottom anchor bolt.
11. Remove the headrest (LH).

19. EZ entry cable

20. Support strut

21. Inner finisher (LH)

22. Outer finisher (LH)

23. Seat harness

24. Seat cushion release cable

25. Seat slide release cable

26. Seat belt buckle

27. Rear finisher

28. Trim stiffener

29. Seatback board

30. Tether anchor finisher

31. EPP upper panel

32. Support finisher

33. Seatback pad

34. Seatback trim

35. Headrest holder (locked)

36. Headrest holder (free)

37. Headrest

A.

Seat cushion pivot bolt

ALJIA0861ZZ

ALJIA0854ZZ

ALJIA0862ZZ

SECOND ROW SEAT

SE-127

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

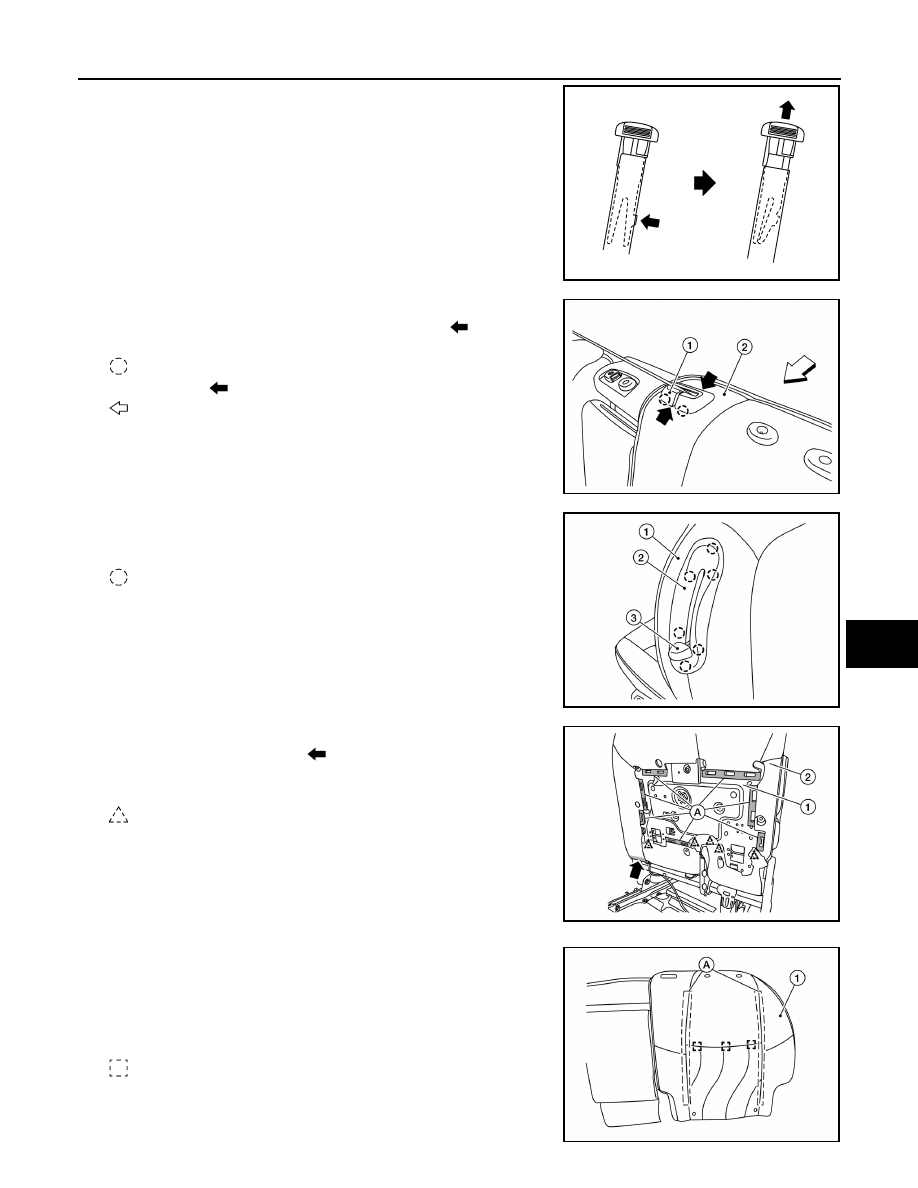

12. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

13. Remove the seat belt retractor finisher (1) from seatback (2).
a. Release pawls using a suitable tool and lift front (

) of seat belt

retractor finisher.

: Pawl

b. Push on rear (

) of seat belt retractor finisher to remove.

: Front

14. Remove EZ entry lever finisher (3) by pulling firmly.
15. Release pawls and remove EZ entry finisher (2) from seatback

(1).

: Pawl

16. Remove the seatback pad and seatback trim (2).
a. Release the J-clip retainer (

) at the rear lower edge of seat-

back.

b. Remove five clips that retain seatback trim in place.

: Clip

c. Release retainer strips (A) from the seat frame assembly.
d. Release clips that retain trim behind EZ entry finisher.
e. Remove the seatback pad and seatback trim as an assembly

from the seat frame assembly (1).

f.

Route the seat belt through the opening in the seatback trim.

17. Separate the seatback trim (1) from the seatback pad.
a. Pull seatback trim upward in front to release hook fasteners (A).
b. Remove hog rings and separate the seatback trim from the seat-

back pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

c. Route the seatback heater harness (if equipped) through the

opening in the seatback trim.

JMJIA4073ZZ

ALJIA0848ZZ

ALJIA0849ZZ

ALJIA0865ZZ

ALJIA0864ZZ

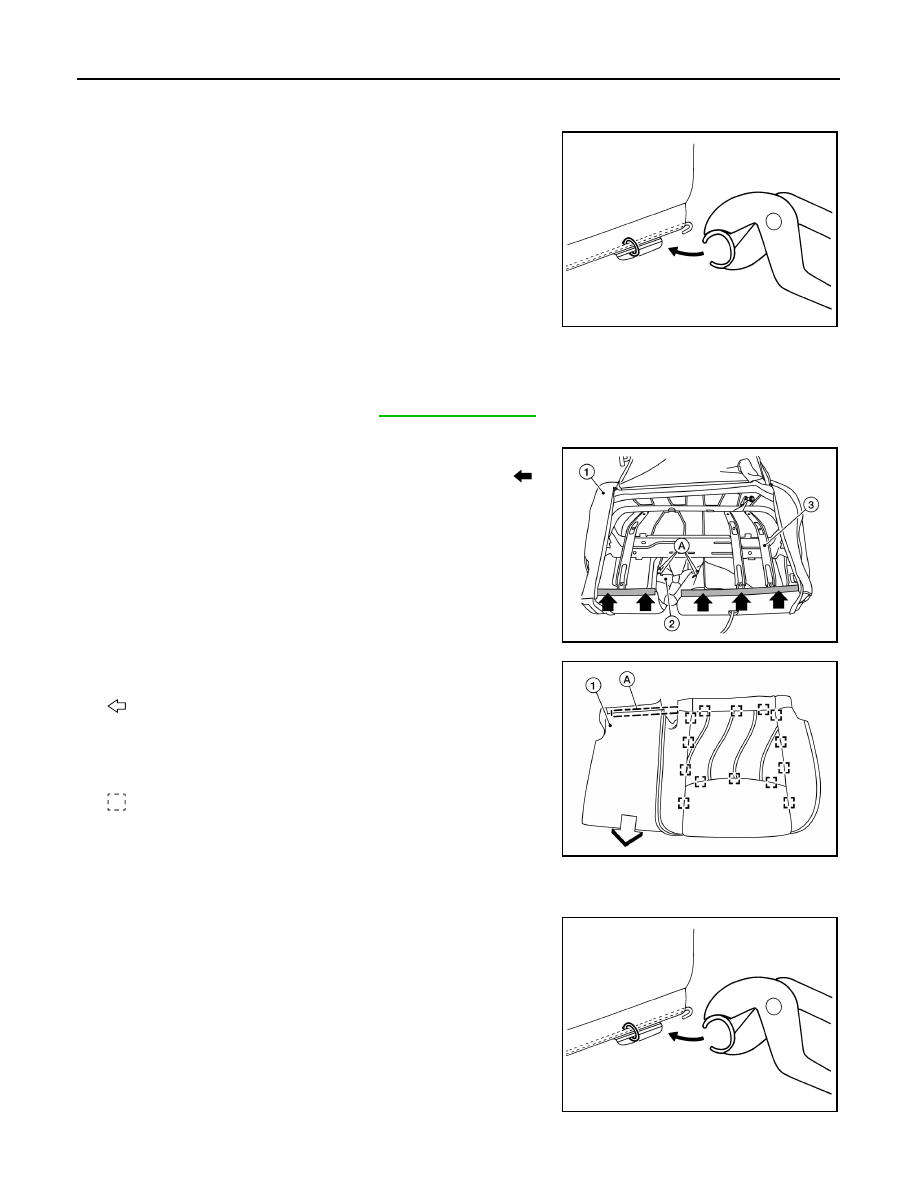

SE-128

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembled.

LH SEAT : Seat Cushion

INFOID:0000000009727794

DISASSEMBLY

1. Remove the LH seat cushion. Refer to

SE-97, "Seat Cushion"

.

2. Remove support strut from the LH seat cushion.
3. Remove the seat cushion pad and seat cushion trim (1).
a. Unzip the back trim cover and release the J-clip retainers (

).

b. Remove four hog rings (A) near seat belt opening, to release

seat cushion trim (2).

NOTE:

Remove all pieces of hog rings and discard them.

c.

Remove the seat cushion pad and seat cushion trim as an

assembly from the seat cushion frame (3).

4. Separate the seat cushion trim (1) from the seat cushion pad.
a. Pull seat cushion trim up at rear to release hook fastener (A).

: Front

b. Remove hog rings and separate the seat cushion trim from the

seat cushion pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

c.

Route the seat cushion heater harness (if equipped) through the

opening in the seat cushion trim.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seat cushion trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

RH SEAT

PIIB3356J

ALJIA0857ZZ

ALJIA0860ZZ

PIIB3356J

SECOND ROW SEAT

SE-129

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

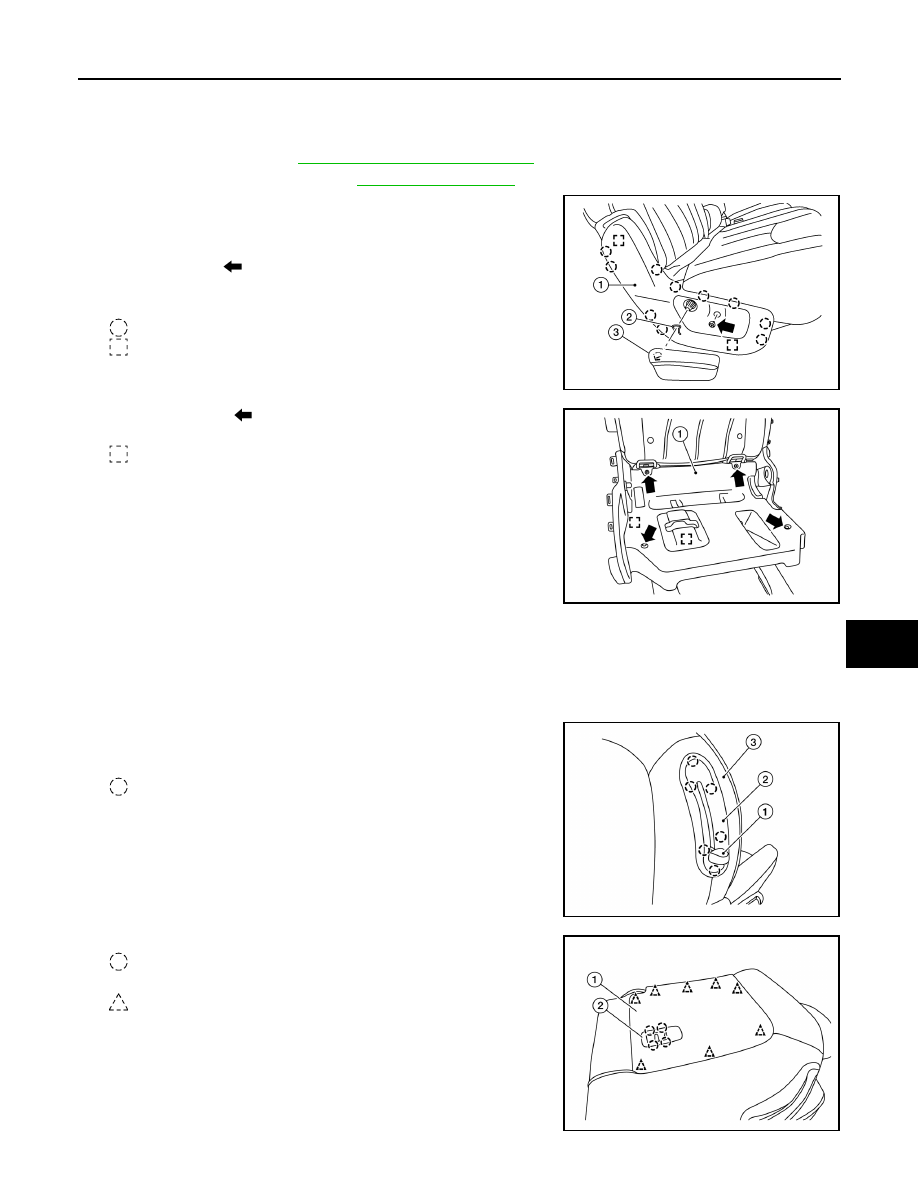

RH SEAT : Seatback

INFOID:0000000009727795

DISASSEMBLY

1. Remove RH seat. Refer to

SE-94, "Removal and Installation"

.

2. Remove RH seat cushion. Refer to

SE-97, "Seat Cushion"

.

3. Remove the recline lever (3).
a. Remove snap ring (2) upward using a suitable tool.
b. Remove recline lever.
4. Remove screw (

).

5. Release pawls and metal clips, and remove the seat cushion

outer finisher (RH) (1).

: Pawl
: Metal clip

6. Remove screws (

), then release metal clips and remove the

seat cushion latch finisher (1).

: Metal clip

7. Remove the rear finisher.
8. Release the seatback heater harness (if equipped) from attachments.

NOTE:

Note harness attachments and routing location for correct installation.

9. Remove the headrest.
10. Remove EZ entry lever finisher (1) by pulling firmly.
11. Release pawls and remove EZ entry finisher (2) from the seat-

back (3).

: Pawl

12. Release pawls and remove the tether anchor finisher (2).

: Pawl

13. Release clips and remove the seatback board (1).

: Clip

AWJIA0956ZZ

ALJIA0856ZZ

ALJIA0850ZZ

ALJIA0871ZZ
