Nissan Pathfinder. Manual - part 1035





SEC-3

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2602 SHIFT POSITION ..................................

110

DTC Logic  .............................................................

110

Diagnosis Procedure .............................................

110

Component Inspection  ..........................................

111

B2603 SHIFT POSITION ..................................

112

DTC Logic  .............................................................

112

Diagnosis Procedure .............................................

112

Component Inspection  ..........................................

115

B2604 SHIFT POSITION ..................................

116

DTC Logic  .............................................................

116

Diagnosis Procedure .............................................

116

B2605 SHIFT POSITION ..................................

119

DTC Logic  .............................................................

119

Diagnosis Procedure .............................................

119

B2608 STARTER RELAY  ................................

122

DTC Logic  .............................................................

122

Diagnosis Procedure .............................................

122

B2617 STARTER RELAY CIRCUIT .................

124

Description ............................................................

124

DTC Logic  .............................................................

124

Diagnosis Procedure .............................................

124

B261E VEHICLE TYPE ....................................

126

Description ............................................................

126

DTC Logic  .............................................................

126

Diagnosis Procedure .............................................

126

B26F3 STARTER CONTROL RELAY  .............

128

DTC Logic  .............................................................

128

Diagnosis Procedure .............................................

128

B26F4 STARTER CONTROL RELAY  .............

129

DTC Logic  .............................................................

129

Diagnosis Procedure .............................................

129

B26F7 BCM  ......................................................

130

DTC Logic  .............................................................

130

Diagnosis Procedure .............................................

130

B26F8 BCM  ......................................................

131

DTC Logic  .............................................................

131

Diagnosis Procedure .............................................

131

HEADLAMP FUNCTION  ..................................

132

Component Function Check ..................................

132

Diagnosis Procedure .............................................

132

HOOD SWITCH  ................................................

133

Component Function Check ................................

133

Diagnosis Procedure ............................................

133

Component Inspection  ..........................................

134

HORN FUNCTION ............................................

135

Component Function Check ................................

135

Component Inspection ...........................................

135

SECURITY INDICATOR LAMP  ......................

136

Component Function Check ................................

136

Diagnosis Procedure  .............................................

136

SYMPTOM DIAGNOSIS  ............................

138

ENGINE DOES NOT START WHEN INTELLI-
GENT KEY IS INSIDE OF VEHICLE  ..............

138

Description .............................................................

138

Diagnosis Procedure  .............................................

138

SECURITY INDICATOR LAMP DOES NOT
TURN ON OR BLINK ......................................

139

Description .............................................................

139

Diagnosis Procedure  .............................................

139

VEHICLE SECURITY SYSTEM CANNOT BE
SET ..................................................................

140

INTELLIGENT KEY ..................................................

140

INTELLIGENT KEY : Description ..........................

140

INTELLIGENT KEY : Diagnosis Procedure ...........

140

DOOR REQUEST SWITCH  .....................................

140

DOOR REQUEST SWITCH : Description  .............

140

DOOR REQUEST SWITCH : Diagnosis Proce-
dure .......................................................................

140

DOOR KEY CYLINDER  ...........................................

141

DOOR KEY CYLINDER : Description ...................

141

DOOR KEY CYLINDER : Diagnosis Procedure  ....

141

VEHICLE SECURITY ALARM DOES NOT
ACTIVATE .......................................................

142

Description .............................................................

142

Diagnosis Procedure  .............................................

142

PANIC ALARM FUNCTION DOES NOT OP-
ERATE .............................................................

143

Description .............................................................

143

Diagnosis Procedure  .............................................

143

REMOVAL AND INSTALLATION .............

144

NATS ANTENNA AMP.  ..................................

144

Exploded View .......................................................

144

Removal and Installation  .......................................

144

PUSH-BUTTON IGNITION SWITCH  ..............

145

Exploded View .......................................................

145

Removal and Installation  .......................................

145

IMMOBILIZER CONTROL MODULE ..............

146

Removal and Installation  .......................................

146

SEC-4

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009726163

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

COMPONENT PARTS

SEC-5

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

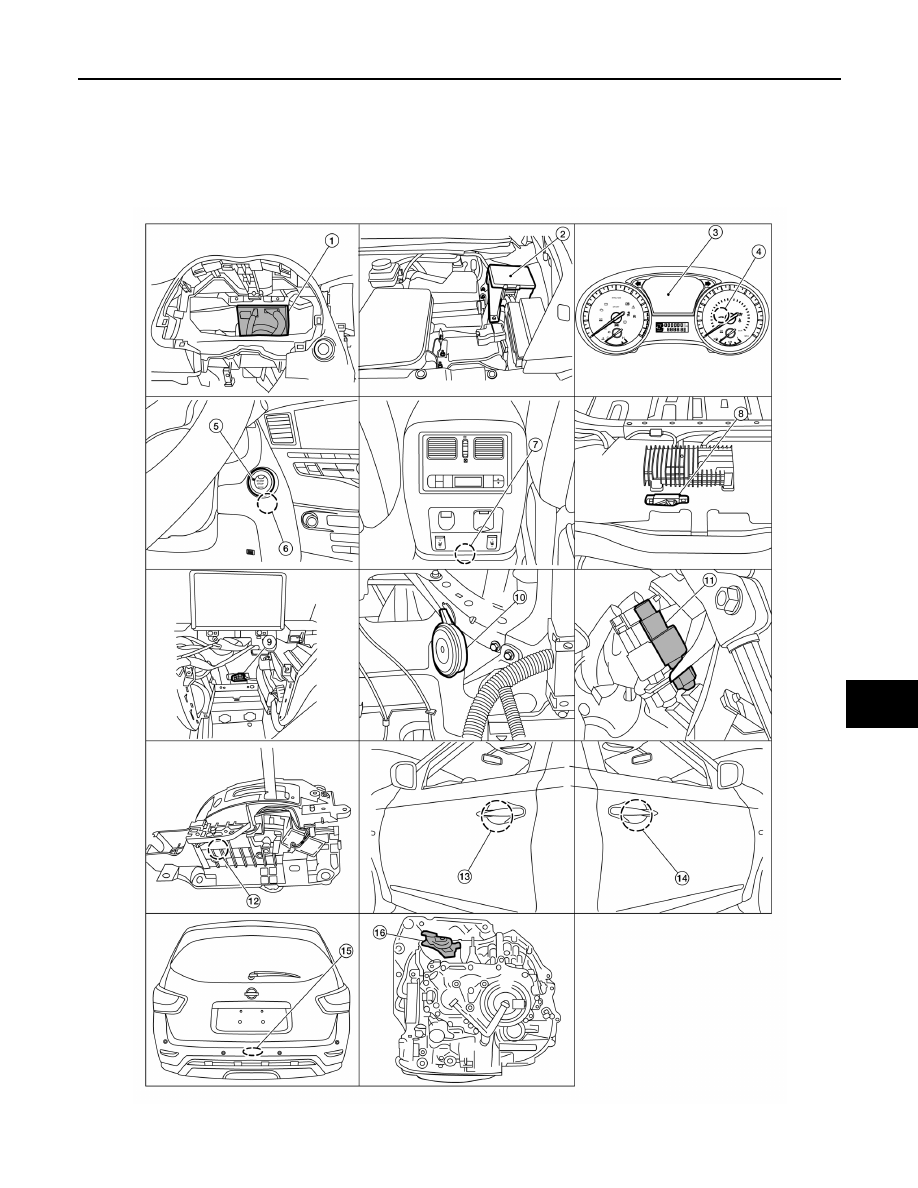

Component Parts Location

INFOID:0000000009175927

ALKIA2806ZZ

SEC-6

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Component Description

INFOID:0000000009175928

CVT Shift Selector (Park Position Switch)

INFOID:0000000009175929

Park position switch detects that CVT shift selector is in the P (Park) position and then transmits the signal to

BCM and IPDM E/R.

BCM confirms the CVT shift selector position with the following 5 signals:

• P (Park) position signal from CVT shift selector (park position switch)

• P/N position signal from TCM

• P (Park) position signal from IPDM E/R (CAN)

• P/N position signal from IPDM E/R (CAN)

• P/N position signal from TCM (CAN)

IPDM E/R confirms the CVT shift selector position with the following 3 signals:

• P (Park) position signal from CVT shift selector (park position switch)

• P/N position signal from TCM

• P/N position signal from BCM (CAN)

BCM

INFOID:0000000009175930

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBI-

LIZER SYSTEM-NATS [NVIS (NATS)], and VEHICLE SECURITY SYSTEM.

1.

BCM (view with combination meter re-
moved)

2.

IPDM E/R

3.

Combination meter

4.

Security indicator lamp

5.

Push button ignition switch

6.

NATS antenna amp.

7.

Inside key antenna (console)

8.

Inside key antenna (luggage room)
(view with rear carpet removed)

9.

Inside key antenna (instrument center)
(view with AV control unit removed)

10. Horn (view with right head  light re-

moved)

11. Stop lamp switch

12. CVT shift selector (park position switch)

(view with center console removed)

13. Outside key antenna (drivers side)

14. Outside key antenna (passenger side) 15. Outside key antenna (rear bumper)

16. Transmission range switch

Component Reference

CVT shift selector (park position switch)

SEC-6

BCM

SEC-6

ECM

SEC-7

IPDM E/R

SEC-7

NATS antenna amp.

SEC-7

Combination meter

SEC-7

Door switch

SEC-7

Hood switch

SEC-7

Outside key antenna

SEC-7

Inside key antenna

SEC-7

Intelligent Key

SEC-7

Push-button ignition switch

SEC-8

Remote keyless entry receiver

SEC-7

Security indicator lamp

SEC-8

Starter control relay

SEC-8

Starter relay

SEC-8

Stop lamp switch

SEC-8

Transmission range switch

SEC-8

Vehicle information display

SEC-8
