AV

PREPARATION

AV-207

< PREPARATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

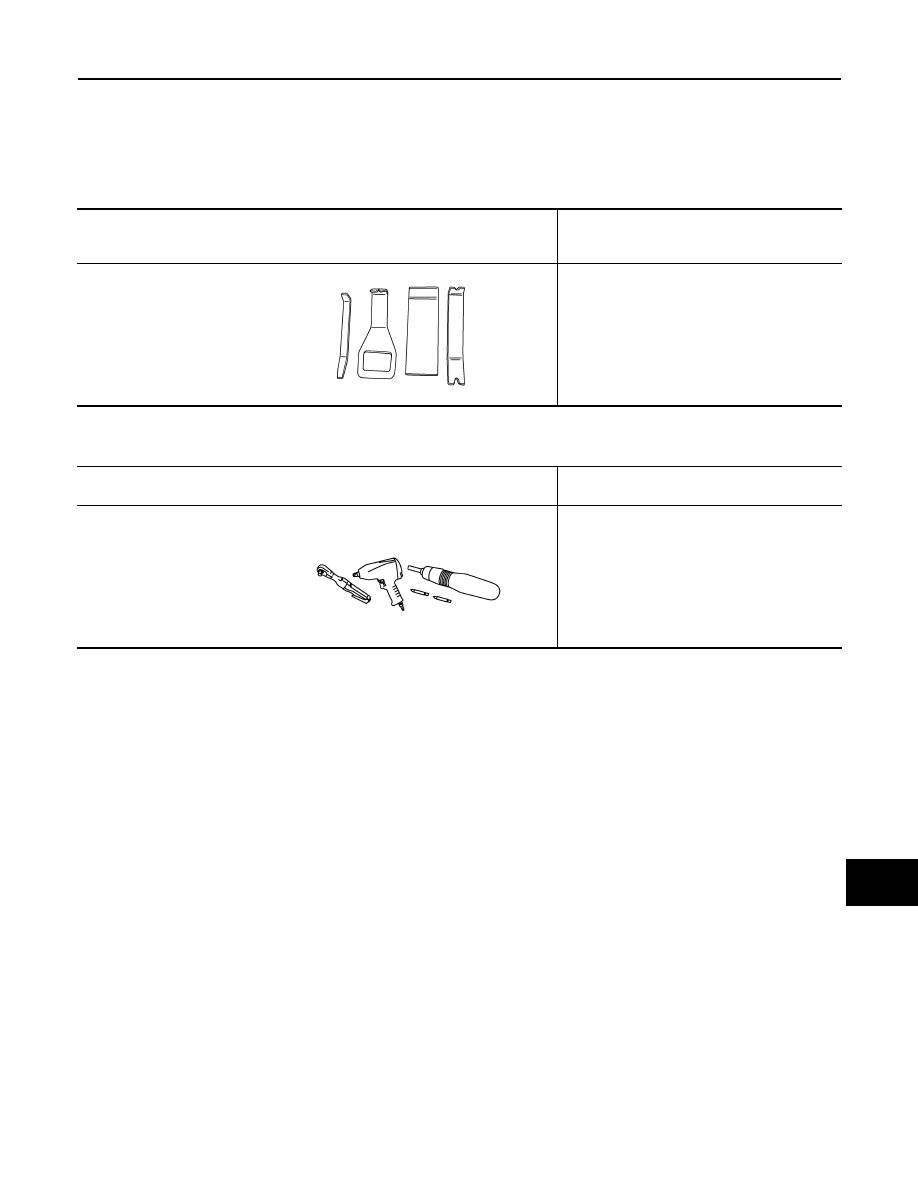

Special Service Tool

INFOID:0000000009174526

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009174527

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim tool set

Removing trim components

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

( — )
Power tools

Loosening nuts, screws and bolts

PIIB1407E

AV-208

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

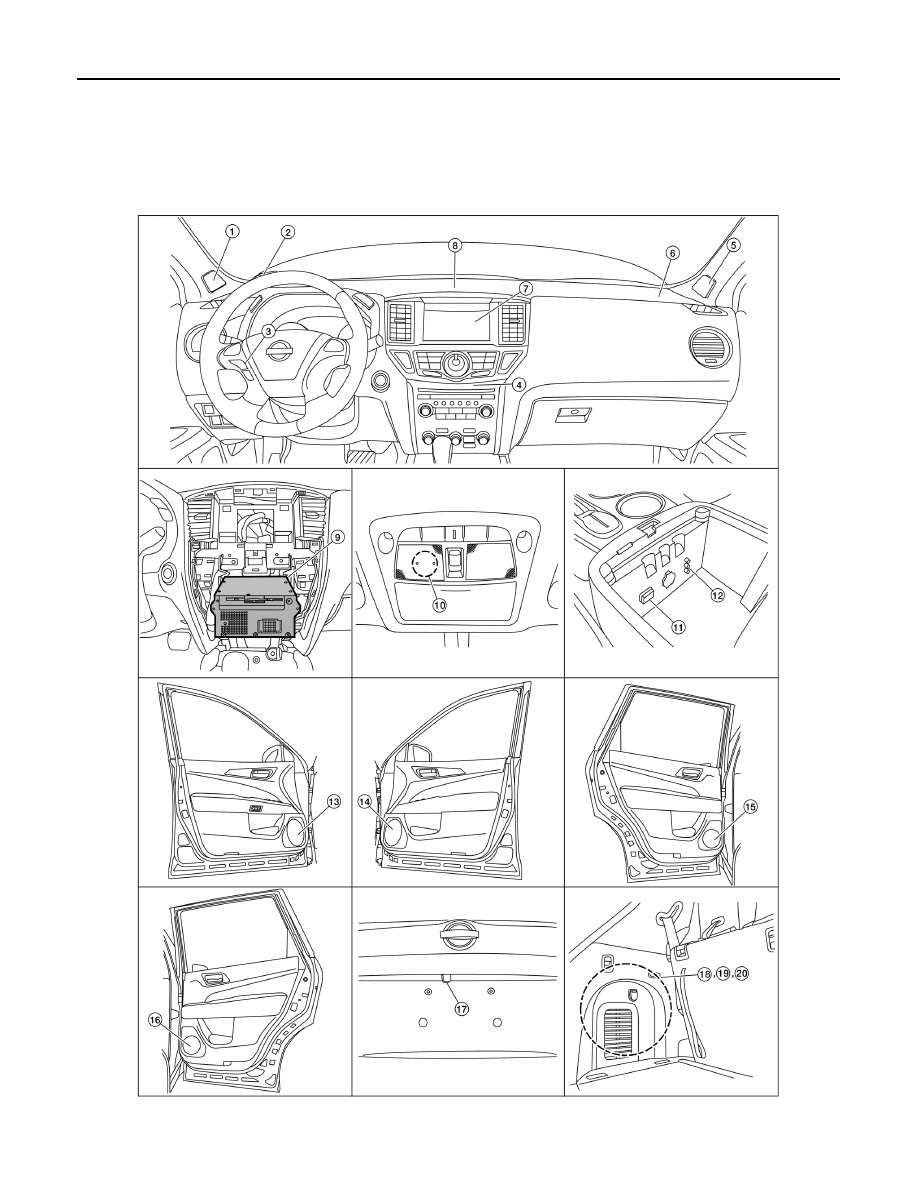

Component Parts Location

INFOID:0000000009174528

AWNIA2805ZZ

AV

COMPONENT PARTS

AV-209

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000009174529

1.

Front tweeter LH

2.

Instrument panel tweeter LH

3.

Steering switches

4.

A/C and AV switch assembly

5.

Front tweeter RH

6.

Instrument panel tweeter RH

7.

Display unit

8.

Center speaker

9.

AV control unit (view with center stack
removed)

10. Microphone

11. USB interface

12. Front auxiliary input jacks

13. Front door speaker LH

14. Front door speaker RH

15. Rear door speaker LH

16. Rear door speaker RH

17. Rear view camera

18. Bluetooth

®

 control unit

19. Satellite radio tuner

20. Bluetooth

®

 antenna

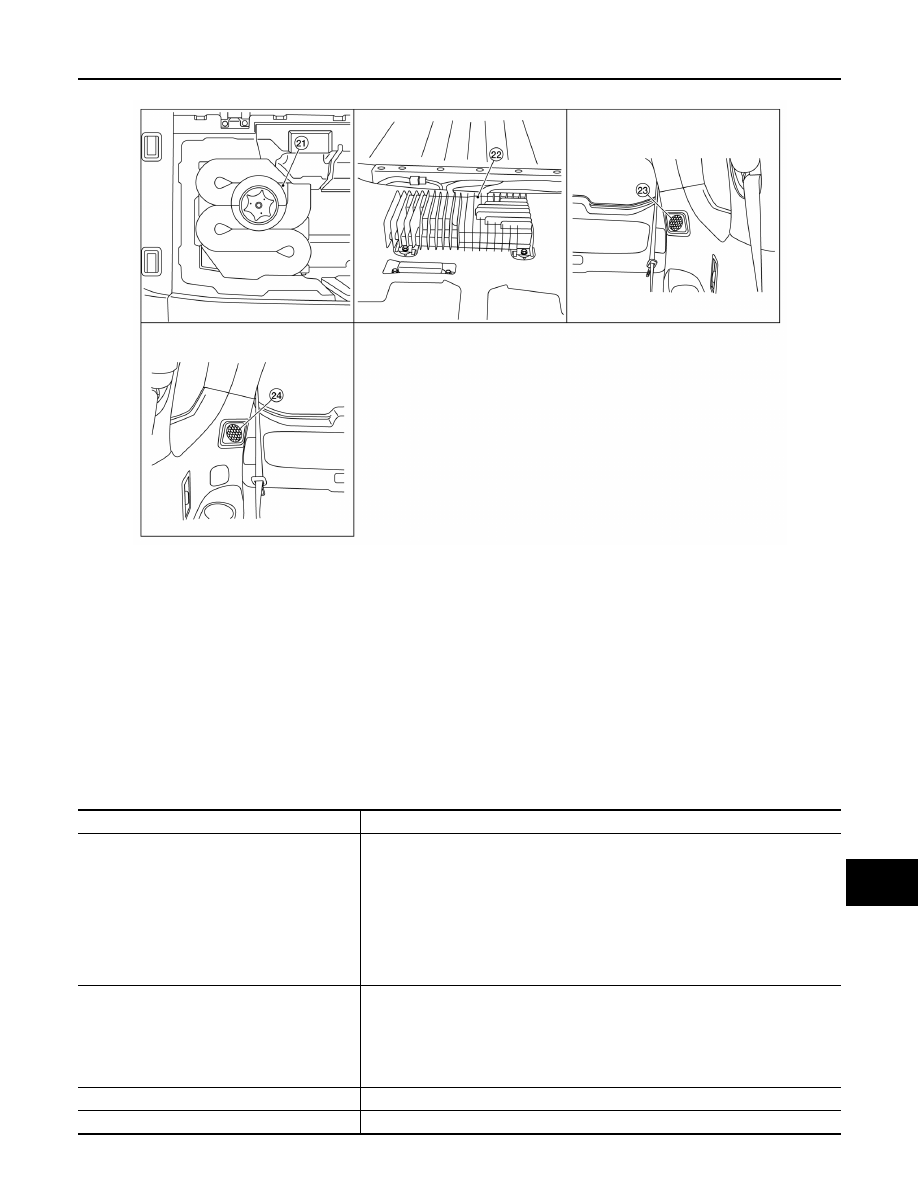

21. Subwoofer

22. Bose speaker amp.

23. Rear side speaker LH

24. Rear side speaker RH

ALNIA1446ZZ

Part name

Description

AV control unit

• Master unit of MULTI AV system.
• AV control unit includes audio, USB connection and vehicle status functions.
• Connected to MULTI AV system control units via AV communication.
• Connected to other vehicle control units via CAN communication to obtain neces-

sary information for vehicle information function.

• Inputs signals for driving status recognition (vehicle speed, reverse and parking

brake).

• TEL voice signal and voice guidance signal are input from Bluetooth

®

 control unit.

• Camera image signal is received and transmitted to display unit.

Display unit

• Display image is controlled by AV control unit via serial communication.
• Receives power (signal VCC and inverter VCC) from AV control unit.
• RGB image signals (RGB image, RGB area and RGB synchronizing) are input

from AV control unit.

• Composite image signals are input from AV control unit.
• Synchronizing signals (HP, VP) are output to AV control unit.

Front door speaker

Outputs low and mid range sounds.

Instrument panel tweeter

Outputs high range sounds.

AV-210

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

COMPONENT PARTS

Rear door speaker

Outputs low, mid and high range sounds.

A/C and AV switch assembly

• Operation panels are equipped with switches for audio and air conditioner opera-

tions.

• Operation signal is transmitted via AV communication to AV control unit.
• Disk eject operation signal is performed via hardwire.

Rear view camera

• Camera power supply is input from AV control unit.
• Vehicle rear view image is transmitted to display unit via AV control unit.

Steering switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal (operation signal) is output to AV control unit.

Microphone

• Used for hands-free phone and voice recognition operation.
• Microphone signal is transmitted to Bluetooth

®

 control unit.

• Power (Microphone VCC) is supplied from Bluetooth

®

 control unit.

Antenna amp.

• Radio signal received by window antenna is amplified and transmitted to AV con-

trol unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

Satellite radio tuner

• Inputs satellite radio signal from satellite radio antenna and outputs sound signal

to AV control unit.

• Controlled via serial communication (communication signal and request signal) by

AV control unit.

Satellite radio antenna

Satellite radio signal is received and transmitted to satellite radio tuner.

Bluetooth

®

 control unit

• Inputs TEL voice signal from Bluetooth

®

 antenna and outputs it to AV control unit.

• Controlled via AV communication by AV control unit.

Bluetooth

®

 antenna

Receives TEL voice signal and outputs it to Bluetooth

®

 control unit.

USB connector

USB sound and data input signals are transmitted to AV control unit.

Part name

Description
