Nissan Pathfinder. Manual - part 93

AV

SATELLITE RADIO TUNER

AV-199

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

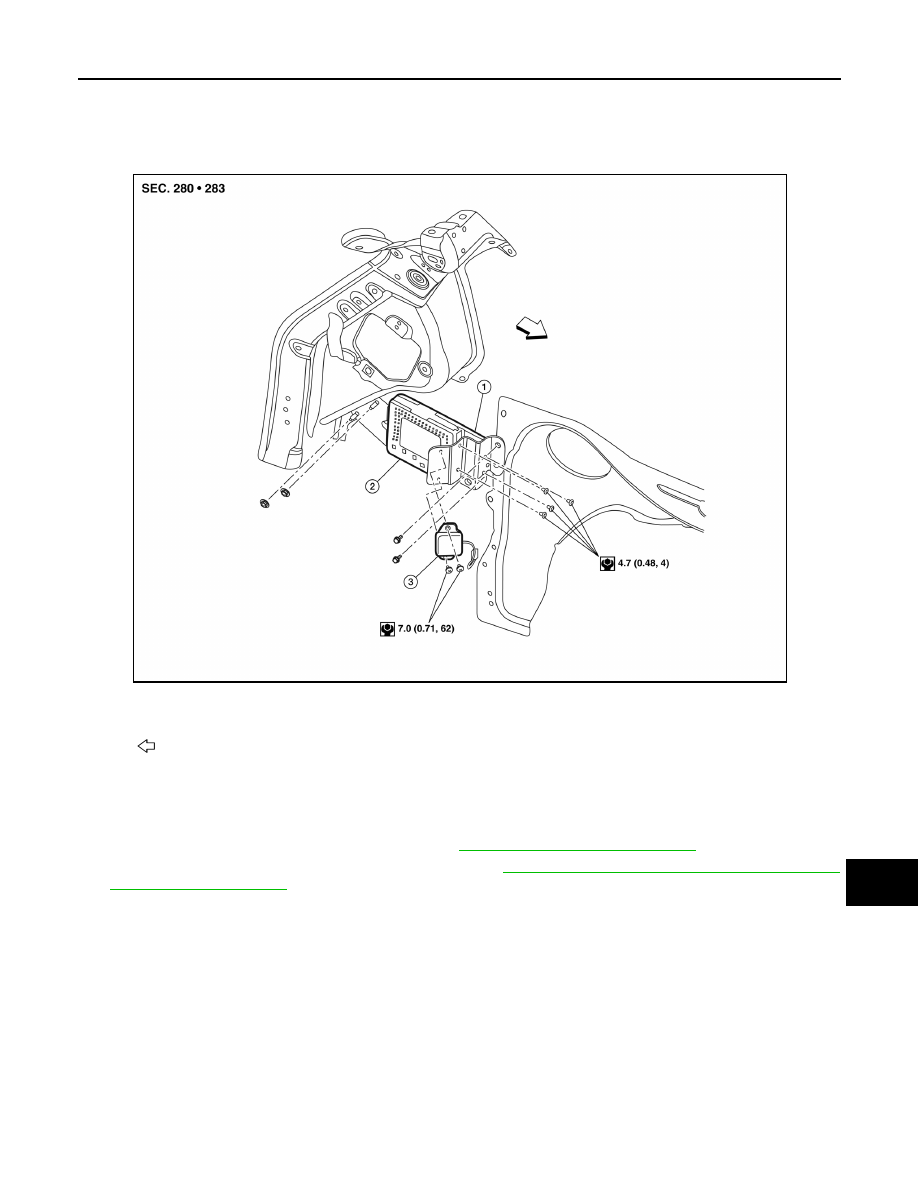

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000009174514

Removal and Installation

INFOID:0000000009174515

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

.

2. Remove the luggage side lower finisher (LH). Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3. Disconnect the harness connectors from satellite radio antenna.
4. Remove the screws and the satellite radio tuner.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth control unit (if
equipped)

2.

Satellite radio tuner

3.

Bluetooth antenna

Front

ALNIA1464ZZ

AV-200

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

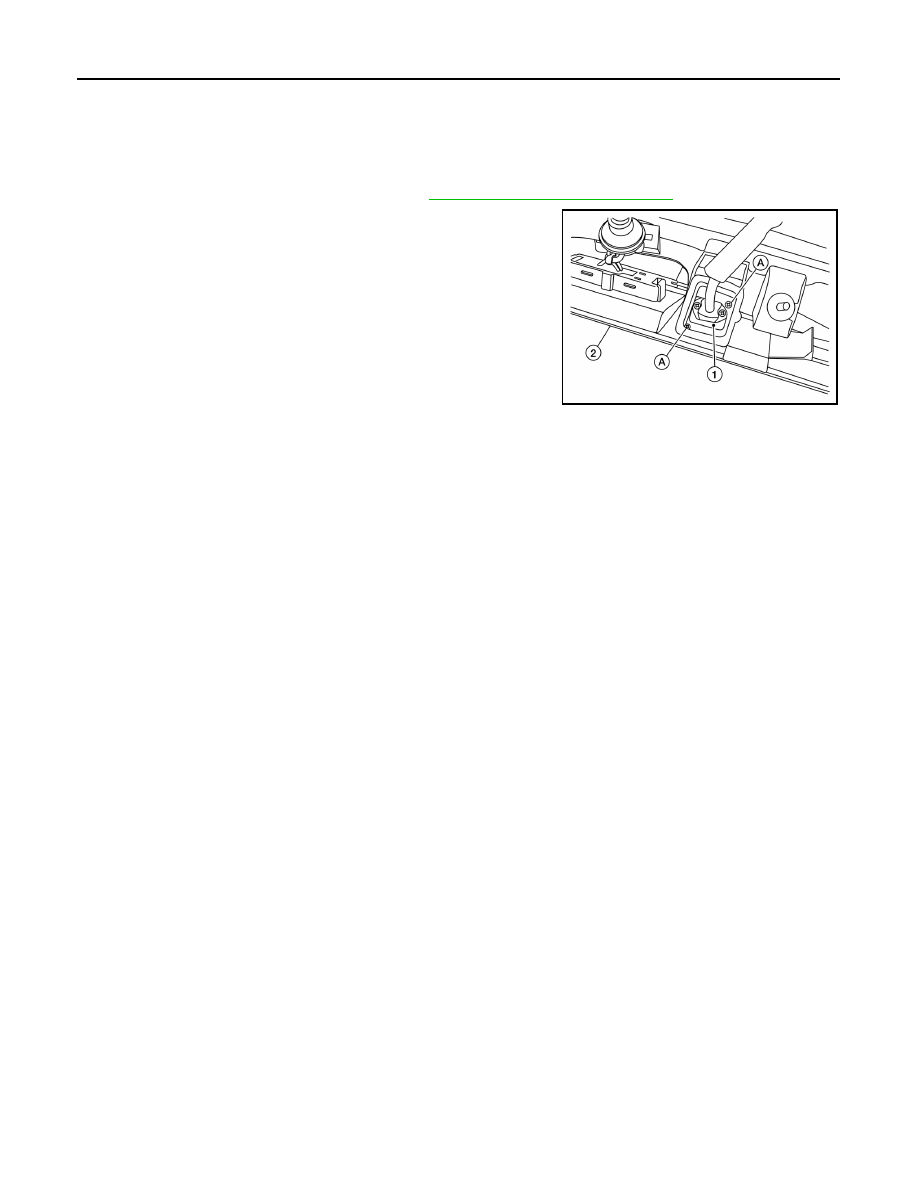

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009174516

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-43, "Removal and Installation"

.

2. Remove rear view camera screws (A), then remove rear view

camera (1) from the back door outer finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1427ZZ

AV

AUDIO ANTENNA

AV-201

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

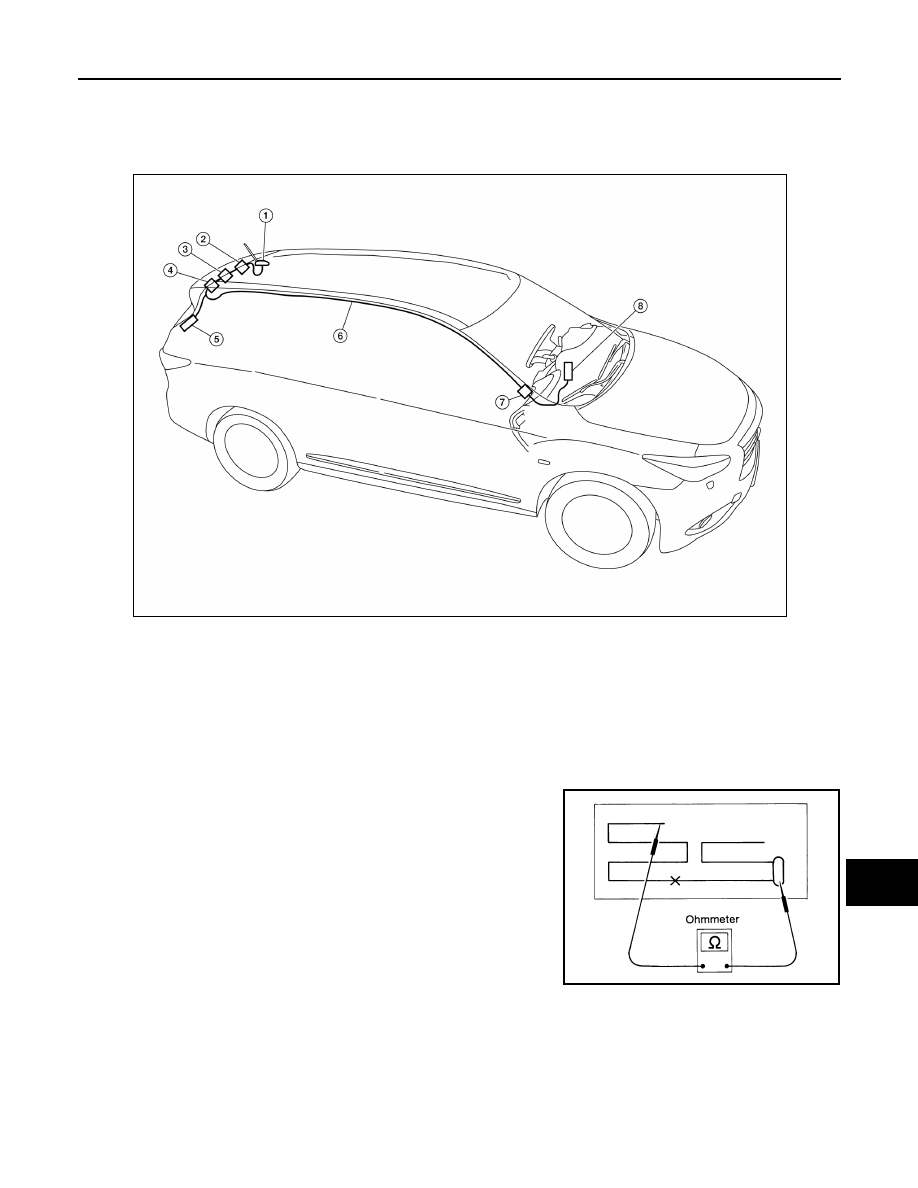

AUDIO ANTENNA

Location of Antennas

INFOID:0000000009174517

Window Antenna Repair

INFOID:0000000009174518

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna base (satellite antenna and antenna
amp)

2.

M502

3.

M501

4.

M503, M504

5.

M505

6.

Antenna Feeder

7.

M95, M500

8.

AV control unit M155

AWNIA2589ZZ

SEL250I

AV-202

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

AUDIO ANTENNA

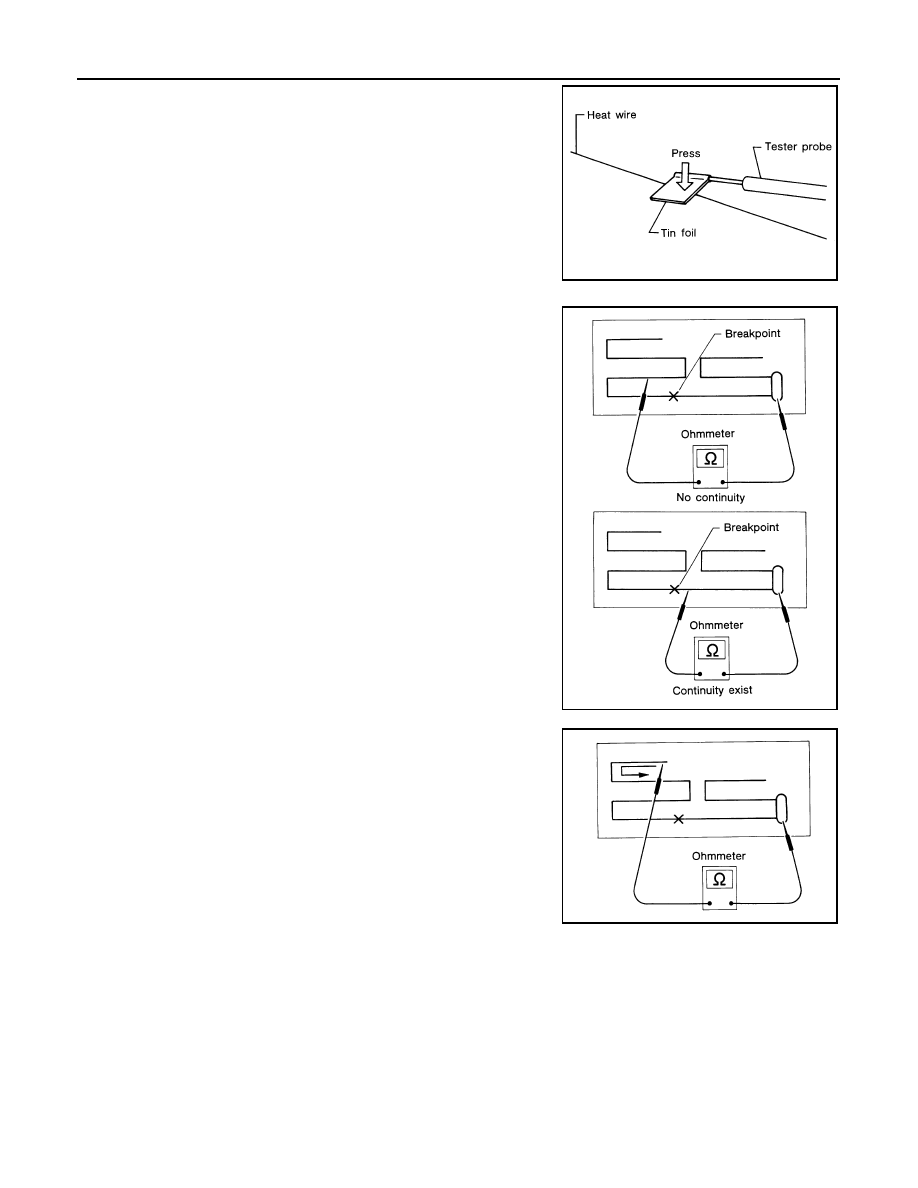

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL122R

SEL252I

SEL253I
