Nissan Pathfinder. Manual - part 91

AV

DISPLAY UNIT

AV-191

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

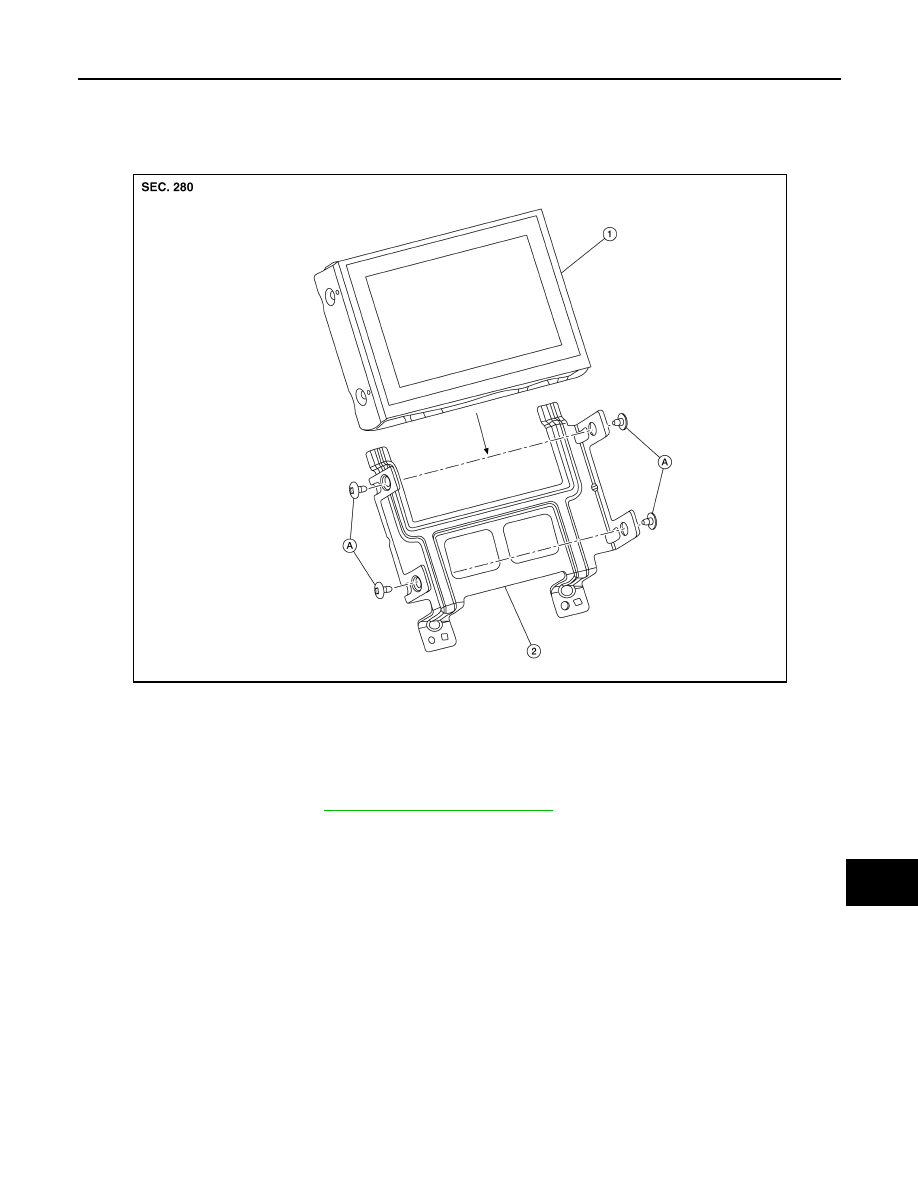

DISPLAY UNIT

Exploded View

INFOID:0000000009174502

Removal and Installation

INFOID:0000000009174503

REMOVAL

1. Remove cluster lid D. Refer to

IP-24, "Removal and Installation"

.

2. Remove the display unit screws, then pull out the display unit and bracket.
3. Disconnect the harness connector from the display unit and remove.
4. Remove the display unit bracket screws and the display unit from the display unit bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1.

Display unit

2.

Display unit bracket

A. Display unit bracket screws

ALNIA1430ZZ

AV-192

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

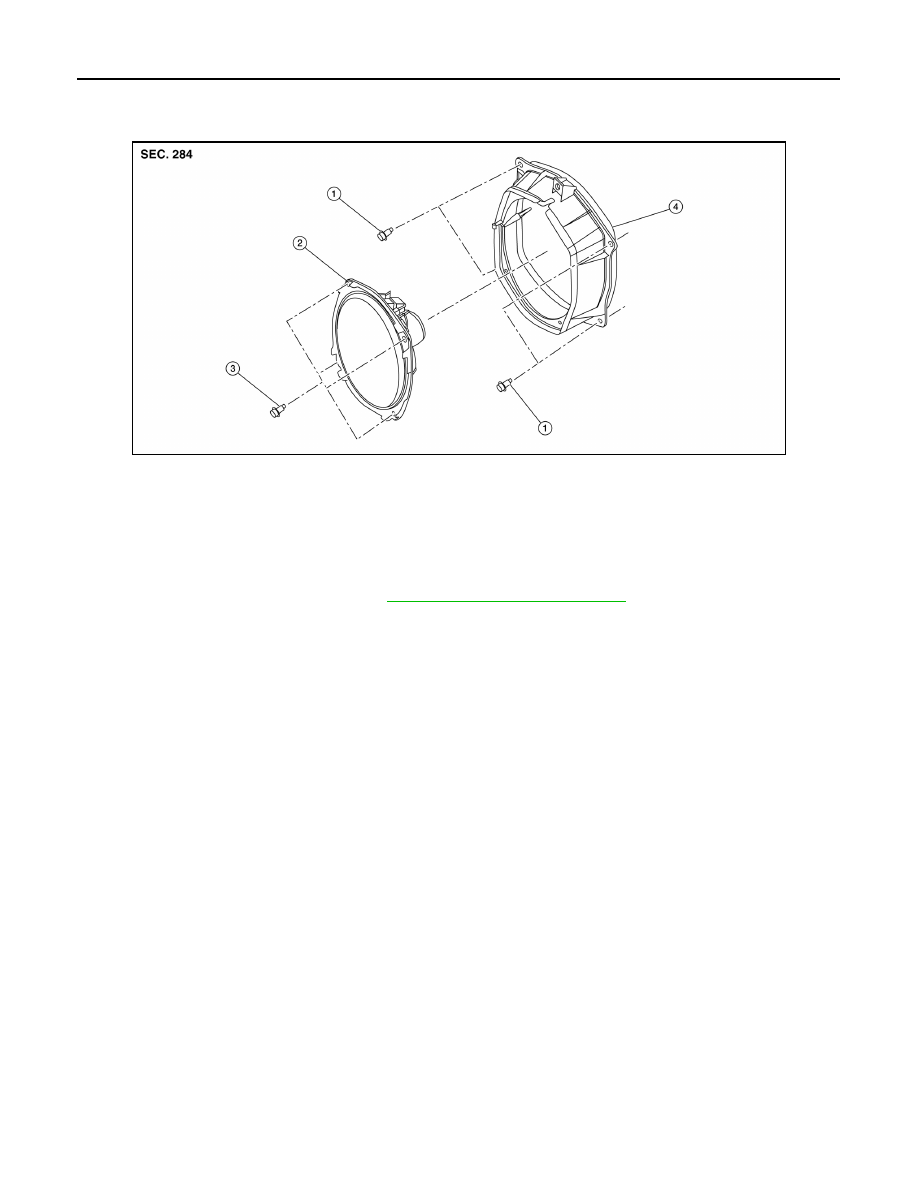

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000009763103

Removal and Installation

INFOID:0000000009763102

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker bolts.
3. Pull out the front door speaker from the speaker bracket.
4. Disconnect the harness connector from front door speaker and remove.
5. Remove the speaker bracket bolts and the speaker bracket from front door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1329ZZ

1. Speaker bracket bolt

2. Front door speaker

3. Speaker bolt

4. Speaker bracket

AV

INSTRUMENT PANEL SPEAKER/TWEETER

AV-193

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

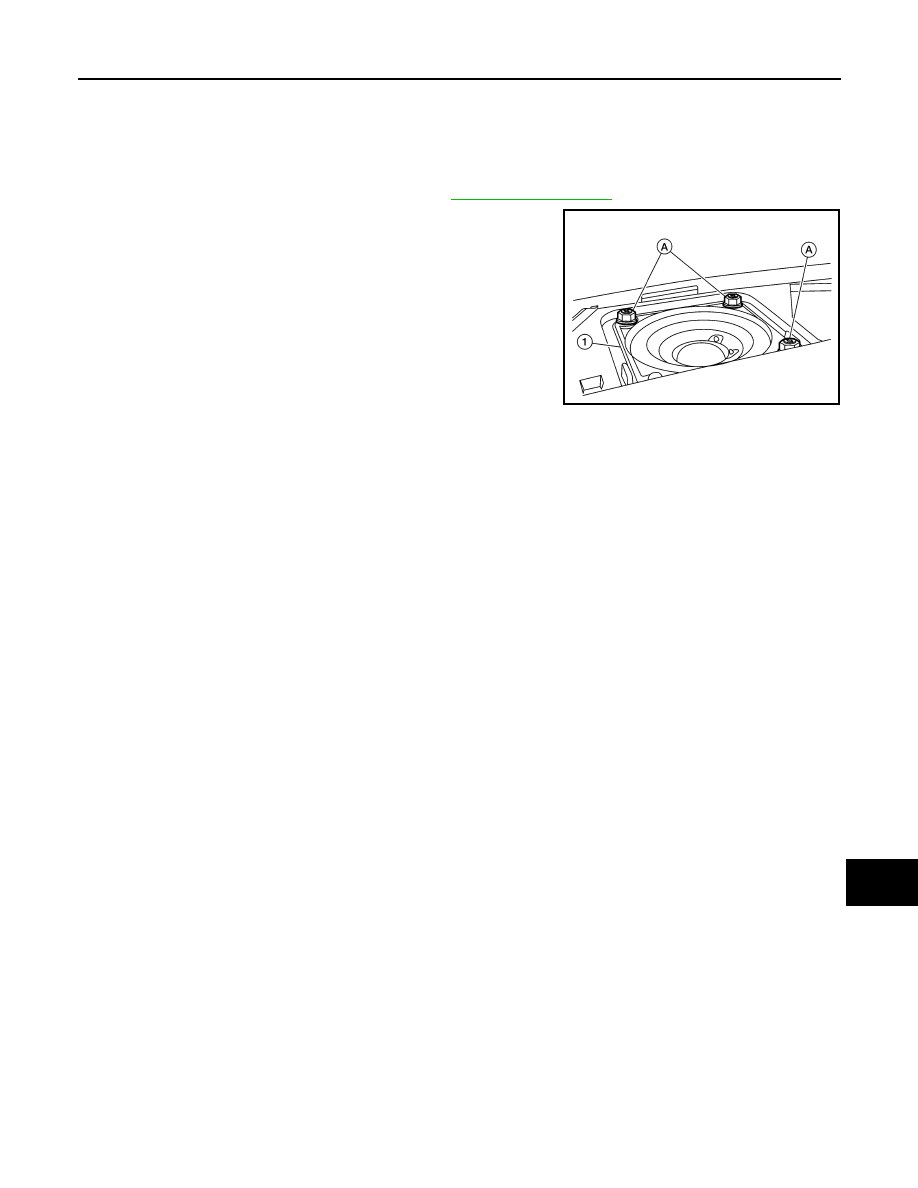

INSTRUMENT PANEL SPEAKER/TWEETER

Removal and Installation

INFOID:0000000009763104

REMOVAL

1. Remove instrument panel tweeter grille. Refer to

IP-14, "Exploded View"

.

2. Remove the bolts (A), then pull out the instrument panel tweeter

(1).

3. Disconnect the harness connector from the instrument panel

tweeter (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1423ZZ

AV-194

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

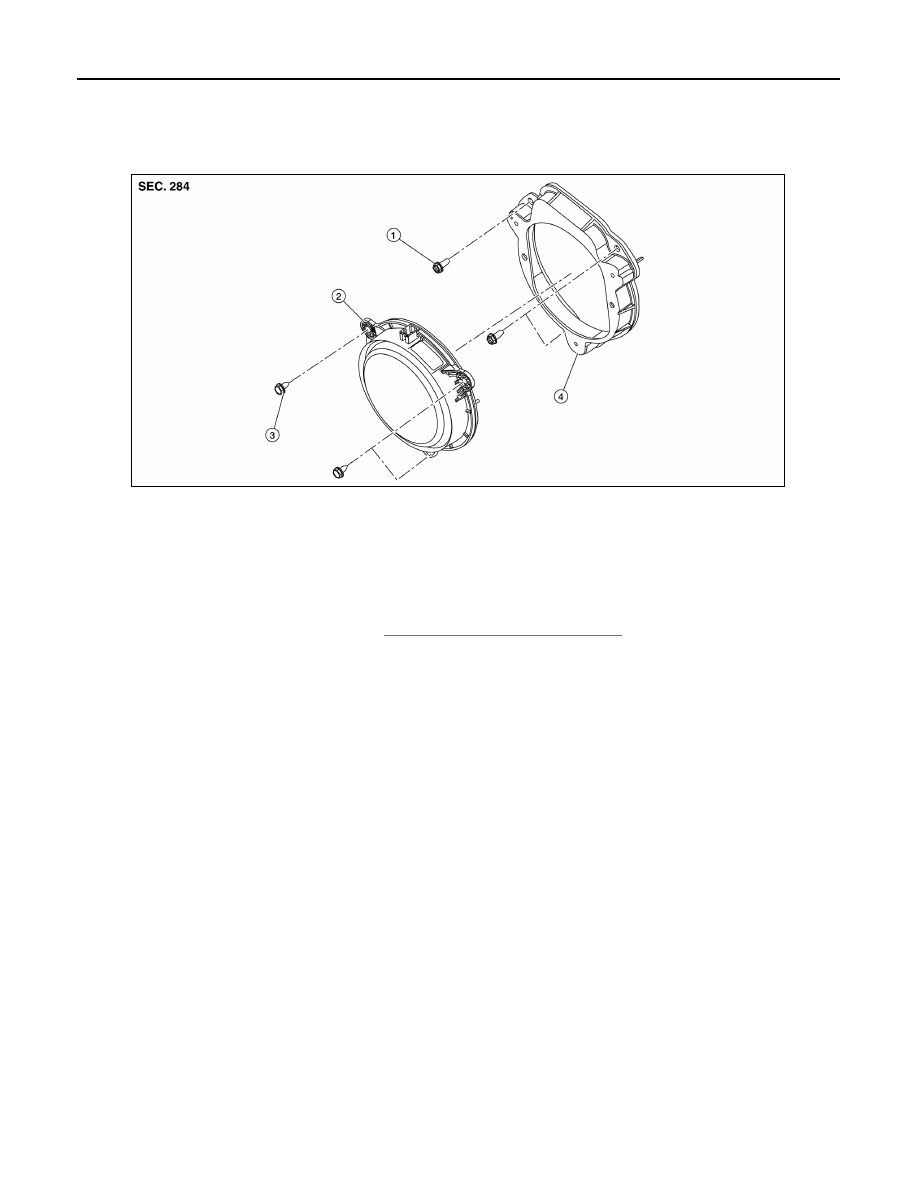

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000009763106

Removal and Installation

INFOID:0000000009763105

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove the rear door speaker bolts.
3. Disconnect the harness connector from the rear door speaker and remove.
4. Remove the speaker bracket bolts and the speaker bracket from the rear door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1. Speaker bracket bolt

2. Rear door speaker

3. Speaker bolt

4. Speaker bracket

ALNIA1330ZZ
