USB INTERFACE

Removal and Installation

INFOID:0000000009174509

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the USB interface.
3. Release the pawl from the back of USB interface, then remove USB interface.

INSTALLATION

Installation is in the reverse order of removal.

AV-196

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

FRONT AUXILIARY INPUT JACKS

FRONT AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009174510

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the front auxiliary input jack.
3. Remove front auxiliary input jack screws and the front auxiliary input jack.

INSTALLATION

Installation is in the reverse order of removal.

AV

BLUETOOTH CONTROL UNIT

AV-197

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

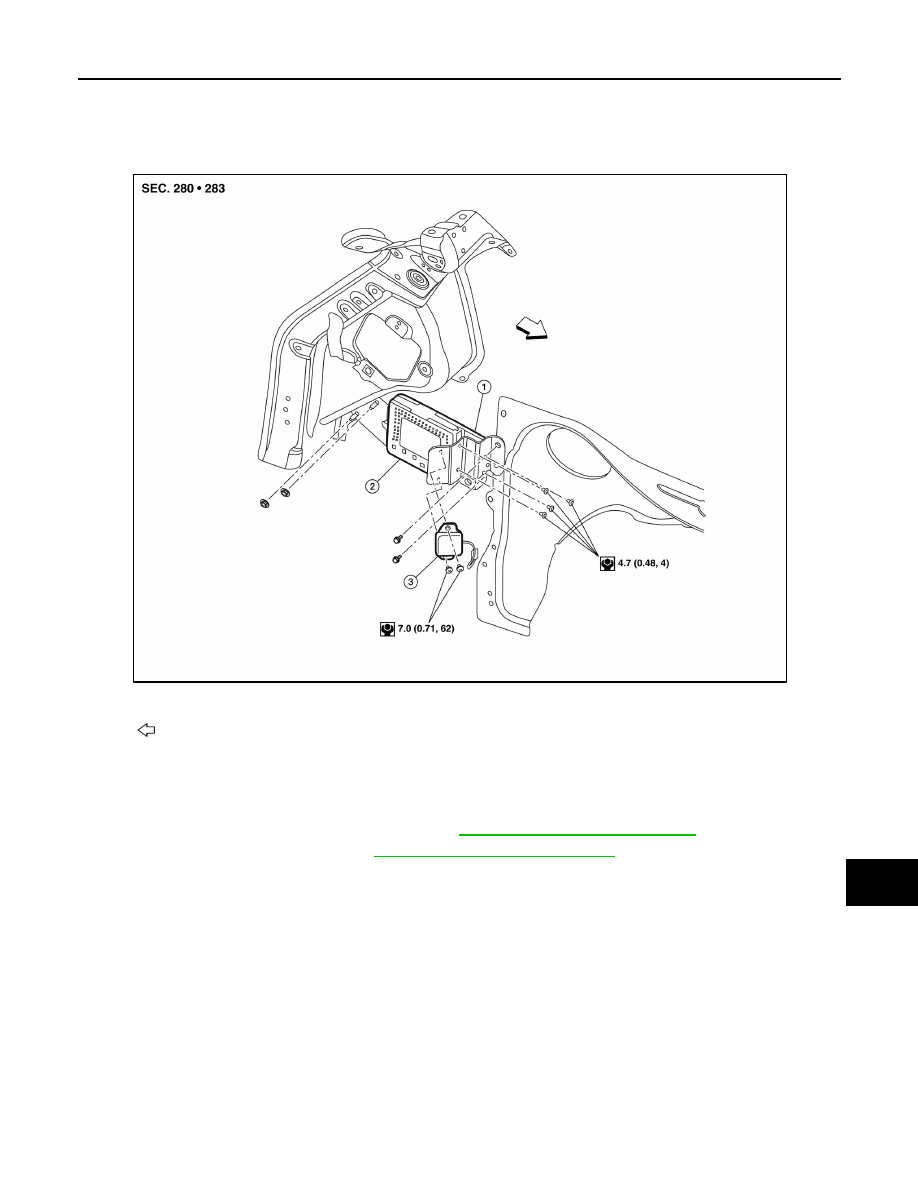

Exploded View

INFOID:0000000009174511

Removal and Installation

INFOID:0000000009174512

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

.

2. Remove satellite radio tuner. Refer to

AV-199, "Removal and Installation"

3. Disconnect the harness connectors from bluetooth control unit.
4. Remove bluetooth control unit screws and the bluetooth control unit.
5. Remove the bluetooth antenna screws and the bluetooth antenna.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth control unit

2.

Satellite radio tuner (if equipped) 3.

Bluetooth antenna

Front

ALNIA1464ZZ

AV-198

< REMOVAL AND INSTALLATION >

[MID AUDIO WITHOUT BOSE]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009174513

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-58, "Removal and Installation"

.

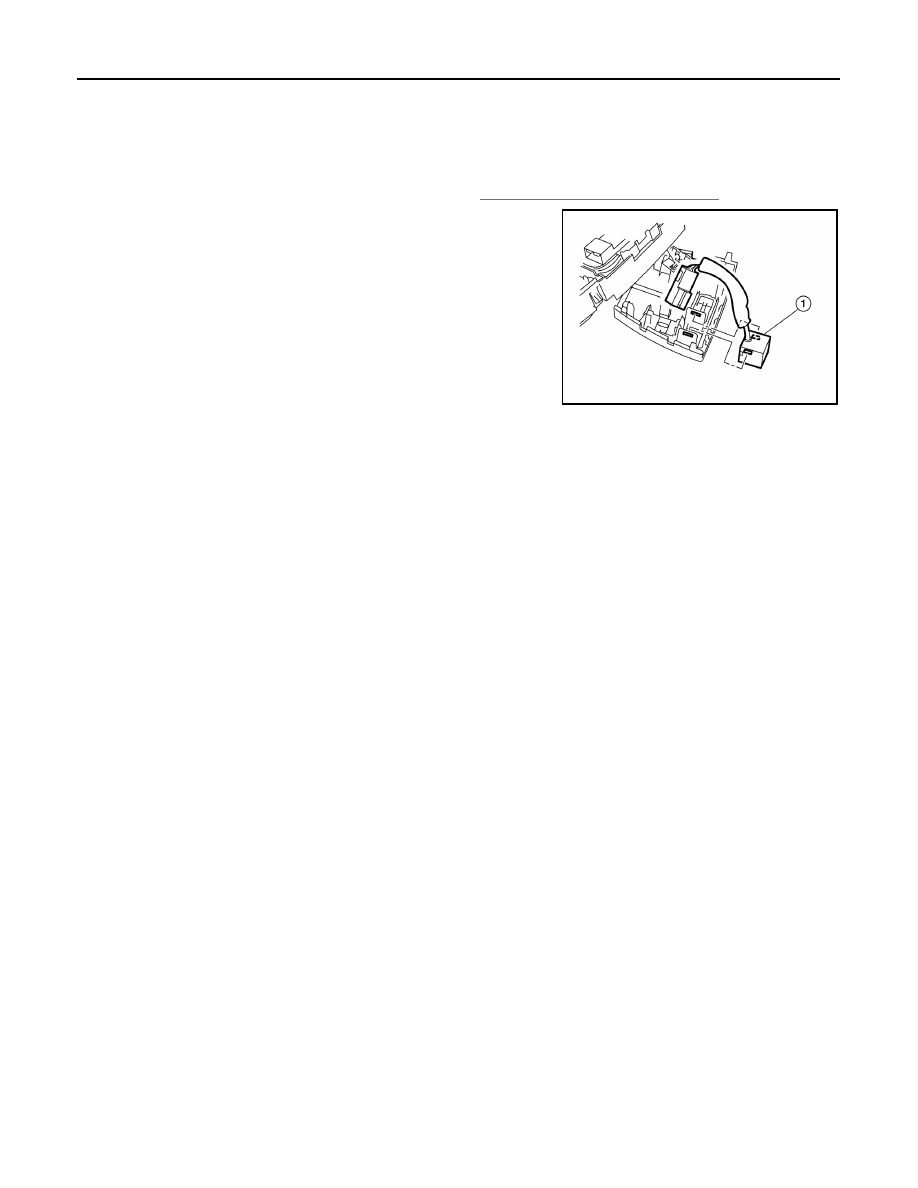

2. Remove the microphone (1) from the front room/map lamp

assembly.

CAUTION:

Carefully handle the pawls that retain the microphone to

avoid damaging.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure the microphone is firmly secure after installation.

AWNIA2584ZZ
