Nissan Pathfinder. Manual - part 96

SYSTEM

AV-211

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

SYSTEM

MULTI AV SYSTEM

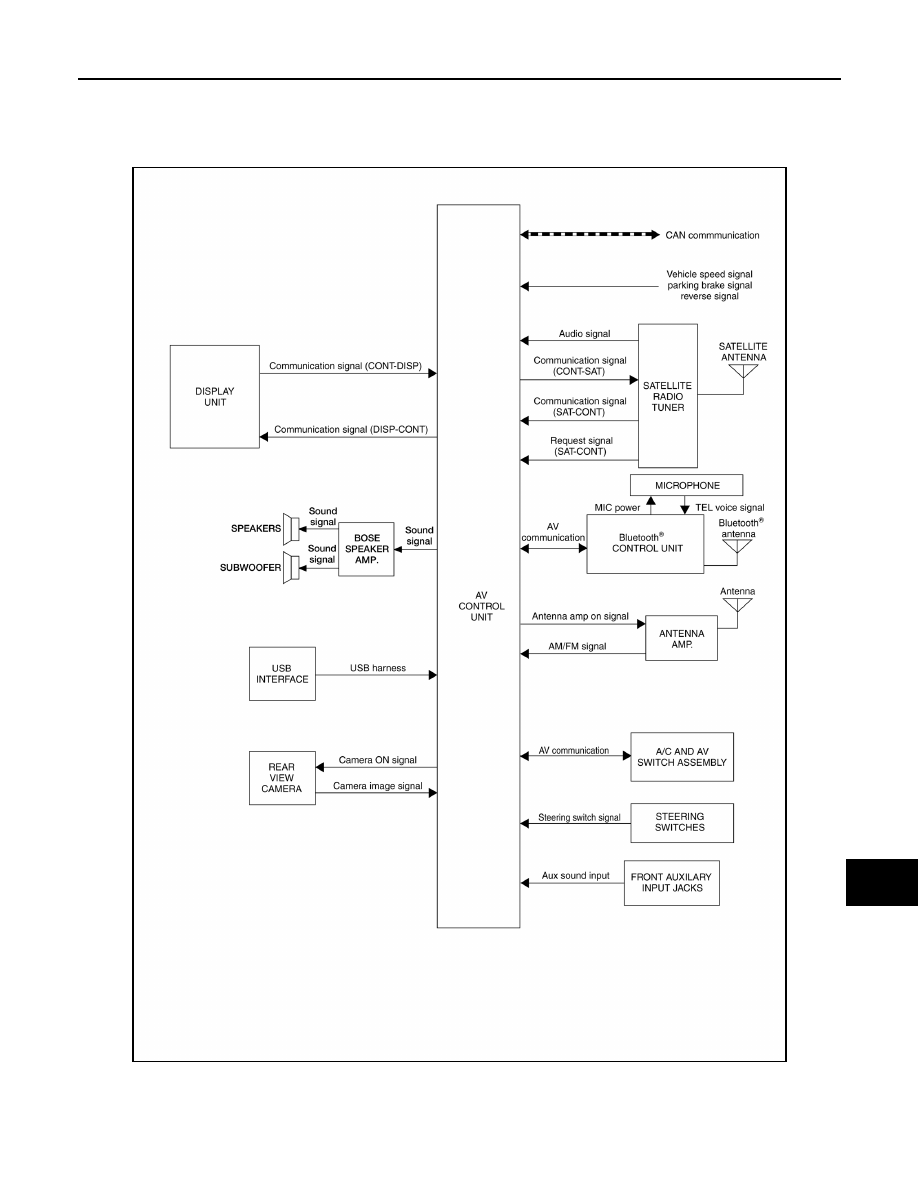

MULTI AV SYSTEM : System Diagram

INFOID:0000000009174530

MULTI AV SYSTEM : System Description

INFOID:0000000009174531

AUDIO SYSTEM

AWNIA2806GB

AV-212

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

SYSTEM

The audio system consists of the following components

• AV control unit

• A/C and AV switch assembly

• Display unit

• Steering switches

• Bose speaker amp.

• Instrument panel tweeters

• Center speaker

• Front tweeters

• Front door speakers

• Rear door speakers

• Rear side speakers

• Subwoofer

• Antenna

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the Bose speaker amp. The Bose speaker amp. amplifies the audio signals before

sending them to the speakers, tweeters and subwoofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the AV control unit.

Refer to Owner's Manual for satellite radio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

telephone

system.
The Bluetooth

telephone system allows users who have a Bluetooth

cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

cellular telephones may not be recognized by the Bluetooth

control unit. When a cellular telephone or the Bluetooth

control unit is replaced, the telephone must be paired

with the Bluetooth

control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

telephone system operating instructions.

Bluetooth

Control Unit

When the ignition switch is turned to ACC or ON, the Bluetooth

control unit will power up. During power up,

the Bluetooth

control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

control unit, Nissan Voice Recognition

will then become active. Bluetooth

telephone functions can be turned off using the Nissan Voice Recognition

system.

Steering Switches

When buttons on the steering switches are pushed, the resistance in steering switch circuits change, depend-
ing on which button is pushed. The Bluetooth

control unit uses this signal to perform various functions while

navigating through the voice recognition system.

The following functions can be performed using the steering switches:
• Initiate self-diagnosis of the Bluetooth

telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

Microphone

SYSTEM

AV-213

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

control unit. The microphone can be actively tested during self-diagnosis.

AV Control Unit

The AV control unit receives signals from the Bluetooth

control unit and sends audio signals to the speakers.

REAR VIEW CAMERA SYSTEM

When the shift selector is in the R position, the display shows a view to the rear of the vehicle. Lines which

indicate the vehicle clearance and distances are also displayed.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV-214

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Description

INFOID:0000000009174532

The AV control unit on board diagnosis includes the following functions:

• A/C and AV switch assembly self diagnosis that checks the ON/OFF operation (continuity) of each switch in

the A/C and AV switch assembly.

NOTE:

The hazard switch and disk eject switch are not included in this operation check.

• AV control unit on board diagnosis performs the following functions listed in the table below:

Perform CONSULT diagnosis if the AV control unit on board diagnosis does not start, the screen does not dis-

play anything, or the A/C and AV switch assembly self diagnosis does not function.

On Board Diagnosis Function

INFOID:0000000009174533

METHOD OF STARTING

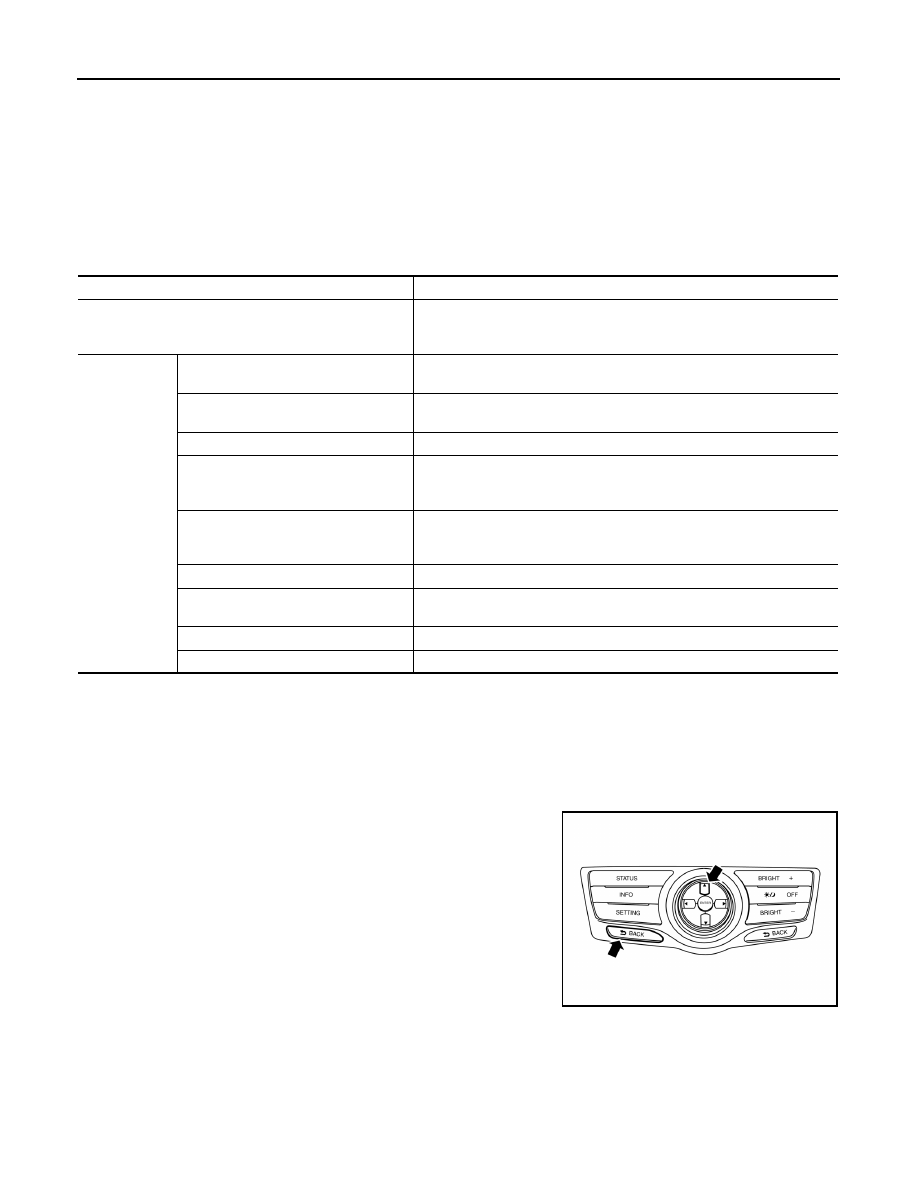

A/C and AV Switch Assembly Self Diagnosis

• Press the BACK and UP switches within 10 seconds after turning

the ignition switch from OFF to ACC and hold them for 3 seconds

or more.

• The buzzer sounds, all indicators of the switches illuminate, and

the self-diagnosis mode begins.

• The ON position continuity of each switch can be checked by

pressing the switch. The buzzer sounds if continuity is present.

• The self diagnosis mode is canceled when the ignition switch is

turned OFF.

AV Control Unit Self Diagnosis

1. Turn the ignition ON.

2. Turn the audio system OFF.

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• Diagnoses the connections across system components (between AV

control unit and each unit).

Confirmation/

Adjustment

Display Diagnosis

• Color tone check using color spectrum bar display and white display.
• Light and shade check by gradation bar display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition and reverse.

Speaker Test

Speaker connection can be confirmed by test tone.

Error History

• The system malfunction and frequency of past occurrences is displayed.
• When malfunctioning item is selected, time and place that the malfunc-

tion last occurred are displayed.

Camera Cont.

• Guiding line position that overlaps rear view camera image can be ad-

justed.

• Configuration stored in the AV control unit can be checked.

Vehicle CAN Diagnosis

Transmit/receive function of CAN communication can be monitored.

AV COMM Diagnosis

Communication condition of each unit of Multi AV system can be moni-
tored.

Delete Unit Connection Log

Erase connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

ALNIA1449ZZ
