EXL-188

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR COMBINATION LAMP

3.

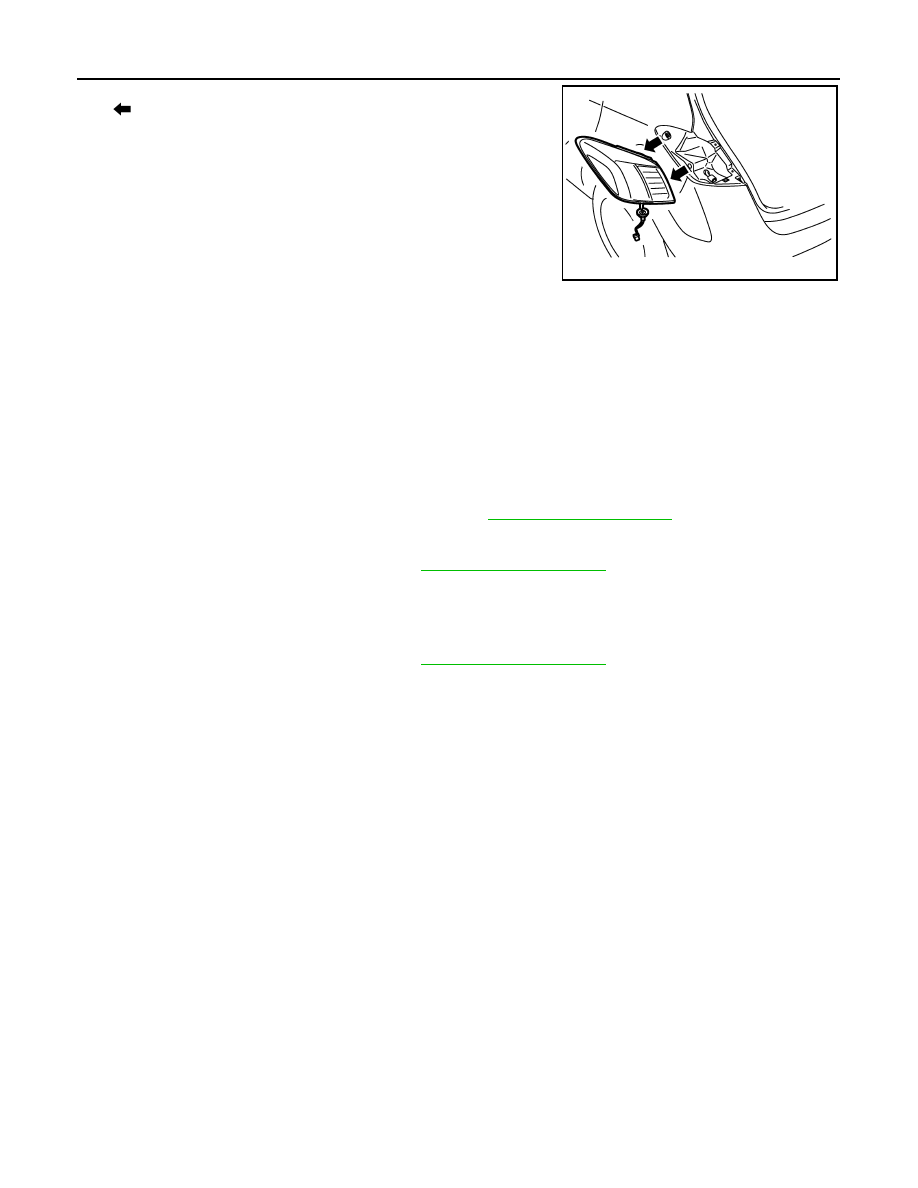

Pull the rear combination lamp toward outside of the vehicle
(

). Remove the rear combination lamp.

4.

Disconnect the rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009722978

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP

Replacement integral with rear combination lamp. Refer to

EXL-187, "Exploded View"

.

REAR SIDE MARKER LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-187, "Exploded View"

.

2.

Rotate the rear side marker lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear side marker lamp bulb socket.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-187, "Exploded View"

.

2.

Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear turn signal lamp bulb socket.

JPLIA1531ZZ

HIGH-MOUNTED STOP LAMP

EXL-189

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

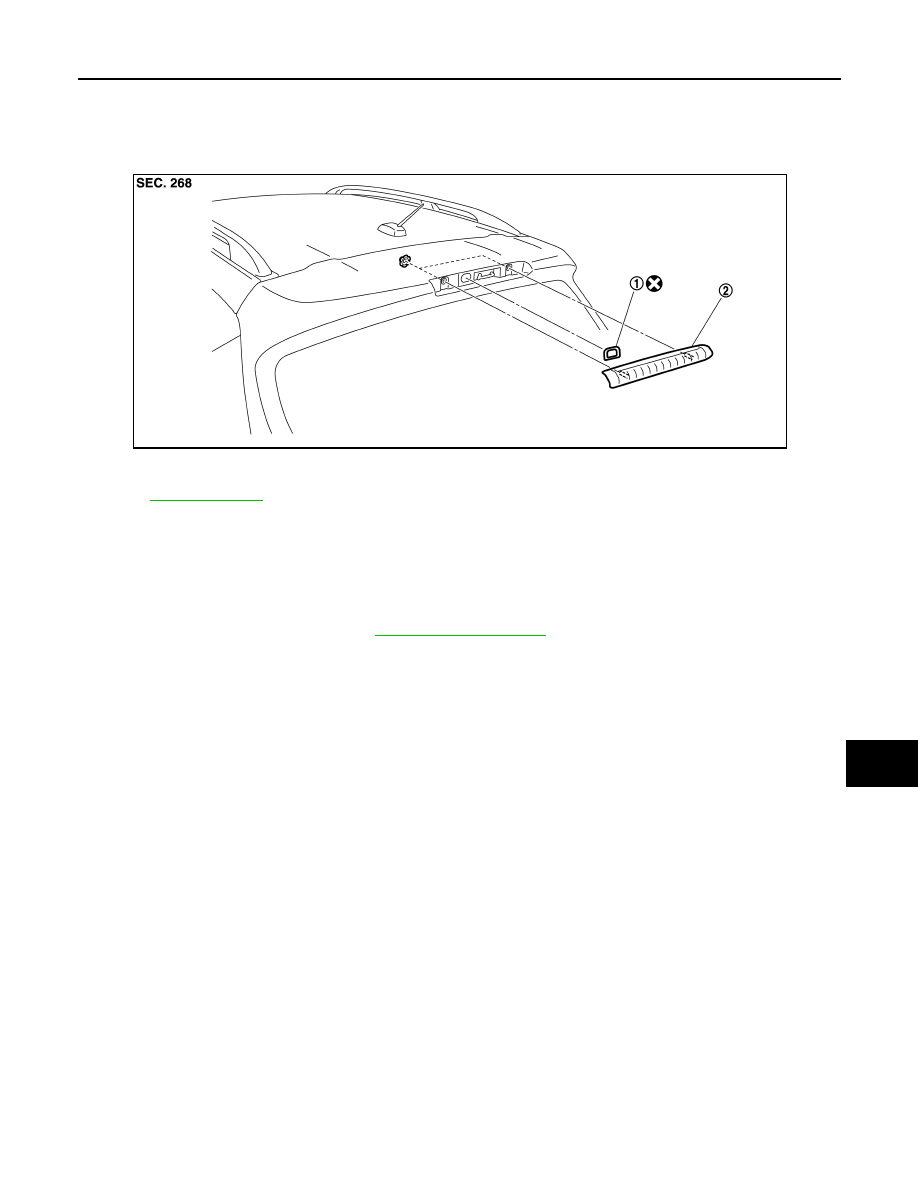

Exploded View

INFOID:0000000009722979

Removal and Installation

INFOID:0000000009722980

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door plate. Refer to

INT-38, "Exploded View"

.

2.

Remove the high-mounted stop lamp mounting nuts and connector.

3.

Pull the high-mounted stop lamp toward rear of the vehicle. Remove the rear washer tube.

4.

Disconnect the high-mounted stop lamp connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0823ZZ

EXL-190

< REMOVAL AND INSTALLATION >

[XENON TYPE]

BACK-UP LAMP

BACK-UP LAMP

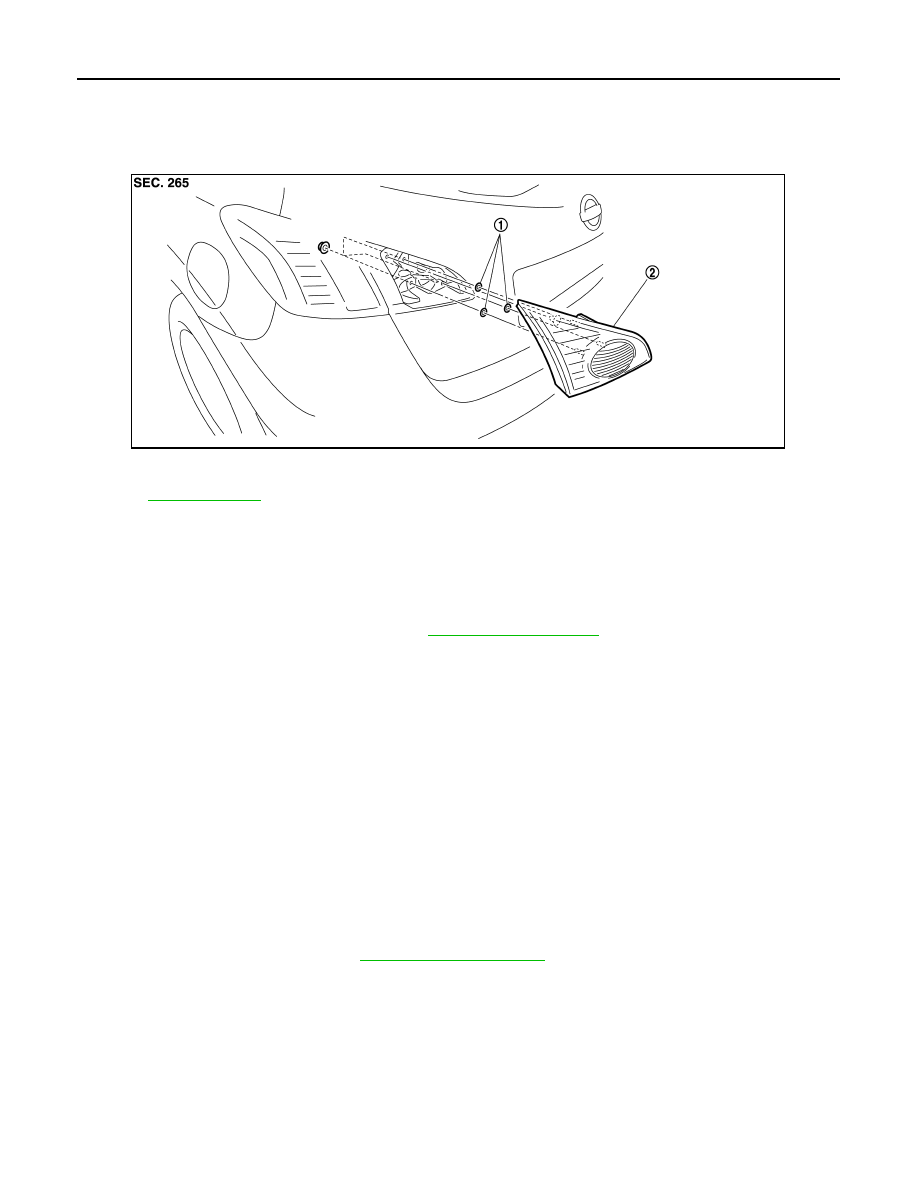

Exploded View

INFOID:0000000009722981

Removal and Installation

INFOID:0000000009722982

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove the back-up lamp mounting nuts and clip.

3.

Disconnect the back-up lamp connector. And then remove the back-up lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000009722983

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

BACK-UP LAMP BULB

1.

Remove the back-up lamp. Refer to

EXL-190, "Exploded View"

.

1.

Seal packing

2.

Back-up lamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0824ZZ

BACK-UP LAMP

EXL-191

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

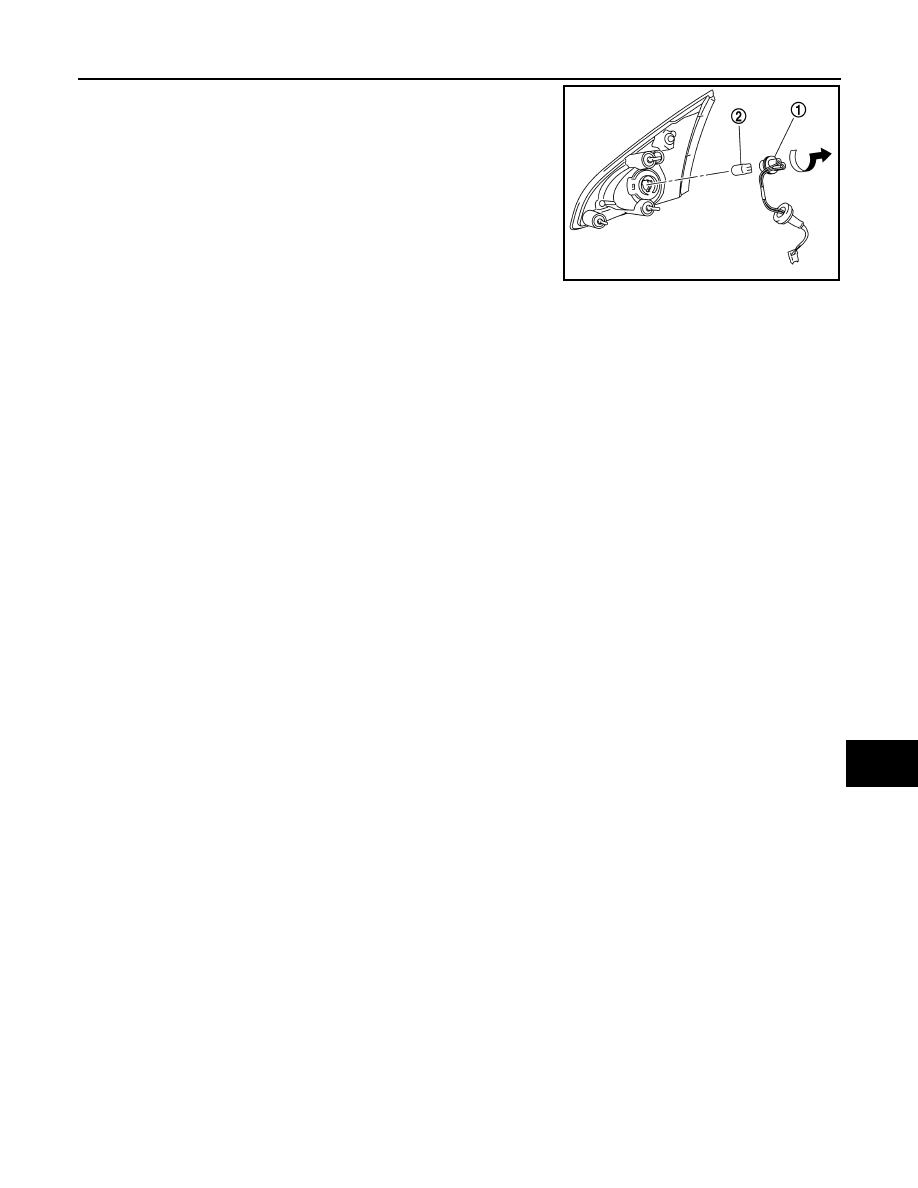

Disconnect the connector, rotate the back-up lamp bulb socket
(1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the back-up lamp bulb socket.

JPLIA0825ZZ
