EXL-180

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000009722964

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the xenon bulb socket counterclockwise and unlock it.

3.

Unlock the retaining spring. And then remove the xenon bulb.

4.

Remove the HID control unit installation screw.

5.

Remove the screw. And then disconnect the connector from HID control unit.

6.

Remove the xenon bulb socket from headlamp housing assembly.

7.

Rotate the parking lamp bulb socket counterclockwise and unlock it.

8.

Remove the bulb from parking lamp bulb socket.

9.

Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

10. Remove the bulb from front turn signal lamp bulb socket.
11. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

12. Remove the bulb from front side marker lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install HID control unit securely.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

FRONT FOG LAMP

EXL-181

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

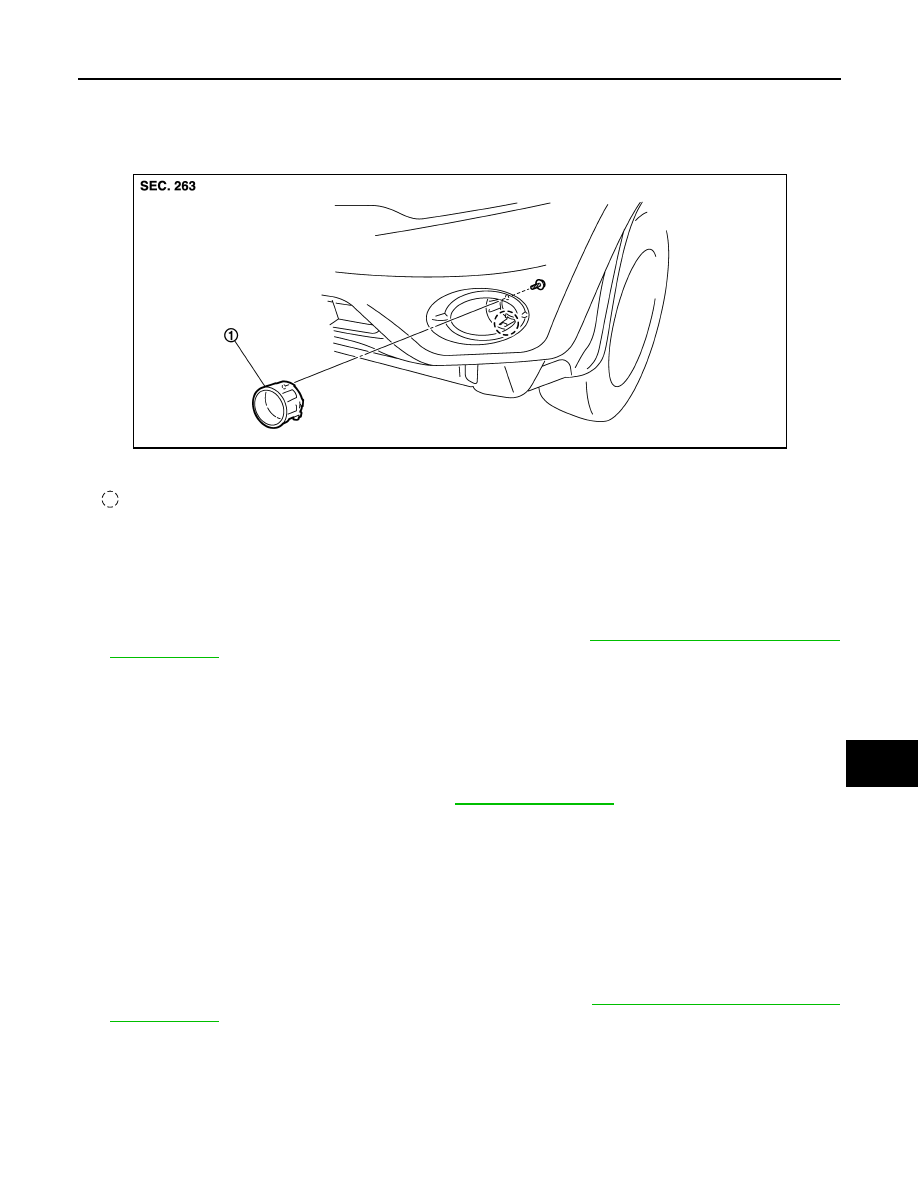

FRONT FOG LAMP

Exploded View

INFOID:0000000009722965

Removal and Installation

INFOID:0000000009722966

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the front fender protector. Keep a service area. Refer to

EXT-26, "FENDER PROTECTOR :

Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the screw.

4.

Disengage the pawl. And then remove the front fog lamp.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-176, "Description"

Replacement

INFOID:0000000009722967

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the front fender protector. Keep the service area. Refer to

EXT-26, "FENDER PROTECTOR :

Exploded View"

.

1.

Front fog lamp

: Pawl

JPLIA1592ZZ

EXL-182

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT FOG LAMP

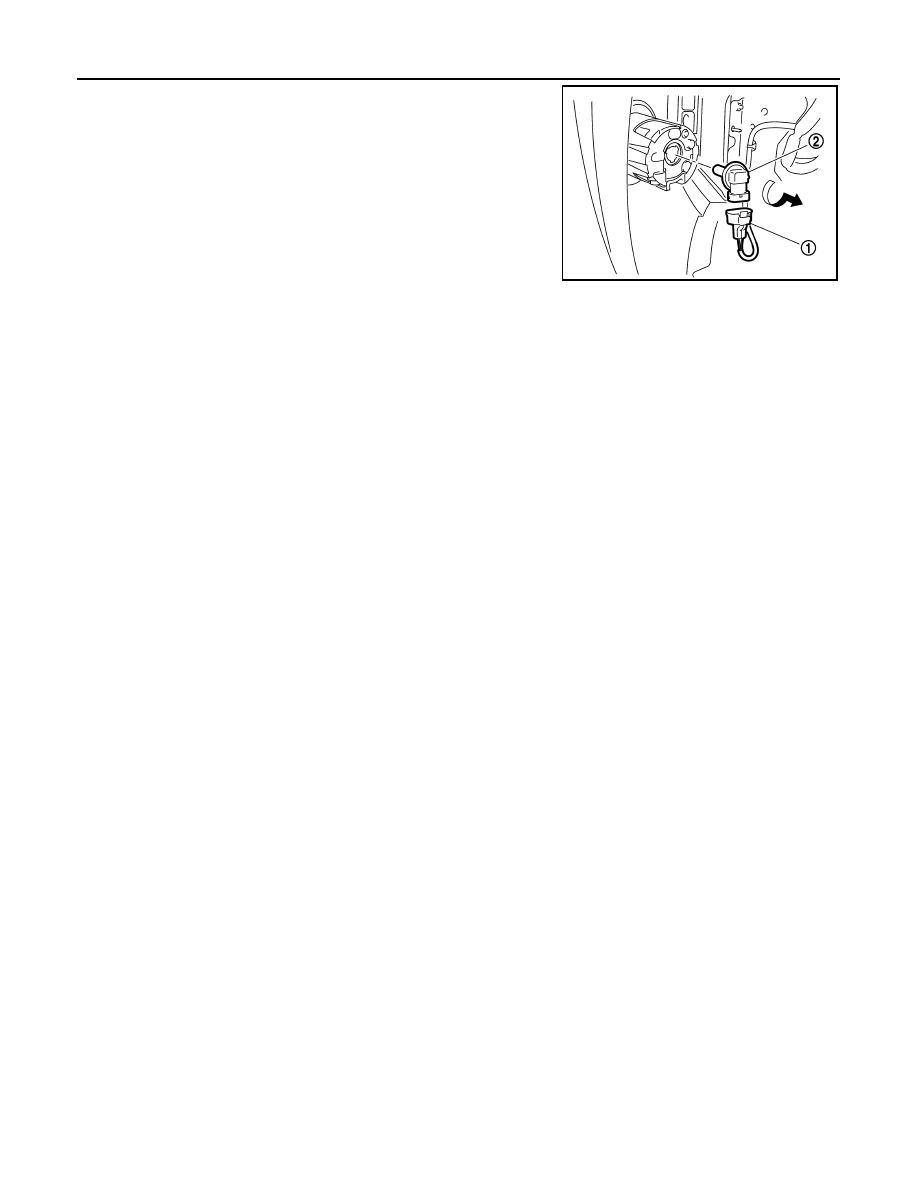

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0816ZZ

OPTICAL SENSOR

EXL-183

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

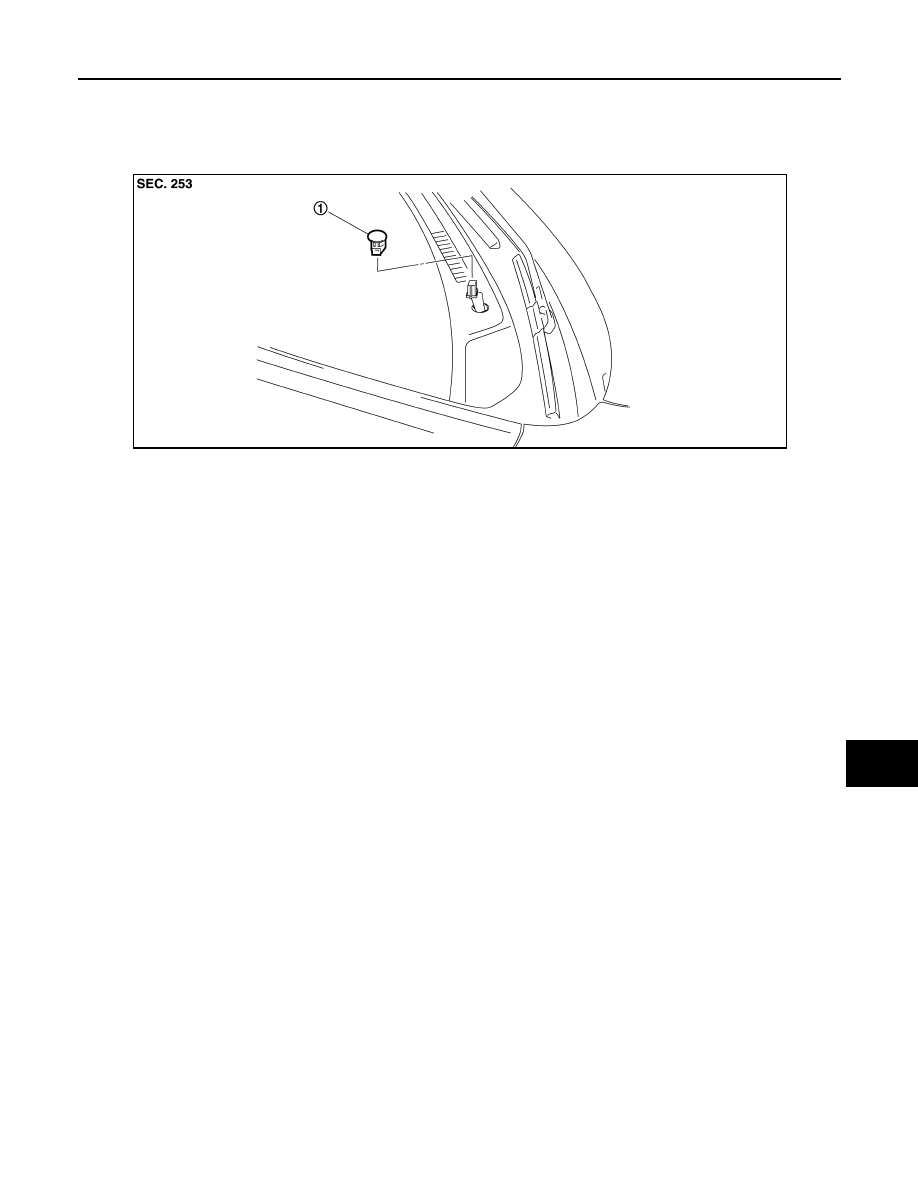

OPTICAL SENSOR

Exploded View

INFOID:0000000009722968

Removal and Installation

INFOID:0000000009722969

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.

2.

Disconnect the optical sensor connector. And then remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

JPLIA0818ZZ
